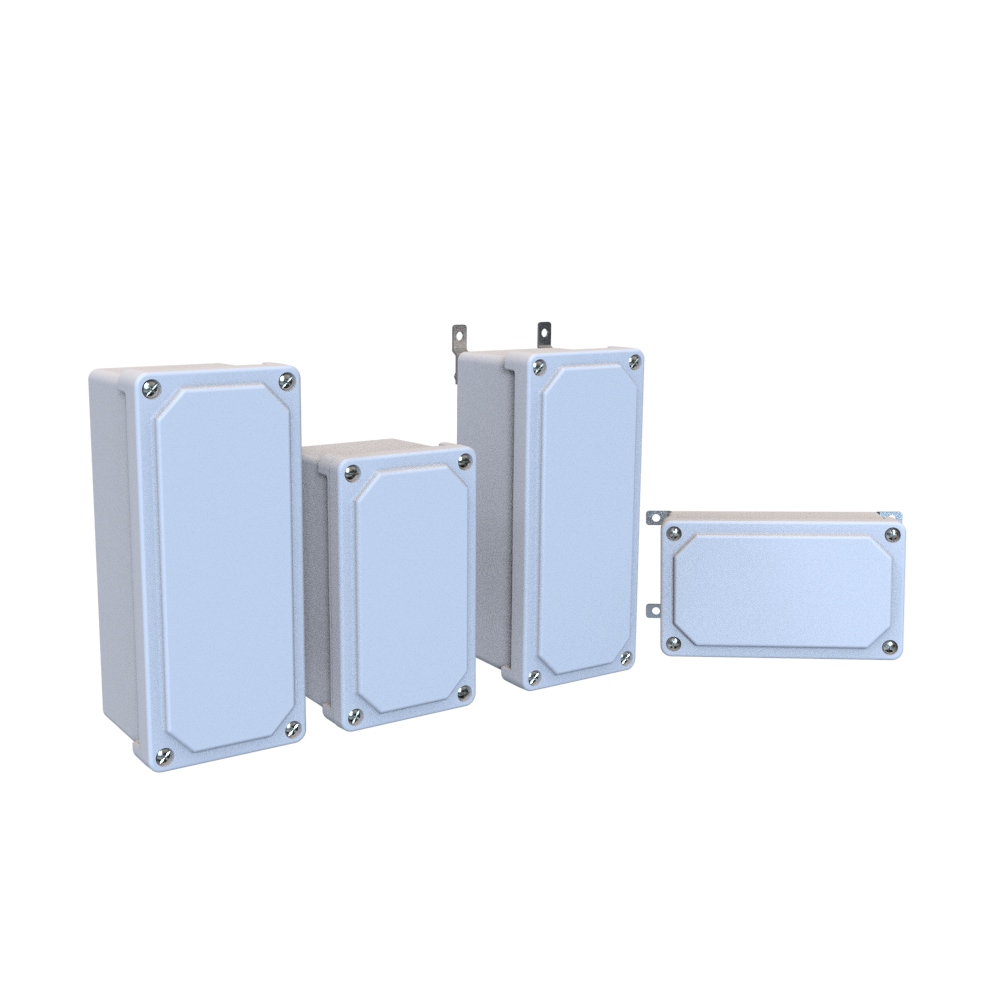

Type 4, 4X Polyester Inline Enclosure · PJI Series

Application

• ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
• ■Provides outstanding insulation and protection where equipment may be hosed down or become very wet.
• ■Ideal in applications with high temperatures or highly corrosive environments.

Standards

• ■UL 508A Type 1, 2, 3, 4, 4X, 12 and 13
• ■cUL Type 1, 2, 3, 4, 4X, 12 and 13 per CSA 22.2 No. 94
• ■Complies with NEMA Type 1, 2, 3, 4, 4X, 12 and 13 IEC 60529, IP66
• ■NEMA Type 1, 2, 3, 4, 4X, 12 and 13
• ■IEC 60529, IP66

Construction

• ■Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.
• ■Threaded brass inserts are provided for optional inner panel.
• ■Cover is fastened with captive stainless steel screws in threaded brass inserts.
• ■Captive oil-resistant gasket provides a positive seal.
• ■Mounting through rear holes on enclosure. Use #8 x 1 inch screw (not included).
• ■Enhanced UV inhibitors protect against outdoor weathering.

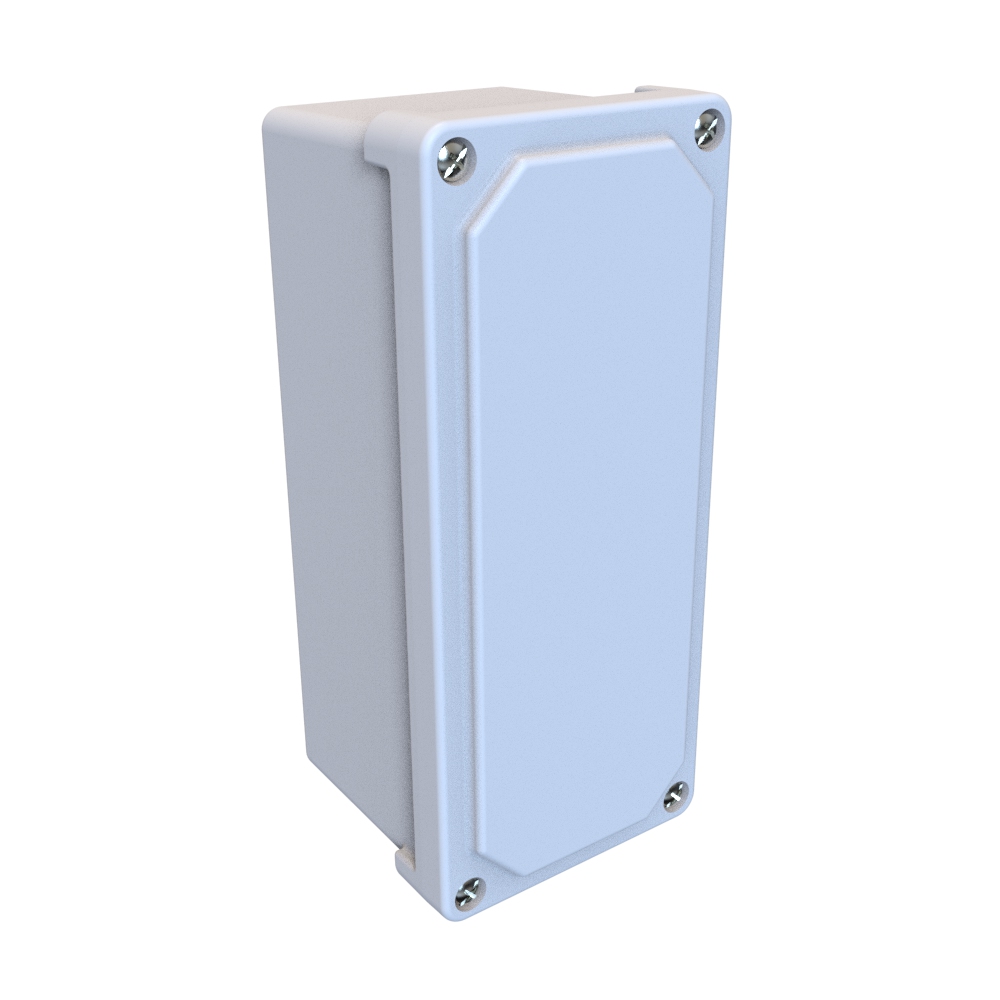

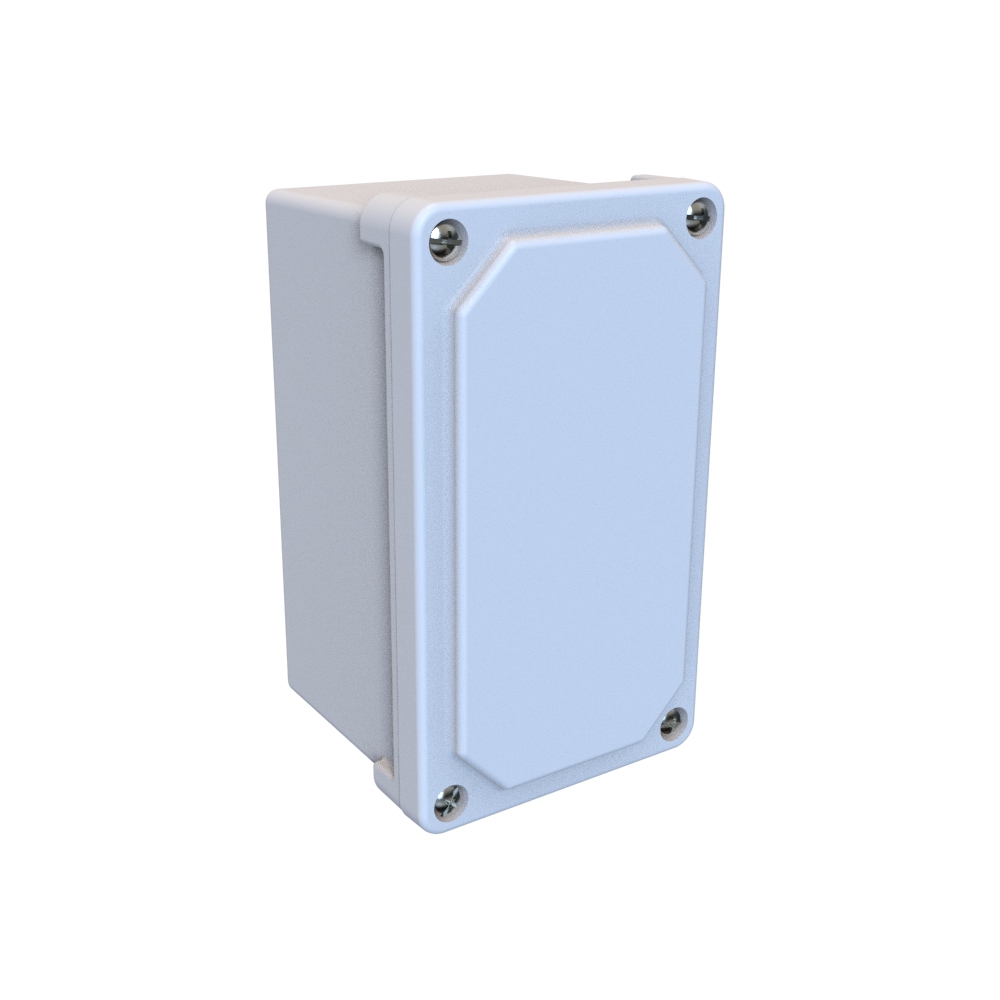

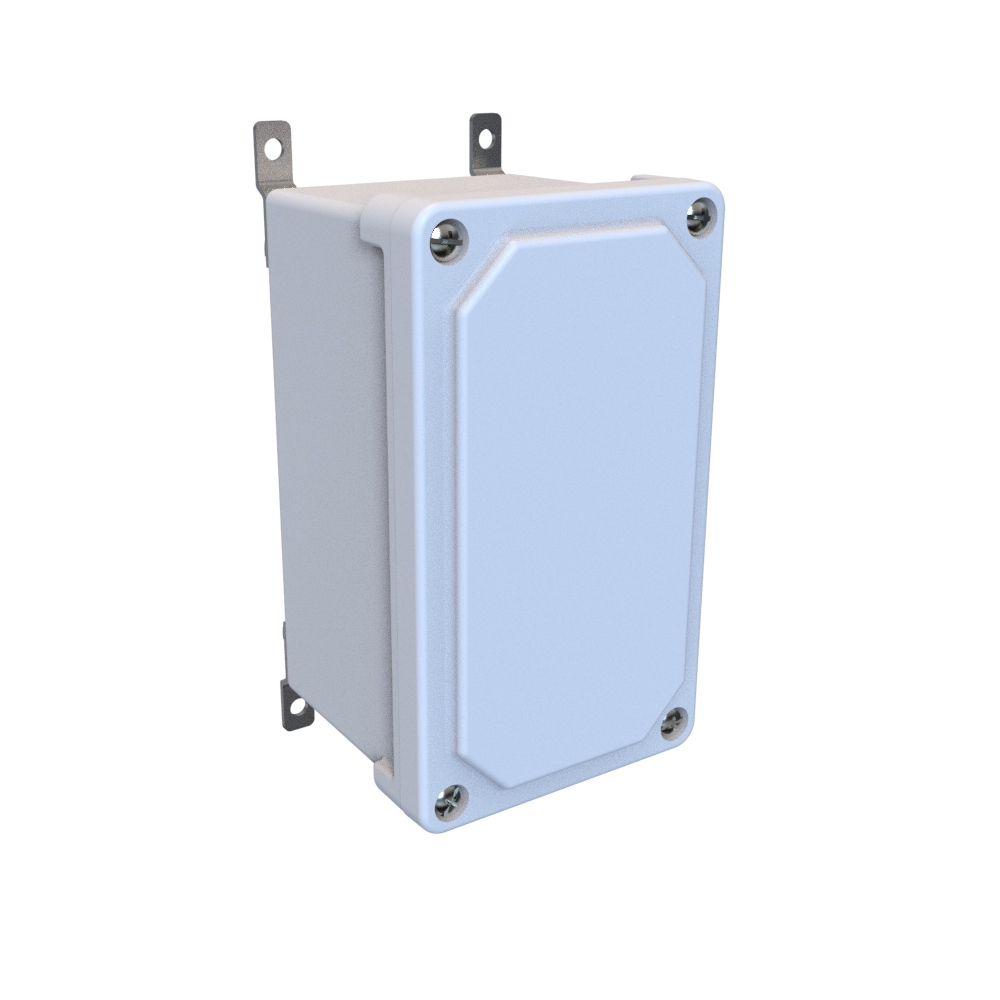

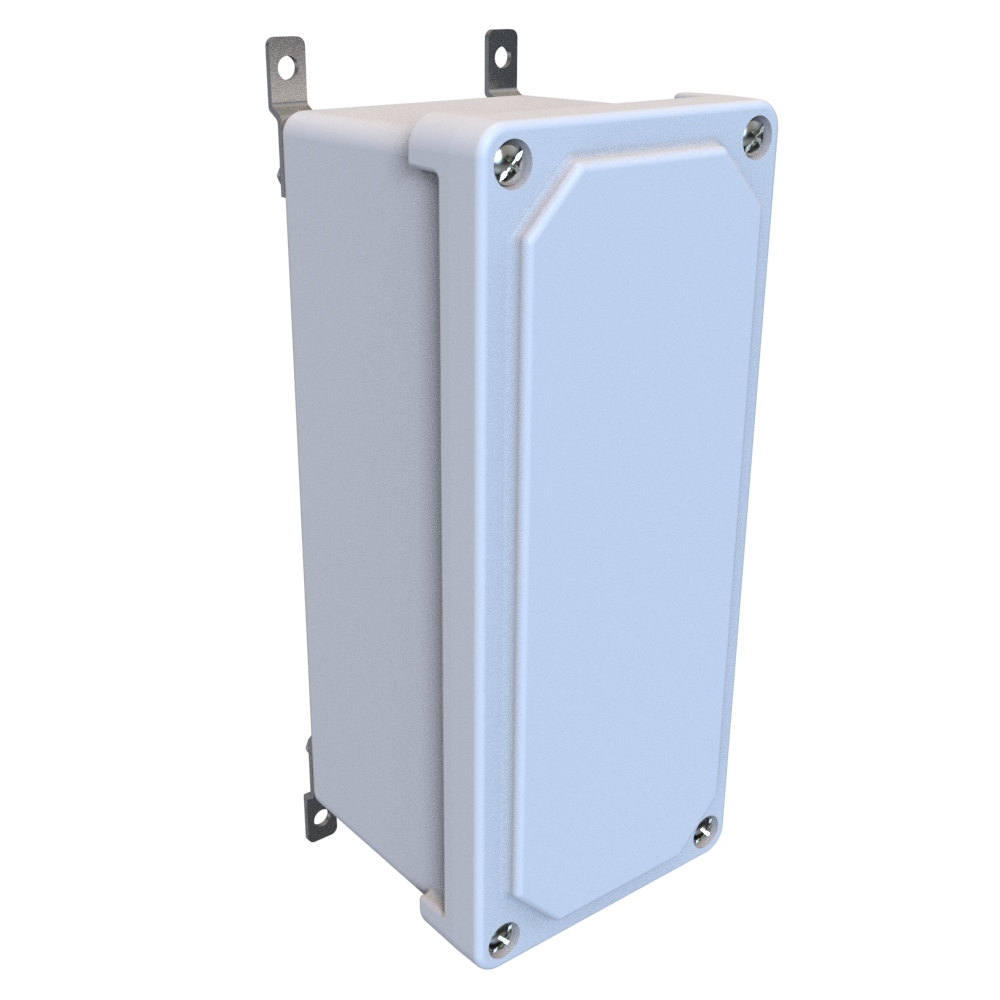

• ■Available with and without mounting feet.
• ■Operating temperatures between 130°C and -40°C (266°F to -40°F).
• ■Impact index of 6.78J (5 ft/lb).
• ■For corrosion resistance information, please refer to table in Technical Information .

Finish

Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)

Units shown: inch . Switch units to: mm

• ■Fiberglass polyester material has a gray finish.

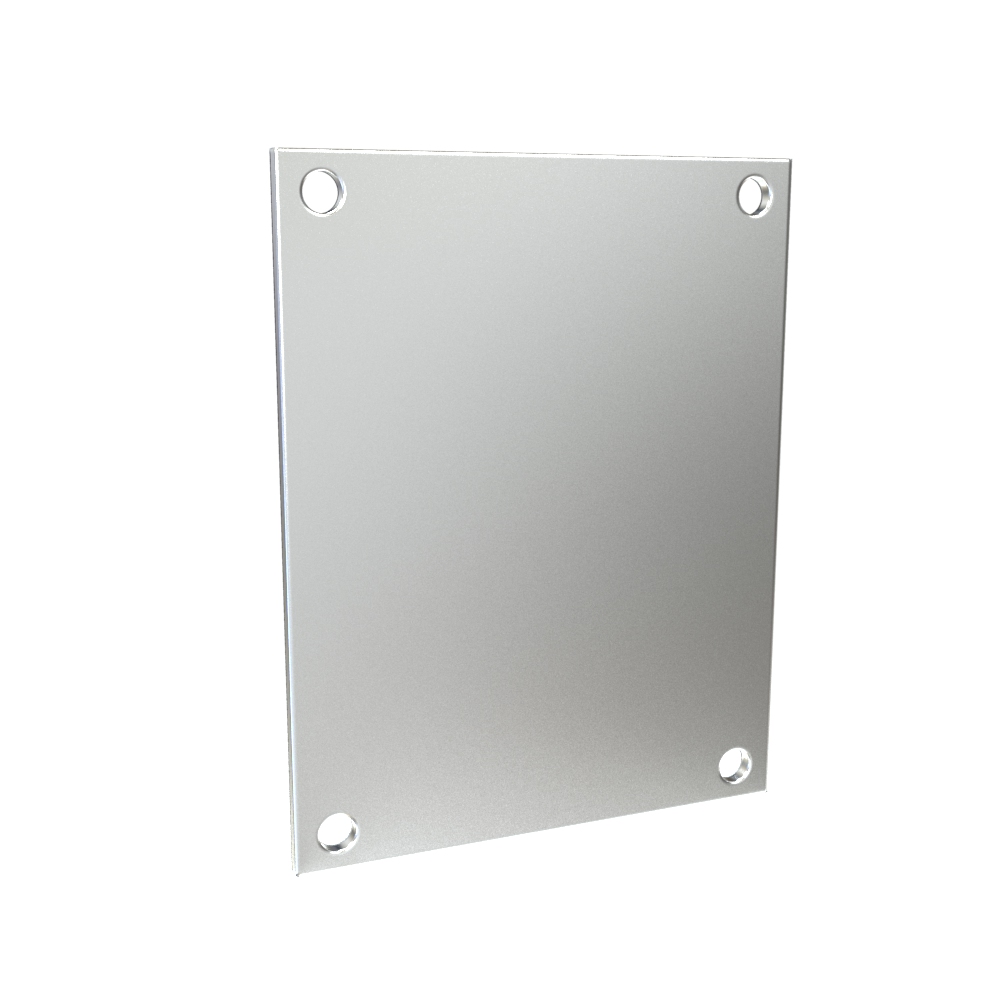

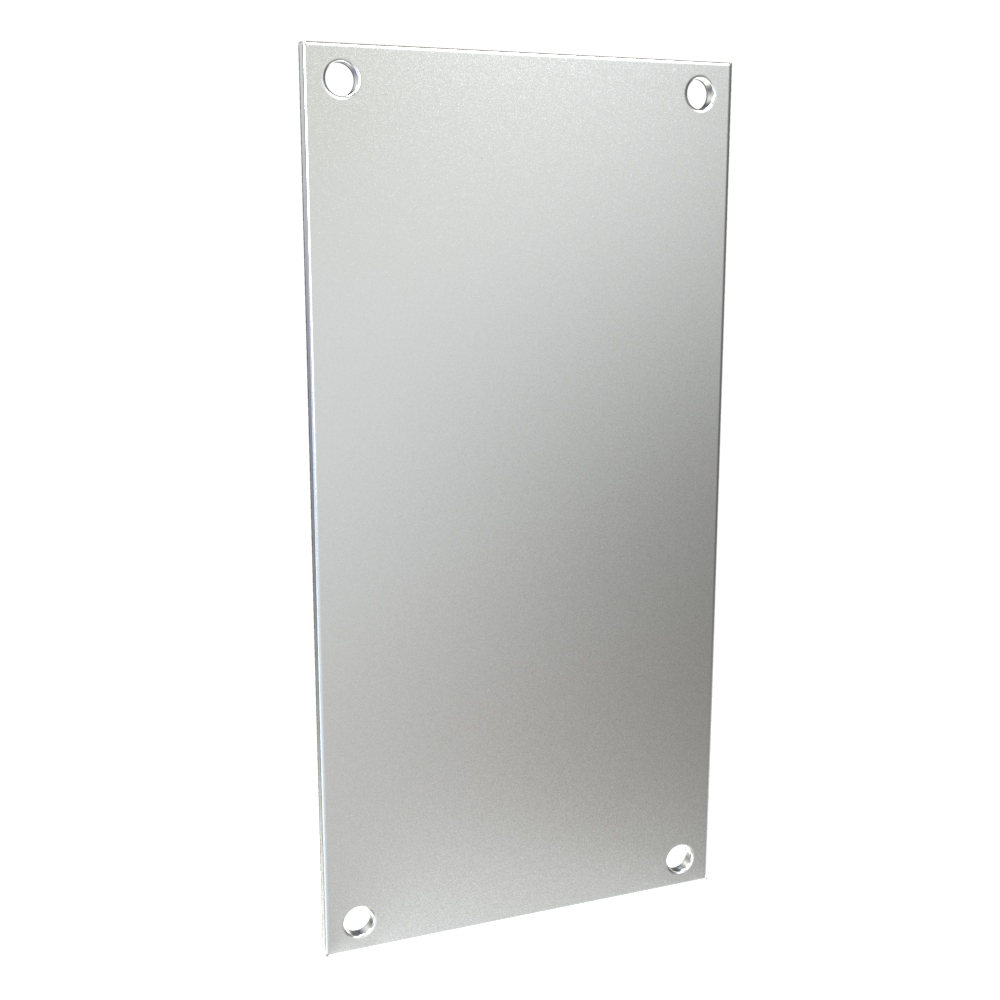

• ■Optional aluminum inner panel natural finish.
