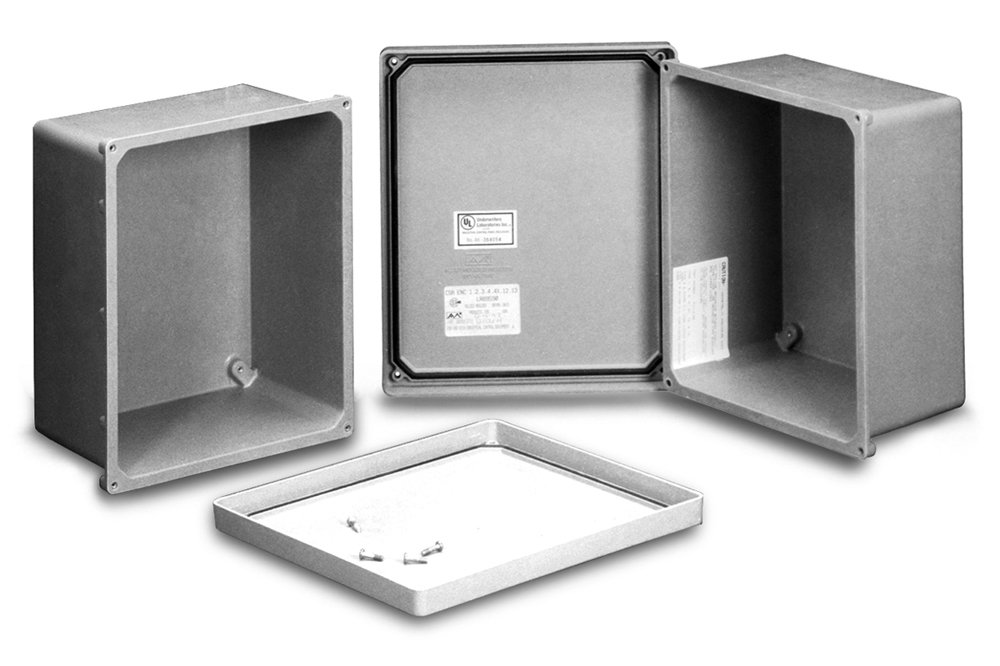

Type 4X Polyester Junction Box PJ Series

Type 4X Polyester Junction Box · PJ Series

Brand: Hammond Manufacturing · 31 part numbers

Lift-Off Cover/Hinged Door with Screws

  • ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • ■Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
  • ■Ideal in applications with high temperatures or highly corrosive environments.
  • ■UL 508A Type 1, 2, 3, 4, 4X, 12 and 13
  • ■UL 508A Type 6P (see table)
  • ■cULType 1, 2, 3, 4, 4X, 12 and 13 per CSA 22.2 No. 94

from $5.35

29 of 31 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocumentsAdditional information

Configure & price

Find your PJ Series part number

Filter 22 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

22 of 22 part numbers · 20 priced online

PJ1084

Non Metallic Screw Cover

$87.15In stock
Buy now
PJ1084H

Non Met Hinged Screw Cover

$96.57In stock
Buy now
PJ1086

Non Metallic Screw Cover

$89.31In stock
Buy now
PJ1086H

Non Met Hinged Screw Cover

$102.66In stock
Buy now
PJ12106

Non Metallic Screw Cover

$116.05In stock
Buy now
PJ12106H

Non Metalllic Hinged Screw Cov

$123.71In stock
Buy now
PJ12124

Non Metallic Screw Cover

$124.11In stock
Buy now
PJ12124H

Non Metalllic Hinged Screw Cov

$132.35In stock
Buy now
PJ12126

Non Metallic Screw Cover

$128.11In stock
Buy now
PJ12126H

Non Metalllic Hinged Screw Cov

$136.61In stock
Buy now
PJ14126

Non Metallic Screw Cover

$133.69In stock
Buy now
PJ14126H

Non Metallic Hinged Screw Cov

$141.49In stock
Buy now
PJ16148

Non Metallic Screw Cover

$156.50In stock
Buy now
PJ16148H

Non Metallic Hinged Screw Cove

$164.74In stock
Buy now
PJ18168

Non Metallic Screw Cover

$224.75Backorder
Buy now
PJ18168H

Non Metallic Hinged Screw Cove

$230.26In stock
Buy now
PJ20168H

Non Metallic Hinged Screw Cove

$357.37In stock
Buy now
PJ664

Non Metallic Screw Cover

$79.32In stock
Buy now
PJ864

Non Metallic Screw Cover

$83.80In stock
Buy now
PJ864H

Non Metallic Hinged Screw Cove

$89.85In stock
Buy now
Dimension tables (inches / mm)

Units shown: inch . Switch units to: mm

Lift-Off Cover · Part No.Hinged Cover · Part No.Enclosure · HEnclosure · WEnclosure · DOptional Inner Panel · HOptional Inner Panel · WOptional Inner Panel · Part No.PriceOrder
PJ664PJ664H6.106.104.134.884.8814R0505$79.32In stockPJ664Buy now
PJ864PJ864H8.006.124.136.754.8814R0705$83.80In stockPJ864Buy now
PJ1084PJ1084H10.138.264.138.756.8814R0907$87.15In stockPJ1084Buy now
PJ1086PJ1086H10.138.266.138.756.8814R0907$89.31In stockPJ1086Buy now
PJ12106PJ12106H12.1310.266.1310.758.8814R1109$116.05In stockPJ12106Buy now
PJ12124PJ12124H12.1312.134.1310.7510.8814R1111$124.11In stockPJ12124Buy now
PJ12126PJ12126H12.1312.136.1310.7510.8814R1111$128.11In stockPJ12126Buy now
PJ14126PJ14126H14.1312.266.1312.7510.8814R1311$133.69In stockPJ14126Buy now
PJ16148PJ16148H16.2714.408.1314.7512.8814R1513$156.50In stockPJ16148Buy now
PJ18168PJ18168H18.4016.408.1316.8814.88P1868$224.75BackorderPJ18168Buy now
PJ20168PJ20168H20.0016.008.1318.4414.44P2068$357.37In stockPJ20168HBuy now

Application

  • ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • ■Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
  • ■Ideal in applications with high temperatures or highly corrosive environments.

Standards

  • ■UL 508A Type 1, 2, 3, 4, 4X, 12 and 13
  • ■UL 508A Type 6P (see table)
  • ■cULType 1, 2, 3, 4, 4X, 12 and 13 per CSA 22.2 No. 94
  • ■cUL Type 6P (see table) per CSA 22.2 No. 94
  • ■Complies with NEMA Type 1, 2, 3, 4, 4X,12 and 13 IEC 60529, IP66 (for IP68 - see table)
  • ■NEMA Type 1, 2, 3, 4, 4X,12 and 13
  • ■IEC 60529, IP66 (for IP68 - see table)

Construction

  • ■Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.
  • ■Enhanced UV inhibitors protect against outdoor weathering.
  • ■Standard JIC sizes under 18" x 16".
  • ■10-32 threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware included.
  • ■Cover is fastened with captive stainless steel screws in threaded brass inserts.
  • ■Captive oil resistant gasket provides a positive seal.
  • ■Threaded brass inserts are provided for mounting feet to the rear of the enclosure.
  • ■Stainless steel mounting brackets and hardware are provided for mounting feet to the rear of the enclosure.
  • ■Operating temperatures between 130°C and -40°C (266°F to -40°F).
  • ■Impact index of 6.78J (5 ft/lb).
  • ■For corrosion resistance information, please refer to table in the Technical Information section.

Finish

  • ■Fiberglass polyester material has a gray finish.
  • ■Optional inner panels are available in white powder coated finished steel, unfinished aluminum, or Fiberglass.

Documents

Specification Sheet

Additional information

Part Details

Lift-Off Cover · Part No.Hinged Cover · Part No.Enclosure · HEnclosure · WEnclosure · DOptional Inner Panel · HOptional Inner Panel · WOptional Inner Panel · Part No.
PJ664 ¹PJ664H6.106.104.134.884.8814R0505
PJ864 ¹PJ864H8.006.124.136.754.8814R0705
PJ1084 ¹PJ1084H10.138.264.138.756.8814R0907
PJ1086 ¹PJ1086H10.138.266.138.756.8814R0907
PJ12106 ¹PJ12106H12.1310.266.1310.758.8814R1109
PJ12124 ¹PJ12124H12.1312.134.1310.7510.8814R1111
PJ12126 ¹PJ12126H12.1312.136.1310.7510.8814R1111
PJ14126 ¹PJ14126H14.1312.266.1312.7510.8814R1311
PJ16148PJ16148H16.2714.408.1314.7512.8814R1513
PJ18168PJ18168H18.4016.408.1316.8814.88P1868
PJ20168PJ20168H20.0016.008.1318.4414.44P2068
