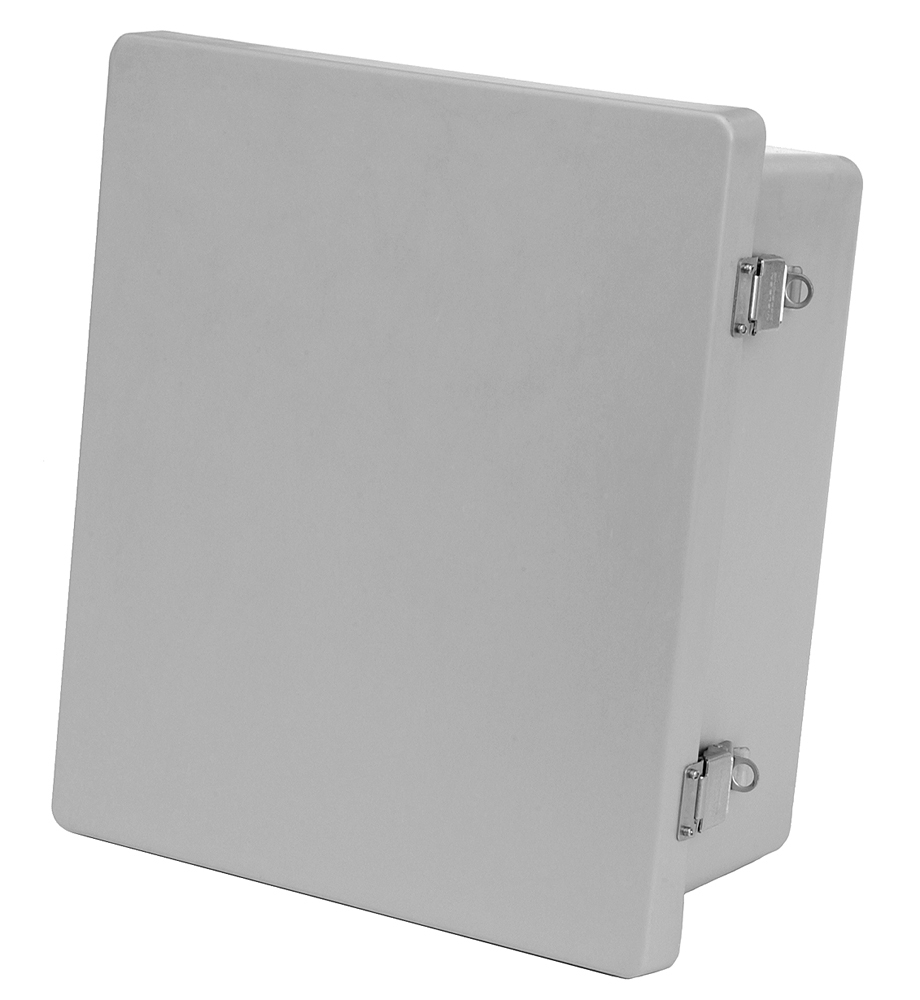

Type 4X Polyester Junction Box PJ Series

Type 4X Polyester Junction Box · PJ Series

Brand: Hammond Manufacturing · 31 part numbers

Continuous Hinge Door with Twist/Snap Latches

  • ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • ■Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
  • ■Ideal in applications with high temperatures or highly corrosive environments.
  • ■UL 508A Type 1, 2, 3, 4, 4X, 12, & 13
  • ■cUL Type 1, 2, 3, 4, 4X, 12, & 13 per CSA 22.2 No. 94
  • ■Complies with NEMA Type 1, 2, 3, 4, 4X,12, & 13 IEC 60529, IP66

from $5.35

31 of 31 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocumentsAdditional information

Configure & price

Find your PJ Series part number

Filter 22 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

22 of 22 part numbers · 22 priced online

PJ1084L

Non Metalllic Snap Latch

$117.13In stock
Buy now
PJ1086L

Non Metalllic Snap Latch

$126.53In stock
Buy now
PJ1086T

Non Metallic Twist Latch

$126.53In stock
Buy now
PJ664L

Non Metallic Snaplatch

$104.85In stock
Buy now
PJ664T

Non Metalllic Twist Latch

$104.85In stock
Buy now
PJ864L

Non Metallic Snaplatch

$108.75In stock
Buy now
PJ864T

Non Metallic Twist Latch

$108.75In stock
Buy now
Dimension tables (inches / mm)

Snap Latch

Units shown: inch . Switch units to: mm

Part No.Enclosure · HEnclosure · WEnclosure · DOptional Inner Panel · HOptional Inner Panel · WOptional Inner Panel · Part No.PriceOrder
PJ664L6.106.104.184.884.8814R0505$104.85In stockPJ664LBuy now
PJ864L8.006.124.136.754.8814R0705$108.75In stockPJ864LBuy now
PJ1084L10.138.264.138.756.8814R0907$117.13In stockPJ1084LBuy now
PJ12124L12.1312.134.1310.7510.8814R1111$148.97In stockPJ12124LBuy now
PJ1086L10.138.266.138.756.8814R0907$126.53In stockPJ1086LBuy now
PJ12106L12.1310.266.1310.758.8814R1109$139.29In stockPJ12106LBuy now
PJ12126L12.1312.136.1310.7510.8814R1111$153.81In stockPJ12126LBuy now
PJ14126L14.1312.266.1312.7510.8814R1311$165.95In stockPJ14126LBuy now
PJ16148L16.2714.408.1314.7512.8814R1513$188.16In stockPJ16148LBuy now
PJ18168L18.4016.408.1316.8814.88P1868$250.82In stockPJ18168LBuy now
PJ20168L20.0016.008.1318.4414.44P2068$371.26In stockPJ20168LBuy now

Twist Latch

Units shown: inch . Switch units to: mm

Part No.Enclosure · HEnclosure · WEnclosure · DOptional Inner Panel · HOptional Inner Panel · WOptional Inner Panel · Part No.PriceOrder
PJ664T6.106.104.184.884.8814R0505$104.85In stockPJ664TBuy now
PJ864T8.006.124.136.754.8814R0705$108.75In stockPJ864TBuy now
PJ1084T10.138.264.138.756.8814R0907$117.13In stockPJ1084TBuy now
PJ12124T12.1312.134.1310.7510.8814R1111$148.97In stockPJ12124TBuy now
PJ1086T10.138.266.138.756.8814R0907$126.53In stockPJ1086TBuy now
PJ12106T12.1310.266.1310.758.8814R1109$139.29In stockPJ12106TBuy now
PJ12126T12.1312.136.1310.7510.8814R1111$153.81In stockPJ12126TBuy now
PJ14126T14.1312.266.1312.7510.8814R1311$165.95In stockPJ14126TBuy now
PJ16148T16.2714.408.1314.7512.8814R1513$188.16In stockPJ16148TBuy now
PJ18168T18.4016.408.1316.8814.88P1868$250.82In stockPJ18168TBuy now
PJ20168T20.0016.008.1318.4414.44P2068$371.26In stockPJ20168TBuy now

Application

  • ■Designed for use as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures.
  • ■Provides outstanding insulation and protection where equipment may be hosed down or be very wet.
  • ■Ideal in applications with high temperatures or highly corrosive environments.

Standards

  • ■UL 508A Type 1, 2, 3, 4, 4X, 12, & 13
  • ■cUL Type 1, 2, 3, 4, 4X, 12, & 13 per CSA 22.2 No. 94
  • ■Complies with NEMA Type 1, 2, 3, 4, 4X,12, & 13 IEC 60529, IP66
  • ■NEMA Type 1, 2, 3, 4, 4X,12, & 13
  • ■IEC 60529, IP66

Construction

  • ■Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.
  • ■Enhanced UV inhibitors protect against outdoor weathering.
  • ■10-32 threaded brass inserts are provided for optional inner panel or terminal kit mounting. Mounting hardware is included.

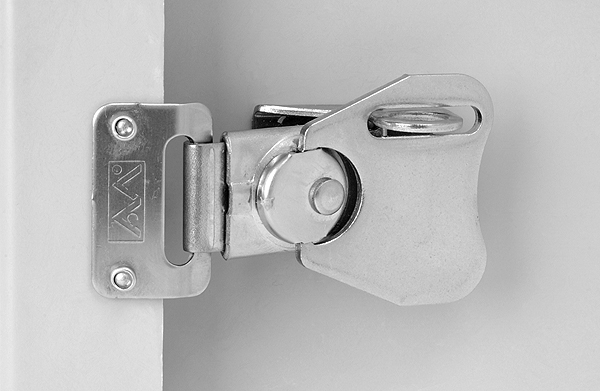

  • ■Stainless steel butterfly type "twist latch" door fasteners.

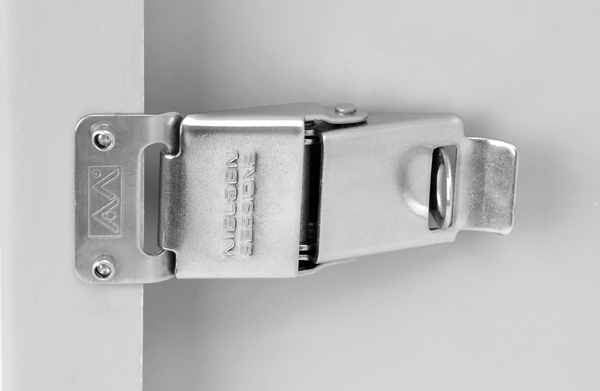

  • ■Stainless steel draw type "snap latch" door fasteners.
  • ■Door fasteners include a provision for padlocking.
  • ■Twist latch enclosures are available with bonded polycarbonate viewing windows.
  • ■Door is supported with a continuous stainless steel hinge.
  • ■Captive oil resistant gasket provides a positive seal.
  • ■Threaded brass inserts are provided for mounting feet to the rear of the enclosure.
  • ■Stainless steel mounting brackets and hardware are provided for mounting to the rear of the enclosure.
  • ■Operating temperatures between 130°C and -40°C (266°F to -40°F).
  • ■Impact index of 6.78J (5 ft/lb).
  • ■For corrosion resistance information, please refer to table in the Technical Information section.

Finish

  • ■Fiberglass polyester material has a gray finish.
  • ■Optional inner panels are available in white powder coated finished steel, unfinished aluminum, or Fiberglass.

Documents

Specification Sheet

Additional information

Snap Latch

Part No.Enclosure · HEnclosure · WEnclosure · DOptional Inner Panel · HOptional Inner Panel · WOptional Inner Panel · Part No.
PJ664L6.106.104.184.884.8814R0505
PJ864L8.006.124.136.754.8814R0705
PJ1084L10.138.264.138.756.8814R0907
PJ12124L12.1312.134.1310.7510.8814R1111
PJ1086L10.138.266.138.756.8814R0907
PJ12106L12.1310.266.1310.758.8814R1109
PJ12126L12.1312.136.1310.7510.8814R1111
PJ14126L14.1312.266.1312.7510.8814R1311
PJ16148L16.2714.408.1314.7512.8814R1513
PJ18168L18.4016.408.1316.8814.88P1868
PJ20168L20.0016.008.1318.4414.44P2068

Twist Latch

Part No.Enclosure · HEnclosure · WEnclosure · DOptional Inner Panel · HOptional Inner Panel · WOptional Inner Panel · Part No.
PJ664T6.106.104.184.884.8814R0505
PJ864T8.006.124.136.754.8814R0705
PJ1084T10.138.264.138.756.8814R0907
PJ12124T12.1312.134.1310.7510.8814R1111
PJ1086T10.138.266.138.756.8814R0907
PJ12106T12.1310.266.1310.758.8814R1109
PJ12126T12.1312.136.1310.7510.8814R1111
PJ14126T14.1312.266.1312.7510.8814R1311
PJ16148T16.2714.408.1314.7512.8814R1513
PJ18168T18.4016.408.1316.8814.88P1868
PJ20168T20.0016.008.1318.4414.44P2068
