Type 4, 4X Glass Reinforced Polyester Enclosures 1590ZGRPBK Series

Type 4, 4X Glass Reinforced Polyester Enclosures · 1590ZGRPBK Series

Brand: Hammond Manufacturing · 35 part numbers

Watertight, Thick Wall, NEMA 4X, IP66, UL Listed

  • ■Molded from black glass reinforced polyester. Smooth finish.
  • ■Heavy duty thick wall design.
  • ■Includes gasketed lid with two piece tongue and groove construction.
  • ■C UL & UL listed under file #E65324.
  • ■Rated IP66. Certified to NEMA 4, 4X standards per UL 508A.
  • ■Enclosures have an impact rating of IK09 in conformity with IEC 62208 and IEC 62262.

from $5.21

35 of 35 part numbers priced · in stock · ships by ground · volume pricing on request

Choose part number & buy nowRequest a quote
Specification sheet (PDF) (224) 955-1644
Part detailsFeaturesDocuments

Configure & price

Find your 1590ZGRPBK Series part number

Filter 17 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.

17 of 17 part numbers · 17 priced online

Dimension tables (inches / mm)

Units shown: mm . Switch units to: inch

Part NumberLengthWidthAssembled · DepthEnclosure · DepthLid · DepthInner Panel (Part No.)Extra Lid Screws (Part No.)Extra Panel Screws (Part No.)PriceOrder

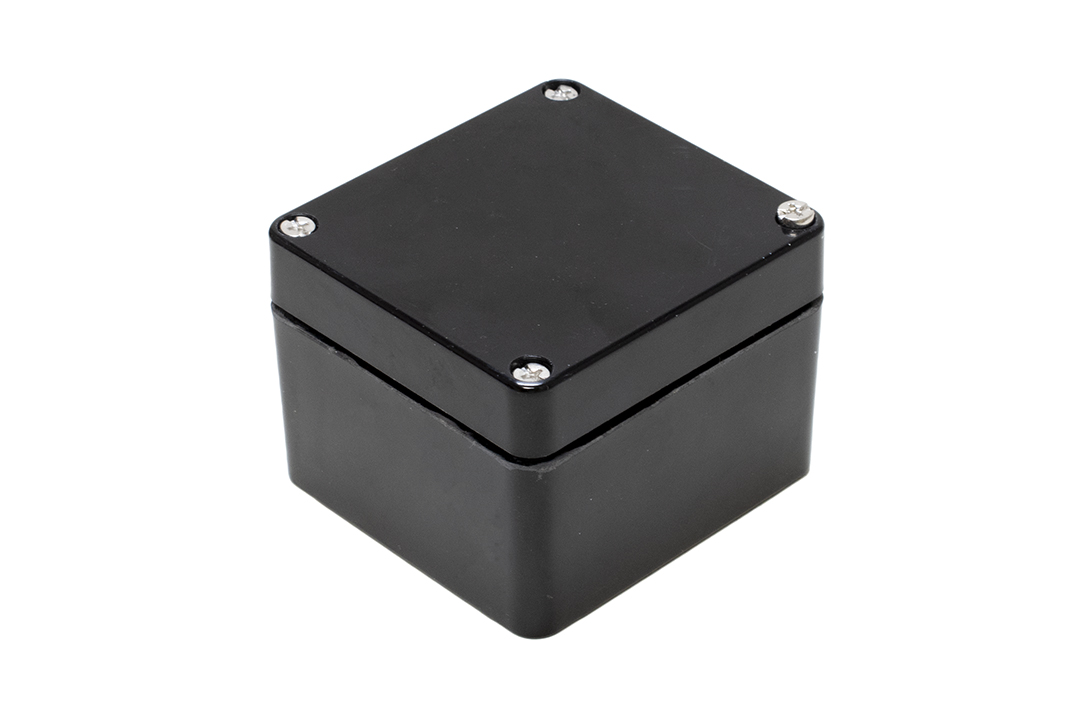

1590ZGRP081BK3.152.952.201.610.591590ZGRP081PLSC583-50SCGM4-50$21.26In stock1590ZGRP081BKBuy now

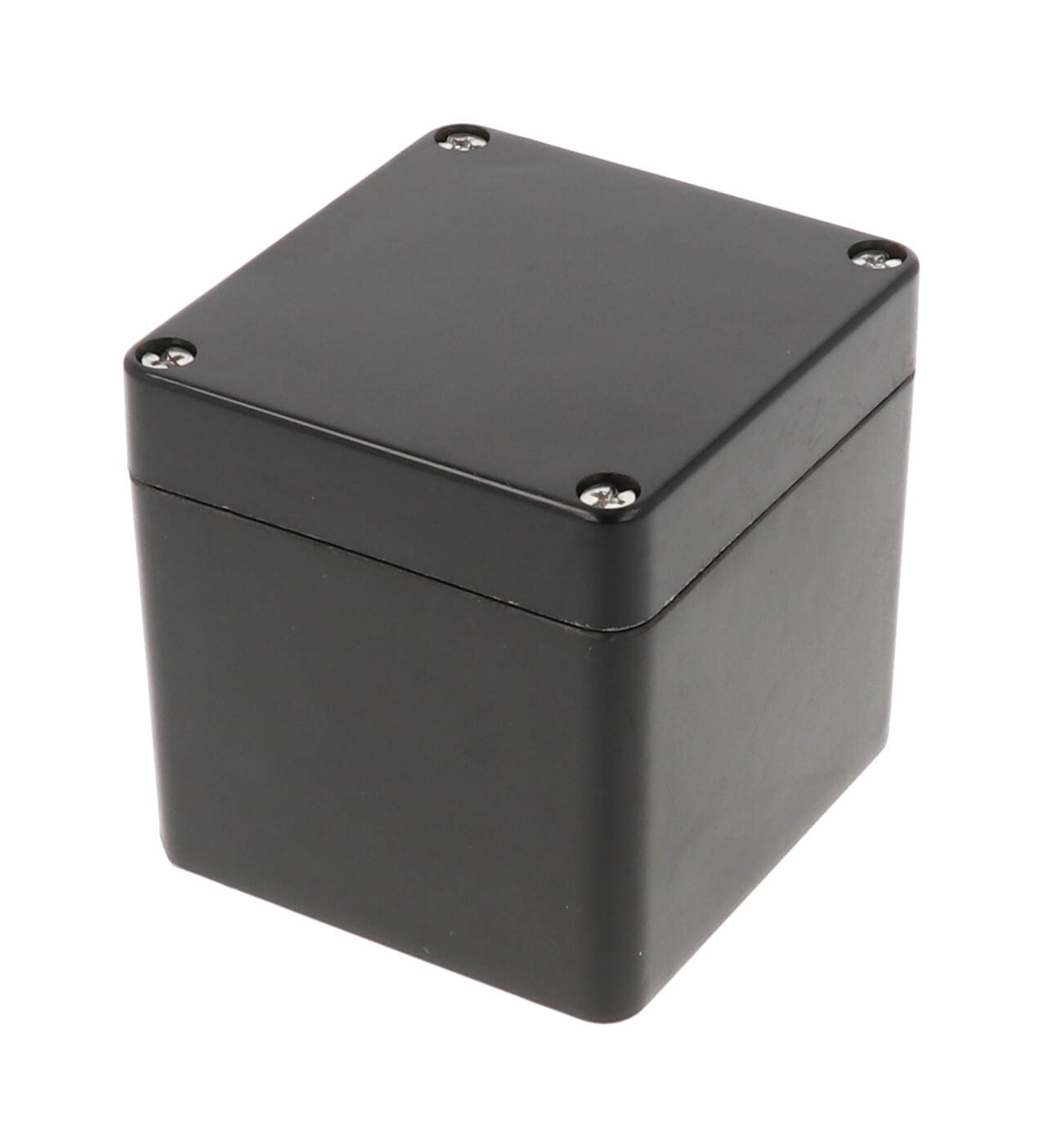

1590ZGRP084BK3.152.952.952.400.591590ZGRP081PLSC583-50SCGM4-50$22.77In stock1590ZGRP084BKBuy now

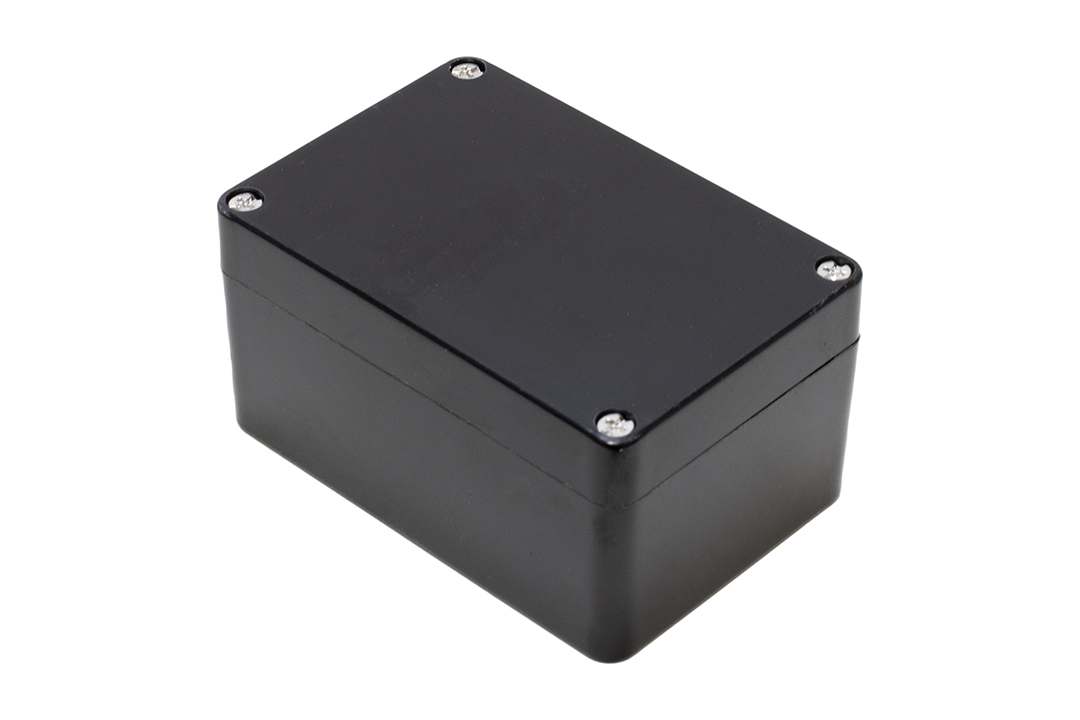

1590ZGRP082BK4.332.952.201.610.591590ZGRP082PLSC583-50SCGM4-50$26.05In stock1590ZGRP082BKBuy now

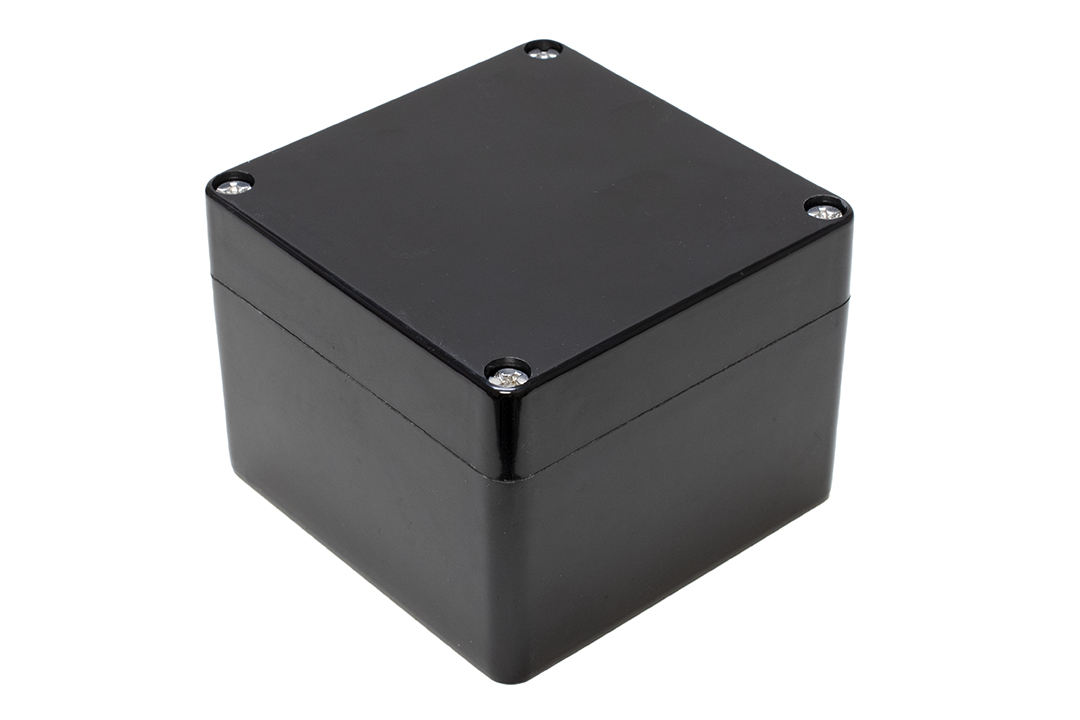

1590ZGRP121BK4.804.723.582.561.021590ZGRP121PLSC570-20SCGM6GRP-20$33.12In stock1590ZGRP121BKBuy now

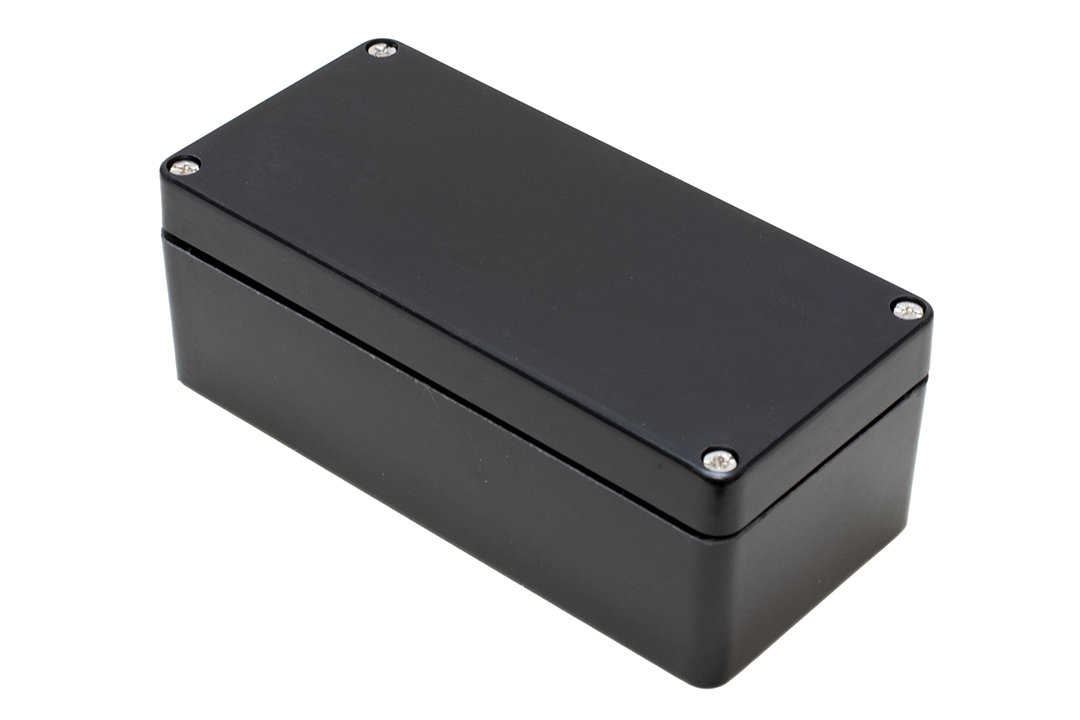

1590ZGRP083BK6.302.952.201.650.591590ZGRP083PLSC583-50SCGM4-50$29.24In stock1590ZGRP083BKBuy now

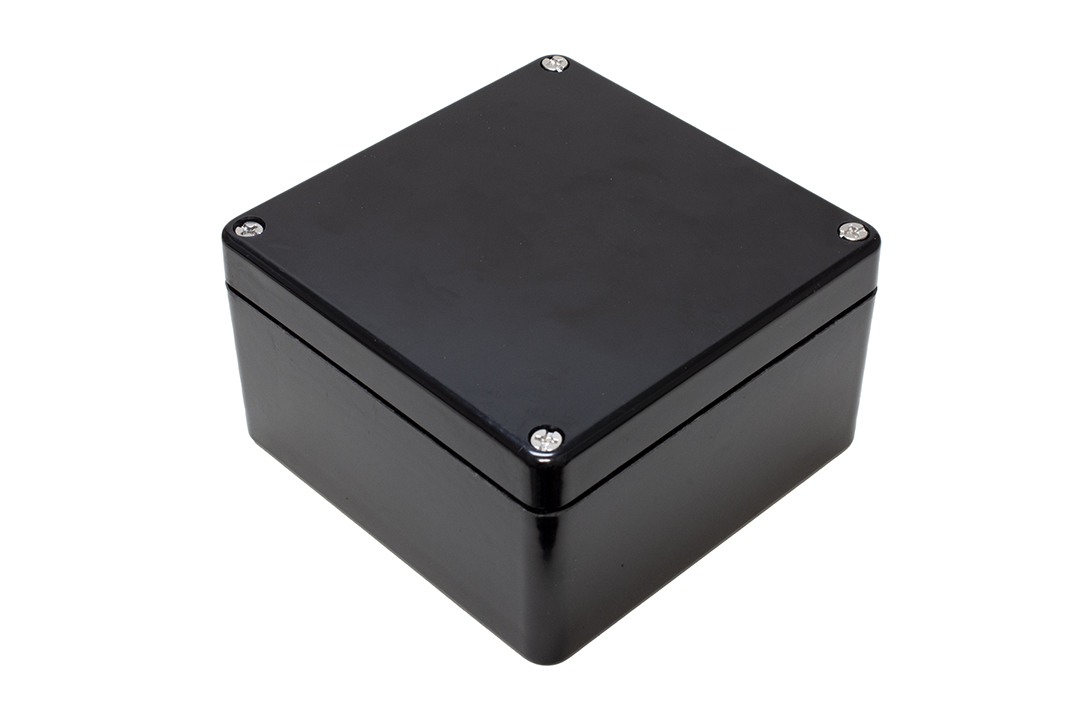

1590ZGRP161BK6.306.303.542.760.791590ZGRP161PLSC570-20SCGM6GRP-20$46.22In stock1590ZGRP161BKBuy now

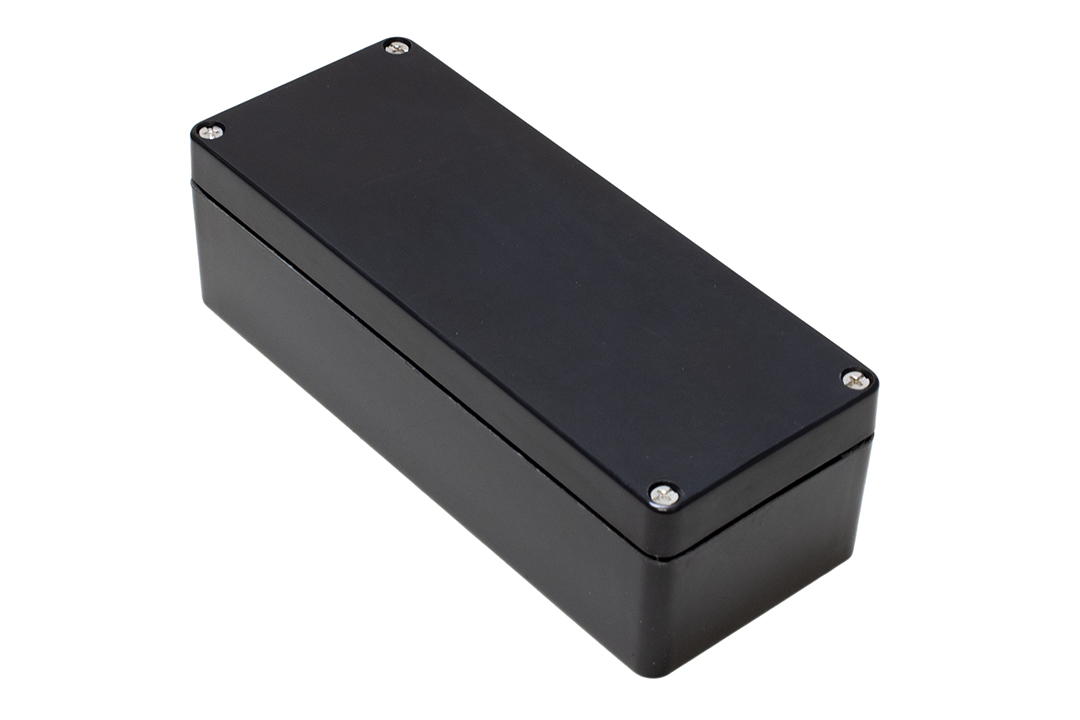

1590ZGRP131BK7.522.952.241.650.631590ZGRP131PLSC583-50SCGM4-50$58.39In stock1590ZGRP131BKBuy now

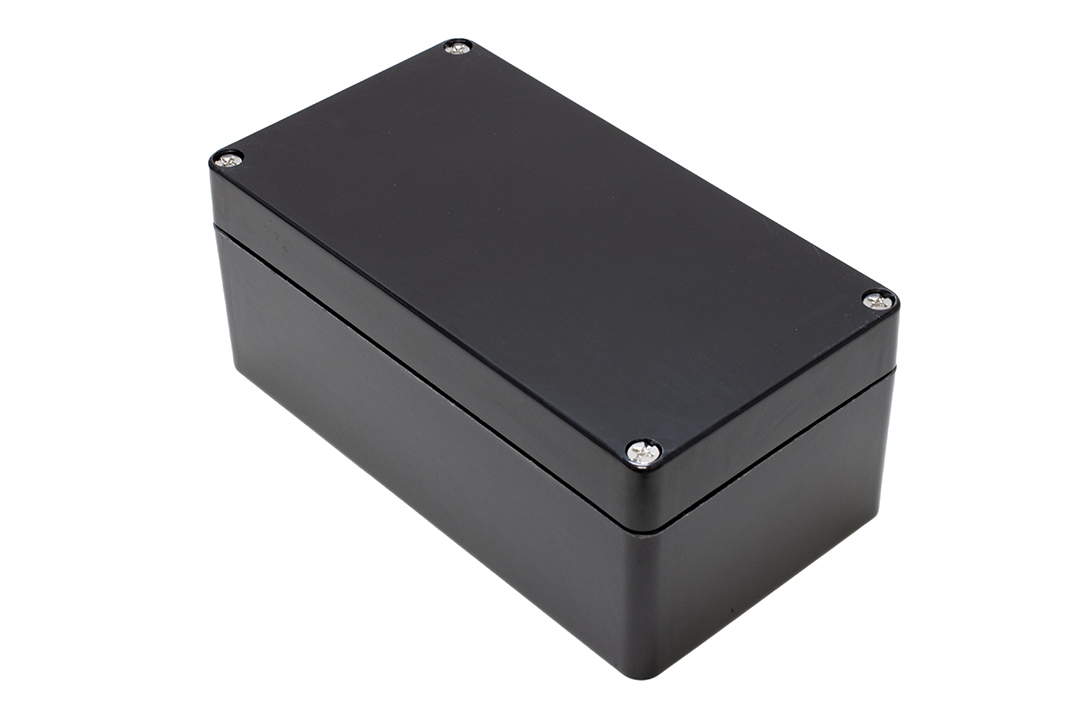

1590ZGRP123BK8.664.723.542.560.981590ZGRP123PLSC570-20SCGM6GRP-20$33.72In stock1590ZGRP123BKBuy now

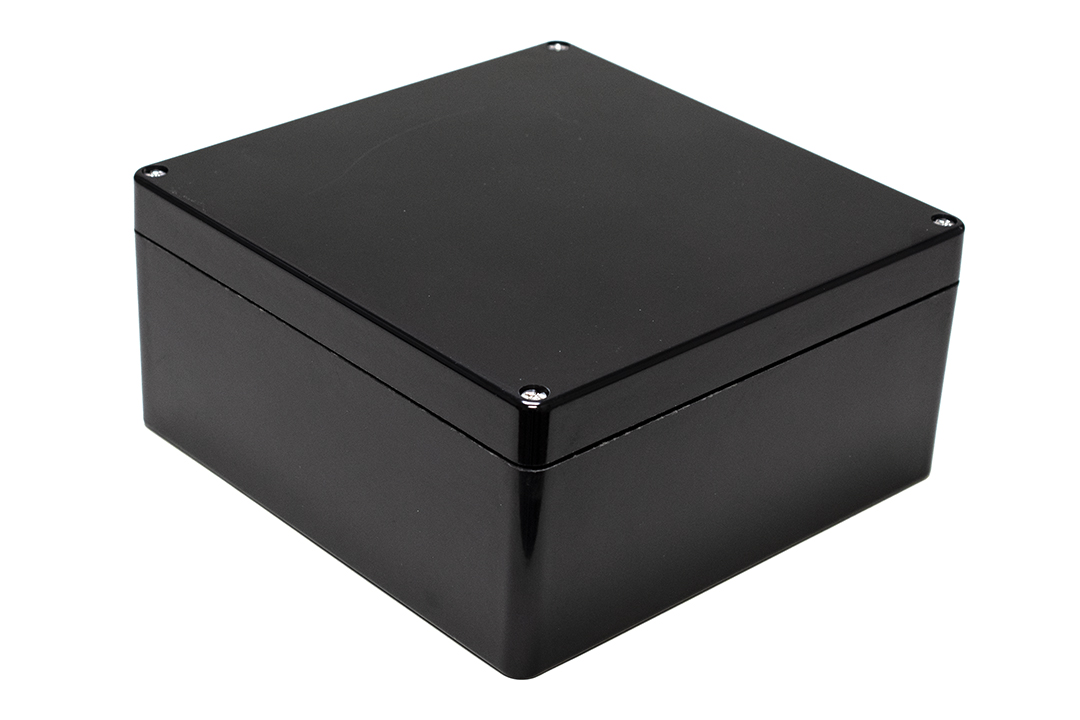

1590ZGRP234BK10.049.844.763.780.981590ZGRP234PLSC570-20SCGM6GRP-20$80.34Backorder1590ZGRP234BKBuy now

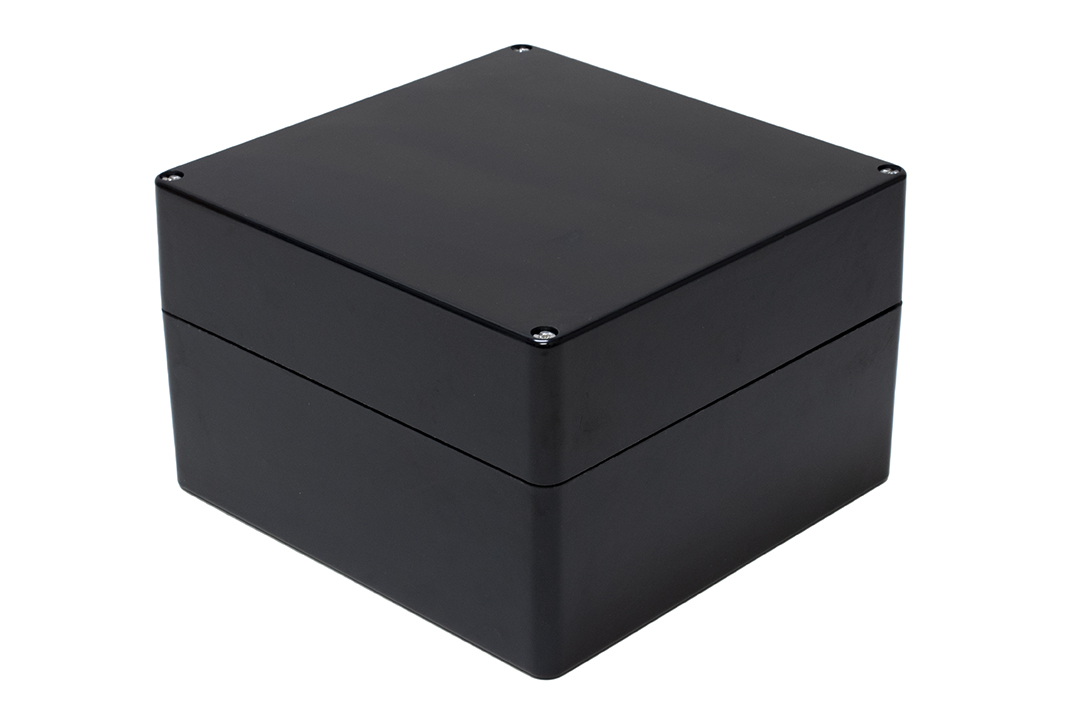

1590ZGRP235BK10.049.846.343.782.601590ZGRP234PLSC571-12SCGM6GRP-20$101.11In stock1590ZGRP235BKBuy now

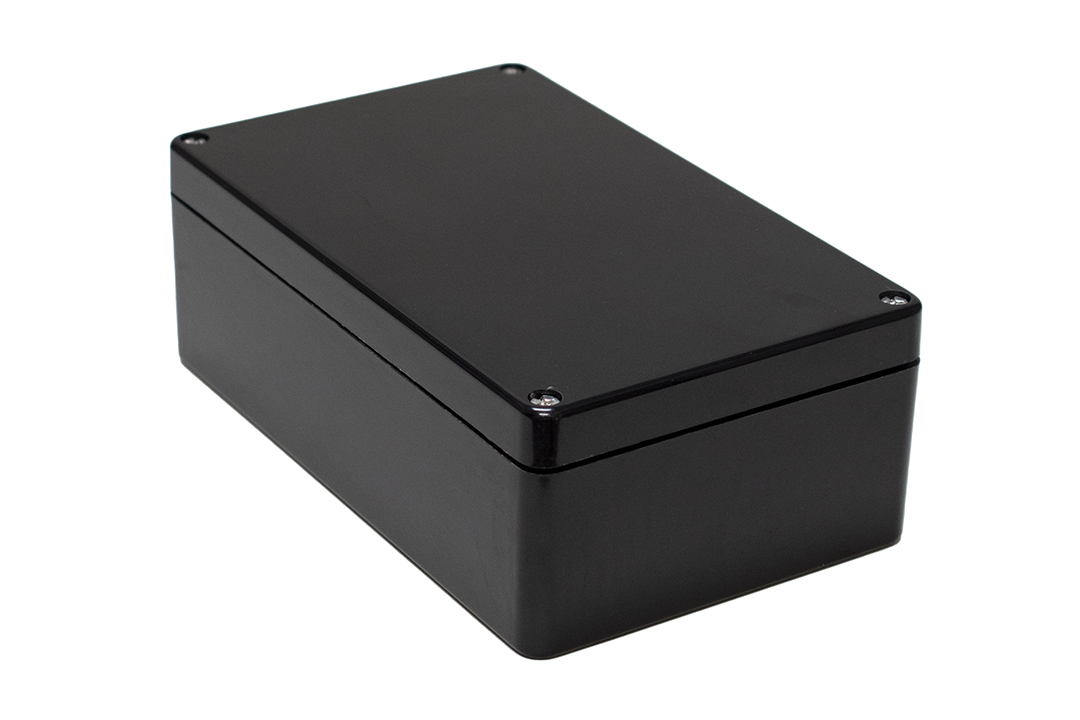

1590ZGRP162BK10.286.303.542.760.791590ZGRP162PLSC570-20SCGM6GRP-20$63.17In stock1590ZGRP162BKBuy now

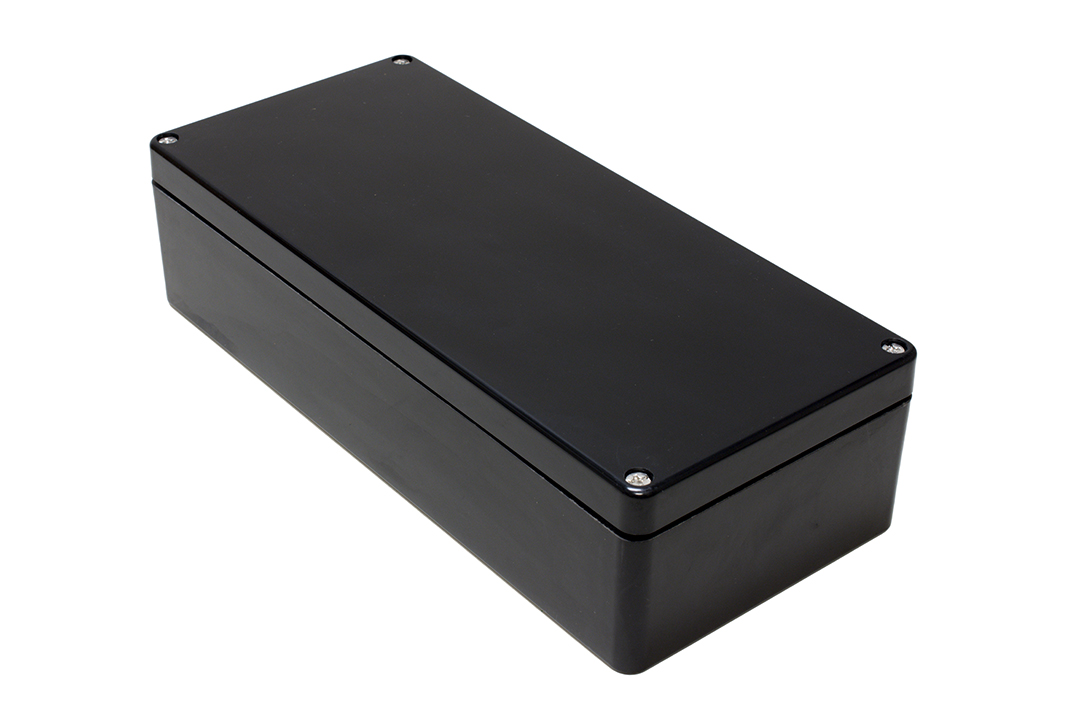

1590ZGRP163BK14.176.303.582.830.791590ZGRP163PLSC570-20SCGM6GRP-20$73.57In stock1590ZGRP163BKBuy now

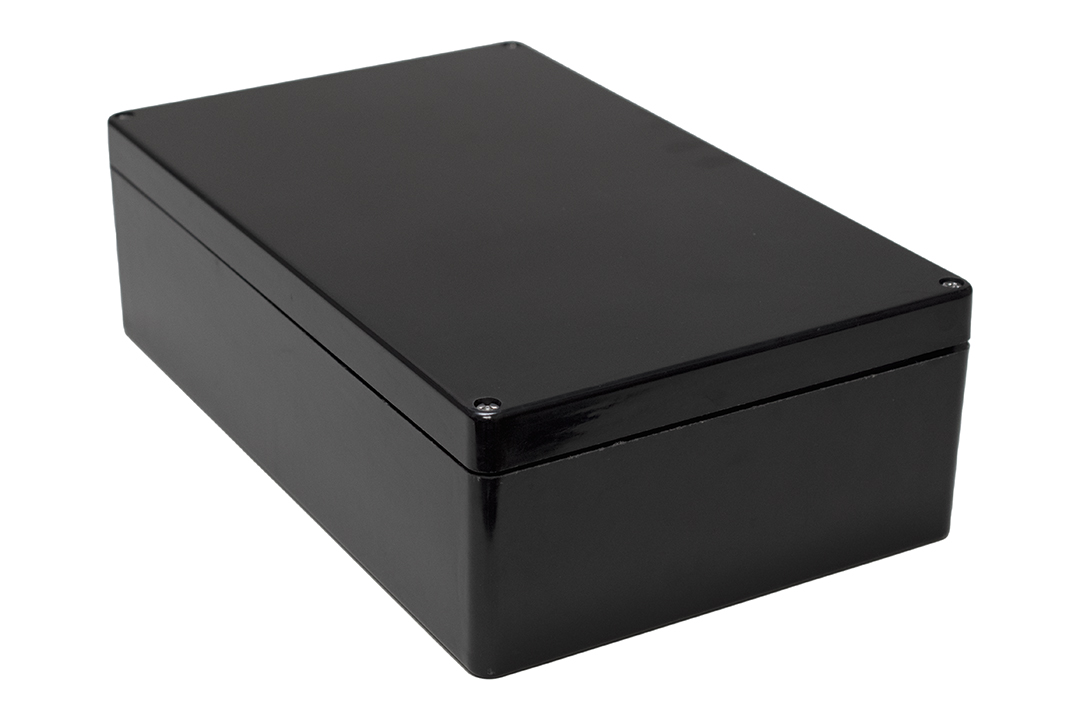

1590ZGRP243BK15.759.844.723.740.981590ZGRP243PLSC570-20SCGM6GRP-20$110.36In stock1590ZGRP243BKBuy now

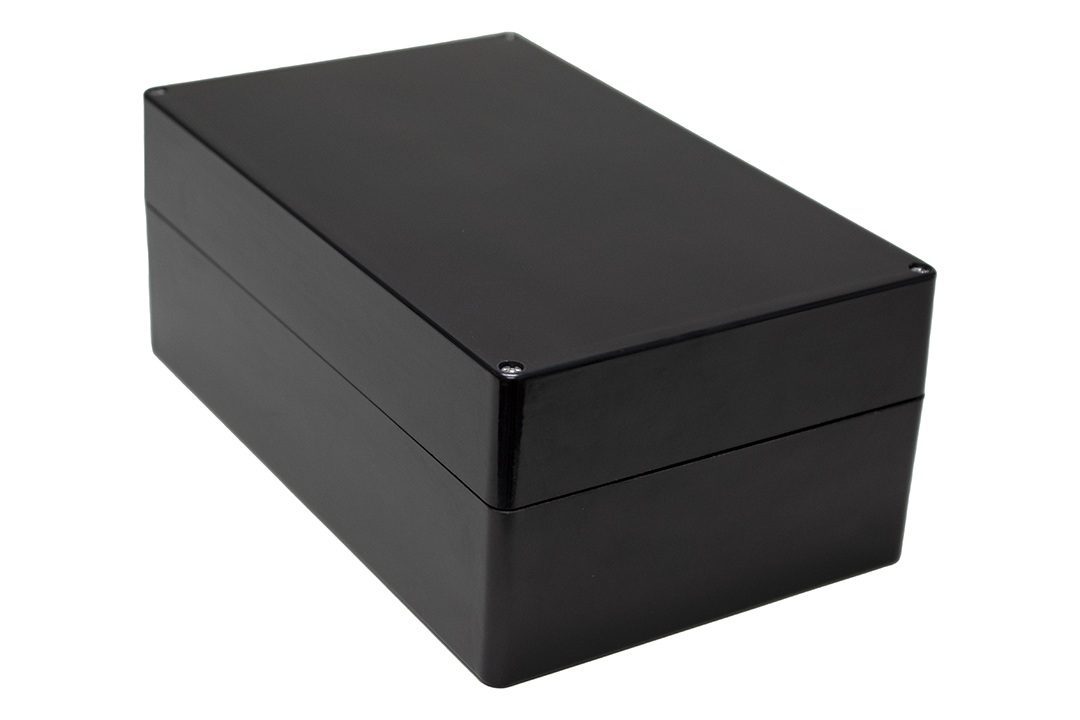

1590ZGRP244BK15.759.846.303.782.561590ZGRP243PLSC571-12SCGM6GRP-20$110.85In stock1590ZGRP244BKBuy now

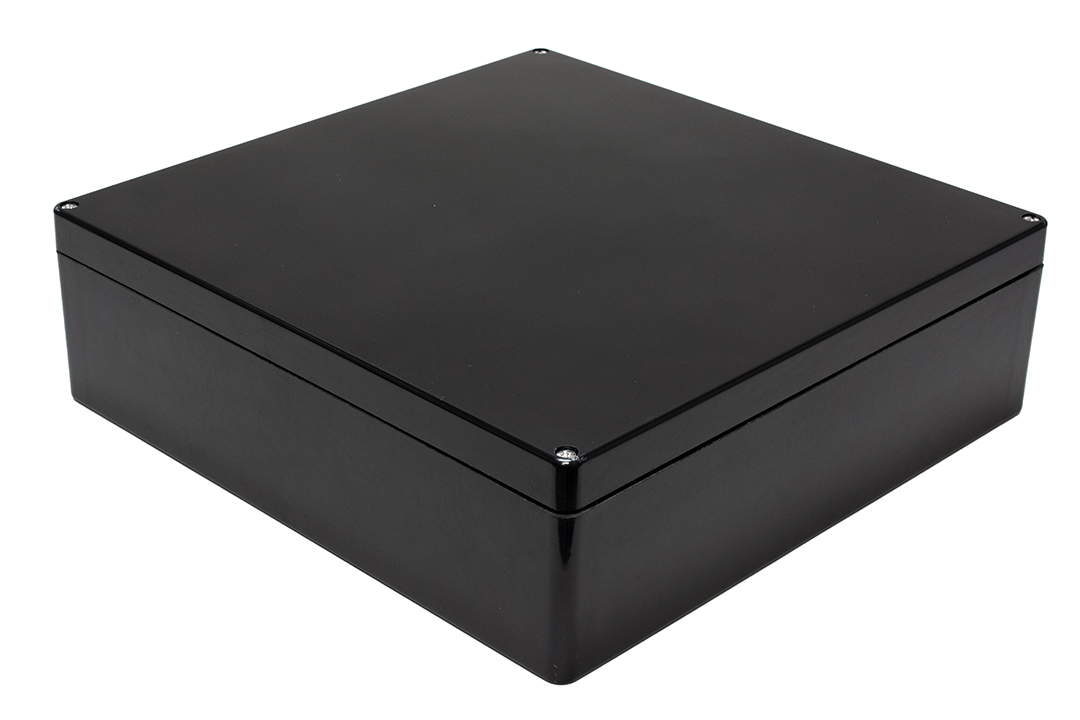

1590ZGRP253BK15.7515.944.763.741.021590ZGRP253PLSC570-20SCGM6GRP-20$148.85In stock1590ZGRP253BKBuy now

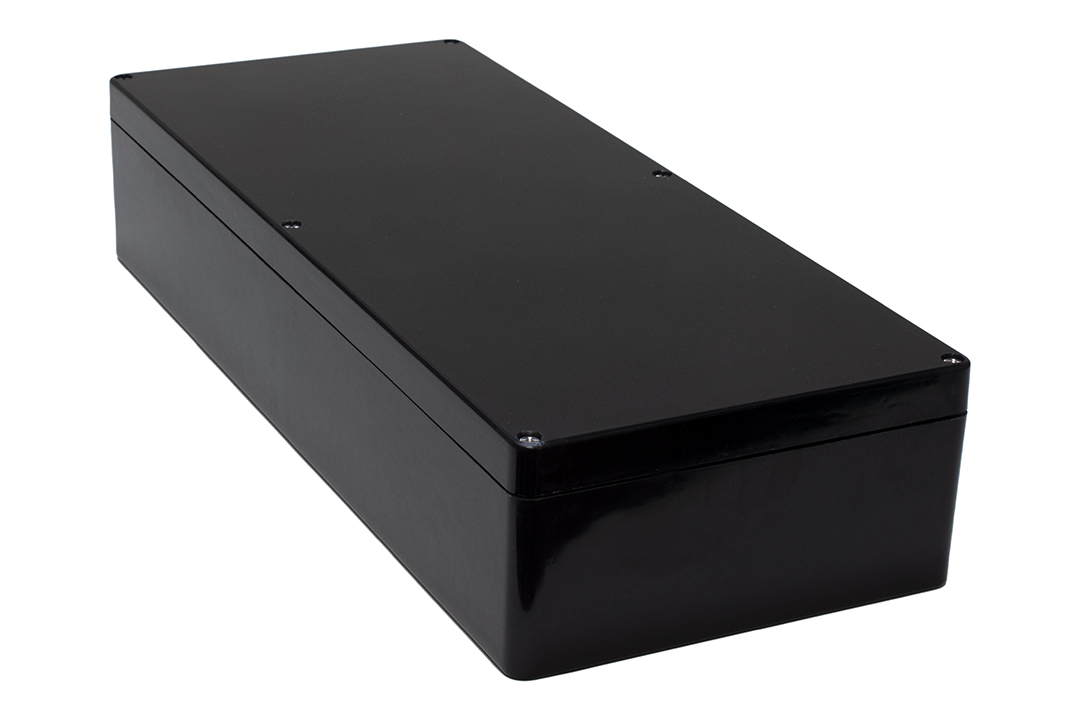

1590ZGRP263BK23.669.844.763.781.021590ZGRP263PLSC570-20SCGM6GRP-20$158.03In stock1590ZGRP263BKBuy now

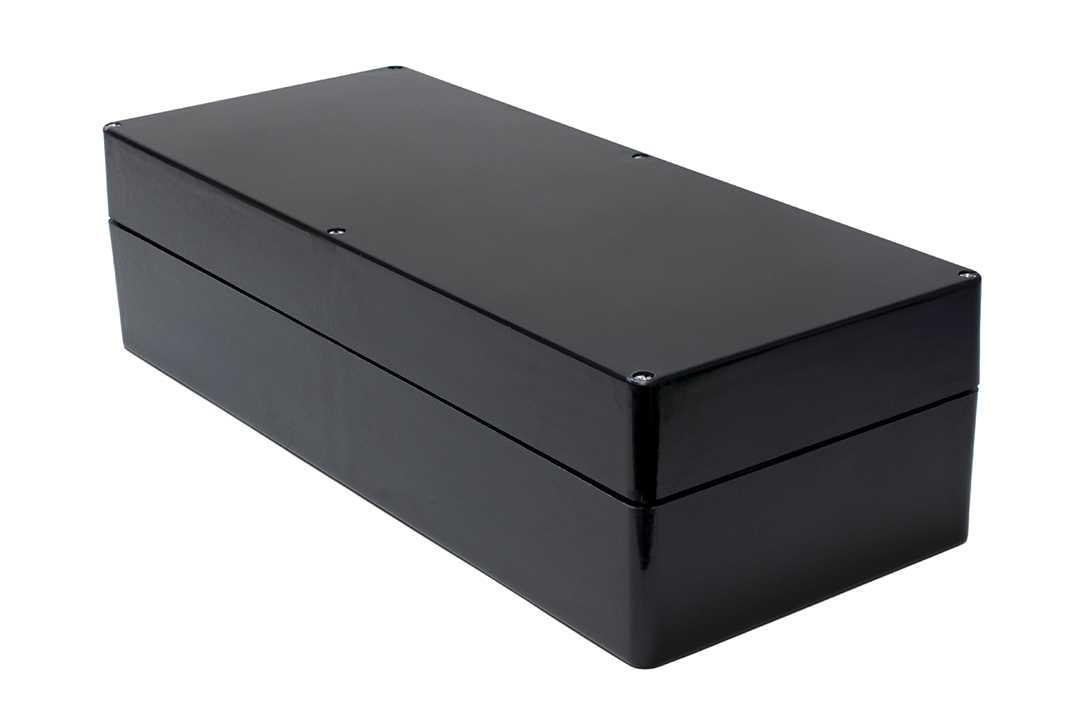

1590ZGRP264BK23.669.846.343.782.561590ZGRP263PLSC571-12SCGM6GRP-20$160.46In stock1590ZGRP264BKBuy now

Key Features:

  • ■Molded from black glass reinforced polyester. Smooth finish.
  • ■Heavy duty thick wall design.

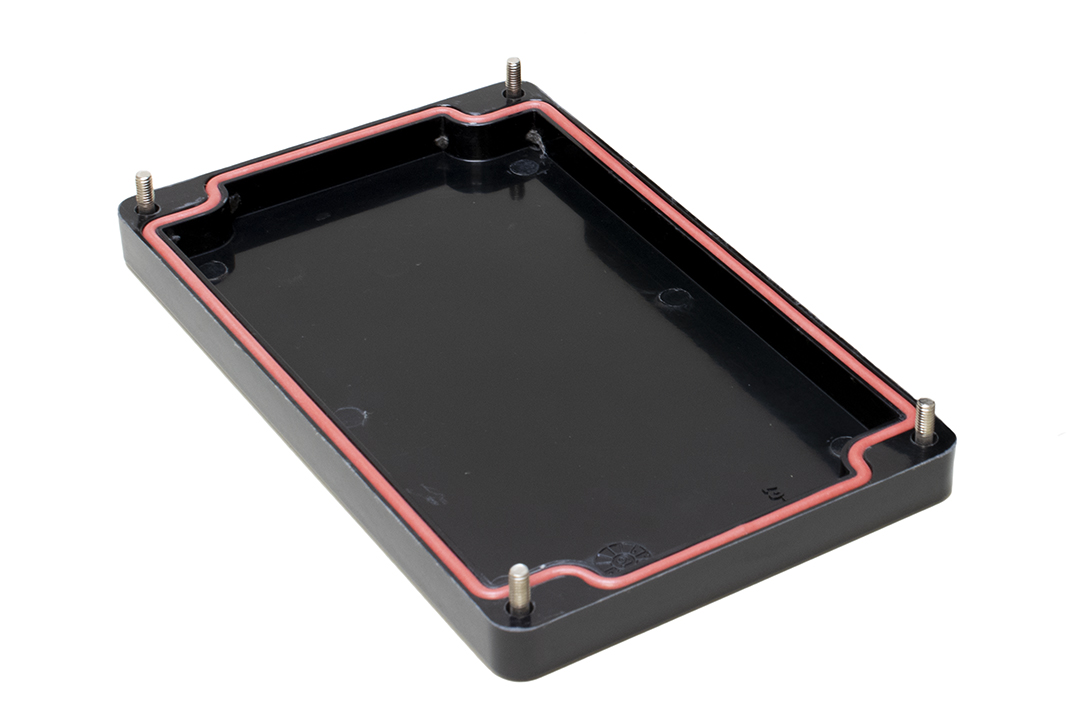

  • ■Includes gasketed lid with two piece tongue and groove construction.
  • ■C UL & UL listed under file #E65324.
  • ■Rated IP66. Certified to NEMA 4, 4X standards per UL 508A.
  • ■Enclosures have an impact rating of IK09 in conformity with IEC 62208 and IEC 62262.
  • ■Recommended operating temperature is -40°C to +100°C (-40°F to +212°F).
  • ■Lid contains self-captivated stainless steel screws.
  • ■Gasket material is silicone sponge.

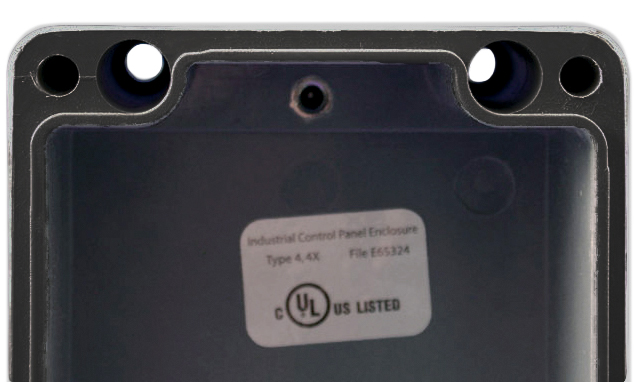

  • ■Easy wall mounting via through holes located outside of the gasket channel.

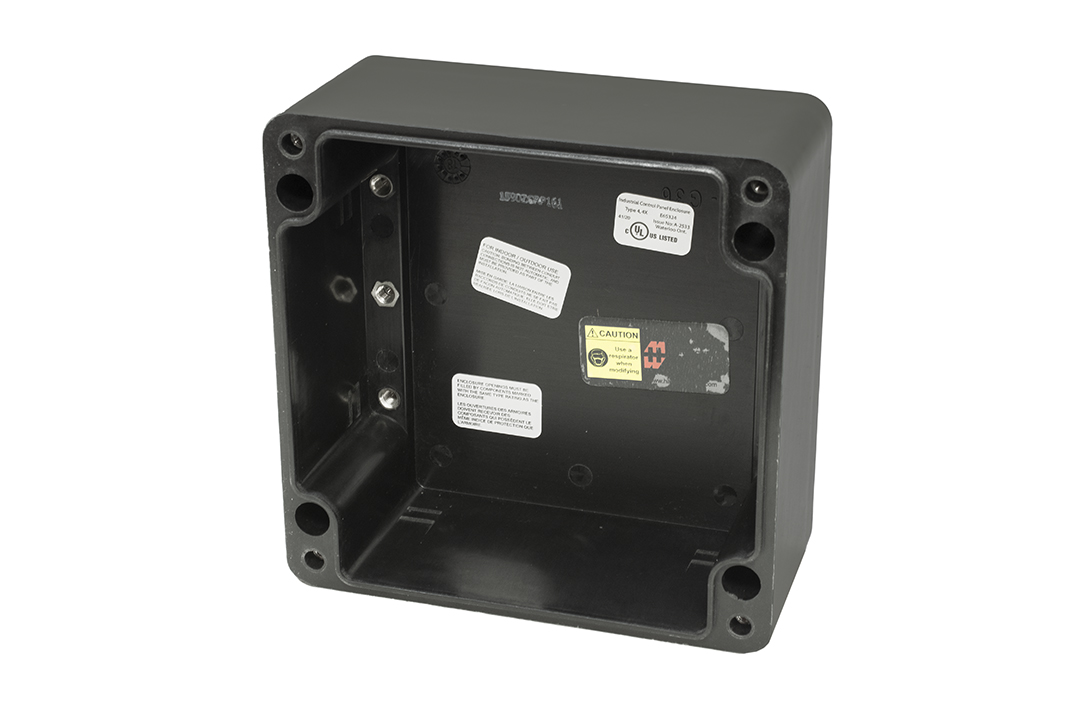

  • ■Internal mounting shelf for bonding/mounting nuts molded in.
  • ■Optional 16 gauge galvanized steel inner panels available.

Photo Features

Documents

Specification Sheet
