Hammond 1590ZGRP161PL 142mm Square Galvanized Steel Inner Panel
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Inner panel for the 1590ZGRP161 square enclosure
- 142 x 142 mm (5.61 x 5.59 in) square plate
- 16 gauge galvanized steel, 1.61 mm thick per drawing
- Includes panel mounting screws and washers
- Recommended screw torque 45-50 cN-m [65-70 ozf-in]
- Extra M6 copper ground hardware: SCGM6GRP-20

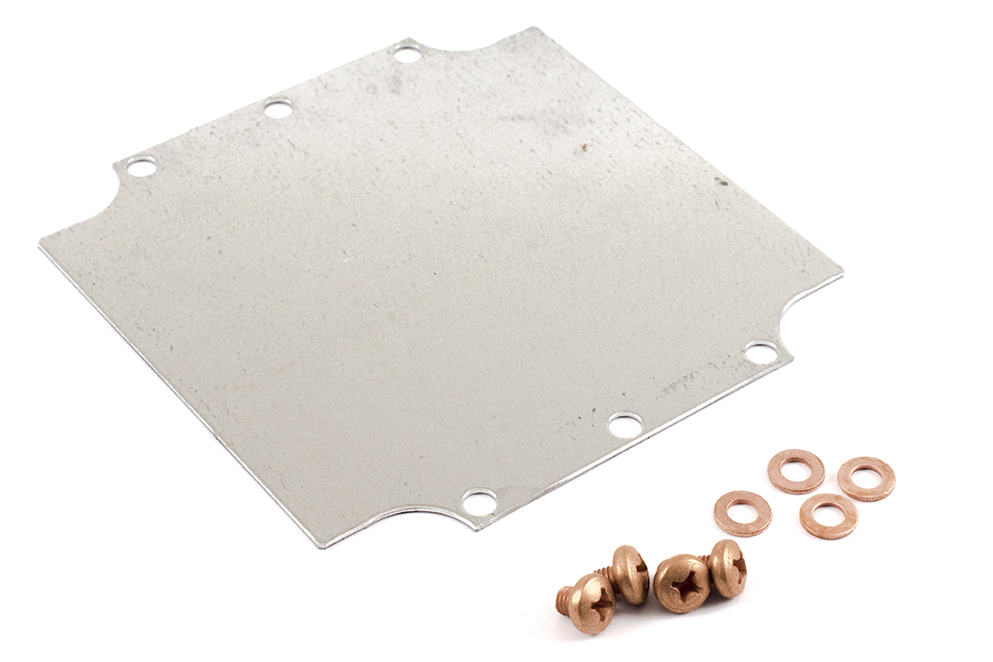

The 1590ZGRP161PL is the square steel inner mounting panel made for the 1590ZGRP161 enclosure. It gives electricians and OEM builders a removable metal plate for mounting boards and components inside the 160 x 160 x 90 mm glass reinforced polyester box.
The panel is 5.61 x 5.59 x 0.06 in (142 x 142 mm). The drawing specifies galvanized steel, 16 gauge, 1.61 mm [.06 in] thick, with 1.00 x 45.0° chamfered corners. It mounts on the enclosure's internal shelf using the molded-in bonding/mounting nuts.
Panel mounting screws and washers are included. For extra hardware, the enclosure's ordering table lists SCGM6GRP-20, a 20 pack of copper M6 - 1.0 x 6mm ground screws with M6 washers; the panel drawing names the SCGM6GRP copper plated M6-1.0 x 6mm mounting screw as its accessory.
Hammond specifies a recommended panel screw torque of 45-50 cN-m [65-70 ozf-in]. The 1590ZGRP161PL is RoHS and REACH compliant, ships shrink wrapped at 0.51 lbs (0.23 kg). The drawing notes that factory modification (milling, drilling, printing etc.) is available and that solid models can be had in .stp or .x_t format. UL file E65324 applies.
Ideal For
- Mounting boards inside a 1590ZGRP161
- Metal backplate for a square fiberglass enclosure
- Ground bonding plate inside the enclosure
Overview
| Type | Inner Panel |
| Description | 1590ZGRP161 INNER PANEL |
| Part Number | 1590ZGRP161PL |
| Long Description | panel inner mounting panel for 1590ZGRP161 enclosures |
| Fits Enclosure(s) | 1590ZGRP161 (160 x 160 x 90 mm enclosure) |
Dimensions
| Size (L X W X H) | 5.61 in x 5.59 in x 0.06 in (142 mm x 142 mm x 2 mm) |
| Panel Thickness (Per Drawing) | 1.61 mm [.06 in] |
Identifiers
| UPC | 623980012865 |
| UNSPSC | 39121301 |
Customization
| CAD Models | Solid models available in .stp or .x_t |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
Hardware & Mounting
| Extra Panel Screws | SCGM6GRP-20 - Copper Ground Hardware (20 Pack) [M6 - 1.0 X 6mm / M6 Washer] |
| Mounting Screw Accessory | SCGM6GRP - Copper Plated Mounting Screw M6-1.0 X 6mm |
| Purchased Assembly Includes | Panel mounting screws and washers |
| Recommended Panel Screw Torque | 45-50 cN-m [65-70 ozf-in] |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.51 lbs (0.23 kg) |
Construction & Finish
| Material | Steel |
| Edge Detail (Per Drawing) | 1.00 X 45.0° chamfer |
| Panel Material (Per Drawing) | Galvanized steel, 16 gauge |
Compliance & Certifications
| UL File # | E65324 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosure does the 1590ZGRP161PL fit?▾
The 1590ZGRP161, a 160 x 160 x 90 mm glass reinforced polyester enclosure.
What are the panel dimensions?▾
5.61 x 5.59 x 0.06 in (142 x 142 x 2 mm).
What material is it?▾
Galvanized steel, 16 gauge.
Does it include hardware?▾
Yes, panel mounting screws and washers are included.
What screw size does it use?▾
The listed accessory is the SCGM6GRP copper plated M6-1.0 x 6mm mounting screw; extras come as SCGM6GRP-20 (20 pack).
