Hammond 1590ZGRP081PL 68x63 mm Galvanized Steel Inner Mounting Panel
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Inner panel for 1590ZGRP081 and 1590ZGRP084 enclosures
- 16 gauge galvanized steel, 68 x 63 x 2 mm (2.68 x 2.48 x 0.06 in)
- Two 5.00 mm mounting holes; 1.00 x 45° chamfered corners
- Panel mounting screws and washers included
- Copper plated M4-0.7 x 6 mm screws (SCGM4); spares as SCGM4-50
- Recommended panel screw torque 45-50 cN-m (65-70 ozf-in)

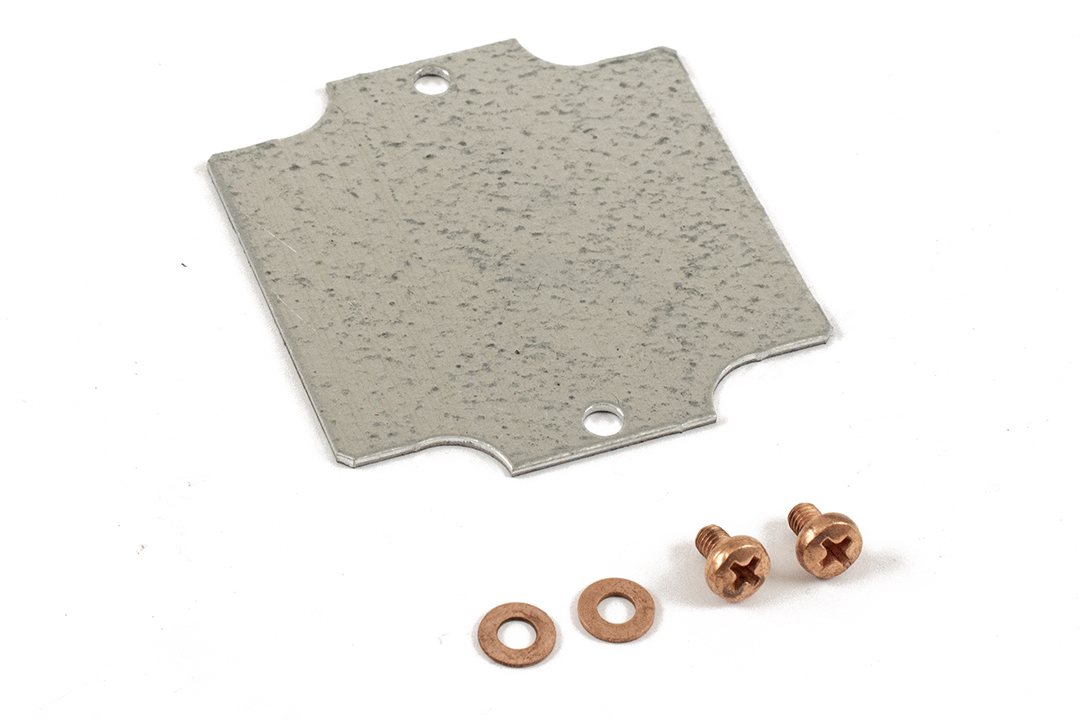

The 1590ZGRP081PL is the inner mounting panel for the 1590ZGRP081 fiberglass enclosure, and the series ordering table also specifies it for the taller 1590ZGRP084. It gives panel builders and OEM engineers a flat galvanized steel plate for mounting components or circuit boards inside these compact glass reinforced polyester boxes.
The panel is 16 gauge galvanized steel measuring 68 mm x 63 mm x 2 mm (2.68 in x 2.48 in x 0.06 in), with a drawing thickness of 1.61 mm (.06 in) and 1.00 x 45° chamfered corners. Two 5.00 mm (.20 in) holes line up with the enclosure's internal mounting shelf, which has molded-in nuts.
Panel mounting screws and washers are included. The drawing lists the copper plated M4-0.7 x 6 mm mounting screw (SCGM4), and the enclosure ordering table gives SCGM4-50 as the extra panel screw pack. Recommended panel screw torque is 45-50 cN-m (65-70 ozf-in).
Because the panel is sold separately from the enclosure, it can be added when the enclosure is ordered or retrofitted later. The 1590ZGRP081PL ships in shrink wrap and weighs 0.1 lbs (0.05 kg).
Ideal For
- Mounting components inside 1590ZGRP081 or 1590ZGRP084 enclosures
- Grounded mounting plate for small terminal assemblies
- Retrofitting a mounting surface into installed fiberglass boxes
Overview
| Type | Inner Panel |
| Description | Inner mounting panel for 1590ZGRP081 enclosures |
| Part Number | 1590ZGRP081PL |
| Fits Enclosures | 1590ZGRP081, 1590ZGRP084 |
| Short Description | 1590ZGRP081 INNER PANEL |
Dimensions
| Corner Chamfer | 1.00 x 45.0° |
| Mounting Holes | 2X 5.00 mm [.20 in] |
| Size (L X W X H) | 2.68 in x 2.48 in x 0.06 in (68 mm x 63 mm x 2 mm) |
| Panel Width (Drawing) | 63.00 mm [2.48 in] |
| Panel Length (Drawing) | 68.00 mm [2.68 in] |
| Panel Thickness (Drawing) | 1.61 mm [.06 in] |
Identifiers
| UPC | 623980012803 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Included | Panel mounting screws and washers |
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.1 lbs (0.05 kg) |
Construction & Finish
| Material | Steel (galvanized steel, 16 gauge) |
| Panel Mounting Screw | Copper plated mounting screw M4-0.7 X 6mm (SCGM4) |
| Recommended Panel Screw Torque | 45-50 cN-m [65-70 ozf-in] |
Compatible Accessories
| Extra Panel Screws | SCGM4-50 |
Compliance & Certifications
| UL File # | E65324 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1590ZGRP081PL fit?▾
The 1590ZGRP081 and the 1590ZGRP084, per the series ordering table.
What is the panel made of?▾
16 gauge galvanized steel.
Are mounting screws included?▾
Yes, panel mounting screws and washers are included. Extra copper ground hardware comes as SCGM4-50 (M4 - 0.7 x 6mm / M4 washer, 50 pack).
What size is the panel?▾
68 mm x 63 mm x 2 mm (2.68 in x 2.48 in x 0.06 in).
