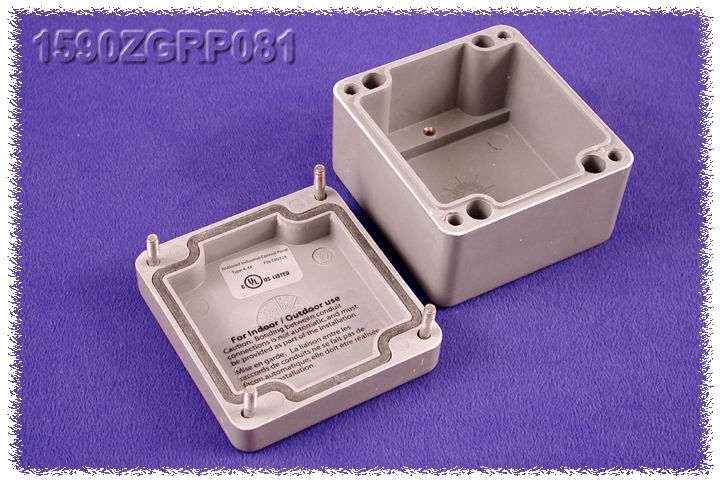

80 X 75 X 55MM Fiberglass Box
- Type Thick wall, water-tight
- Material Fiberglass Polyester
- Color Gray
$21.26In stock
Buy now
Type 4, 4X Glass Reinforced Polyester Enclosures · 1590ZGRP Series
Brand: Hammond Manufacturing · 37 part numbers
Watertight, Thick Wall, NEMA 4X, IP66, UL Listed
- ■Molded from glass reinforced polyester. Smooth finish.
- ■Heavy duty thick wall design.
- ■Includes gasketed lid with two piece tongue and groove construction.
- ■C UL & UL listed under file #E65324.
- ■Rated IP66. Certified to NEMA 4, 4X standards per UL 508A.
- ■Enclosures have an impact rating of IK09 in conformity with IEC62262.
from $5.21
37 of 37 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1590ZGRP Series part number
Filter 33 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
33 of 33 part numbers · 32 priced online
1590ZGRP081 Inner Panel
- Type Inner Panel
- Material Steel
$5.21In stock
Buy now

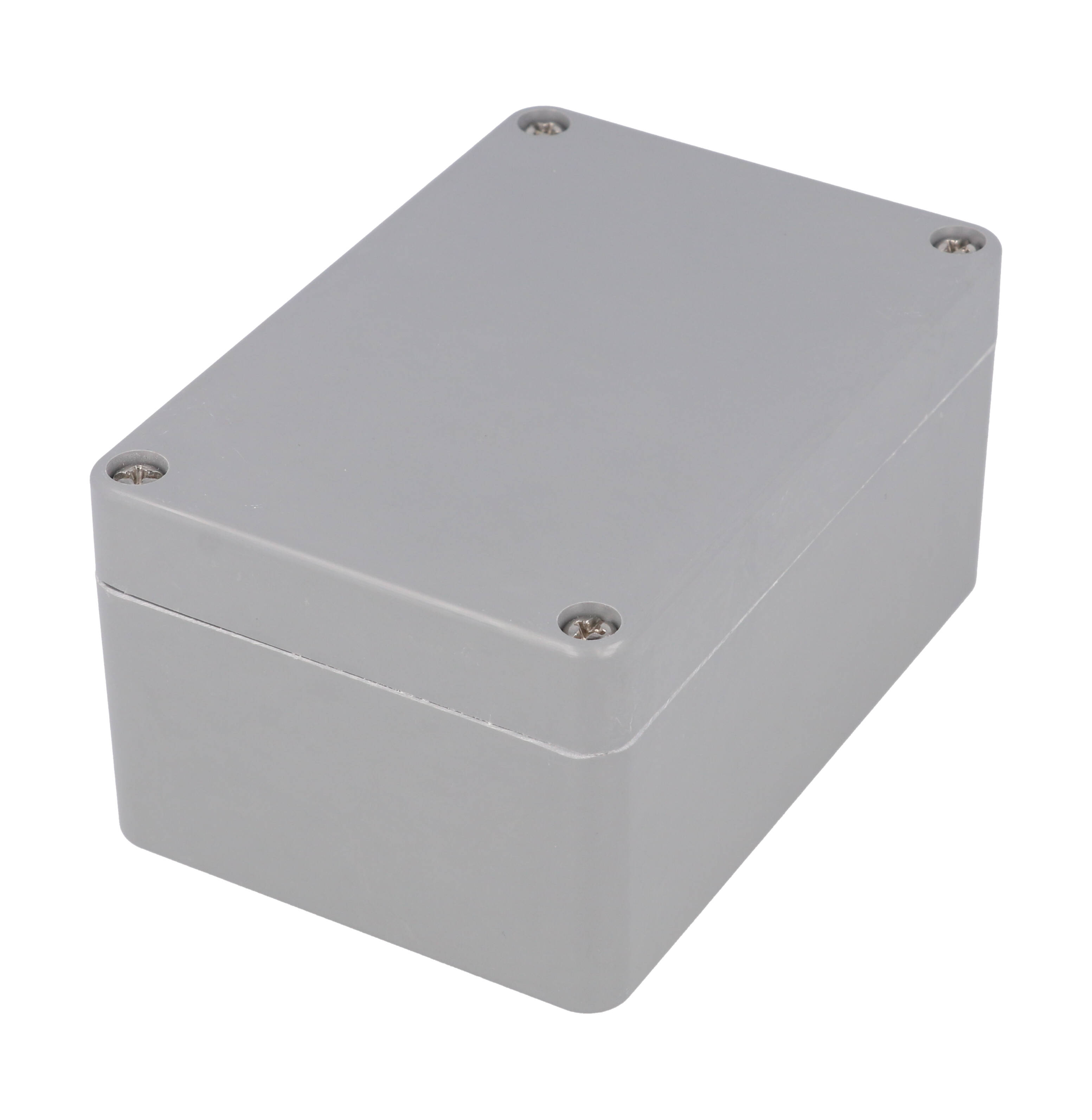

110 X 75 X 55MM Fiberglass Box
- Type Thick wall, water-tight
- Material Fiberglass Polyester
- Color Gray
$26.05In stock
Buy now

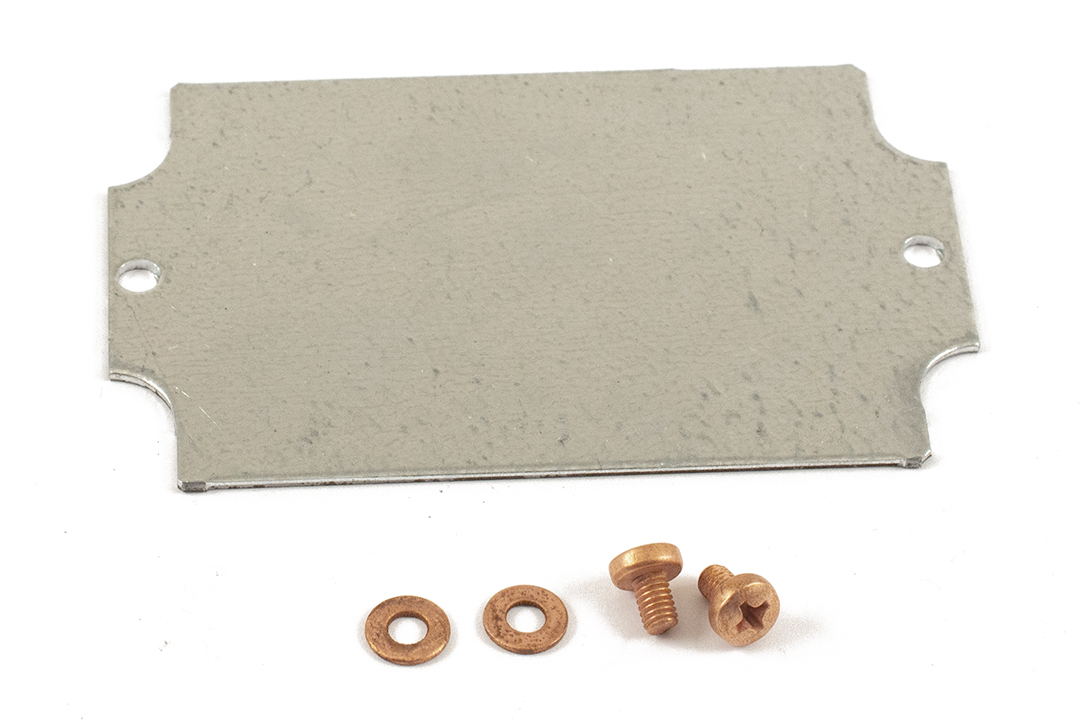

1590ZGRP082 Inner Panel
- Type Inner Panel
- Material Steel
$5.29In stock
Buy now
160 X 75 X 55MM Fiberglass Box
- Type Thick wall, water-tight
- Material Fiberglass Polyester
- Color Gray
$29.24In stock
Buy now
1590ZGRP083 Inner Panel
- Type Inner Panel
- Material Steel
$5.79In stock
Buy now
80 X 75 X 75MM Fiberglass Box
- Type Thick wall, water-tight
- Material Fiberglass Polyester
- Color Gray
$22.77In stock
Buy now
120 X 122 X 90MM Fiberglas Box
- Type Thick wall, water-tight
- Material Fiberglass Polyester
- Color Gray
$33.12In stock
Buy now
1590ZGRP121 Inner Panel
- Type Inner Panel
- Material Steel
$5.98In stock
Buy now
220 X 120 X 90MM Fiberglas Box
- Type Thick wall, water-tight
- Material Fiberglass Polyester
- Color Gray
$33.72In stock
Buy now
1590ZGRP123 Inner Panel
- Type Inner Panel
- Material Steel
$6.92In stock
Buy now
190 X 75 X 55MM Fiberglas Box
- Type Thick wall, water-tight
- Material Fiberglass Polyester
- Color Gray
$58.39In stock
Buy now
1590ZGRP131 Inner Panel
- Type Inner Panel
- Material Steel
$6.07In stock
Buy now
160 X 160 X 90MM Fiberglas Box
- Type Thick wall, water-tight
- Material Fiberglass Polyester
- Color Gray
$46.22In stock
Buy now
1590ZGRP161 Inner Panel
- Type Inner Panel
- Material Steel
$6.99In stock
Buy now
260 X 160 X 90MM Fiberglas Box
- Type Thick wall, water-tight
- Material Fiberglass Polyester
- Color Gray
$63.17In stock
Buy now

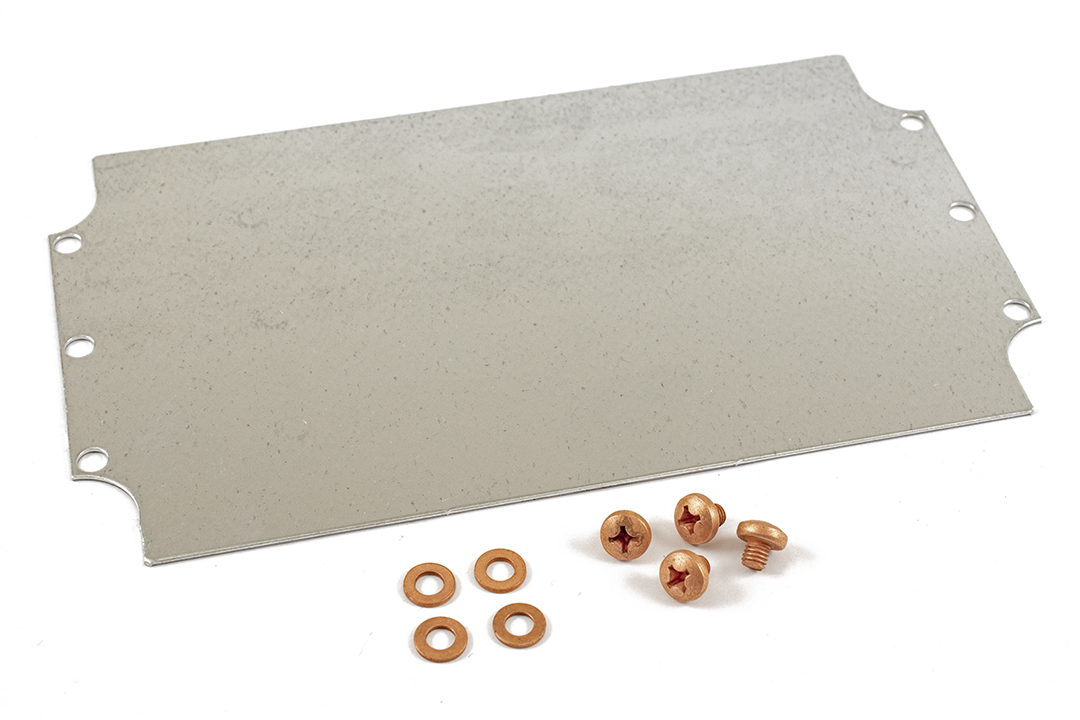

1590ZGRP162 Inner Panel
- Type Inner Panel
- Material Steel
$8.06In stock
Buy now
360 X 160 X 90MM Fiberglas Box
- Type Thick wall, water-tight
- Material Fiberglass Polyester
- Color Gray
$73.57In stock
Buy now

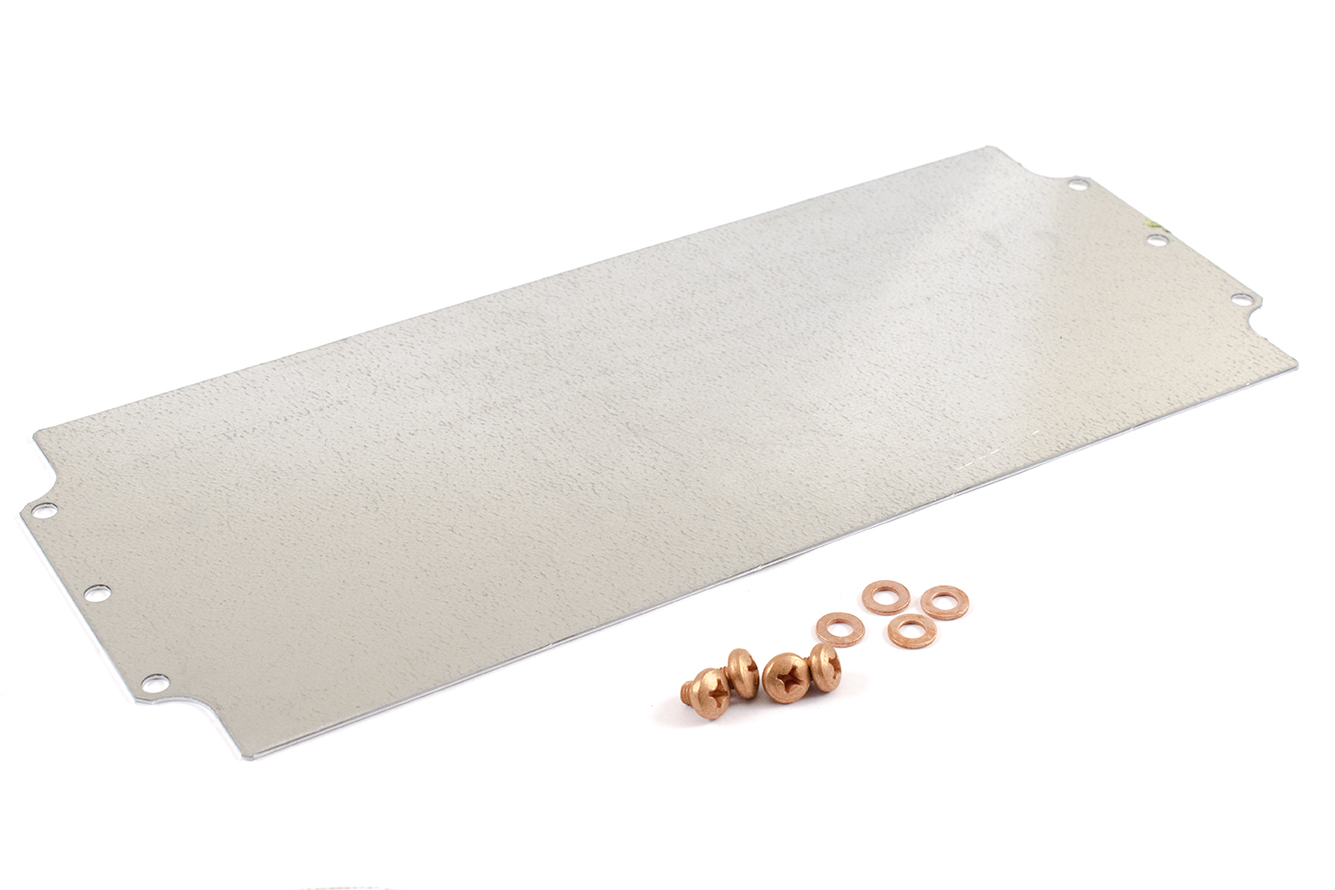

1590ZGRP163 Inner Panel
- Type Inner Panel
- Material Steel
$8.06In stock
Buy now
250 X 200 X 120MM Fberglas Box
- Type Thick wall, water-tight
- Material Fiberglass Polyester
- Color Gray
$68.07In stock
Buy now
1590ZGRP233 Inner Panel
- Type Inner Panel
- Material Steel
$8.61In stock
Buy now
255x250x120MM Fiberglass Box
- Type Thick wall, water-tight
- Material Fiberglass Polyester
- Color Gray
$80.34Backorder
Buy now
1590ZGRP234/5 Inner Panel
- Type Inner Panel
- Material Steel
$9.55In stock
Buy now
255 X 250 X 160MM Fberglas Box
- Type Thick wall, water-tight
- Material Fiberglass Polyester
- Color Gray
$101.11Backorder
Buy now
250 X 400 X 120MM Fberglas Box
- Type Thick wall, water-tight
- Material Fiberglass Polyester
- Color Gray
$110.36Backorder
Buy now

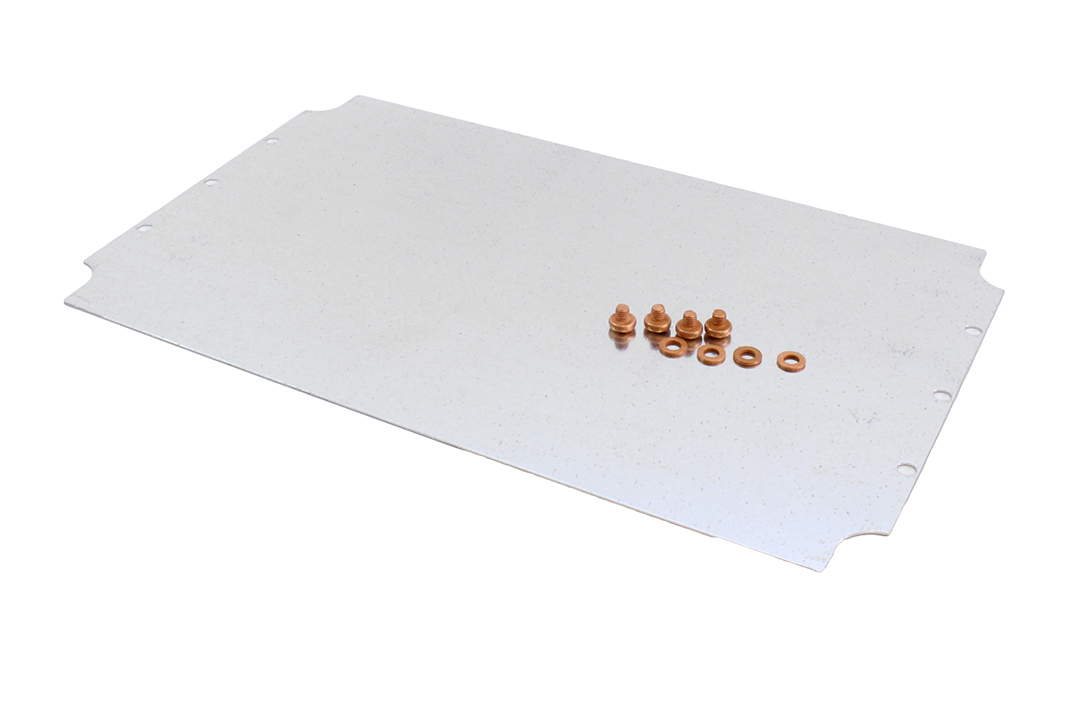

1590ZGRP243 Inner Panel
- Type Inner Panel
- Material Steel
$11.20In stock
Buy now
250 X 400 X 160MM Fberglas Box
- Type Thick wall, water-tight
- Material Fiberglass Polyester
- Color Gray
$110.85In stock
Buy now
405 X 400 X 120MM Fberglas Box
- Type Thick wall, water-tight
- Material Fiberglass Polyester
- Color Gray
$148.85In stock
Buy now

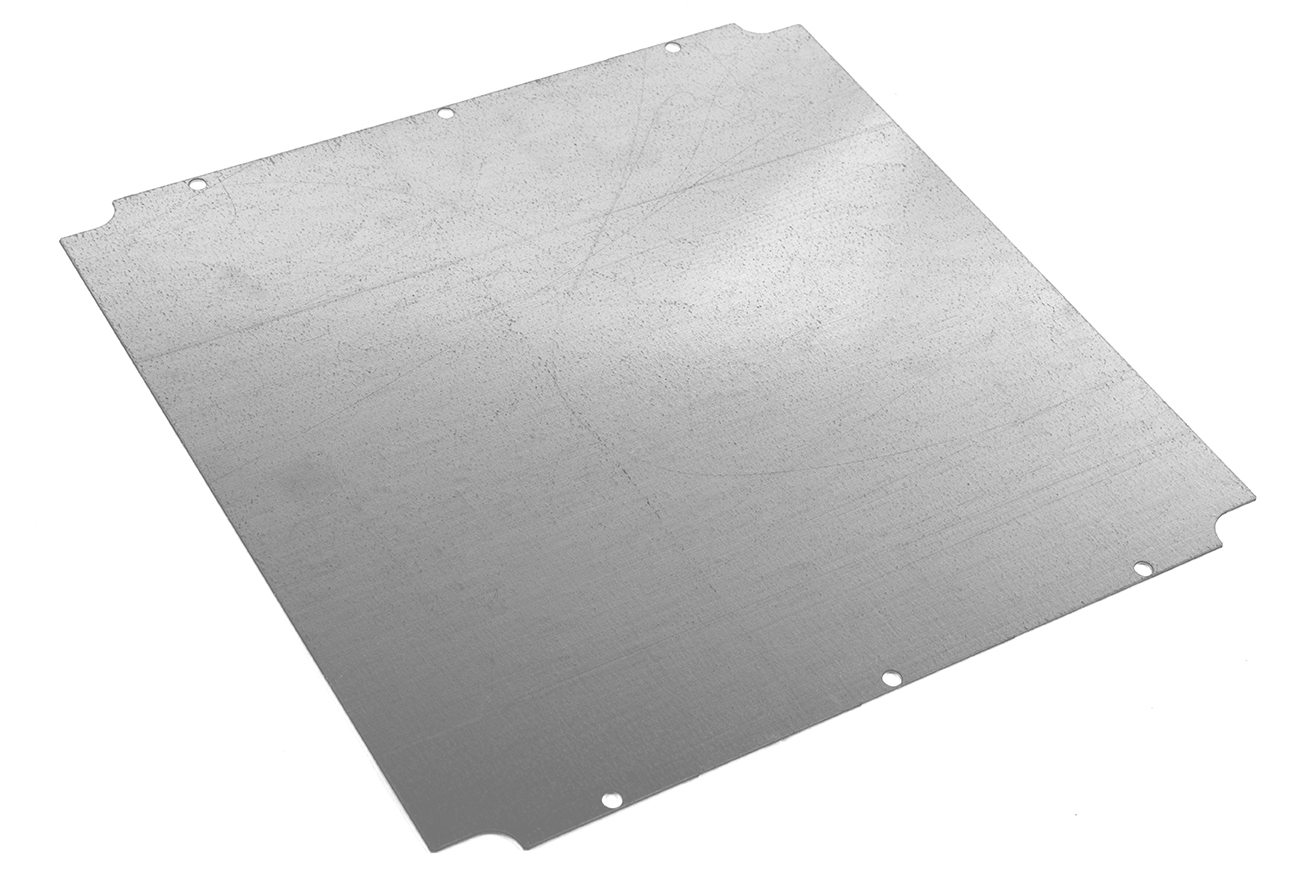

1590ZGRP253 Inner Panel
- Type Inner Panel
- Material Steel
$13.57In stock
Buy now
250 X 600 X 120MM Fberglas Box
- Type Thick wall, water-tight
- Material Fiberglass Polyester
- Color Gray
$158.03In stock
Buy now

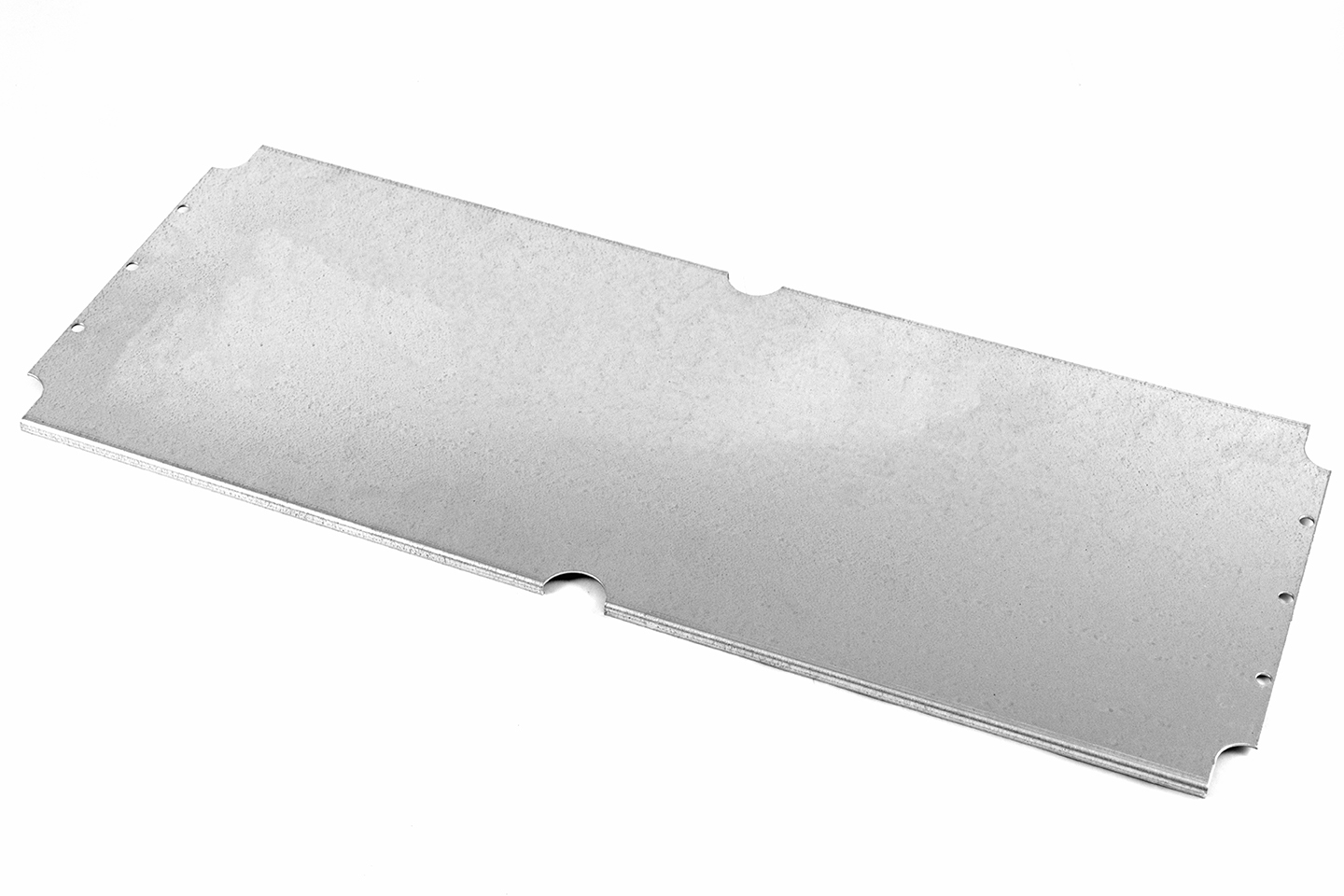

1590ZGRP263 Inner Panel
- Type Inner Panel
- Material Steel
$18.06Backorder
Buy now
250 X 600 X 160MM Fberglas Box
- Type Thick wall, water-tight
- Material Fiberglass Polyester
- Color Gray
$160.46In stock
Buy now

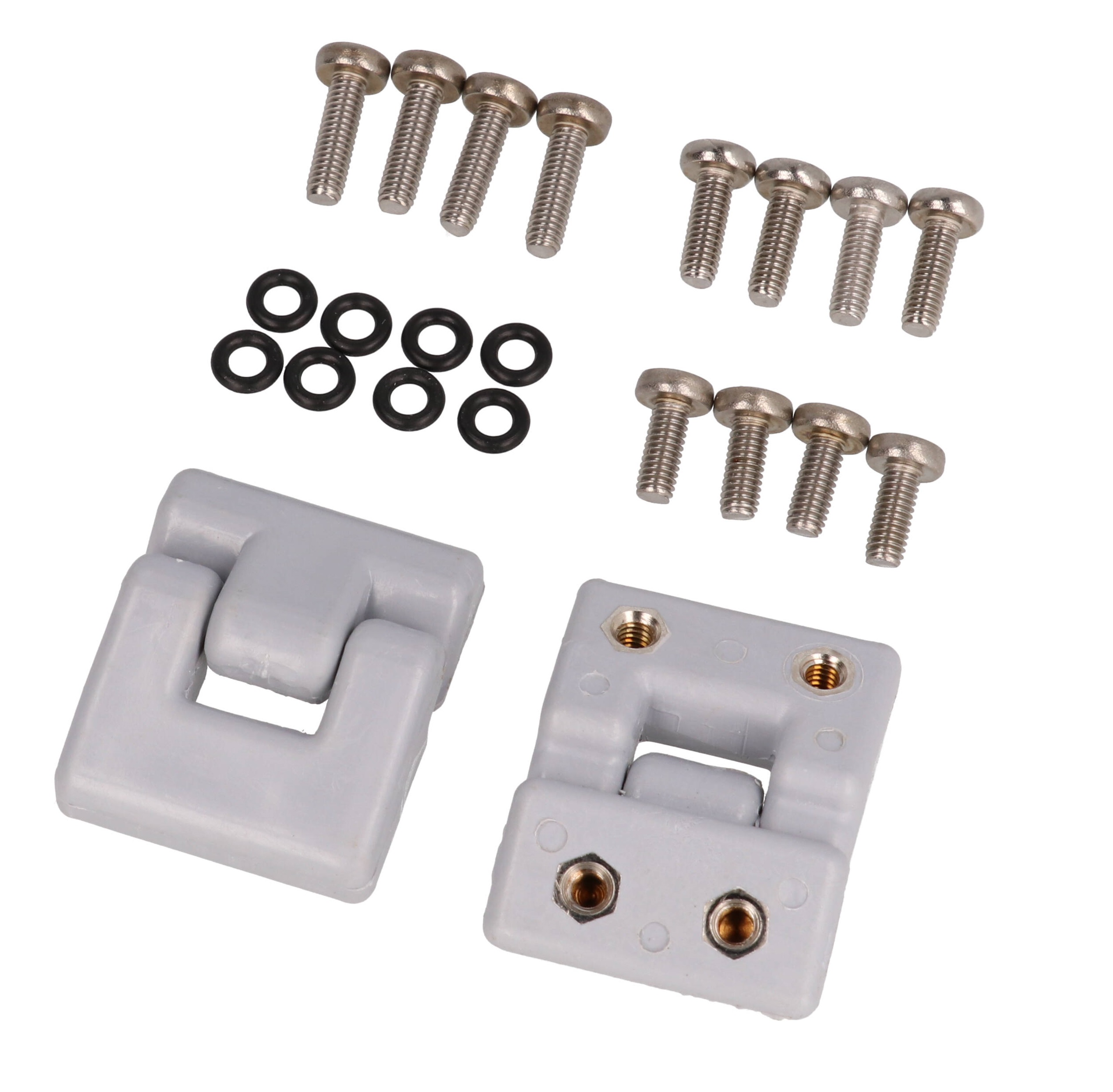

1427HK
1590ZGRP Hinge Kit
- Type Hinge Kit
- Material Fiberglass Polyester
- Color Beige
QuoteRequest a quote
Dimension tables (inches / mm)
Part Numbers
Units shown: mm . Switch units to: inch
| Part Number | Length | Width | Assembled · Depth | Enclosure · Depth | Lid · Depth | Inner Panel (Part No.) | Extra Lid Screws (Part No.) | Extra Panel Screws (Part No.) | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| 1590ZGRP081 | 3.15 | 2.95 | 2.17 | 1.57 | 0.59 | 1590ZGRP081PL | SC583-50 | SCGM4-50 | $21.26In stock1590ZGRP081 | Buy now |
| 1590ZGRP084 | 3.19 | 2.99 | 2.95 | 2.40 | 0.59 | 1590ZGRP081PL | SC583-50 | SCGM4-50 | $22.77In stock1590ZGRP084 | Buy now |
| 1590ZGRP082 | 4.33 | 2.95 | 2.17 | 1.57 | 0.59 | 1590ZGRP082PL | SC583-50 | SCGM4-50 | $26.05In stock1590ZGRP082 | Buy now |
| 1590ZGRP121 | 4.80 | 4.72 | 3.54 | 2.56 | 0.98 | 1590ZGRP121PL | SC570-20 | SCGM6GRP-20 | $33.12In stock1590ZGRP121 | Buy now |
| 1590ZGRP083 | 6.30 | 2.95 | 2.17 | 1.61 | 0.59 | 1590ZGRP083PL | SC583-50 | SCGM4-50 | $29.24In stock1590ZGRP083 | Buy now |
| 1590ZGRP161 | 6.30 | 6.30 | 3.54 | 2.76 | 0.79 | 1590ZGRP161PL | SC570-20 | SCGM6GRP-20 | $46.22In stock1590ZGRP161 | Buy now |
| 1590ZGRP131 | 7.48 | 2.95 | 2.17 | 1.57 | 0.59 | 1590ZGRP131PL | SC583-50 | SCGM4-50 | $58.39In stock1590ZGRP131 | Buy now |
| 1590ZGRP233 | 9.84 | 7.87 | 4.72 | 3.74 | 0.98 | 1590ZGRP233PL | SC570-20 | SCGM6GRP-20 | $68.07In stock1590ZGRP233 | Buy now |

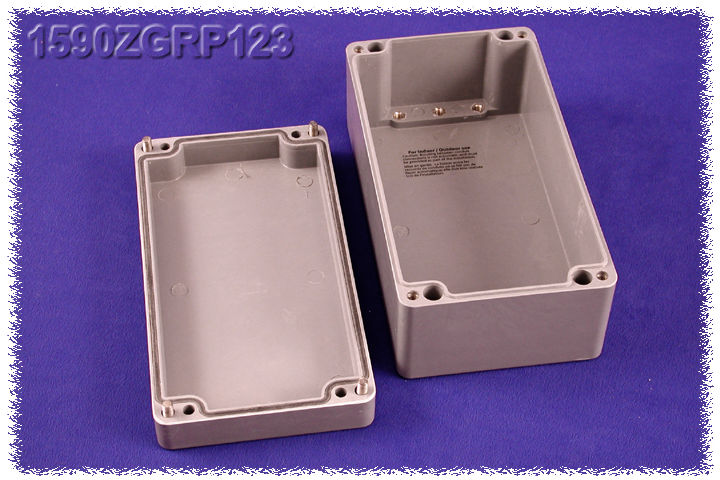

| 1590ZGRP123 | 8.66 | 4.72 | 3.58 | 2.60 | 0.98 | 1590ZGRP123PL | SC570-20 | SCGM6GRP-20 | $33.72In stock1590ZGRP123 | Buy now |

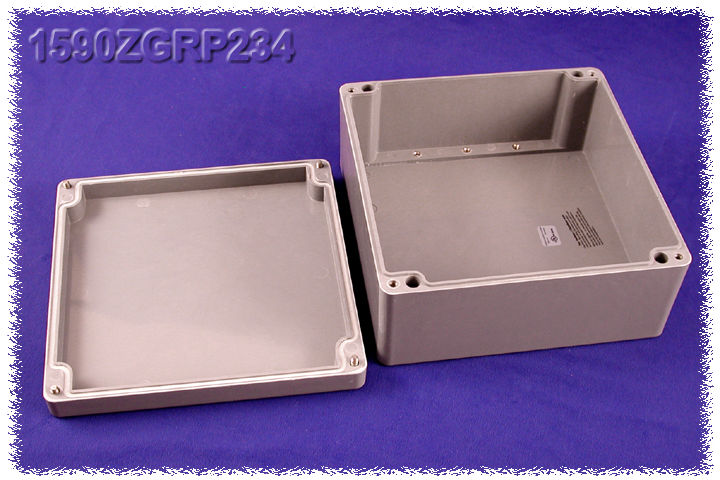

| 1590ZGRP234 | 10.04 | 9.84 | 4.72 | 3.74 | 0.98 | 1590ZGRP234PL | SC570-20 | SCGM6GRP-20 | $80.34Backorder1590ZGRP234 | Buy now |

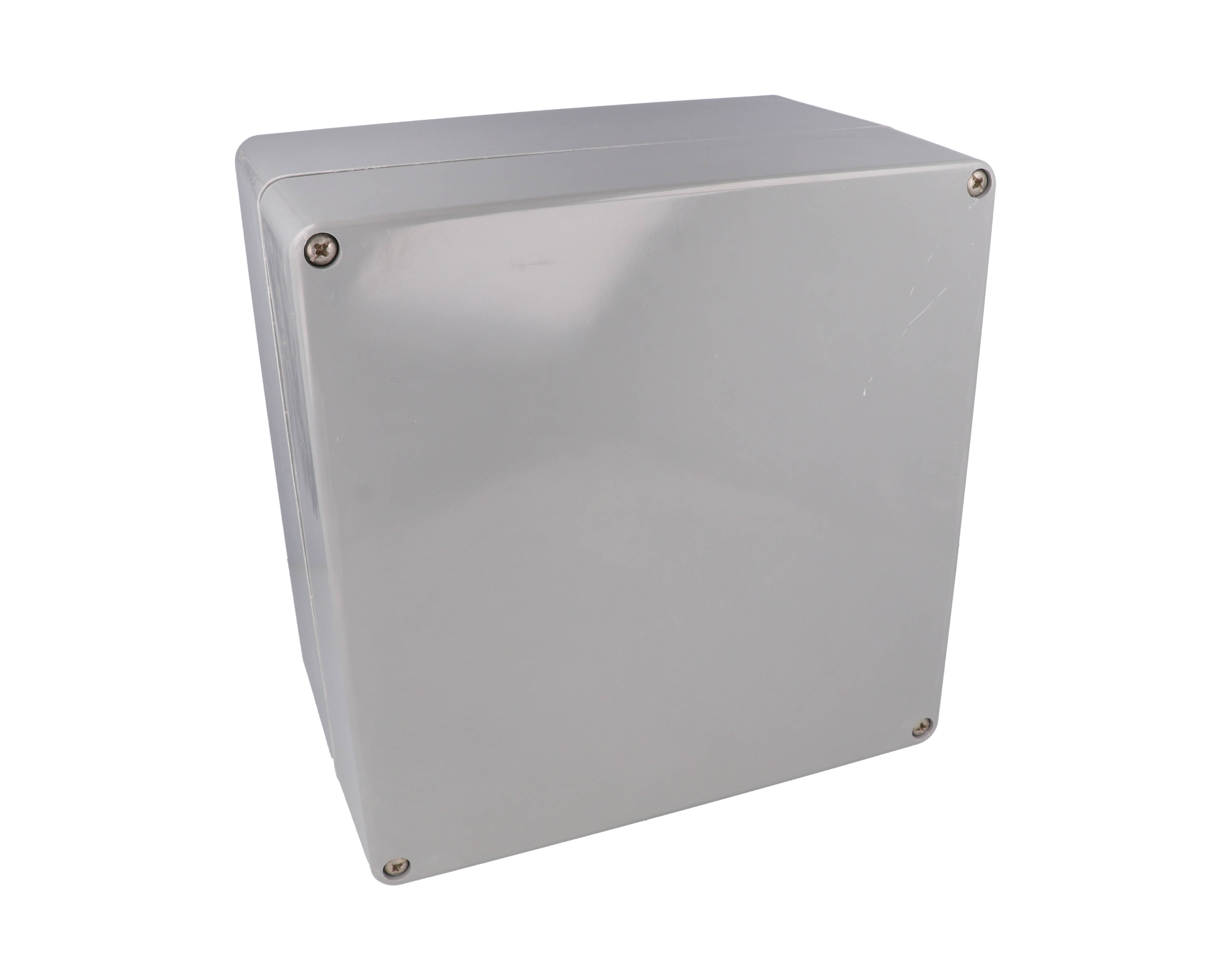

| 1590ZGRP235 | 10.04 | 9.84 | 6.34 | 3.74 | 2.60 | 1590ZGRP234PL | SC571-12 | SCGM6GRP-20 | $101.11Backorder1590ZGRP235 | Buy now |
| 1590ZGRP162 | 10.24 | 6.30 | 3.54 | 2.76 | 0.79 | 1590ZGRP162PL | SC570-20 | SCGM6GRP-20 | $63.17In stock1590ZGRP162 | Buy now |

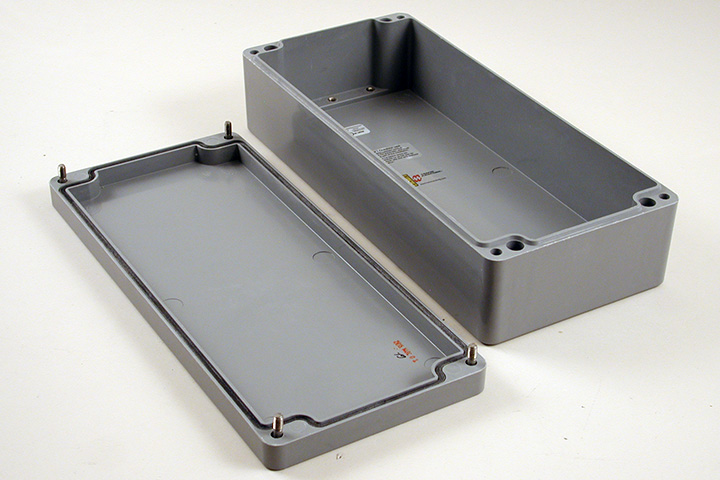

| 1590ZGRP163 | 14.17 | 6.30 | 3.54 | 2.80 | 0.79 | 1590ZGRP163PL | SC570-20 | SCGM6GRP-20 | $73.57In stock1590ZGRP163 | Buy now |
| 1590ZGRP243 | 15.75 | 9.84 | 4.72 | 3.74 | 0.98 | 1590ZGRP243PL | SC570-20 | SCGM6GRP-20 | $110.36Backorder1590ZGRP243 | Buy now |
| 1590ZGRP244 | 15.75 | 9.84 | 6.30 | 3.78 | 2.56 | 1590ZGRP243PL | SC571-12 | SCGM6GRP-20 | $110.85In stock1590ZGRP244 | Buy now |
| 1590ZGRP253 | 15.75 | 15.94 | 4.72 | 3.74 | 0.98 | 1590ZGRP253PL | SC570-20 | SCGM6GRP-20 | $148.85In stock1590ZGRP253 | Buy now |

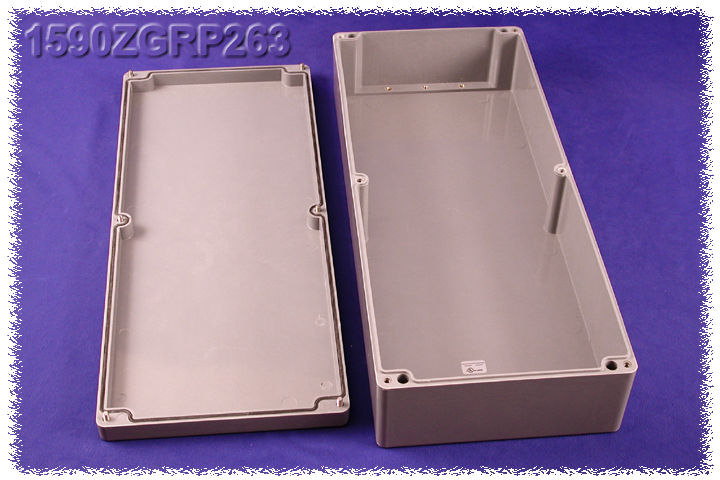

| 1590ZGRP263 | 23.62 | 9.84 | 4.72 | 3.74 | 0.98 | 1590ZGRP263PL | SC570-20 | SCGM6GRP-20 | $158.03In stock1590ZGRP263 | Buy now |
| 1590ZGRP264 | 23.62 | 9.84 | 6.30 | 3.74 | 2.56 | 1590ZGRP263PL | SC571-12 | SCGM6GRP-20 | $160.46In stock1590ZGRP264 | Buy now |
Key Features:
- ■Molded from glass reinforced polyester. Smooth finish.
- ■Heavy duty thick wall design.

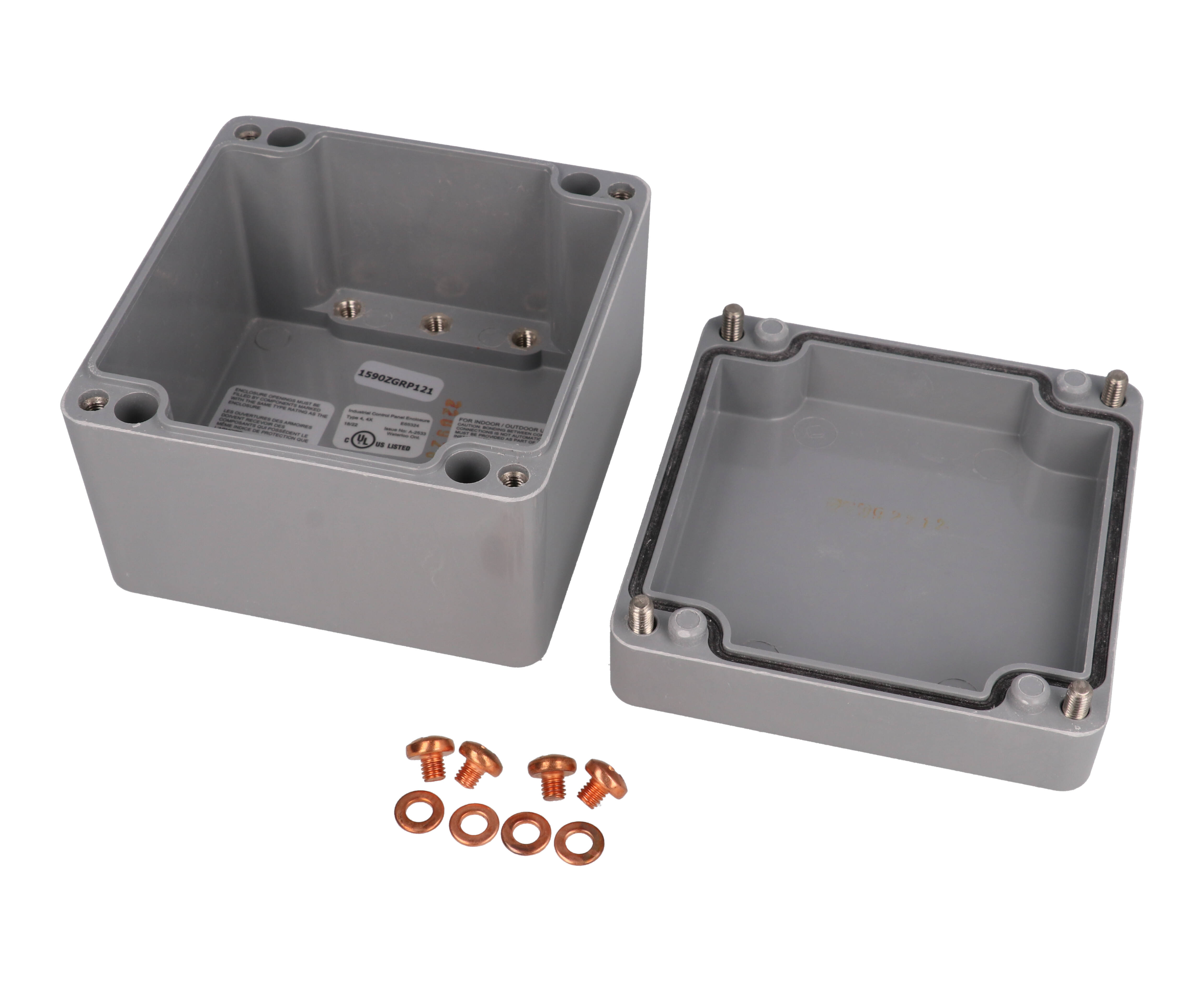

- ■Includes gasketed lid with two piece tongue and groove construction.
- ■C UL & UL listed under file #E65324.
- ■Rated IP66. Certified to NEMA 4, 4X standards per UL 508A.
- ■Enclosures have an impact rating of IK09 in conformity with IEC62262.
- ■Recommended operating temperature is -40°C to +120°C (-40°F to +248°F).
- ■Lid contains self-captivated stainless steel screws.

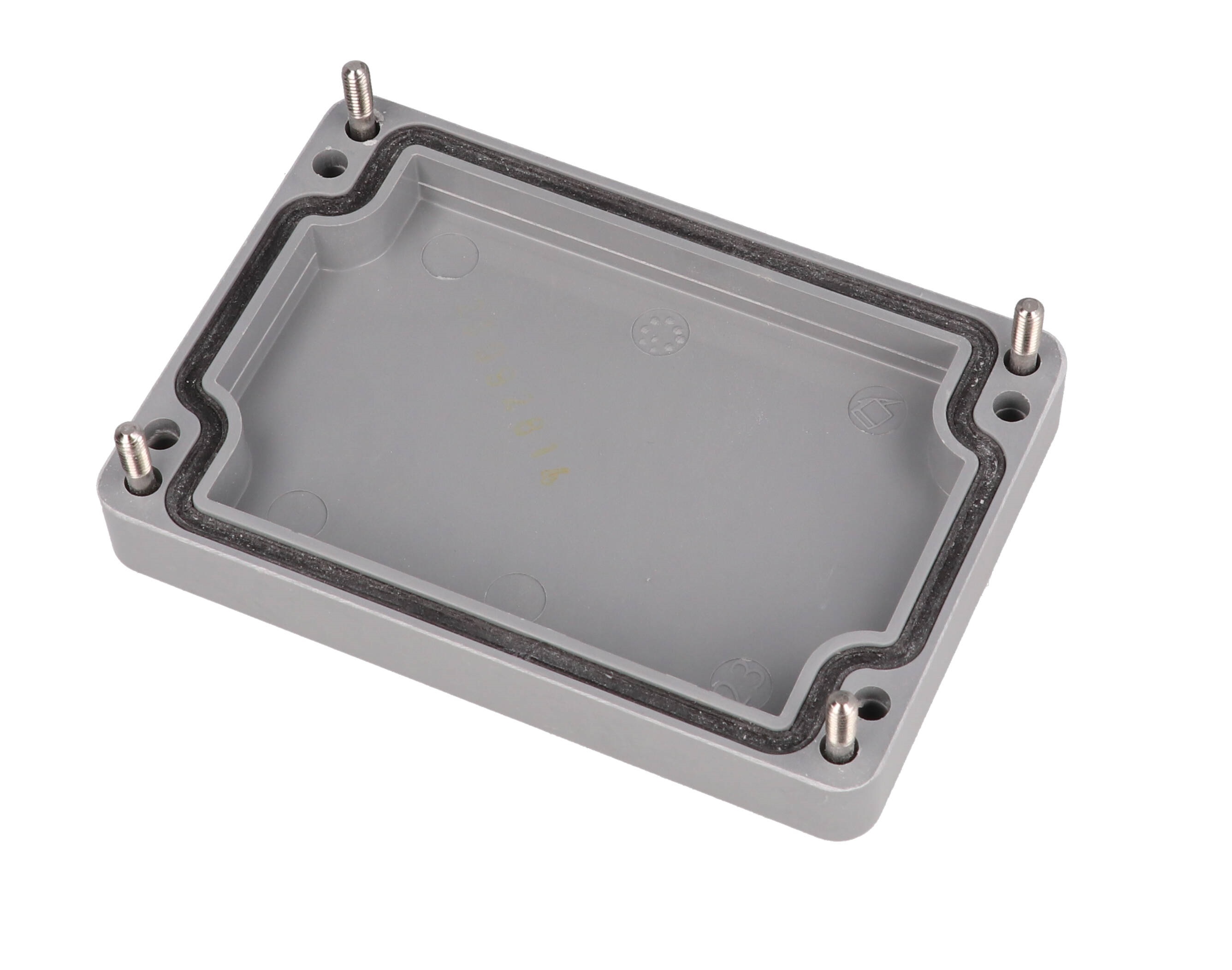

- ■Gasket material is EPDM sponge rubber.
- ■Easy wall mounting via through holes located outside of the gasket channel.

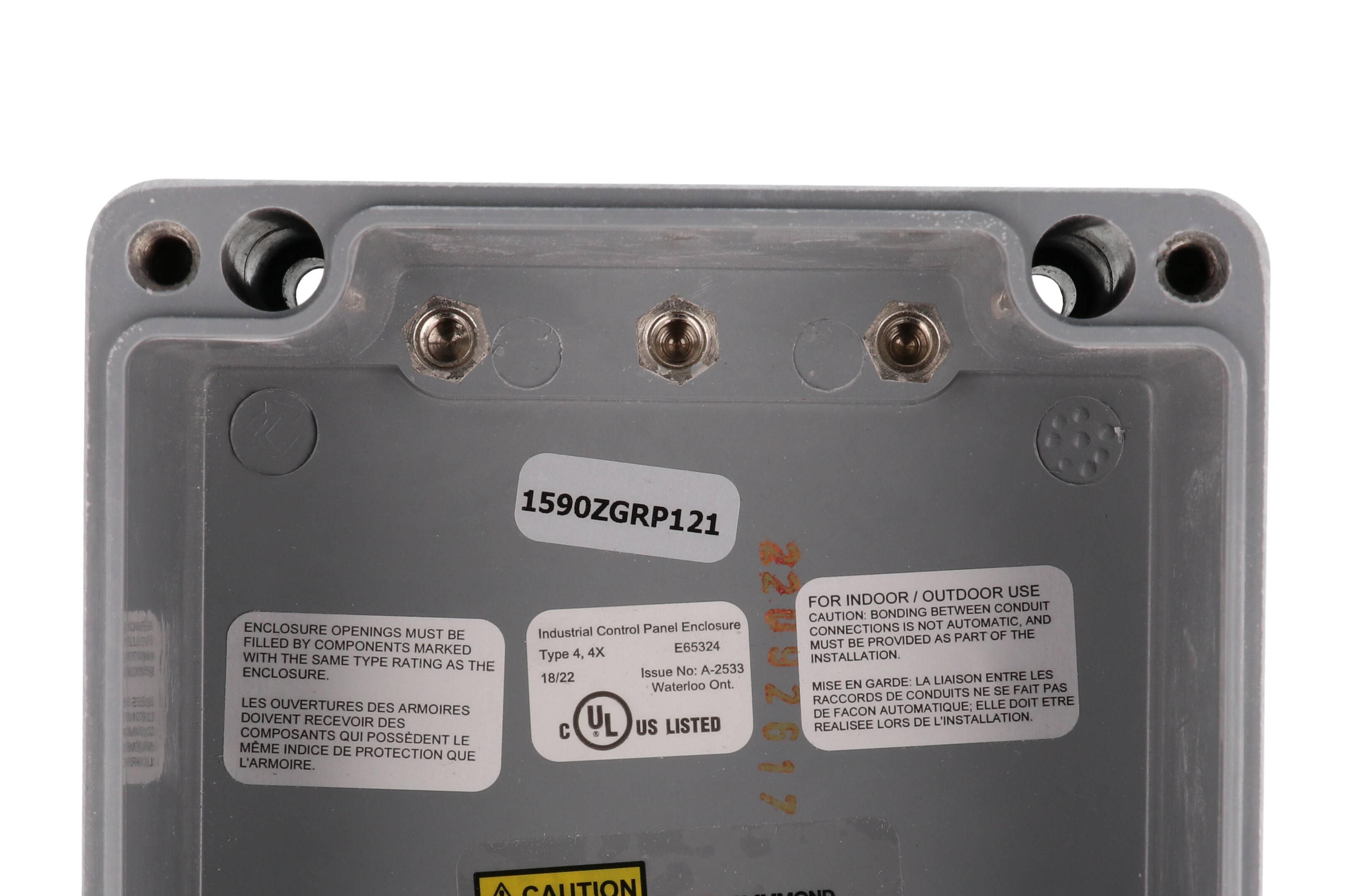

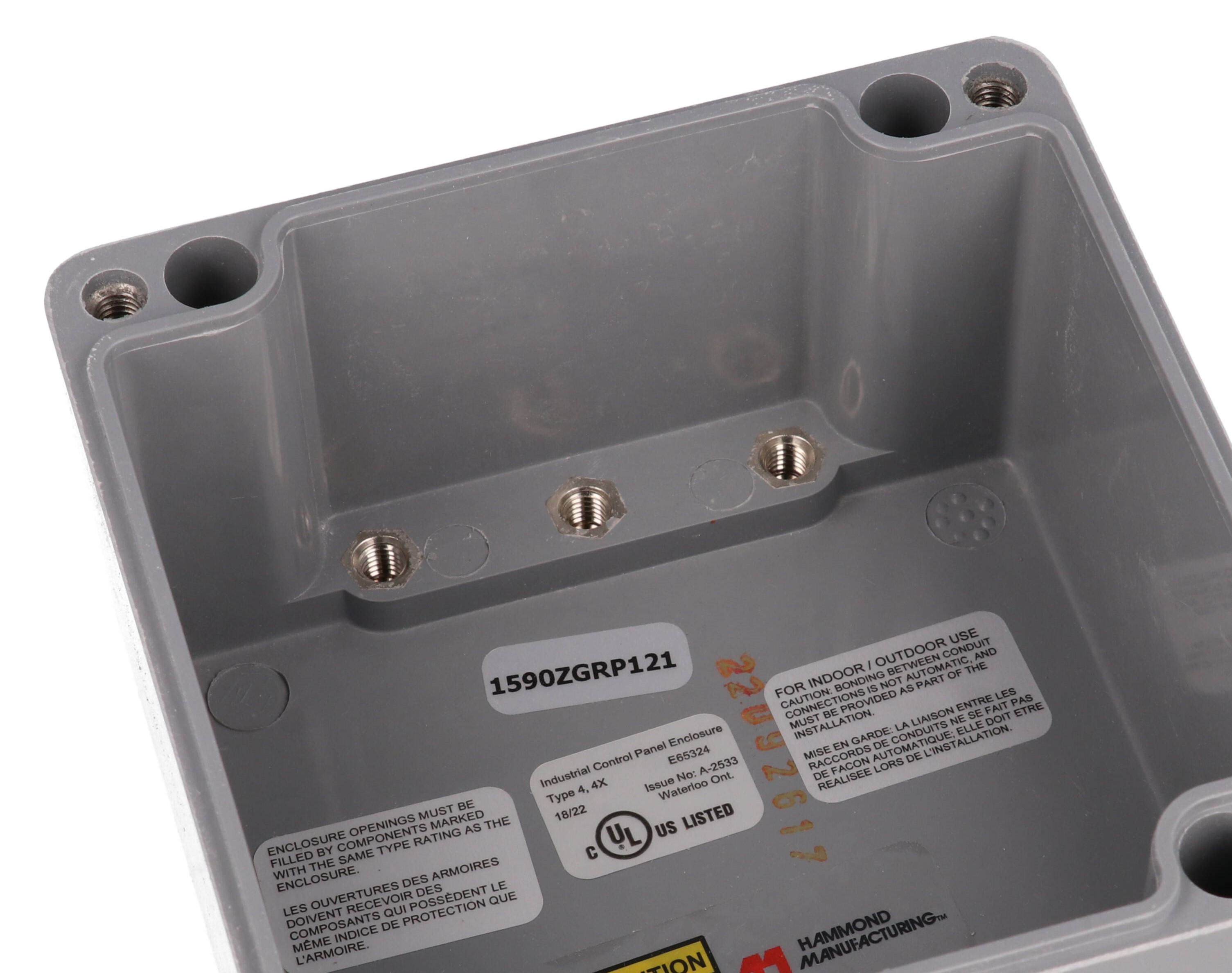

- ■Internal mounting shelf for bonding/mounting nuts molded in.
- ■Optional 16 gauge galvanized steel inner panels available.
Photo Features
Documents
Additional information
Part Numbers
| Part Number | Length | Width | Assembled · Depth | Enclosure · Depth | Lid · Depth | Inner Panel | Extra Lid Screws | Extra Panel Screws |
|---|---|---|---|---|---|---|---|---|
| 1590ZGRP081 | 80 | 75 | 55 | 40 | 15 | 1590ZGRP081PL | SC583-50 | SCGM4-50 |
| 1590ZGRP084 | 81 | 76 | 75 | 61 | 15 | 1590ZGRP081PL | SC583-50 | SCGM4-50 |
| 1590ZGRP082 | 110 | 75 | 55 | 40 | 15 | 1590ZGRP082PL | SC583-50 | SCGM4-50 |
| 1590ZGRP121 | 122 | 120 | 90 | 65 | 25 | 1590ZGRP121PL | SC570-20 | SCGM6GRP-20 |
| 1590ZGRP083 | 160 | 75 | 55 | 41 | 15 | 1590ZGRP083PL | SC583-50 | SCGM4-50 |
| 1590ZGRP161 | 160 | 160 | 90 | 70 | 20 | 1590ZGRP161PL | SC570-20 | SCGM6GRP-20 |
| 1590ZGRP131 | 190 | 75 | 55 | 40 | 15 | 1590ZGRP131PL | SC583-50 | SCGM4-50 |
| 1590ZGRP233 | 250 | 200 | 120 | 95 | 25 | 1590ZGRP233PL | SC570-20 | SCGM6GRP-20 |
| 1590ZGRP123 | 220 | 120 | 91 | 66 | 25 | 1590ZGRP123PL | SC570-20 | SCGM6GRP-20 |
| 1590ZGRP234 | 255 | 250 | 120 | 95 | 25 | 1590ZGRP234PL | SC570-20 | SCGM6GRP-20 |
| 1590ZGRP235 | 255 | 250 | 161 | 95 | 66 | 1590ZGRP234PL | SC571-12 | SCGM6GRP-20 |
| 1590ZGRP162 | 260 | 160 | 90 | 70 | 20 | 1590ZGRP162PL | SC570-20 | SCGM6GRP-20 |
| 1590ZGRP163 | 360 | 160 | 90 | 71 | 20 | 1590ZGRP163PL | SC570-20 | SCGM6GRP-20 |
| 1590ZGRP243 | 400 | 250 | 120 | 95 | 25 | 1590ZGRP243PL | SC570-20 | SCGM6GRP-20 |
| 1590ZGRP244 | 400 | 250 | 160 | 96 | 65 | 1590ZGRP243PL | SC571-12 | SCGM6GRP-20 |
| 1590ZGRP253 | 400 | 405 | 120 | 95 | 25 | 1590ZGRP253PL | SC570-20 | SCGM6GRP-20 |
| 1590ZGRP263 | 600 | 250 | 120 | 95 | 25 | 1590ZGRP263PL | SC570-20 | SCGM6GRP-20 |
| 1590ZGRP264 | 600 | 250 | 160 | 95 | 65 | 1590ZGRP263PL | SC571-12 | SCGM6GRP-20 |
