Hammond 1590ZGRP233 250 x 200 x 120 mm Watertight Polyester Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 250 x 200 x 120 mm (9.84 x 7.87 x 4.72 in); 95 mm base, 25 mm lid
- Holds a PC board up to 234 x 184 mm or inner panel 1590ZGRP233PL
- IP66, NEMA 1, 4, 4X, 12 & 13; certified NEMA 4, 4X per UL 508A
- C UL & UL listed under file #E65324; UL94 V-0 flame rating
- IK09 impact-rated gray glass reinforced polyester, thick wall
- Captive stainless steel lid screws with EPDM sponge gasket
- Operating range -40°C to +120°C (-40°F to +248°F)

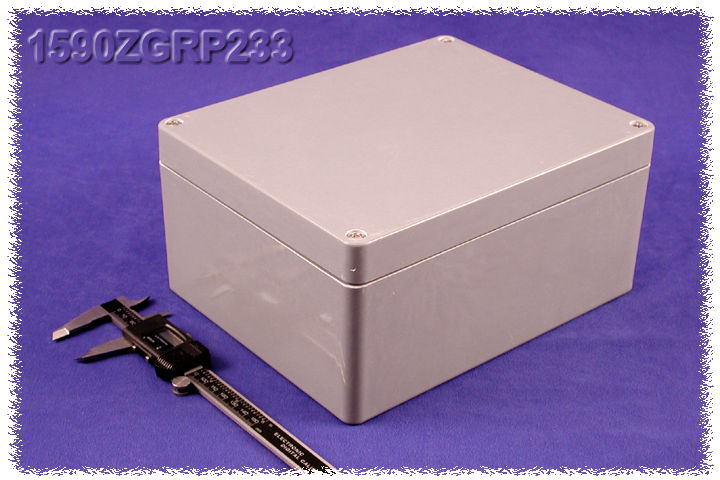

The 1590ZGRP233 is a mid-size, thick-wall enclosure molded from gray glass reinforced polyester. Its 250 x 200 mm footprint and 120 mm assembled depth leave room for larger PC boards or an inner-panel layout, making it a practical choice for panel builders and electricians specifying NEMA 4X, IP66 protection.

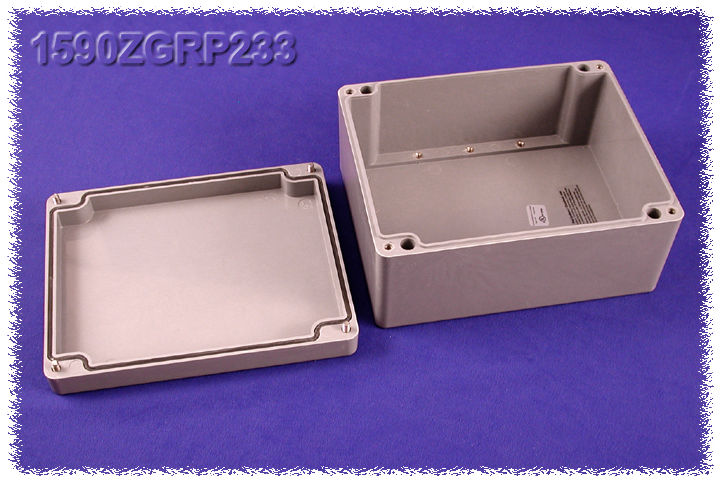

The ordering table lists 9.84 in (250 mm) long, 7.87 in (200 mm) wide and 4.72 in (120 mm) deep, with a 95 mm deep base and a 25 mm deep lid. The part page size is given as 7.87 x 9.84 x 4.54 in (200 x 250 x 115 mm). Maximum P.C. board size is 184 x 234 mm, and the optional 1590ZGRP233PL steel inner panel mounts to the molded-in shelf nuts.
Four self-captivated stainless steel screws hold the tongue and groove lid against its EPDM sponge rubber gasket; torque them to 8-9.5 lbf.in (90-110 cN.m). SC570-20 supplies extra M6 - 1.0 x 30mm lid screws and SCGM6GRP-20 copper ground hardware. Through holes for wall mounting are outside the gasket channel.
The 1590ZGRP233 is IP66 and NEMA 1, 4, 4X, 12 and 13 rated, certified to NEMA 4, 4X per UL 508A, and C UL and UL listed under file E65324. It has an IK09 impact rating, UL94 V-0 flame rating, a -40°C to +120°C recommended operating range, and RoHS and REACH compliance. Shipping weight is 4.85 lbs (2.20 kg).
Ideal For
- Electronics mounted on an inner panel
- Wall-mounted NEMA 4X field enclosure
- Watertight housing for PC boards in wet areas
- Outdoor equipment rated -40°C to +120°C
Overview
| Type | Thick wall, water-tight |
| Series | 1590ZGRP Series, Type 4, 4X Glass Reinforced Polyester Enclosures |
| Description | 250 X 200 X 120MM FBERGLAS BOX |
| Part Number | 1590ZGRP233 |
| Long Description | enclosure - fiberglass |
Dimensions
| Width | 7.87 in (200 mm) |
| Length | 9.84 in (250 mm) |
| Lid Depth | 0.98 in (25 mm) |
| Assembled Depth | 4.72 in (120 mm) |
| Size (L X W X H) | 7.87 in x 9.84 in x 4.54 in (200 mm x 250 mm x 115 mm) |
| Max. P.C. Board Width | 234 mm |
| Enclosure (Base) Depth | 3.74 in (95 mm) |
| Max. P.C. Board Length | 184 mm |
Identifiers
| UPC | 623980012674 |
| UNSPSC | 39121301 |
Customization
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 4.85 lbs (2.20 kg) |
Construction & Finish
| Lid | Gasketed lid with two piece tongue and groove construction |
| Color | Gray |
| Material | Fiberglass Polyester |
| Lid Screws | Self-captivated stainless steel screws (captive once installed in lid) |
| Molded From | Glass reinforced polyester, smooth finish |
| Wall Design | Heavy duty thick wall |
| Wall Mounting | Through holes located outside of the gasket channel |
| Gasket Material | EPDM sponge rubber |
| Internal Mounting | Internal mounting shelf with molded-in bonding/mounting nuts; accepts inner panels or PC boards |
Hardware & Accessories
| Extra Lid Screws | SC570-20 - Stainless Steel Cover Screw (20 Pack) [M6 - 1.0 x 30mm] |
| Hinge Kit Details | Molded from tough polyester; includes 12x stainless steel M4 screws and 8x o-rings; mounting template included; with hinges installed, all four lid screws are required to maintain a proper seal |
| Hinge Kit (Optional) | 1427HK - Hinge Kit (2 Pack) |
| Other Series Accessories | Pole Mount Kit, Breather Kit, Pressure Compensation Plug, Small Rainproof Ventilator, Liquid-Tight Strain Relief Cordgrips |
| Purchased Assembly Includes | Box, Lid, Gasket and 4 cover screws |
| Inner Panel (Sold Separately) | 1590ZGRP233PL - 16 gauge galvanized steel |
| Recommended Cover Screw Torque | 8-9.5 lbf.in (90-110 cN.m) |
| Screw Provisions (Per Drawing) | Accepts M6 x 1 screw |
| Extra Panel Screws / Ground Hardware | SCGM6GRP-20 - Copper Ground Hardware (20 Pack) [M6 - 1.0 X 6mm / M6 Washer] |
Environmental & Protection
| IP Rating | IP66 |
| NEMA Rating | 1, 4, 4X, 12 & 13 |
| Flame Rating | UL94 V-0 |
| Impact Rating | IK09 in conformity with IEC62262 |
| NEMA Certification | Certified to NEMA 4, 4X standards per UL 508A |
| Recommended Operating Temperature | -40°C to +120°C (-40°F to +248°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | C UL & UL listed |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size is the 1590ZGRP233?▾
The ordering table gives 250 x 200 x 120 mm (9.84 x 7.87 x 4.72 in) with a 95 mm base and 25 mm lid. The part page lists 7.87 x 9.84 x 4.54 in (200 x 250 x 115 mm).
What is the maximum circuit board size?▾
184 mm by 234 mm.
Is a mounting panel included?▾
No. The inner panel is 1590ZGRP233PL and is sold separately. The enclosure includes the box, lid, gasket and 4 cover screws.
What screws are used on the lid?▾
Self-captivated stainless steel screws; replacements are SC570-20, M6 - 1.0 x 30mm, 20 pack.
Is it UL listed?▾
Yes, C UL and UL listed under file #E65324, and certified to NEMA 4, 4X per UL 508A.
