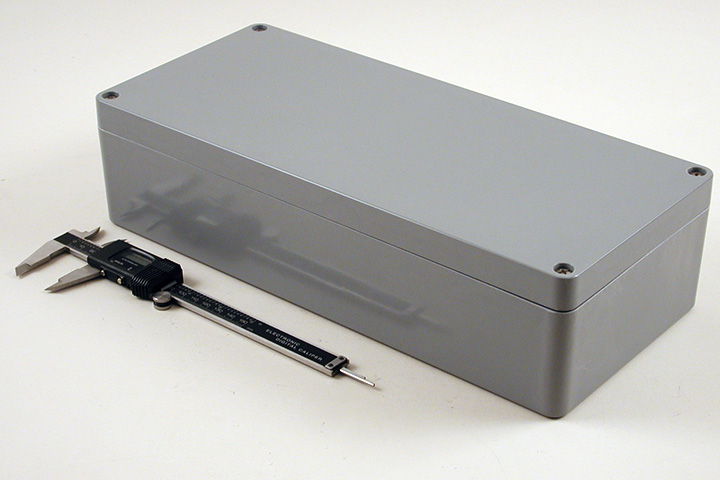

Hammond 1590ZGRP163 360 x 160 x 90 mm Long Fiberglass NEMA 4X Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 360 x 160 x 90 mm long format (14.17 x 6.30 x 3.54 in); 71 mm base, 20 mm lid
- Accepts a PC board up to 344 x 144 mm or inner panel 1590ZGRP163PL
- IP66 and NEMA 1, 4, 4X, 12 & 13; NEMA 4, 4X certified per UL 508A
- C UL & UL listed (file #E65324); UL94 V-0; IK09 impact
- Gray thick-wall glass reinforced polyester, smooth finish
- Four captive stainless steel lid screws; 8-9.5 lbf.in recommended torque
The 1590ZGRP163 is the longest 160 mm-wide enclosure in the 1590ZGRP series, a 360 mm gray glass reinforced polyester box for long PC boards or inner-panel layouts that need watertight protection. Electricians and OEM engineers get NEMA 4X and IP66 sealing in a narrow footprint.
The ordering table lists it at 14.17 in (360 mm) long, 6.30 in (160 mm) wide and 3.54 in (90 mm) deep, with a 71 mm deep base and a 20 mm deep lid; the part page gives 14.2 x 6.3 x 3.54 in (361 x 160 x 90 mm). The internal shelf accepts a PC board up to 344 x 144 mm or the 1590ZGRP163PL galvanized steel inner panel.
The two piece tongue and groove lid seals on an EPDM sponge rubber gasket and is fastened with four self-captivated stainless steel screws, torqued to 8-9.5 lbf.in (90-110 cN.m). Replacement lid screws are SC570-20 (M6 - 1.0 x 30mm) and ground hardware is SCGM6GRP-20. Wall-mounting holes are outside the gasket perimeter.
The 1590ZGRP163 is IP66 and NEMA 1, 4, 4X, 12 and 13 rated, certified to NEMA 4, 4X per UL 508A, C UL and UL listed under file E65324, IK09 impact rated and UL94 V-0 flame rated. Recommended operating temperature is -40°C to +120°C. It weighs 4.9 lbs (2.22 kg) shipped and is RoHS and REACH compliant.
Ideal For
- Long PC boards and inner-panel layouts
- Wall-mounted NEMA 4X enclosure for outdoor electronics
- Narrow watertight housing along walls or equipment
- Low-temperature installations to -40°C
Overview
| Type | Thick wall, water-tight |
| Series | 1590ZGRP Series, Type 4, 4X Glass Reinforced Polyester Enclosures |
| Description | 360 X 160 X 90MM FIBERGLAS BOX |
| Part Number | 1590ZGRP163 |
| Long Description | enclosure - fiberglass |
Dimensions
| Width | 6.30 in (160 mm) |
| Length | 14.17 in (360 mm) |
| Lid Depth | 0.79 in (20 mm) |
| Assembled Depth | 3.54 in (90 mm) |
| Size (L X W X H) | 14.2 in x 6.3 in x 3.54 in (361 mm x 160 mm x 90 mm) |
| Max. P.C. Board Width | 144 mm |
| Enclosure (Base) Depth | 2.80 in (71 mm) |
| Max. P.C. Board Length | 344 mm |
Identifiers
| UPC | 623980402789 |
| UNSPSC | 39121301 |
Customization
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 4.9 lbs (2.22 kg) |
Construction & Finish
| Lid | Gasketed lid with two piece tongue and groove construction |
| Color | Gray |
| Material | Fiberglass Polyester |
| Lid Screws | Self-captivated stainless steel screws (captive once installed in lid) |
| Molded From | Glass reinforced polyester, smooth finish |
| Wall Design | Heavy duty thick wall |
| Wall Mounting | Through holes located outside of the gasket channel |
| Gasket Material | EPDM sponge rubber |
| Internal Mounting | Internal mounting shelf with molded-in bonding/mounting nuts; accepts inner panels or PC boards |
Hardware & Accessories
| Extra Lid Screws | SC570-20 - Stainless Steel Cover Screw (20 Pack) [M6 - 1.0 x 30mm] |
| Hinge Kit Details | Molded from tough polyester; includes 12x stainless steel M4 screws and 8x o-rings; mounting template included; with hinges installed, all four lid screws are required to maintain a proper seal |
| Hinge Kit (Optional) | 1427HK - Hinge Kit (2 Pack) |
| Other Series Accessories | Pole Mount Kit, Breather Kit, Pressure Compensation Plug, Small Rainproof Ventilator, Liquid-Tight Strain Relief Cordgrips |
| Purchased Assembly Includes | Box, Lid, Gasket and 4 cover screws |
| Inner Panel (Sold Separately) | 1590ZGRP163PL - 16 gauge galvanized steel |
| Recommended Cover Screw Torque | 8-9.5 lbf.in (90-110 cN.m) |
| Screw Provisions (Per Drawing) | Accepts M6 x 1 screw |
| Extra Panel Screws / Ground Hardware | SCGM6GRP-20 - Copper Ground Hardware (20 Pack) [M6 - 1.0 X 6mm / M6 Washer] |
Environmental & Protection
| IP Rating | IP66 |
| NEMA Rating | 1, 4, 4X, 12 & 13 |
| Flame Rating | UL94 V-0 |
| Impact Rating | IK09 in conformity with IEC62262 |
| NEMA Certification | Certified to NEMA 4, 4X standards per UL 508A |
| Recommended Operating Temperature | -40°C to +120°C (-40°F to +248°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | C UL & UL listed |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the 1590ZGRP163 dimensions?▾
The ordering table lists 360 x 160 x 90 mm (14.17 x 6.30 x 3.54 in); the part page lists 14.2 x 6.3 x 3.54 in (361 x 160 x 90 mm). The base is 71 mm deep and the lid 20 mm.
What board size will fit?▾
A P.C. board up to 344 mm long and 144 mm wide.
Which inner panel is used?▾
The 1590ZGRP163PL 16 gauge galvanized steel inner panel, sold separately.
Can I mount it on a wall without compromising the seal?▾
Yes. The wall-mounting through holes are located outside of the gasket channel.
What temperatures is it rated for?▾
Recommended operating temperature is -40°C to +120°C (-40°F to +248°F).
