Hammond 1590ZGRP263 600 x 250 x 120 mm Long Watertight Polyester Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 600 x 250 x 120 mm (23.62 x 9.84 x 4.72 in); 95 mm base, 25 mm lid
- PC board up to 582.65 x 232.64 mm; inner panel 1590ZGRP263PL
- Six captive stainless steel cover screws included
- IP66, NEMA 1, 4, 4X, 12 & 13; NEMA 4, 4X certified per UL 508A
- C UL & UL listed under file #E65324; UL94 V-0; IK09 impact
- EPDM sponge gasket; -40°C to +120°C operating range

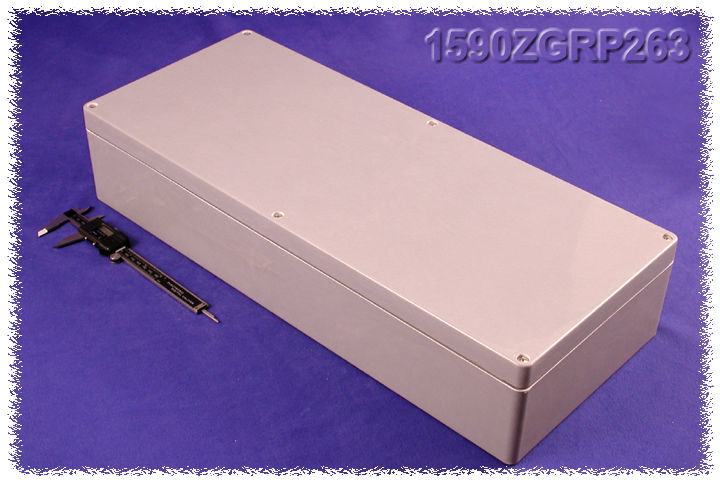

The 1590ZGRP263 is the longest size in the 1590ZGRP series, a 600 x 250 mm gray glass reinforced polyester enclosure for long panel layouts or multiple boards in one watertight, NEMA 4X and IP66 rated housing.
Overall size is 23.62 x 9.84 x 4.72 in (600 x 250 x 120 mm), with a 95 mm deep base and a 25 mm deep lid. Maximum P.C. board size is 582.65 x 232.64 mm, and the 1590ZGRP263PL steel inner panel (sold separately) mounts to the molded-in nuts on the internal shelf.
Unlike the smaller sizes, this assembly includes six cover screws, all self-captivated stainless steel, holding the two piece tongue and groove lid against an EPDM sponge rubber gasket. Recommended cover screw torque is 8-9.5 lbf.in (90-110 cN.m). Spare lid screws are SC570-20 (M6 - 1.0 x 30mm). Wall-mounting through holes are placed outside the gasket channel.
Ratings include IP66, NEMA 1, 4, 4X, 12 and 13, NEMA 4, 4X certification per UL 508A, C UL and UL listing under file E65324, IK09 impact and UL94 V-0 flame. The recommended operating range is -40°C to +120°C. The 1590ZGRP263 is RoHS and REACH compliant and ships at 10.99 lbs (4.98 kg).
Ideal For
- Long panel layouts or multiple boards
- Wall-mounted NEMA 4X enclosure
- Watertight housing for outdoor electronics
- Installations from -40°C to +120°C
Overview
| Type | Thick wall, water-tight |
| Series | 1590ZGRP Series, Type 4, 4X Glass Reinforced Polyester Enclosures |
| Description | 250 X 600 X 120MM FBERGLAS BOX |
| Part Number | 1590ZGRP263 |
| Long Description | enclosure - fiberglass |
Dimensions
| Width | 9.84 in (250 mm) |
| Length | 23.62 in (600 mm) |
| Lid Depth | 0.98 in (25 mm) |
| Assembled Depth | 4.72 in (120 mm) |
| Size (L X W X H) | 23.62 in x 9.84 in x 4.72 in (600 mm x 250 mm x 120 mm) |
| Max. P.C. Board Width | 232.64 mm |
| Enclosure (Base) Depth | 3.74 in (95 mm) |
| Max. P.C. Board Length | 582.65 mm |
Identifiers
| UPC | 623980012698 |
| UNSPSC | 39121301 |
Customization
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 10.99 lbs (4.98 kg) |
Construction & Finish
| Lid | Gasketed lid with two piece tongue and groove construction |
| Color | Gray |
| Material | Fiberglass Polyester |
| Lid Screws | Self-captivated stainless steel screws (captive once installed in lid) |
| Molded From | Glass reinforced polyester, smooth finish |
| Wall Design | Heavy duty thick wall |
| Wall Mounting | Through holes located outside of the gasket channel |
| Gasket Material | EPDM sponge rubber |
| Internal Mounting | Internal mounting shelf with molded-in bonding/mounting nuts; accepts inner panels or PC boards |
Hardware & Accessories
| Extra Lid Screws | SC570-20 - Stainless Steel Cover Screw (20 Pack) [M6 - 1.0 x 30mm] |
| Hinge Kit Details | Molded from tough polyester; includes 12x stainless steel M4 screws and 8x o-rings; mounting template included; with hinges installed, all four lid screws are required to maintain a proper seal |
| Hinge Kit (Optional) | 1427HK - Hinge Kit (2 Pack) |
| Other Series Accessories | Pole Mount Kit, Breather Kit, Pressure Compensation Plug, Small Rainproof Ventilator, Liquid-Tight Strain Relief Cordgrips |
| Purchased Assembly Includes | Box, Lid, Gasket and 6 cover screws |
| Inner Panel (Sold Separately) | 1590ZGRP263PL - 16 gauge galvanized steel |
| Recommended Cover Screw Torque | 8-9.5 lbf.in (90-110 cN.m) |
| Screw Provisions (Per Drawing) | Accepts M6 x 1 screw |
| Extra Panel Screws / Ground Hardware | SCGM6GRP-20 - Copper Ground Hardware (20 Pack) [M6 - 1.0 X 6mm / M6 Washer] |
Environmental & Protection
| IP Rating | IP66 |
| NEMA Rating | 1, 4, 4X, 12 & 13 |
| Flame Rating | UL94 V-0 |
| Impact Rating | IK09 in conformity with IEC62262 |
| NEMA Certification | Certified to NEMA 4, 4X standards per UL 508A |
| Recommended Operating Temperature | -40°C to +120°C (-40°F to +248°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | C UL & UL listed |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How long is the 1590ZGRP263?▾
600 mm (23.62 in) long, 250 mm (9.84 in) wide and 120 mm (4.72 in) deep.
How many lid screws does it use?▾
The purchased assembly includes the box, lid, gasket and 6 cover screws.
What is the maximum PC board size?▾
582.65 mm by 232.64 mm.
Is there a deeper version?▾
Yes, the 1590ZGRP264 is 600 x 250 x 160 mm with a 65 mm lid and uses the same 1590ZGRP263PL inner panel.
What torque should the cover screws be tightened to?▾
8-9.5 lbf.in (90-110 cN.m).
