Hammond 1590ZGRP264 600 x 250 x 160 mm Deep Long Fiberglass Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 600 x 250 x 160 mm (23.62 x 9.84 x 6.3 in); 95 mm base, deep 65 mm lid
- PC board up to 582.65 x 232.64 mm; inner panel 1590ZGRP263PL
- Six captive stainless steel cover screws; spares SC571-12 (M6 x 70 mm)
- IP66, NEMA 1, 4, 4X, 12 & 13; NEMA 4, 4X certified per UL 508A
- C UL & UL listed under file #E65324; UL94 V-0; IK09 impact
- Gray thick-wall polyester; -40°C to +120°C operating range

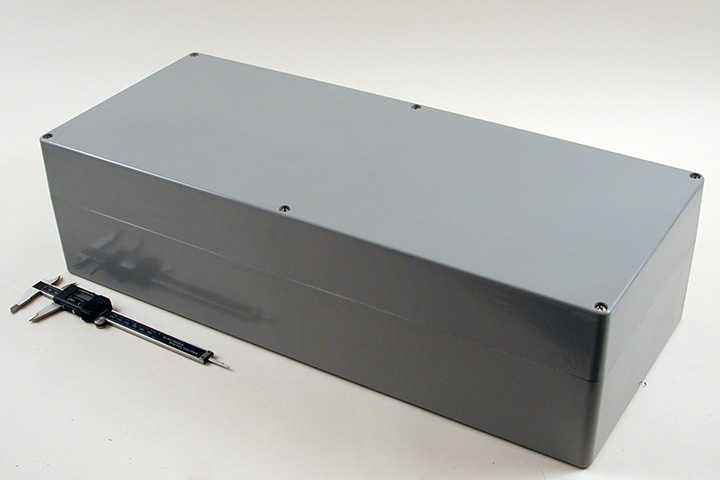

The 1590ZGRP264 is the largest enclosure in the 1590ZGRP series by volume: 600 mm long, 250 mm wide and 160 mm deep, molded from gray glass reinforced polyester with a heavy duty thick wall. It gives room for long layouts and taller components in a watertight, NEMA 4X and IP66 housing.
Dimensions are 23.62 x 9.84 x 6.3 in (600 x 250 x 160 mm), with a 3.74 in (95 mm) base and a 2.56 in (65 mm) lid. A PC board up to 582.65 x 232.64 mm fits the internal shelf, and the matching inner panel is the 1590ZGRP263PL (sold separately).

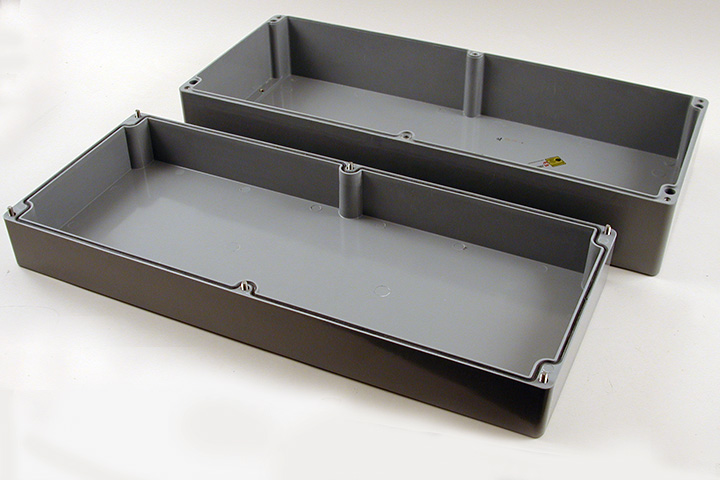

The purchased assembly includes the box, lid, gasket and six self-captivated stainless steel cover screws. Spare screws are SC571-12 (M6 - 1.0 x 70mm, 12 pack); recommended torque is 8-9.5 lbf.in (90-110 cN.m). The two piece tongue and groove lid seals on EPDM sponge rubber, and wall-mounting through holes sit outside the gasket channel.
The 1590ZGRP264 is IP66 and NEMA 1, 4, 4X, 12 and 13 rated, certified to NEMA 4, 4X per UL 508A, C UL and UL listed under file E65324, IK09 impact rated and UL94 V-0 flame rated. Recommended operating temperature is -40°C to +120°C. RoHS and REACH compliant; shipping weight 14.05 lbs (6.37 kg).
Ideal For
- Long layouts with taller components
- Wall-mounted NEMA 4X enclosure
- Large watertight electronics housing
- Outdoor installations -40°C to +120°C
Overview
| Type | Thick wall, water-tight |
| Series | 1590ZGRP Series, Type 4, 4X Glass Reinforced Polyester Enclosures |
| Description | 250 X 600 X 160MM FBERGLAS BOX |
| Part Number | 1590ZGRP264 |
| Long Description | enclosure - fiberglass |
Dimensions
| Width | 9.84 in (250 mm) |
| Length | 23.62 in (600 mm) |
| Lid Depth | 2.56 in (65 mm) |
| Assembled Depth | 6.30 in (160 mm) |
| Size (L X W X H) | 23.62 in x 9.84 in x 6.3 in (600 mm x 250 mm x 160 mm) |
| Max. P.C. Board Width | 232.64 mm |
| Enclosure (Base) Depth | 3.74 in (95 mm) |
| Max. P.C. Board Length | 582.65 mm |
Identifiers
| UPC | 623980402819 |
| UNSPSC | 39121301 |
Customization
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 14.05 lbs (6.37 kg) |
Construction & Finish
| Lid | Gasketed lid with two piece tongue and groove construction |
| Color | Gray |
| Material | Fiberglass Polyester |
| Lid Screws | Self-captivated stainless steel screws (captive once installed in lid) |
| Molded From | Glass reinforced polyester, smooth finish |
| Wall Design | Heavy duty thick wall |
| Wall Mounting | Through holes located outside of the gasket channel |
| Gasket Material | EPDM sponge rubber |
| Internal Mounting | Internal mounting shelf with molded-in bonding/mounting nuts; accepts inner panels or PC boards |
Hardware & Accessories
| Extra Lid Screws | SC571-12 - Stainless Steel Cover Screw (12 Pack) [M6 - 1.0 x 70mm] |
| Hinge Kit Details | Molded from tough polyester; includes 12x stainless steel M4 screws and 8x o-rings; mounting template included; with hinges installed, all four lid screws are required to maintain a proper seal |
| Hinge Kit (Optional) | 1427HK - Hinge Kit (2 Pack) |
| Other Series Accessories | Pole Mount Kit, Breather Kit, Pressure Compensation Plug, Small Rainproof Ventilator, Liquid-Tight Strain Relief Cordgrips |
| Purchased Assembly Includes | Box, Lid, Gasket and 6 cover screws |
| Inner Panel (Sold Separately) | 1590ZGRP263PL - 16 gauge galvanized steel |
| Recommended Cover Screw Torque | 8-9.5 lbf.in (90-110 cN.m) |
| Screw Provisions (Per Drawing) | Accepts M6 x 1 screw |
| Extra Panel Screws / Ground Hardware | SCGM6GRP-20 - Copper Ground Hardware (20 Pack) [M6 - 1.0 X 6mm / M6 Washer] |
Environmental & Protection
| IP Rating | IP66 |
| NEMA Rating | 1, 4, 4X, 12 & 13 |
| Flame Rating | UL94 V-0 |
| Impact Rating | IK09 in conformity with IEC62262 |
| NEMA Certification | Certified to NEMA 4, 4X standards per UL 508A |
| Recommended Operating Temperature | -40°C to +120°C (-40°F to +248°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | C UL & UL listed |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the 1590ZGRP264 dimensions?▾
23.62 x 9.84 x 6.3 in (600 x 250 x 160 mm), with a 95 mm deep base and 65 mm deep lid.
How does it compare to the 1590ZGRP263?▾
Same 600 x 250 mm footprint and inner panel (1590ZGRP263PL); the 1590ZGRP264 has a 65 mm lid for 160 mm depth versus the 25 mm lid and 120 mm depth of the 1590ZGRP263.
Which spare lid screws fit?▾
SC571-12, stainless steel M6 - 1.0 x 70mm cover screws in a 12 pack.
How many cover screws are included?▾
Six.
How much does it weigh?▾
Shipping weight is 14.05 lbs (6.37 kg).
