Hammond 1590ZGRP162 260 x 160 x 90 mm Rectangular Fiberglass Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 260 x 160 x 90 mm (10.24 x 6.3 x 3.56 in); 70 mm base, 20 mm lid
- Holds a PC board up to 243 x 143 mm or the 1590ZGRP162PL inner panel
- IP66, NEMA 1, 4, 4X, 12 & 13; NEMA 4, 4X certified per UL 508A
- C UL & UL listed under file #E65324 with UL94 V-0 flame rating
- IK09 impact-rated thick wall glass reinforced polyester, gray
- Captive stainless steel lid screws; EPDM sponge gasket
- Recommended operating temperature -40°C to +120°C (-40°F to +248°F)

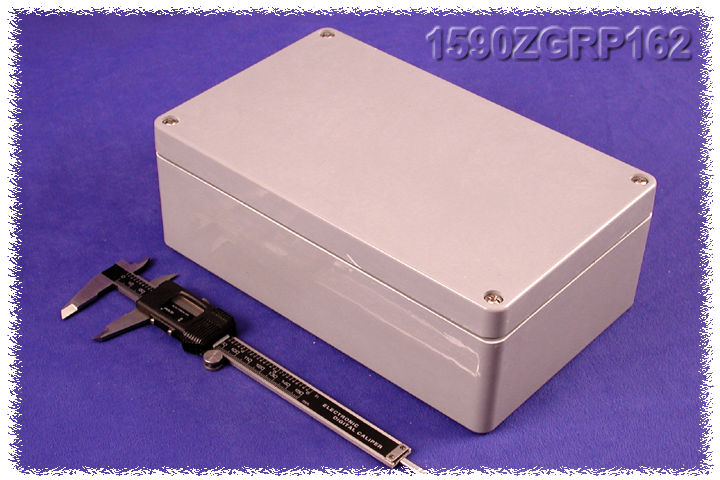

The 1590ZGRP162 extends the 160 mm-wide format of the series to 260 mm in length, giving more board area for longer PC boards or an inner-panel layout that needs a watertight, non-metallic housing. It is molded from gray glass reinforced polyester with a heavy duty thick wall.

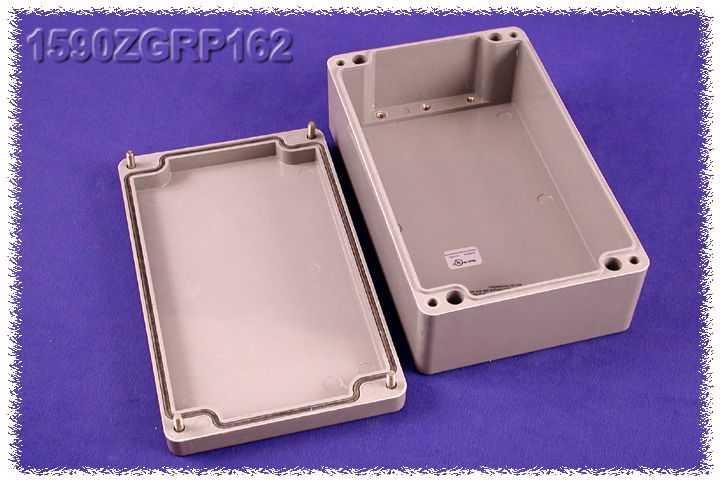

Overall dimensions are 10.24 x 6.3 x 3.56 in (260 x 160 x 90 mm), with a 70 mm deep base and a 20 mm deep lid. A PC board up to 243 x 143 mm fits on the internal mounting shelf, whose molded-in nuts also secure the 1590ZGRP162PL steel inner panel (sold separately).
Sealing comes from a two piece tongue and groove lid and an EPDM sponge rubber gasket. Four self-captivated stainless steel lid screws are included; tighten them to 8-9.5 lbf.in (90-110 cN.m). Through holes for wall mounting are located outside of the gasket channel, keeping the sealed area intact.
The 1590ZGRP162 is rated IP66 and NEMA 1, 4, 4X, 12 and 13, certified to NEMA 4, 4X per UL 508A and C UL and UL listed under file E65324. Other ratings: IK09 impact, UL94 V-0 flame, and a recommended operating temperature of -40°C to +120°C. It is RoHS and REACH compliant, with a shipping weight of 3.81 lbs (1.73 kg).
Ideal For
- Housing longer PC boards
- Wall-mounted watertight electronics enclosure
- NEMA 4X and IP66 rated installations
- Outdoor equipment from -40°C to +120°C
Overview
| Type | Thick wall, water-tight |
| Series | 1590ZGRP Series, Type 4, 4X Glass Reinforced Polyester Enclosures |
| Description | 260 X 160 X 90MM FIBERGLAS BOX |
| Part Number | 1590ZGRP162 |
| Long Description | enclosure - fiberglass |
Dimensions
| Width | 6.30 in (160 mm) |
| Length | 10.24 in (260 mm) |
| Lid Depth | 0.79 in (20 mm) |
| Assembled Depth | 3.54 in (90 mm) |
| Size (L X W X H) | 10.24 in x 6.3 in x 3.56 in (260 mm x 160 mm x 90 mm) |
| Max. P.C. Board Width | 143 mm |
| Enclosure (Base) Depth | 2.76 in (70 mm) |
| Max. P.C. Board Length | 243 mm |
Identifiers
| UPC | 623980998565 |
| UNSPSC | 39121301 |
Customization
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 3.81 lbs (1.73 kg) |
Construction & Finish
| Lid | Gasketed lid with two piece tongue and groove construction |
| Color | Gray |
| Material | Fiberglass Polyester |
| Lid Screws | Self-captivated stainless steel screws (captive once installed in lid) |
| Molded From | Glass reinforced polyester, smooth finish |
| Wall Design | Heavy duty thick wall |
| Wall Mounting | Through holes located outside of the gasket channel |
| Gasket Material | EPDM sponge rubber |
| Internal Mounting | Internal mounting shelf with molded-in bonding/mounting nuts; accepts inner panels or PC boards |
Hardware & Accessories
| Extra Lid Screws | SC570-20 - Stainless Steel Cover Screw (20 Pack) [M6 - 1.0 x 30mm] |
| Hinge Kit Details | Molded from tough polyester; includes 12x stainless steel M4 screws and 8x o-rings; mounting template included; with hinges installed, all four lid screws are required to maintain a proper seal |
| Hinge Kit (Optional) | 1427HK - Hinge Kit (2 Pack) |
| Other Series Accessories | Pole Mount Kit, Breather Kit, Pressure Compensation Plug, Small Rainproof Ventilator, Liquid-Tight Strain Relief Cordgrips |
| Purchased Assembly Includes | Box, Lid, Gasket and 4 cover screws |
| Inner Panel (Sold Separately) | 1590ZGRP162PL - 16 gauge galvanized steel |
| Recommended Cover Screw Torque | 8-9.5 lbf.in (90-110 cN.m) |
| Screw Provisions (Per Drawing) | Accepts M6 x 1 screw |
| Extra Panel Screws / Ground Hardware | SCGM6GRP-20 - Copper Ground Hardware (20 Pack) [M6 - 1.0 X 6mm / M6 Washer] |
Environmental & Protection
| IP Rating | IP66 |
| NEMA Rating | 1, 4, 4X, 12 & 13 |
| Flame Rating | UL94 V-0 |
| Impact Rating | IK09 in conformity with IEC62262 |
| NEMA Certification | Certified to NEMA 4, 4X standards per UL 508A |
| Recommended Operating Temperature | -40°C to +120°C (-40°F to +248°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | C UL & UL listed |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How big is the 1590ZGRP162?▾
It is 10.24 x 6.3 x 3.56 in (260 x 160 x 90 mm) overall, with a 70 mm deep base and a 20 mm deep lid.
What is the maximum PC board size?▾
243 mm long by 143 mm wide.
Does it come with a mounting panel?▾
No. The purchased assembly is the box, lid, gasket and 4 cover screws; the 1590ZGRP162PL steel inner panel is sold separately.
What is the recommended lid screw torque?▾
8-9.5 lbf.in (90-110 cN.m).
What gasket material does it use?▾
EPDM sponge rubber.
