Hammond 1590ZGRP131 190 x 75 x 55 mm Slim Watertight Fiberglass Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 190 x 75 x 55 mm (7.48 x 2.94 x 2.17 in) slim format; accepts a PC board up to 178.5 x 63 mm
- IP66 and NEMA 1, 4, 4X, 12 & 13 rated; certified to NEMA 4, 4X per UL 508A
- C UL & UL listed under file #E65324; UL94 V-0 flame rating
- Thick-wall gray glass reinforced polyester with IK09 impact rating
- Tongue and groove lid with EPDM sponge gasket and captive stainless steel M4 screws
- Wall-mounting holes outside the gasket channel; molded-in shelf for inner panel 1590ZGRP131PL
- Rated for -40°C to +120°C (-40°F to +248°F) operation

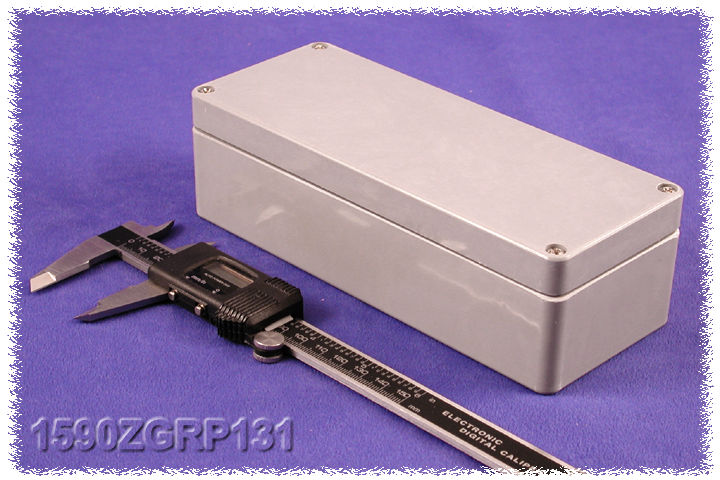

The 1590ZGRP131 is a long, narrow thick-wall enclosure molded from gray glass reinforced polyester. At 190 mm long and only 75 mm wide, it suits OEM engineers and integrators who need a watertight housing for a slim circuit board that needs IP66 and NEMA 4X protection.
Overall size is 7.48 x 2.94 x 2.17 in (190 x 75 x 55 mm). The base is 40 mm deep and the lid 15 mm, and the drawing gives inside dimensions of 180.62 mm long, 65.01 mm wide and 47.80 mm high. A PC board up to 178.5 x 63 mm fits on the molded-in mounting shelf, which also carries the bonding/mounting nuts for the optional 1590ZGRP131PL steel inner panel.

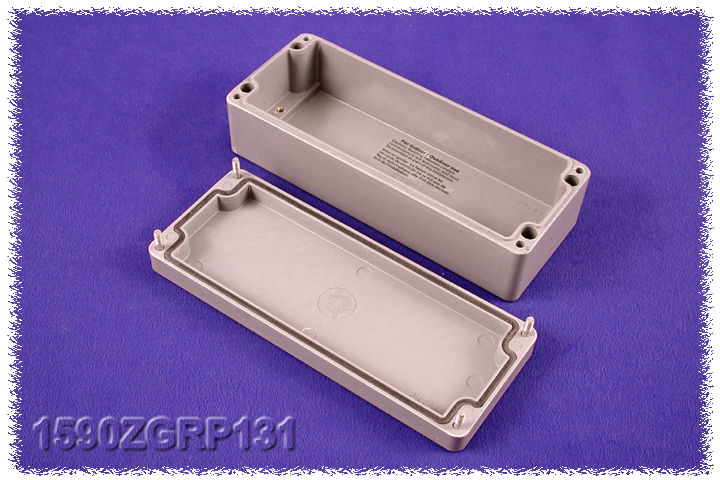

The gasketed lid uses two piece tongue and groove construction with an EPDM sponge rubber gasket and self-captivated stainless steel screws. Hammond recommends a cover screw torque of 6-7.5 lbf.in (70-85 cN.m). Wall-mounting through holes sit outside the gasket channel, so fixing the box to a wall does not break the seal.
The 1590ZGRP131 is rated IP66, NEMA 1, 4, 4X, 12 and 13, certified to NEMA 4, 4X per UL 508A, and C UL and UL listed under file E65324. It carries an IK09 impact rating, a UL94 V-0 flame rating and a recommended operating range of -40°C to +120°C, and is RoHS and REACH compliant.
Ideal For
- Watertight housing for slim PC boards
- Wall-mounted outdoor electronics enclosure
- NEMA 4X and IP66 rated installations
- Cold-climate equipment down to -40°C
Overview
| Type | Thick wall, water-tight |
| Series | 1590ZGRP Series, Type 4, 4X Glass Reinforced Polyester Enclosures |
| Description | 190 X 75 X 55MM FIBERGLAS BOX |
| Part Number | 1590ZGRP131 |
| Long Description | enclosure - fiberglass |
Dimensions
| Width | 2.95 in (75 mm) |
| Length | 7.48 in (190 mm) |
| Lid Depth | 0.59 in (15 mm) |
| Assembled Depth | 2.17 in (55 mm) |
| Size (L X W X H) | 7.48 in x 2.94 in x 2.17 in (190 mm x 75 mm x 55 mm) |
| Max. P.C. Board Width | 63 mm |
| Enclosure (Base) Depth | 1.57 in (40 mm) |
| Max. P.C. Board Length | 178.5 mm |
| Inside Width (Per Drawing) | 65.01 mm [2.56 in] |
| Inside Height (Per Drawing) | 47.80 mm [1.88 in] |
| Inside Length (Per Drawing) | 180.62 mm [7.11 in] |
Identifiers
| UPC | 623980012711 |
| UNSPSC | 39121301 |
Customization
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 1 lbs (0.45 kg) |
Construction & Finish
| Lid | Gasketed lid with two piece tongue and groove construction |
| Color | Gray |
| Material | Fiberglass Polyester |
| Lid Screws | Self-captivated stainless steel screws (captive once installed in lid) |
| Molded From | Glass reinforced polyester, smooth finish |
| Wall Design | Heavy duty thick wall |
| Wall Mounting | Through holes located outside of the gasket channel |
| Gasket Material | EPDM sponge rubber |
| Internal Mounting | Internal mounting shelf with molded-in bonding/mounting nuts; accepts inner panels or PC boards |
Hardware & Accessories
| Extra Lid Screws | SC583-50 - Stainless Steel Cover Screw (50 Pack) [M4 - 0.7 x 25mm] |
| Hinge Kit Details | Molded from tough polyester; includes 12x stainless steel M4 screws and 8x o-rings; mounting template included; with hinges installed, all four lid screws are required to maintain a proper seal |
| Hinge Kit (Optional) | 1427HK - Hinge Kit (2 Pack) |
| Other Series Accessories | Pole Mount Kit, Breather Kit, Pressure Compensation Plug, Small Rainproof Ventilator, Liquid-Tight Strain Relief Cordgrips |
| Purchased Assembly Includes | Box, Lid, Gasket and 4 cover screws |
| Inner Panel (Sold Separately) | 1590ZGRP131PL - 16 gauge galvanized steel |
| Recommended Cover Screw Torque | 6-7.5 lbf.in (70-85 cN.m) |
| Screw Provisions (Per Drawing) | Accepts M4 x 0.7 screw |
| Extra Panel Screws / Ground Hardware | SCGM4-50 - Copper Ground Hardware (50 Pack) [M4 - 0.7 X 6mm / M4 Washer] |
Environmental & Protection
| IP Rating | IP66 |
| NEMA Rating | 1, 4, 4X, 12 & 13 |
| Flame Rating | UL94 V-0 |
| Impact Rating | IK09 in conformity with IEC62262 |
| NEMA Certification | Certified to NEMA 4, 4X standards per UL 508A |
| Recommended Operating Temperature | -40°C to +120°C (-40°F to +248°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | C UL & UL listed |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size circuit board fits in the 1590ZGRP131?▾
The maximum P.C. board size is 178.5 mm long by 63 mm wide. The drawing lists inside dimensions of 180.62 mm long, 65.01 mm wide and 47.80 mm high.
What comes with the 1590ZGRP131?▾
The purchased assembly includes the box, lid, gasket and 4 cover screws. The 1590ZGRP131PL steel inner panel is sold separately.
What torque should the lid screws be tightened to?▾
The drawing recommends a cover screw torque of 6-7.5 lbf.in (70-85 cN.m).
Can I get replacement lid screws?▾
Yes. Extra lid screws are part number SC583-50, a 50 pack of stainless steel M4 - 0.7 x 25mm cover screws.
Is the 1590ZGRP131 suitable for outdoor or washdown locations?▾
It is rated IP66 and NEMA 4, 4X (also NEMA 1, 12 and 13), with a recommended operating temperature of -40°C to +120°C.
Can the lid be hinged?▾
Yes, the optional 1427HK hinge kit (2 pack) fits the series. With hinges installed, all four lid screws are still required to maintain a proper seal.
