Hammond 1590ZGRP233PL 234 x 184 mm Galvanized Steel Mounting Panel
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Inner panel for the 1590ZGRP233 enclosure
- 234 x 184 mm (9.21 x 7.24 in)
- 16 gauge galvanized steel, 1.61 mm thick
- Includes panel mounting screws and washers
- 45-50 cN-m [65-70 ozf-in] recommended screw torque
- Extra hardware: SCGM6GRP-20 M6 copper ground screws

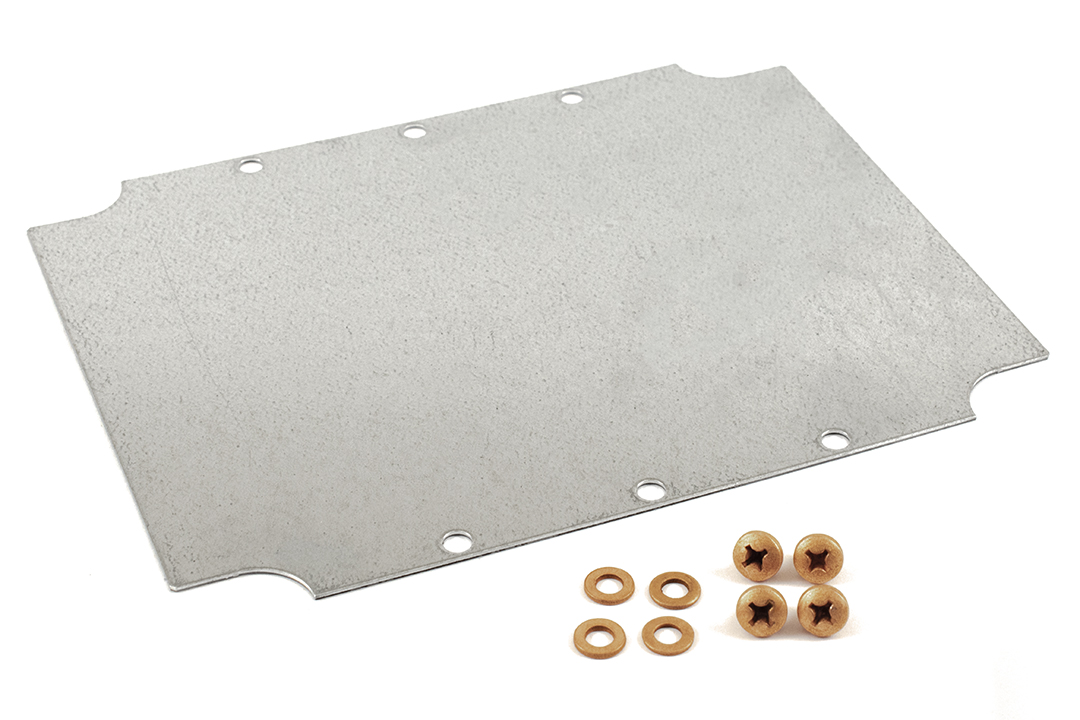

The 1590ZGRP233PL is the steel inner mounting panel for the 1590ZGRP233 enclosure (250 x 200 x 120 mm). It turns the glass reinforced polyester box into a panel-mount enclosure, giving a flat metal plate for boards, components and grounding.
The panel is 9.21 x 7.24 x 0.06 in (234 x 184 mm). Per the drawing it is 16 gauge galvanized steel, 1.61 mm [.06 in] thick, with 1.00 x 45.0° chamfered corners. It fastens to the molded-in bonding/mounting nuts on the enclosure's internal shelf, inside a box with a 95 mm deep base and 25 mm deep lid.
Panel mounting screws and washers are included. Additional screws are SCGM6GRP-20 copper ground hardware (20 pack, M6 - 1.0 x 6mm with M6 washers); the drawing lists the SCGM6GRP copper plated M6-1.0 x 6mm mounting screw.
Hammond specifies a recommended panel screw torque of 45-50 cN-m [65-70 ozf-in]. The 1590ZGRP233PL is RoHS and REACH compliant, ships shrink wrapped at 1.12 lbs (0.51 kg). The drawing notes that factory modification (milling, drilling, printing etc.) is available and that solid models can be had in .stp or .x_t format. It is associated with UL file E65324.
Ideal For
- Panel-mounting components in a 1590ZGRP233
- Metal backplate for a fiberglass enclosure
- Ground bonding plate
Overview
| Type | Inner Panel |
| Description | 1590ZGRP233 INNER PANEL |
| Part Number | 1590ZGRP233PL |
| Long Description | inner mounting panel for 1590ZGRP233 enclosures |
| Fits Enclosure(s) | 1590ZGRP233 (250 x 200 x 120 mm enclosure) |
Dimensions
| Size (L X W X H) | 9.21 in x 7.24 in x 0.06 in (234 mm x 184 mm x 2 mm) |
| Panel Thickness (Per Drawing) | 1.61 mm [.06 in] |
Identifiers
| UPC | 623980012889 |
| UNSPSC | 39121301 |
Customization
| CAD Models | Solid models available in .stp or .x_t |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
Hardware & Mounting
| Extra Panel Screws | SCGM6GRP-20 - Copper Ground Hardware (20 Pack) [M6 - 1.0 X 6mm / M6 Washer] |
| Mounting Screw Accessory | SCGM6GRP - Copper Plated Mounting Screw M6-1.0 X 6mm |
| Purchased Assembly Includes | Panel mounting screws and washers |
| Recommended Panel Screw Torque | 45-50 cN-m [65-70 ozf-in] |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 1.12 lbs (0.51 kg) |
Construction & Finish
| Material | Steel |
| Edge Detail (Per Drawing) | 1.00 X 45.0° chamfer |
| Panel Material (Per Drawing) | Galvanized steel, 16 gauge |
Compliance & Certifications
| UL File # | E65324 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosure uses the 1590ZGRP233PL?▾
The 1590ZGRP233 (250 x 200 x 120 mm).
What size is the panel?▾
9.21 x 7.24 x 0.06 in (234 x 184 x 2 mm).
What material and gauge?▾
Galvanized steel, 16 gauge.
Does it include screws?▾
Yes, panel mounting screws and washers.
What is the shipping weight?▾
1.12 lbs (0.51 kg).
