Cable Gland
$3.58In stock
Buy now

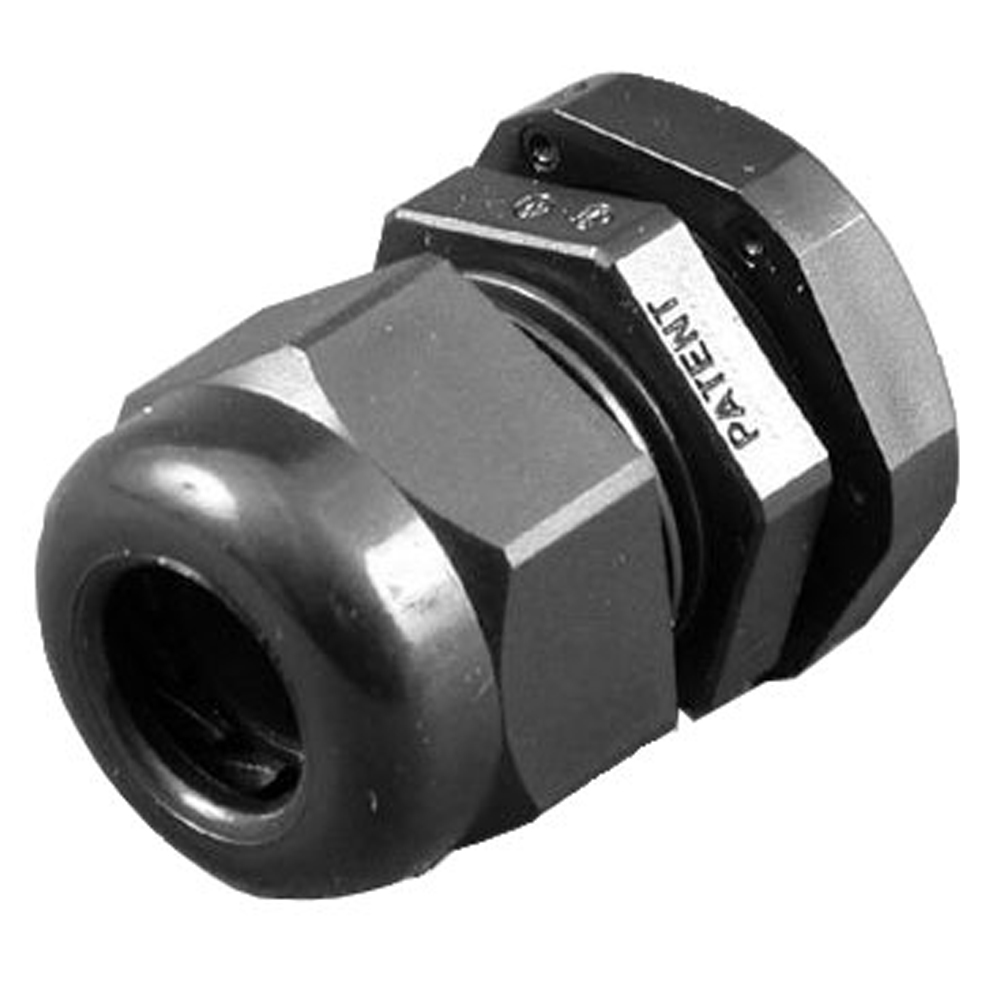

Liquid-Tight, Strain Relief Cordgrips · 1427CG Series
Brand: Hammond Manufacturing · 5 part numbers
- ■Black nylon, liquid-tight cordgrip.
- ■Used where cable is entering or leaving an enclosure.
- ■Accepts a wide range of cable diameters due to large opening and highly flexible strain relief elements, together with a TPE sealing ring.
- ■The strain relief elements tighten in a circular sequence on the sealing ring to give outstanding strain relief without twisting or damaging the cable.
- ■Use the cordgrip with the smallest maximum diameter that will fit your application (see table below).
- ■Nylon locknut included (as shown).
from $3.58
5 of 5 part numbers priced · in stock · ships by ground · volume pricing on request
We've introduced two new lines of cord grips which are available made from nylon (1427NCG) or nickel-plated brass (1427BCG) and in a wide variety of sizes.
Configure & price
Find your 1427CG Series part number
Filter 5 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
Features
Click Part No , below, for details (e.g., Product drawings, assembly instructions, ship weight)
Units shown: inch . Switch units to: mm
- ■Black nylon, liquid-tight cordgrip.
- ■Used where cable is entering or leaving an enclosure.
- ■Accepts a wide range of cable diameters due to large opening and highly flexible strain relief elements, together with a TPE sealing ring.
- ■The strain relief elements tighten in a circular sequence on the sealing ring to give outstanding strain relief without twisting or damaging the cable.
- ■Use the cordgrip with the smallest maximum diameter that will fit your application (see table below).
- ■Nylon locknut included (as shown).
- ■Designed to meet NEMA Type 4, 4X, 6, 6P, 12 & 13 - Protection to IP68.
- ■UL94-V2 flammability rating.
- ■UL, CSA, and VDE listed.
- ■For a wider selection of cord grips, try our updated product lines: 1427NCG - nylon cord grips 1427BCG - brass cord grips
- ■1427NCG - nylon cord grips
- ■1427BCG - brass cord grips
Documents
Additional information
Part Details
| Part No. | Use With Wire Diameter · Min | Use With Wire Diameter · Max | Mounting Hole · Diameter |
|---|---|---|---|
| 1427CG7 | 0.10 | 0.26 | 0.49 |
| 1427CG9 | 0.14 | 0.32 | 0.60 |
| 1427CG13 | 0.24 | 0.47 | 0.80 |
| 1427CG16 | 0.35 | 0.55 | 0.89 |
| 1427CG21 | 0.51 | 0.71 | 1.11 |
