PC NEMA Wall Mnt Enclosure BK
- Type Water-tight
- Material Polycarbonate
- Color Black
- IP Rating IP68
$10.87In stock
Buy now

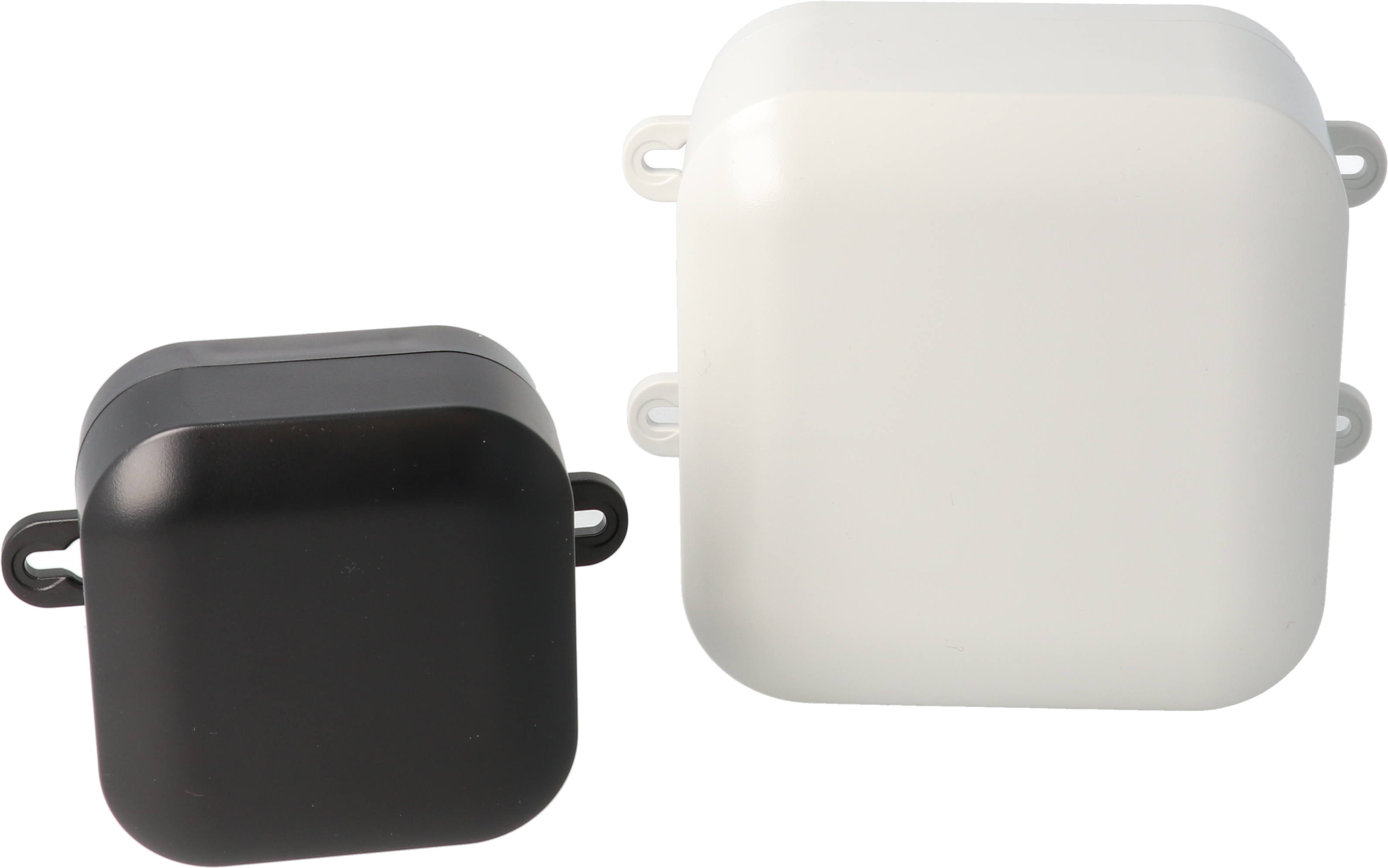

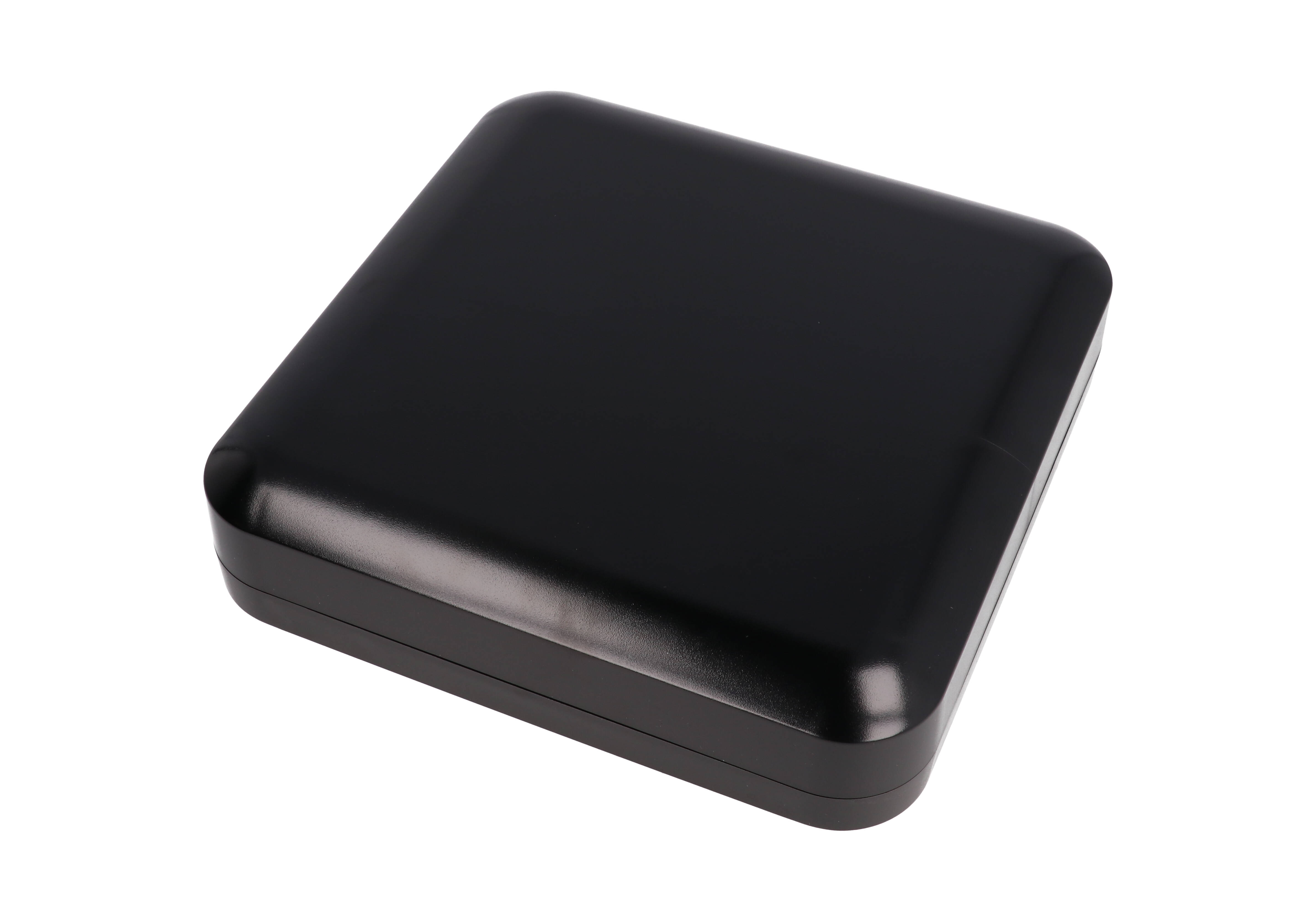

Type 4/4X, 6/6P Polycarbonate and ABS Plastic Enclosures · 1557 Series
Brand: Hammond Manufacturing · 57 part numbers
Water-Tight, Multiple Mounting Features
- ■Ideally suited for mounting printed circuit boards.

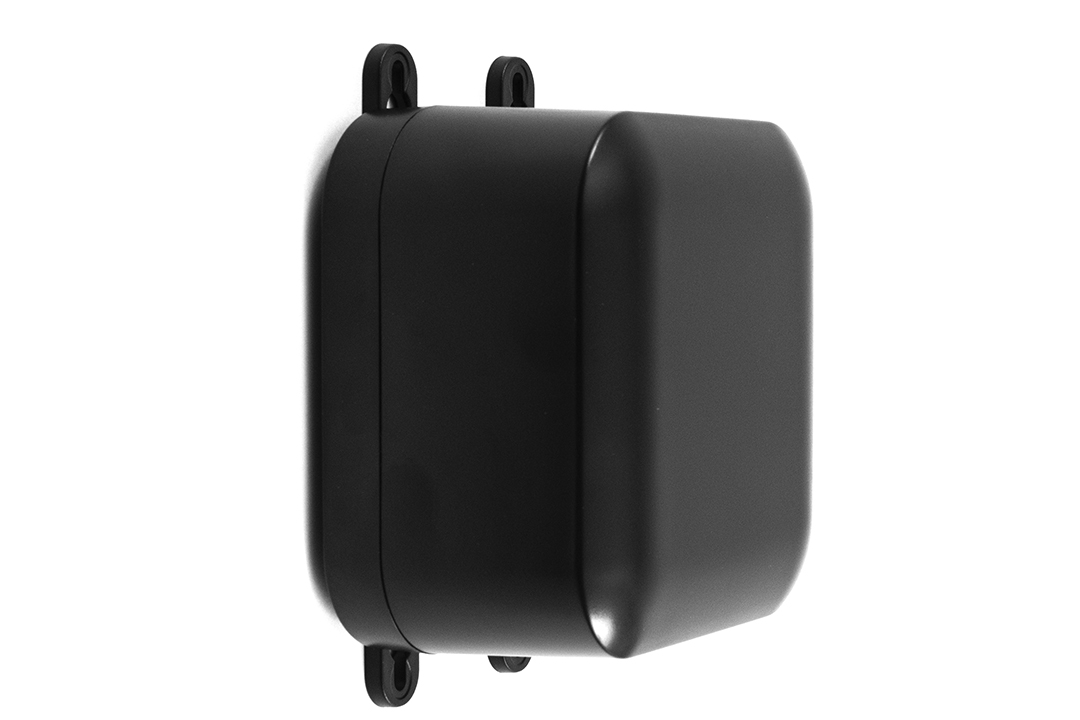

- ■Can be used in a tabletop configuration or two different wall-mount configurations.
- ■Rounded corners and face provide a more modern look while still offering superior water-tight ratings.
- ■Lid is secured with included M4 stainless steel machine screws which are threaded into corrosion resistant bushings for repetitive assembly and disassembly. All hardware is designed to avoid corrosion caused by harsh environments over time.
- ■Available in black or gray ABS plastic or UL listed polycarbonate.
- ■Gasketed lid with two piece tongue and groove construction provides protection against access of oil, dust, and water.
from $2.04
57 of 57 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your 1557 Series part number
Filter 40 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
40 of 40 part numbers · 40 priced online
PC NEMA Wall Mnt Enclosure GY
- Type Water-tight
- Material Polycarbonate
- Color Light Gray
- IP Rating IP68
$10.87In stock
Buy now
PC NEMA Wall Mnt Enclosure BK
- Type Water-tight
- Material Polycarbonate
- Color Black
- IP Rating IP68
$11.26In stock
Buy now
PC NEMA Wall Mnt Enclosure GY
- Type Water-tight
- Material Polycarbonate
- Color Light Gray
- IP Rating IP68
$11.26In stock
Buy now
ABS NEMA Wall Mnt Enclosure BK
- Type Water-tight
- Material ABS Plastic
- Color Black
- IP Rating IP66
$9.25In stock
Buy now
ABS NEMA Wall Mnt Enclosure GY
- Type Water-tight
- Material ABS Plastic
- Color Light Gray
- IP Rating IP66
$9.25In stock
Buy now
ABS NEMA Wall Mnt Enclosure BK
- Type Water-tight
- Material ABS Plastic
- Color Black
- IP Rating IP66
$9.05In stock
Buy now
Gasket For 1557 B/Ba
- Type Gasket
- Material Silicone
- Color Black
$4.08In stock
Buy now
ABS NEMA Wall Mnt Enclosure GY
- Type Water-tight
- Material ABS Plastic
- Color Light Gray
- IP Rating IP66
$9.05In stock
Buy now
PC NEMA Wall Mnt Enclosure BK
- Type Water-tight
- Material Polycarbonate
- Color Black
- IP Rating IP68
$12.58Backorder
Buy now
PC NEMA Wall Mnt Enclosure GY
- Type Water-tight
- Material Polycarbonate
- Color Light Gray
- IP Rating IP68
$12.58In stock
Buy now
PC NEMA Wall Mnt Enclosure BK
- Type Water-tight
- Material Polycarbonate
- Color Black
- IP Rating IP68
$14.56In stock
Buy now
PC NEMA Wall Mnt Enclosure GY
- Type Water-tight
- Material Polycarbonate
- Color Light Gray
- IP Rating IP68
$14.56In stock
Buy now
ABS NEMA Wall Mnt Enclosure BK
- Type Water-tight
- Material ABS Plastic
- Color Black
- IP Rating IP66
$13.84In stock
Buy now
ABS NEMA Wall Mnt Enclosure GY
- Type Water-tight
- Material ABS Plastic
- Color Light Gray
- IP Rating IP66
$13.84In stock
Buy now
ABS NEMA Wall Mnt Enclosure BK
- Type Water-tight
- Material ABS Plastic
- Color Black
- IP Rating IP66
$10.56In stock
Buy now

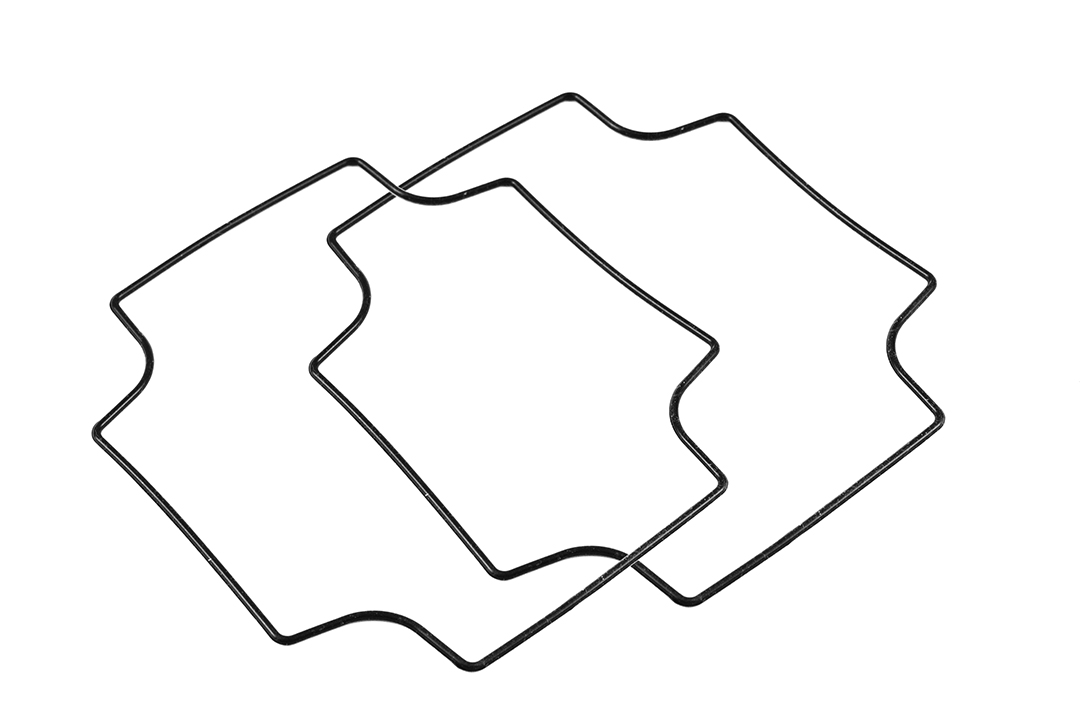

Gasket For 1557 D/Da
- Type Gasket
- Material Silicone
- Color Black
$4.08In stock
Buy now
ABS NEMA Wall Mnt Enclosure GY
- Type Water-tight
- Material ABS Plastic
- Color Light Gray
- IP Rating IP66
$10.56In stock
Buy now
PC NEMA Wall Mnt Enclosure BK
- Type Water-tight
- Material Polycarbonate
- Color Black
- IP Rating IP68
$17.89In stock
Buy now
PC NEMA Wall Mnt Enclosure GY
- Type Water-tight
- Material Polycarbonate
- Color Light Gray
- IP Rating IP68
$17.89In stock
Buy now
PC NEMA Wall Mnt Enclosure BK
- Type Water-tight
- Material Polycarbonate
- Color Black
- IP Rating IP68
$22.53In stock
Buy now
PC NEMA Wall Mnt Enclosure GY
- Type Water-tight
- Material Polycarbonate
- Color Light Gray
- IP Rating IP68
$22.53In stock
Buy now
ABS NEMA Wall Mnt Enclosure BK
- Type Water-tight
- Material ABS Plastic
- Color Black
- IP Rating IP66
$19.68In stock
Buy now
ABS NEMA Wall Mnt Enclosure GY
- Type Water-tight
- Material ABS Plastic
- Color Light Gray
- IP Rating IP66
$19.68In stock
Buy now
ABS NEMA Wall Mnt Enclosure BK
- Type Water-tight
- Material ABS Plastic
- Color Black
- IP Rating IP66
$14.58In stock
Buy now

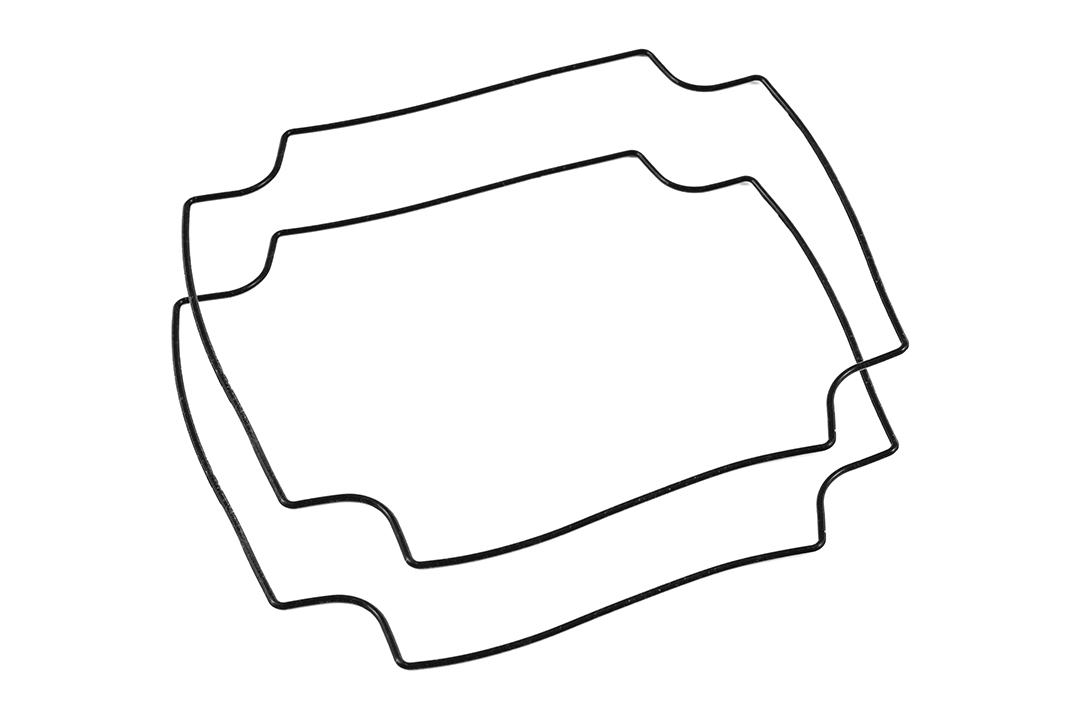

Gasket For 1557 F/Fa
- Type Gasket
- Material Silicone
- Color Black
$8.03In stock
Buy now
ABS NEMA Wall Mnt Enclosure GY
- Type Water-tight
- Material ABS Plastic
- Color Light Gray
- IP Rating IP66
$14.58In stock
Buy now
1557 Foot Kit PC BK-24 Pcs
- Type Mounting Feet
- Material Polycarbonate
- Color Black
- Flame Rating UL94 5VA
$8.68In stock
Buy now
1557 Foot Kit PC GY-24 Pcs
- Type Mounting Feet
- Material Polycarbonate
- Color Light Gray
- Flame Rating UL94 5VA
$8.94In stock
Buy now
1557 Foot Kit ABS BK-24 Pcs
- Type Mounting Feet
- Material ABS Plastic
- Color Black
- Flame Rating UL94 HB
$8.07In stock
Buy now
1557 Foot Kit ABS GY-24 Pcs
- Type Mounting Feet
- Material ABS Plastic
- Color Light Gray
- Flame Rating UL94 HB
$8.13In stock
Buy now
PC NEMA Wall Mnt Enclosure BK
- Type Water-tight
- Material Polycarbonate
- Color Black
- IP Rating IP68
$22.53In stock
Buy now
PC NEMA Wall Mnt Enclosure GY
- Type Water-tight
- Material Polycarbonate
- Color Light Gray
- IP Rating IP68
$22.53In stock
Buy now
PC NEMA Wall Mnt Enclosure BK
- Type Water-tight
- Material Polycarbonate
- Color Black
- IP Rating IP68
$25.18In stock
Buy now
PC NEMA Wall Mnt Enclosure GY
- Type Water-tight
- Material Polycarbonate
- Color Light Gray
- IP Rating IP68
$25.18In stock
Buy now
ABS NEMA Wall Mnt Enclosure BK
- Type Water-tight
- Material ABS Plastic
- Color Black
- IP Rating IP66
$20.39In stock
Buy now
ABS NEMA Wall Mnt Enclosure GY
- Type Water-tight
- Material ABS Plastic
- Color Light Gray
- IP Rating IP66
$20.39In stock
Buy now
ABS NEMA Wall Mnt Enclosure BK
- Type Water-tight
- Material ABS Plastic
- Color Black
- IP Rating IP66
$19.68In stock
Buy now

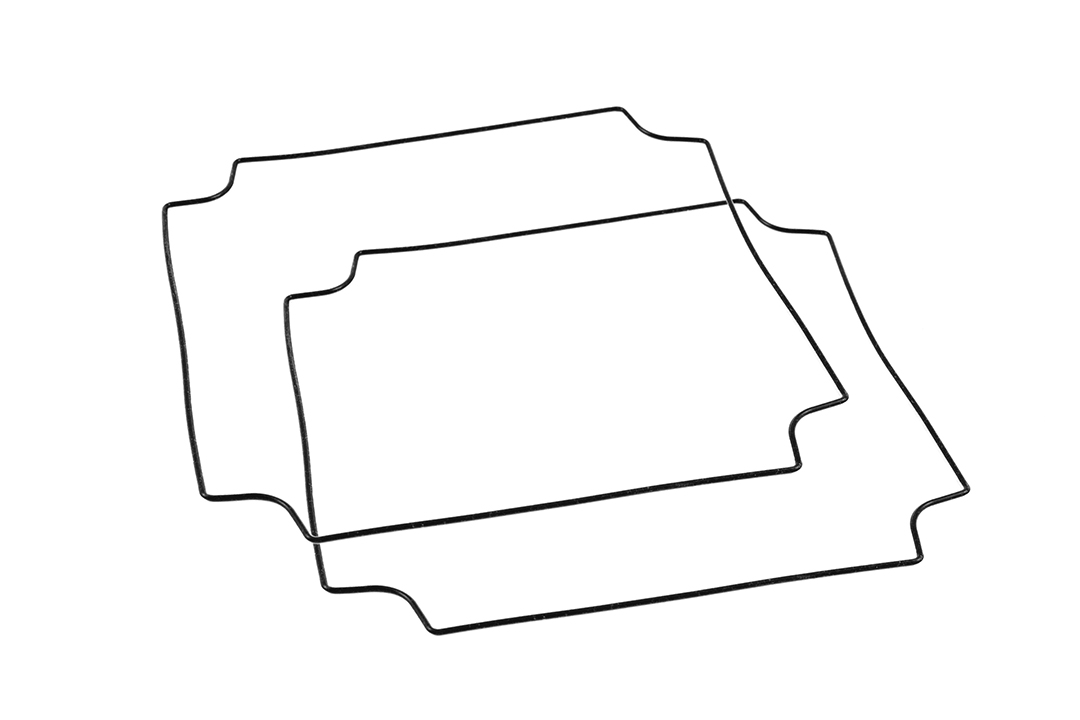

Gasket For 1557 H/Ha
- Type Gasket
- Material Silicone
- Color Black
$8.13In stock
Buy now
ABS NEMA Wall Mnt Enclosure GY
- Type Water-tight
- Material ABS Plastic
- Color Light Gray
- IP Rating IP66
$19.68In stock
Buy nowDimension tables (inches / mm)
Units shown: mm . Switch units to: inch
| Black · ABS (Part No.) | Light Gray · ABS (Part No.) | Black Polycarbonate · (UL Listed) (Part No.) | Light Gray Polycarbonate · (UL Listed) (Part No.) | Length | Width | Total Height | Replacement Gasket · (2-pack) (Part No.) | Aluminum · Inner Panel (Part No.) | Price | Order |
|---|---|---|---|---|---|---|---|---|---|---|
| 1557BBK | 1557BGY | 1557B2BK | 1557B2GY | 3.15 | 3.15 | 1.77 | 1557BGASKET | 1557BPL | $9.05In stock1557BBK | Buy now |
| 1557BABK | 1557BAGY | 1557BA2BK | 1557BA2GY | 3.15 | 3.15 | 2.36 | 1557BGASKET | 1557BPL | $9.25In stock1557BABK | Buy now |
| 1557DBK | 1557DGY | 1557D2BK | 1557D2GY | 4.72 | 4.72 | 1.77 | 1557DGASKET | 1557DPL | $10.56In stock1557DBK | Buy now |

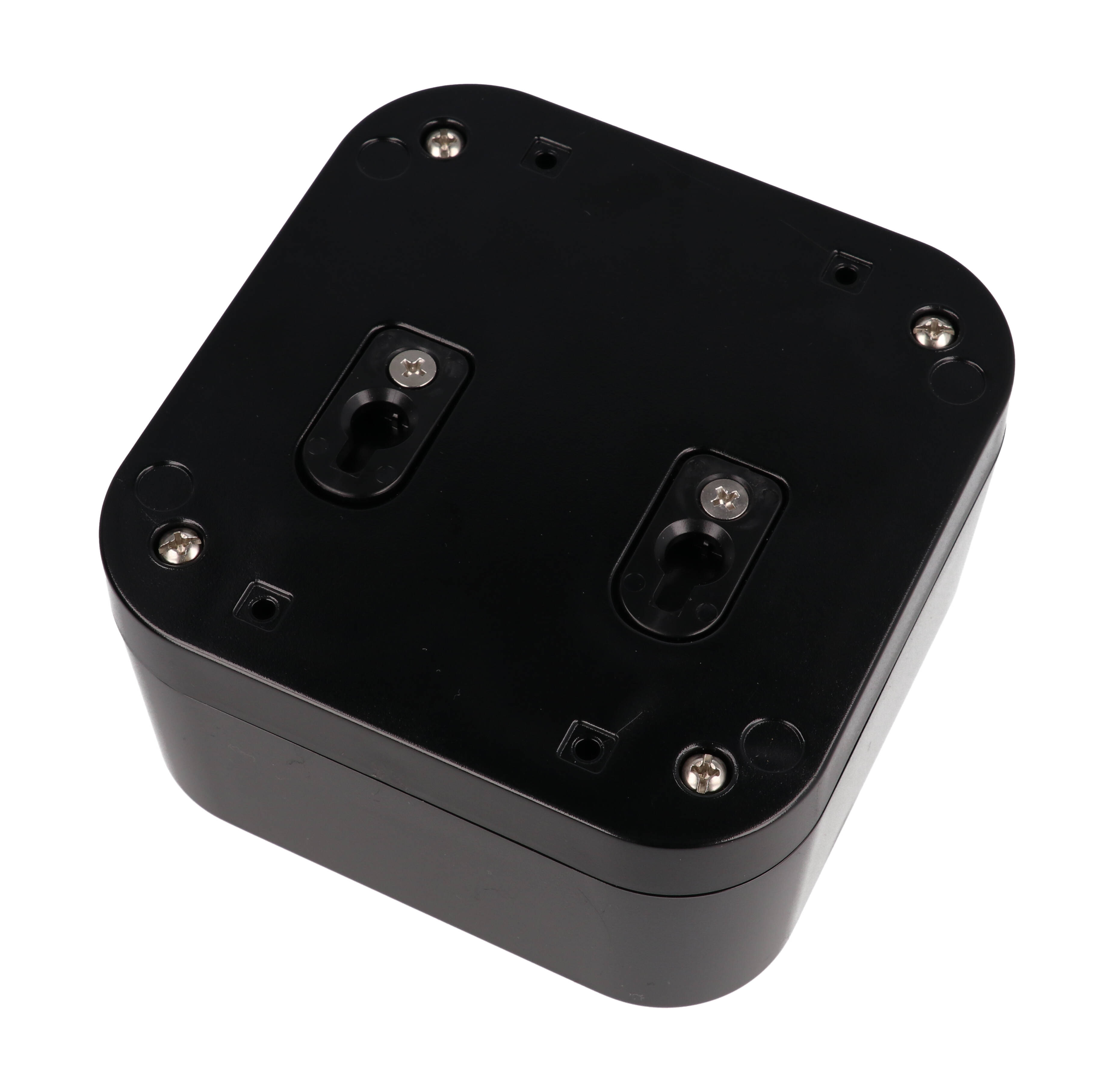

| 1557DABK | 1557DAGY | 1557DA2BK | 1557DA2GY | 4.72 | 4.72 | 2.76 | 1557DGASKET | 1557DPL | $13.84In stock1557DABK | Buy now |

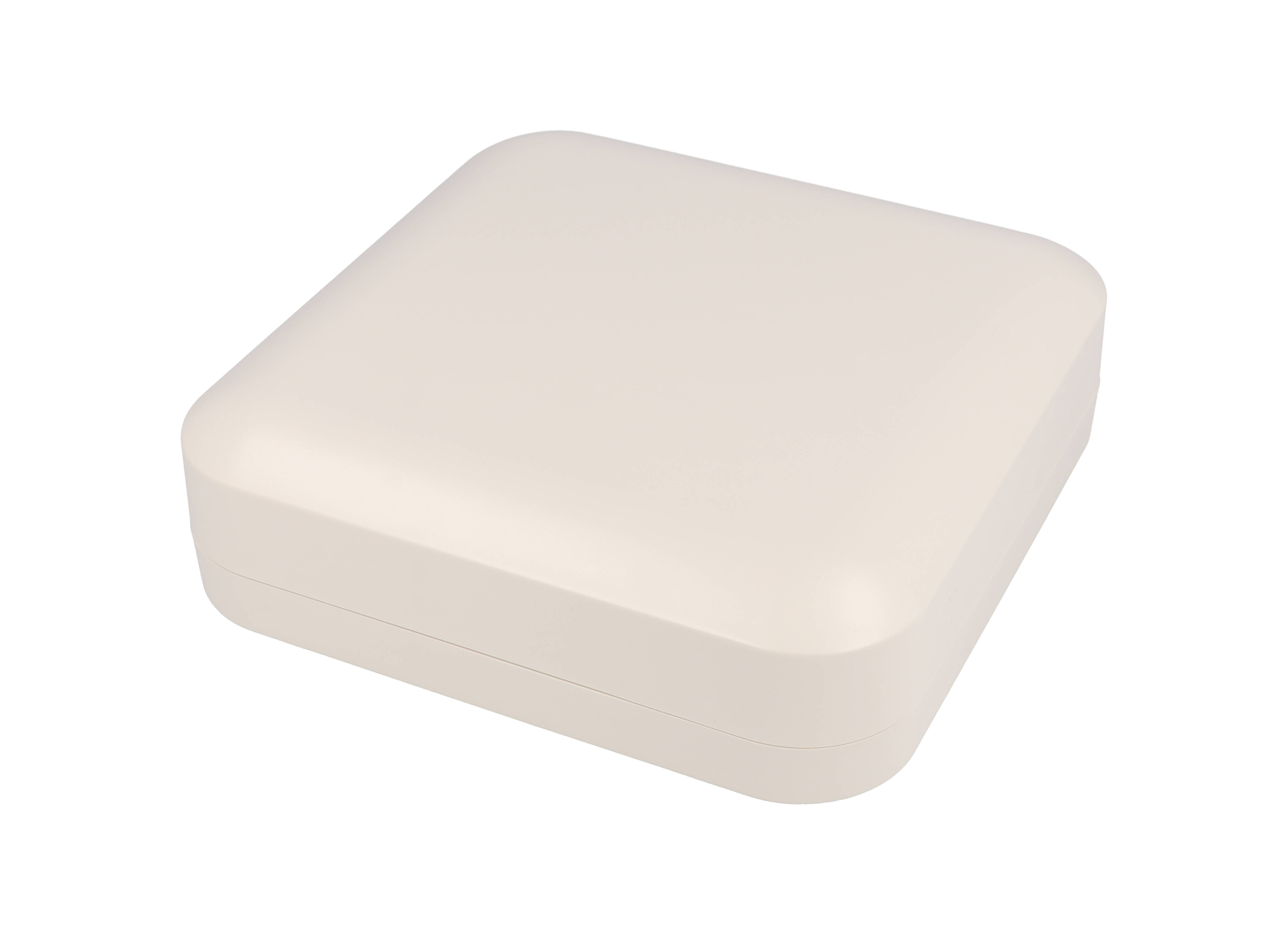

| 1557FBK | 1557FGY | 1557F2BK | 1557F2GY | 6.30 | 6.30 | 1.77 | 1557FGASKET | 1557FPL | $14.58In stock1557FBK | Buy now |
| 1557FABK | 1557FAGY | 1557FA2BK | 1557FA2GY | 6.30 | 6.30 | 2.76 | 1557FGASKET | 1557FPL | $19.68In stock1557FABK | Buy now |

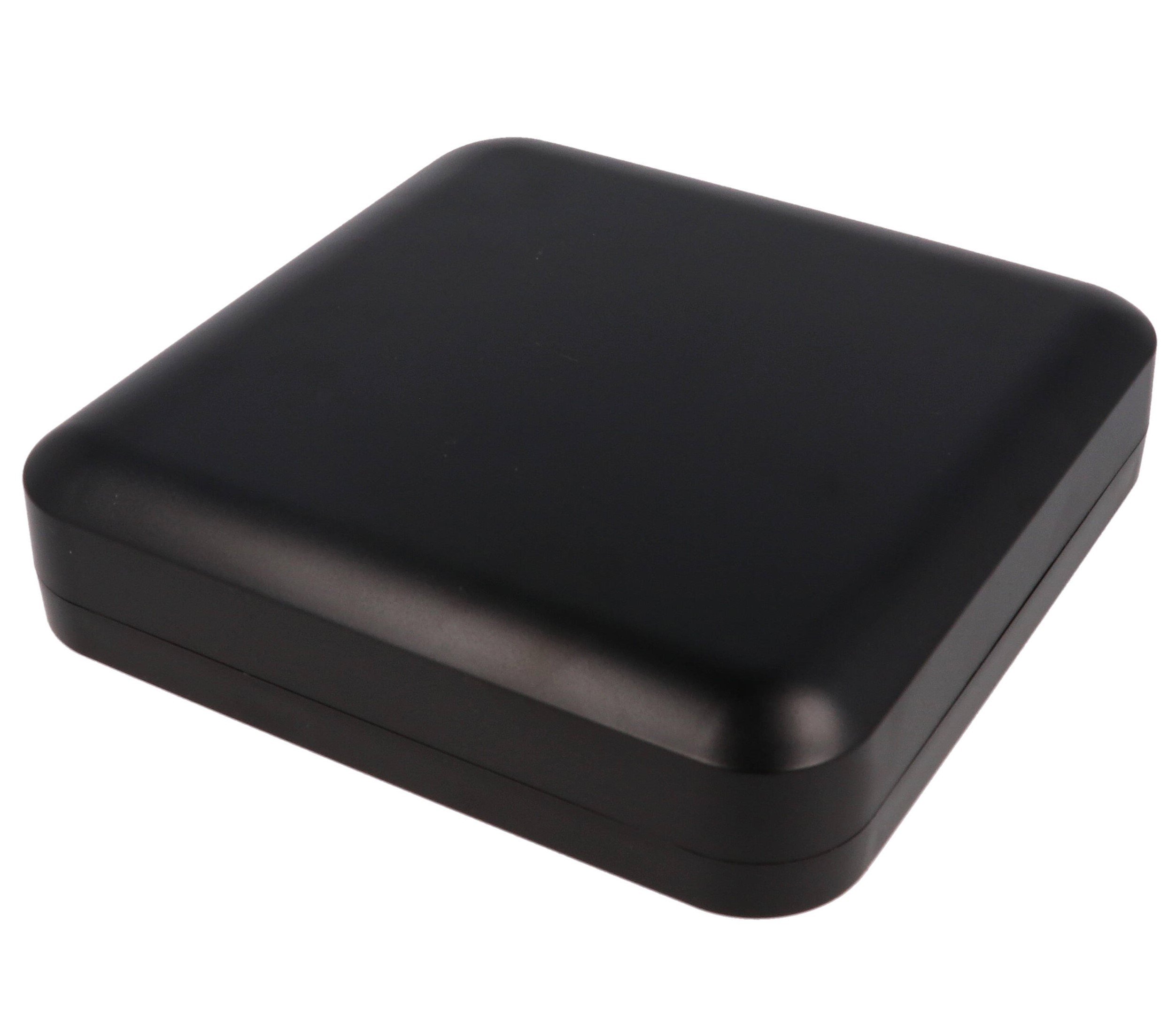

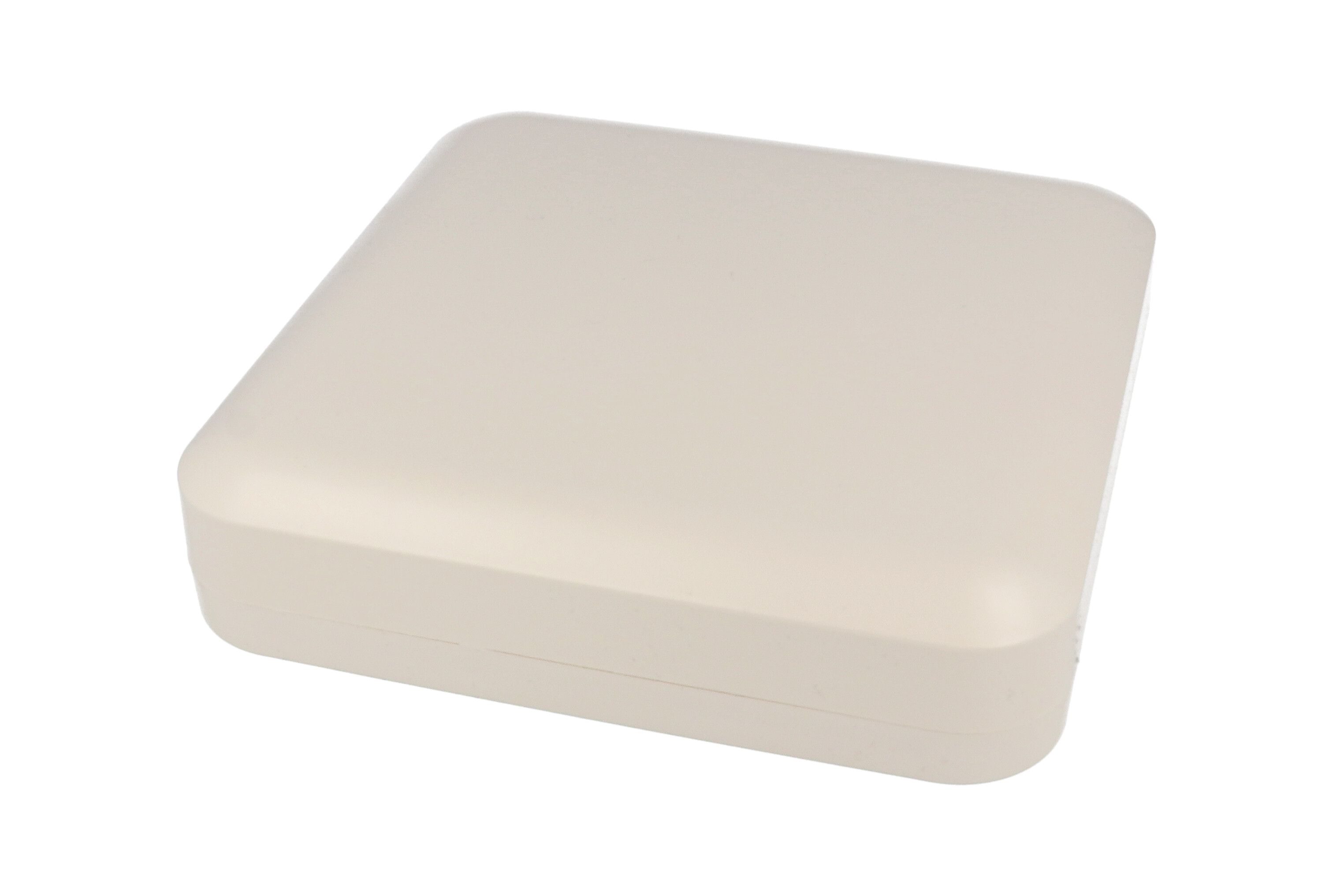

| 1557HBK | 1557HGY | 1557H2BK | 1557H2GY | 7.87 | 7.87 | 1.77 | 1557HGASKET | 1557HPL | $19.68In stock1557HBK | Buy now |

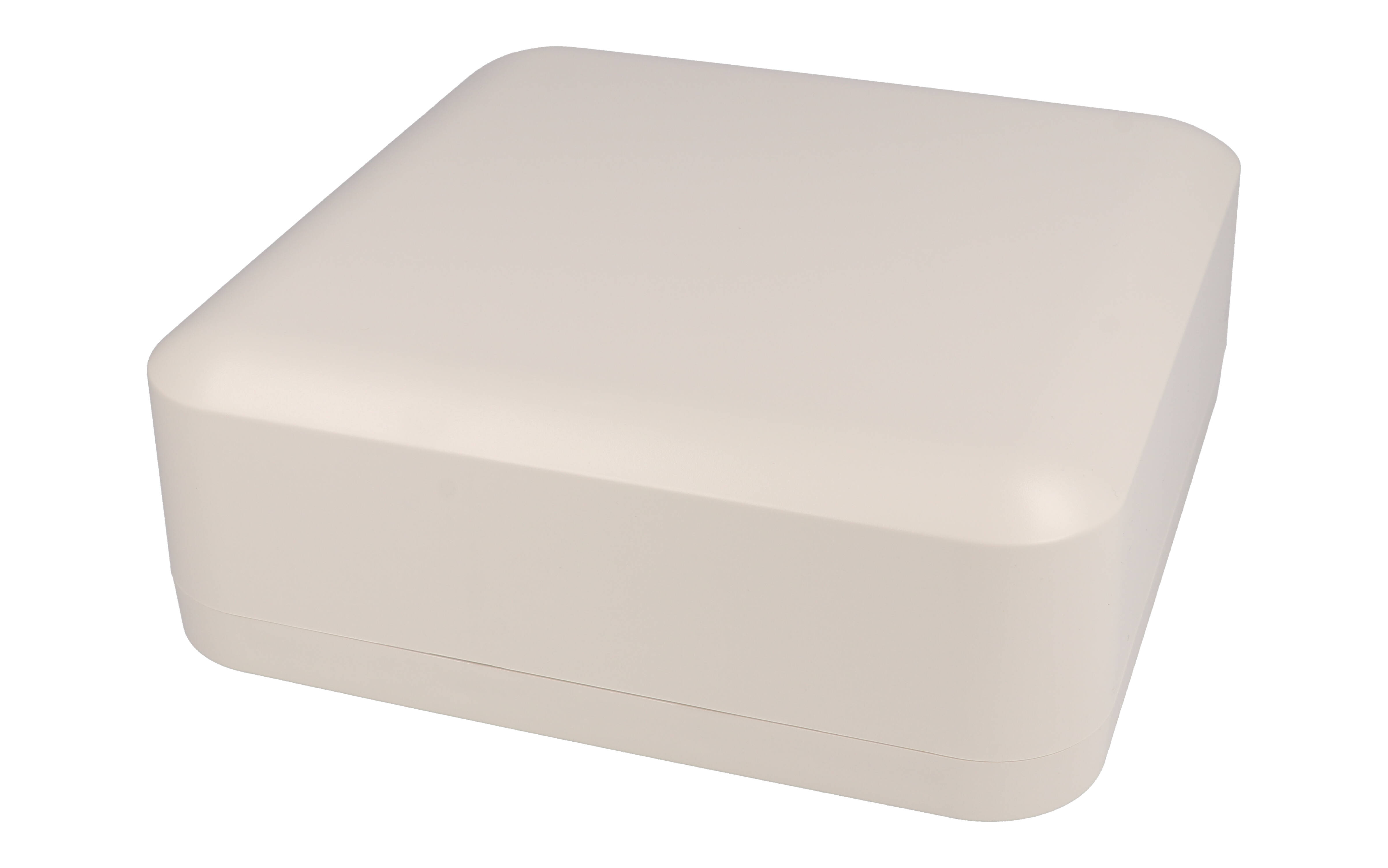

| 1557HABK | 1557HAGY | 1557HA2BK | 1557HA2GY | 7.87 | 7.87 | 2.76 | 1557HGASKET | 1557HPL | $20.39In stock1557HABK | Buy now |
Replacement Lid Screws (50-pack)
| col1 | col2 | Price | Order |
|---|---|---|---|
| Part No. | SC576-50 | $5.79In stock | Buy now |
PC Board Mounting Screws (50-pack)
| col1 | col2 | Price | Order |
|---|---|---|---|
| Part No. | SC526-50 | $3.69In stock | Buy now |
Replacement Rubber Feet (24-pack)
| col1 | col2 | Price | Order |
|---|---|---|---|
| Part No. | 1421T6CL | $5.69In stock | Buy now |

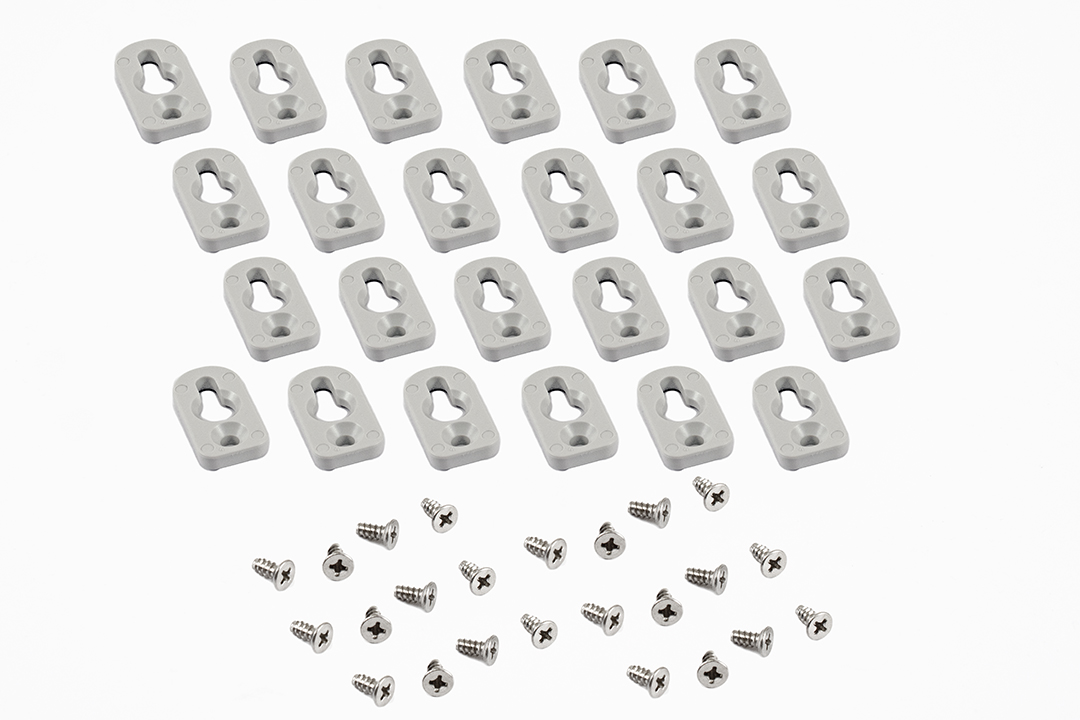

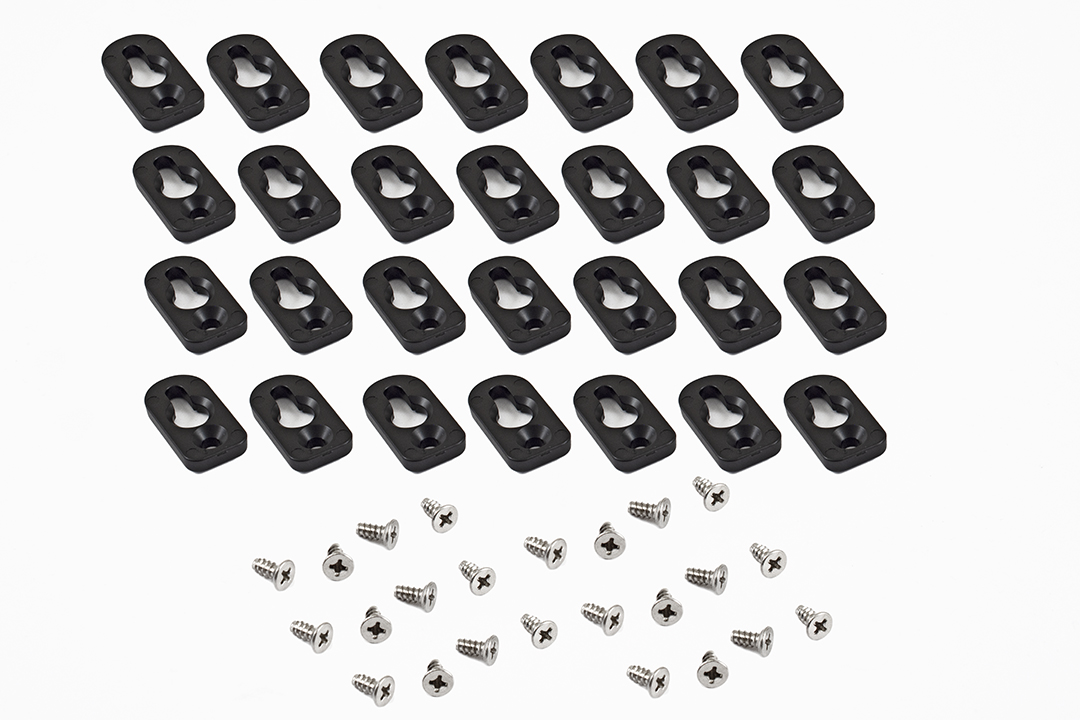

Replacement Wallmount Foot Kits
| Part Number · (24-pack) | Color | Material | Price | Order |
|---|---|---|---|---|
| 1557FOOTBK-24 | Black | ABS Plastic | $8.07In stock | Buy now |
| 1557FOOTGY-24 | Gray | ABS Plastic | $8.13In stock | Buy now |
| 1557FOOT2BK-24 | Black | Polycarbonate | $8.68In stock | Buy now |
| 1557FOOT2GY-24 | Gray | Polycarbonate | $8.94In stock | Buy now |
Pole Mount Brackets
| Enclosure Profile | Pole Mount Kit (7" Max) (Part No.) | Pole Mount Kit (15" Max) (Part No.) | Screw Type | Replacement Screw Pack (Part No.) | Price | Order |
|---|---|---|---|---|---|---|
| 1557B | PMB5057WKIT1 | PMB5057WKIT2 | #8 x 1/2" | SCPMB4-20 | $17.85In stockPMB5057WKIT1 | Buy now |
| 1557BA | PMB5057WKIT1 | PMB5057WKIT2 | #8 x 1/2" | SCPMB4-20 | $17.85In stockPMB5057WKIT1 | Buy now |
| 1557D | PMB5057KIT3 | PMB5057KIT4 | #8 x 3/8" | SCPMB5-20 | $17.85In stockPMB5057KIT3 | Buy now |
| 1557DA | PMB5057KIT3 | PMB5057KIT4 | #8 x 3/8" | SCPMB5-20 | $17.85In stockPMB5057KIT3 | Buy now |
| 1557F | PMB6687KIT3 | PMB6687KIT4 | #8 x 3/8" | SCPMB5-20 | $20.80BackorderPMB6687KIT3 | Buy now |
| 1557FA | PMB6687KIT3 | PMB6687KIT4 | #8 x 3/8" | SCPMB5-20 | $20.80BackorderPMB6687KIT3 | Buy now |
| 1557H | PMB110127KIT3 | PMB110127KIT4 | #8 x 3/8" | SCPMB5-20 | $22.85In stockPMB110127KIT3 | Buy now |
| 1557HA | PMB110127KIT3 | PMB110127KIT4 | #8 x 3/8" | SCPMB5-20 | $22.85In stockPMB110127KIT3 | Buy now |
Key Features:
- ■Ideally suited for mounting printed circuit boards.

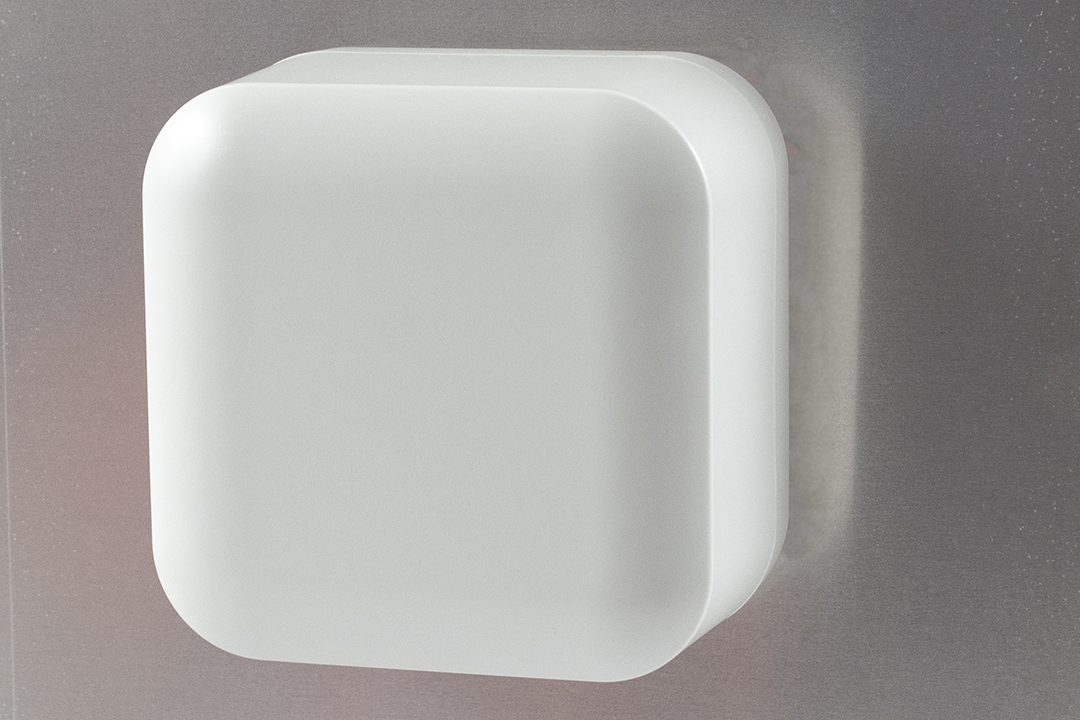

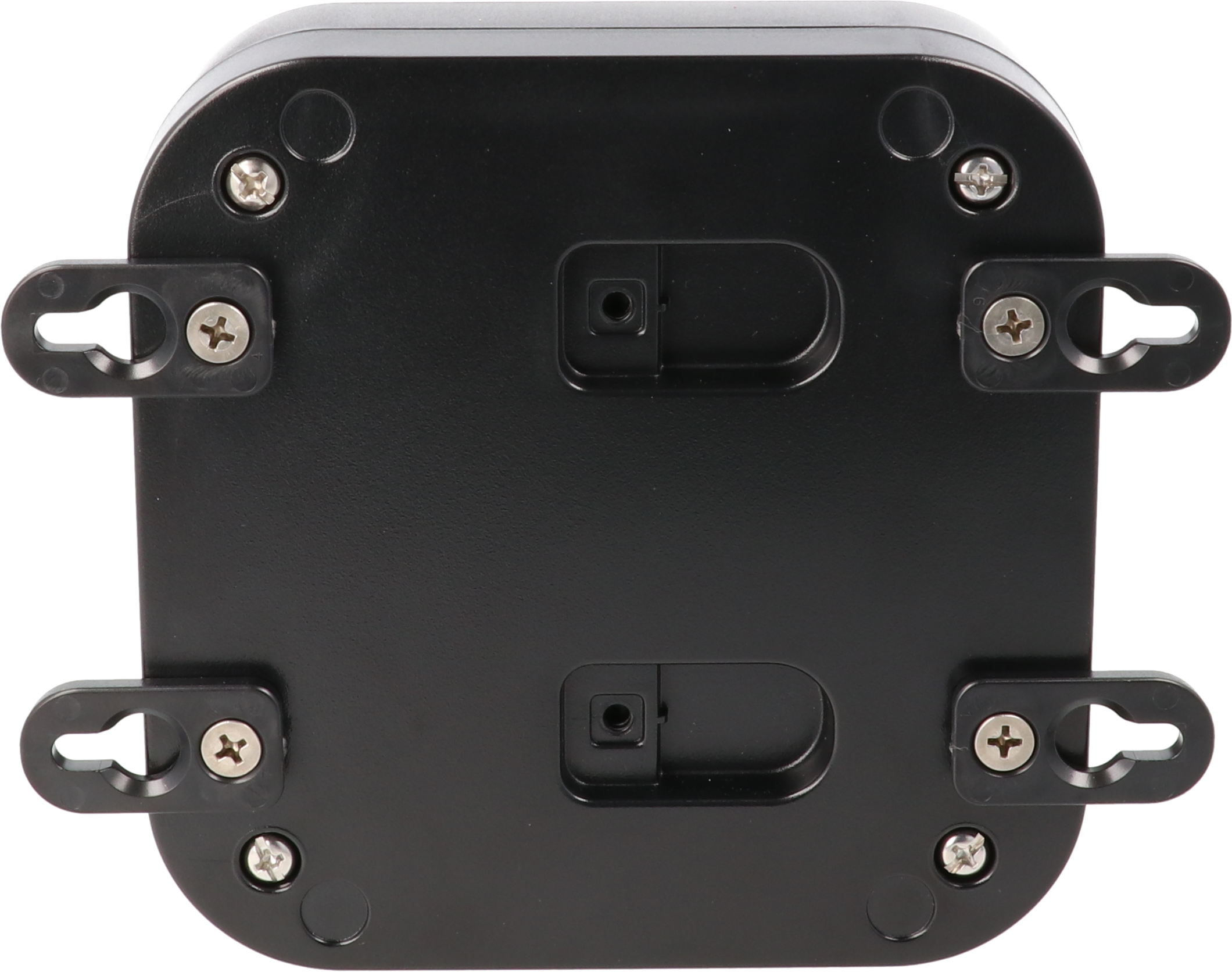

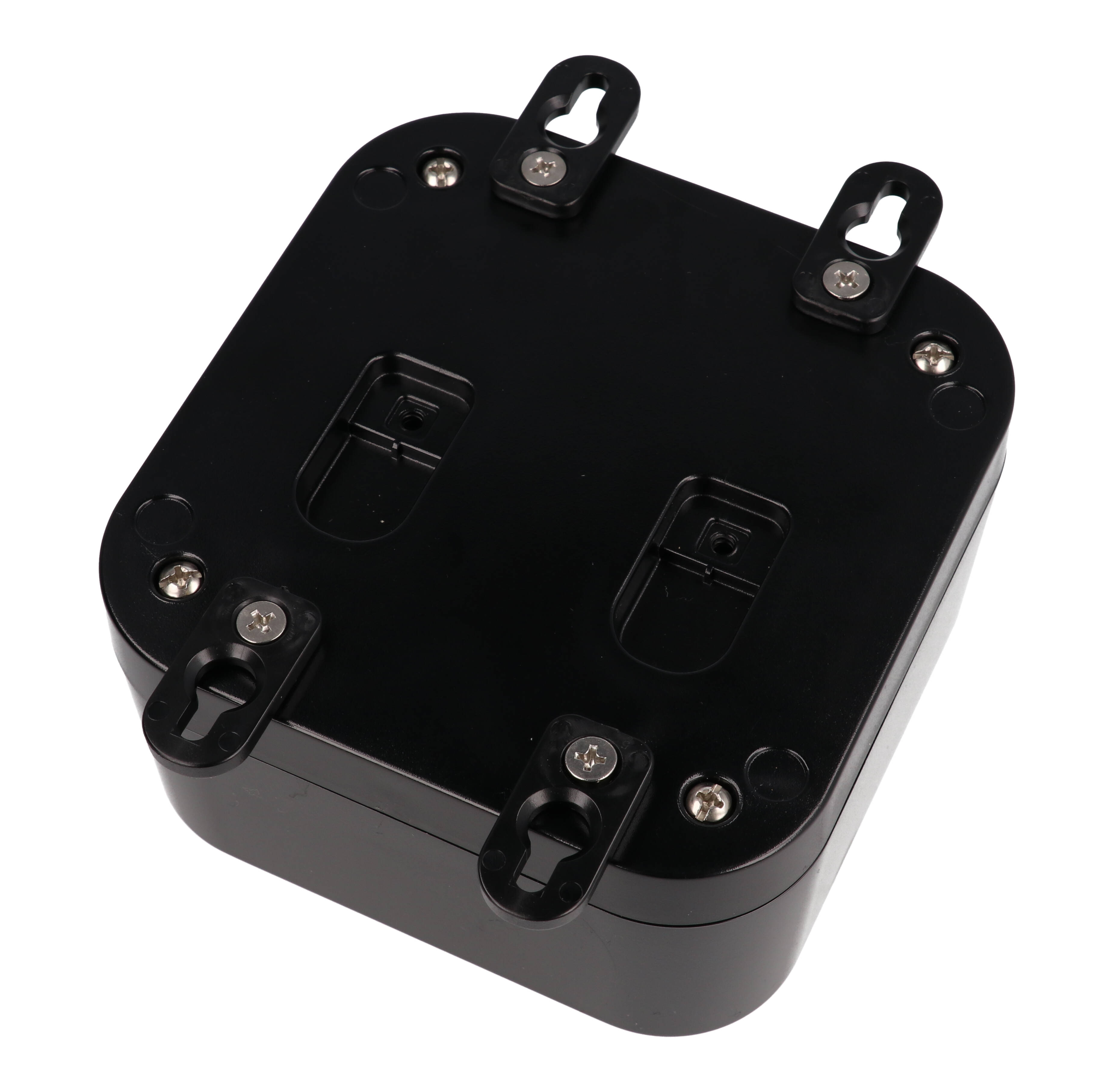

- ■Can be used in a tabletop configuration or two different wall-mount configurations.
- ■Rounded corners and face provide a more modern look while still offering superior water-tight ratings.
- ■Lid is secured with included M4 stainless steel machine screws which are threaded into corrosion resistant bushings for repetitive assembly and disassembly. All hardware is designed to avoid corrosion caused by harsh environments over time.
- ■Available in black or gray ABS plastic or UL listed polycarbonate.
- ■Gasketed lid with two piece tongue and groove construction provides protection against access of oil, dust, and water.
- ■Gasket is one piece made from high temperature UL listed silicone.
- ■Aluminum inner panels are available as accessories.

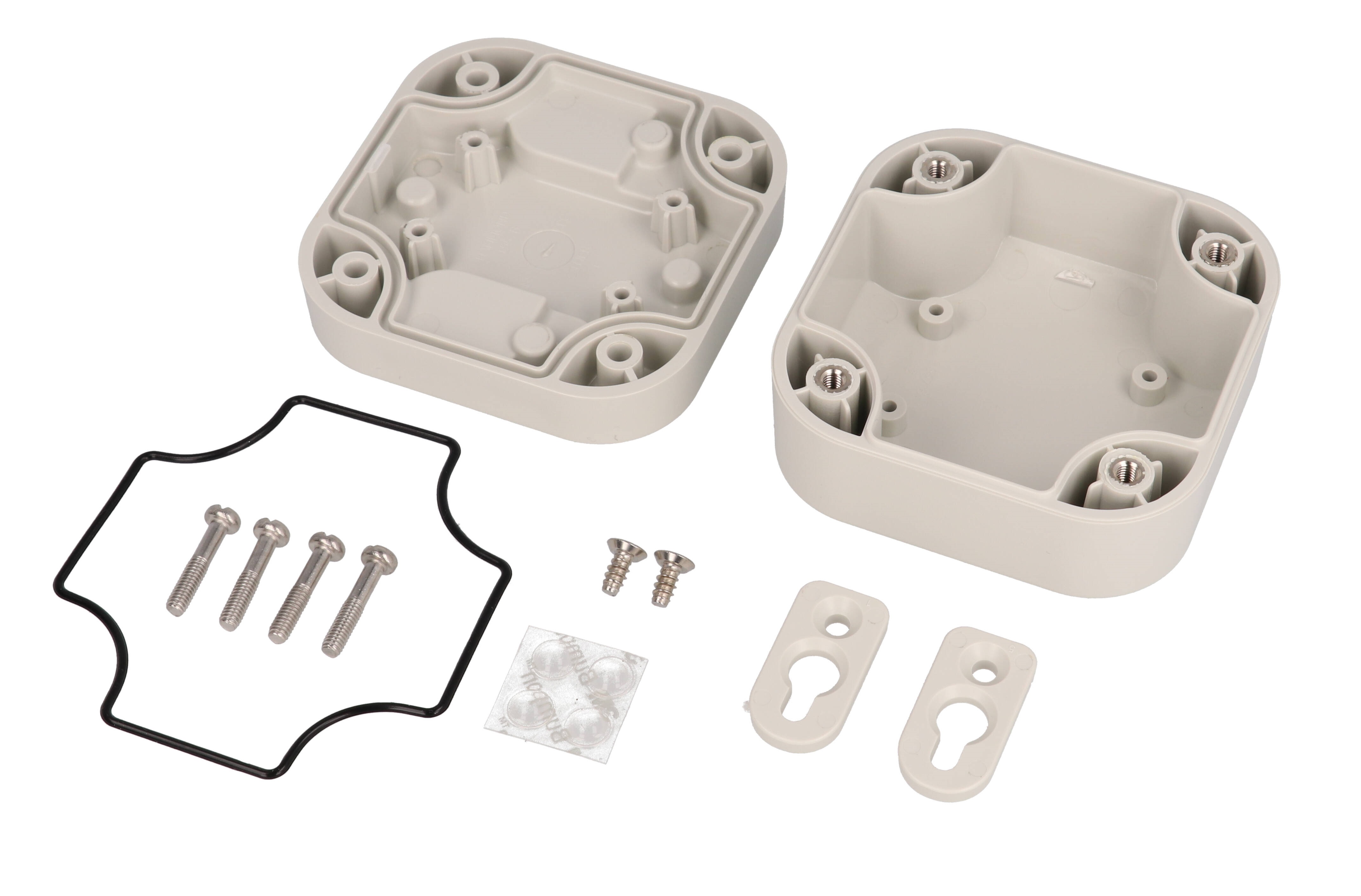

- ■All enclosures include 4x adhesive rubber feet, 2x or 4x plastic mounting feet (varies by size), and foot installation screws.
- ■Some chemicals can damage or weaken plastic. Please read our Chemical Resistance Statement under Downloads for more information.
ABS
- ■ABS versions are molded from general purpose material which carries a flammability rating of UL94-HB. For indoor use.
- ■ABS versions are not UL listed but have been tested to and meet IP66 ratings.
- ■ABS versions carry an impact rating of IK07 per IEC 62262:2021.
- ■Recommended operating temperature: -20°C to +60°C (-4°F to +140°F).
Polycarbonate
- ■Polycarbonate versions are UV stabilized for outdoor use and carry a UL94-5VA flammability rating.
- ■Polycarbonate versions are cUL and UL 508A listed under file #E65324.
- ■Polycarbonate versions have been independently tested to meet IP66, IP67, and IP68 as well as NEMA Type 4, 4X, 6, 6P, 12 and 13 ratings. Exception: 1554VGY, 1554V2GY, 1554V2GYCL, and 1554V2GYSL are Type 4, 4X only.
- ■Exception: 1554VGY, 1554V2GY, 1554V2GYCL, and 1554V2GYSL are Type 4, 4X only.
- ■Polycarbonate versions carry an impact rating of IK08 per IEC 62262:2021.
- ■Recommended operating temperature: -40°C to +110°C (-40°F to +230°F). Customers should conduct their own testing to determine suitability for any specific application.
- ■Customers should conduct their own testing to determine suitability for any specific application.
