Hammond 1557FA2GY 160mm Square, 70mm Tall Gray Polycarbonate Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- RAL7035 light gray polycarbonate, 160 x 160 x 70 mm (6.3 x 6.3 x 2.76 in)
- Inside 151.02 x 151.02 x 63.80 mm for boards up to 147.5 mm square
- IP68 and NEMA 4, 4X, 6, 6P, 12 & 13 rated
- cUL and UL 508A listed under file E65324; IK08 impact rating
- UV stabilized for outdoor use, -40°C to +110°C operating range
- Gasketed tongue and groove lid, stainless M4 screws in corrosion resistant inserts
- Includes rubber feet, wall mount feet and foot screws

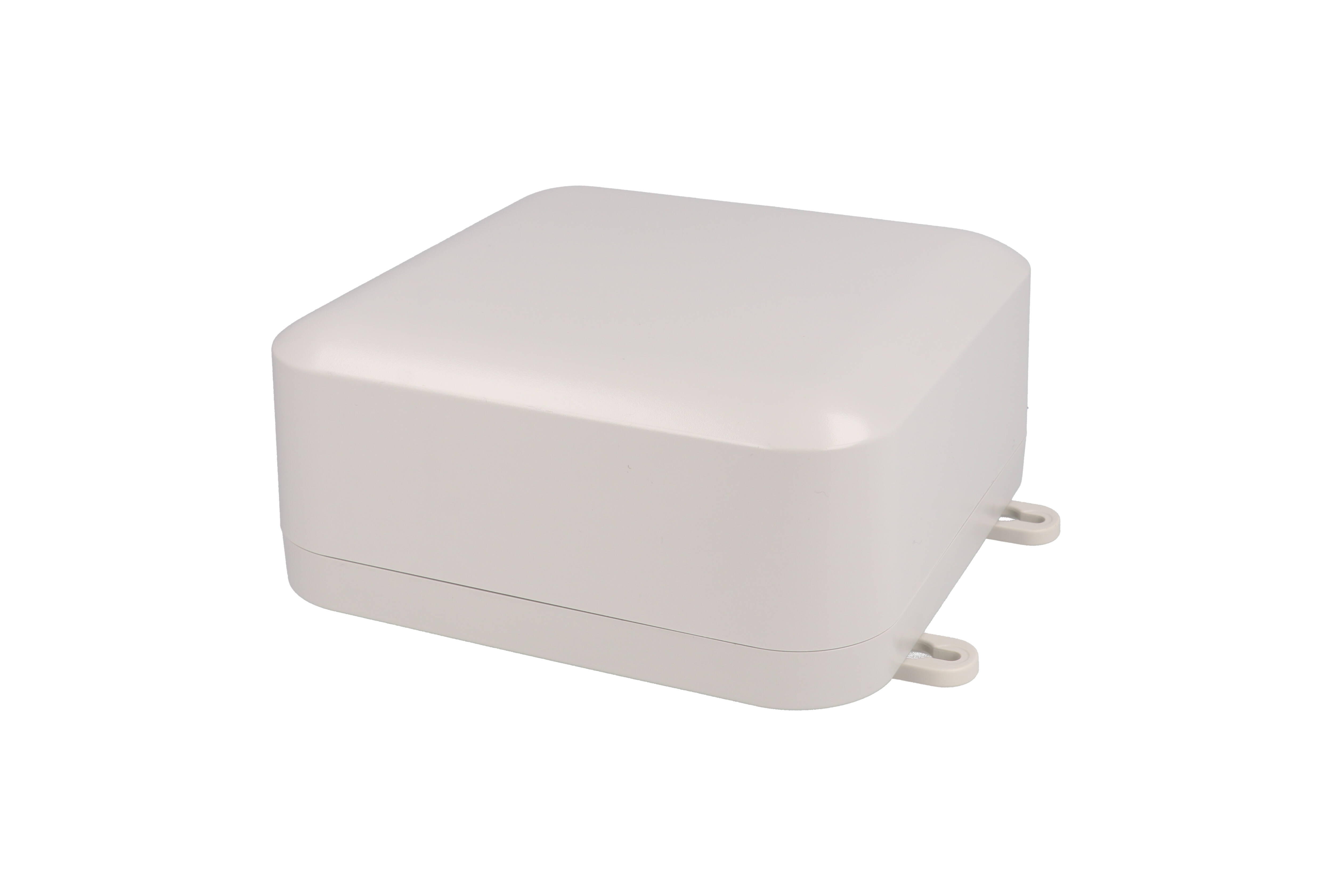

The 1557FA2GY is a light gray (RAL7035 grey) polycarbonate watertight enclosure measuring 6.3 in x 6.3 in x 2.76 in (160 mm x 160 mm x 70 mm). It is the taller of the two 160 mm square heights in the 1557 Series, aimed at designers who need a sealed outdoor-capable housing with room for components that stand well above the board.
Inside you get 151.02 mm [5.95 in] of length and width and 63.80 mm [2.51 in] of height, and the maximum P.C. board size is listed at 147.5 mm x 147.5 mm. Internal bosses accept #6 self-tapping screws, and the lid has M4-0.7 inserts for the stainless steel cover screws.
Polycarbonate gives this model UV stabilization for outdoor use, cUL and UL 508A listing (file E65324), IK08 impact resistance per IEC 62262:2021 and a recommended operating range of -40°C to +110°C (-40°F to +230°F). The part page rates it IP68 and NEMA 4, 4X, 6, 6P, 12 & 13, with a UL94 V-0 flame rating. A two piece tongue and groove lid with a one piece high temperature silicone gasket protects against oil, dust and water.

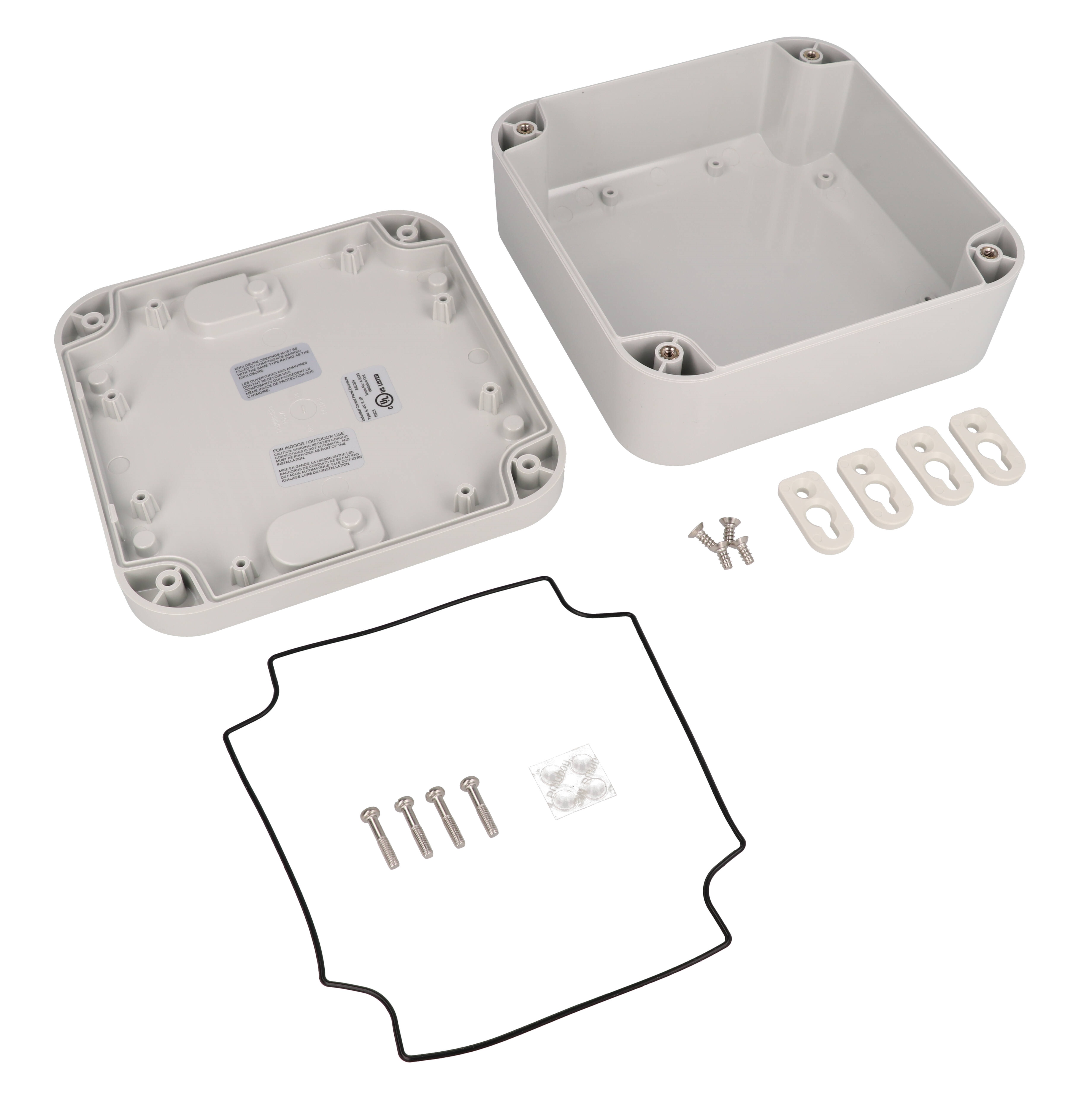

The 1557FA2GY ships shrink wrapped with its lid, 4 cover screws, preformed gasket, 4 rubber feet, 4 wall mount feet and 4 wall mount foot screws, at a shipping weight of 0.87 lbs (0.39 kg). Mount it on a tabletop, flush to a wall, in the heavy duty wall flange position or on a pole with PMB6687KIT3 or PMB6687KIT4.
Ideal For
- Outdoor electronics with tall components
- Facilities and building automation controls
- Pole-mounted sensors and field devices
- Wet or dusty industrial locations
- Wall-mounted interface enclosures
Mounting
| Wall Mount Feet | Accept #8 self-tapping screw; #8 pan head screws for wall mounting not included |

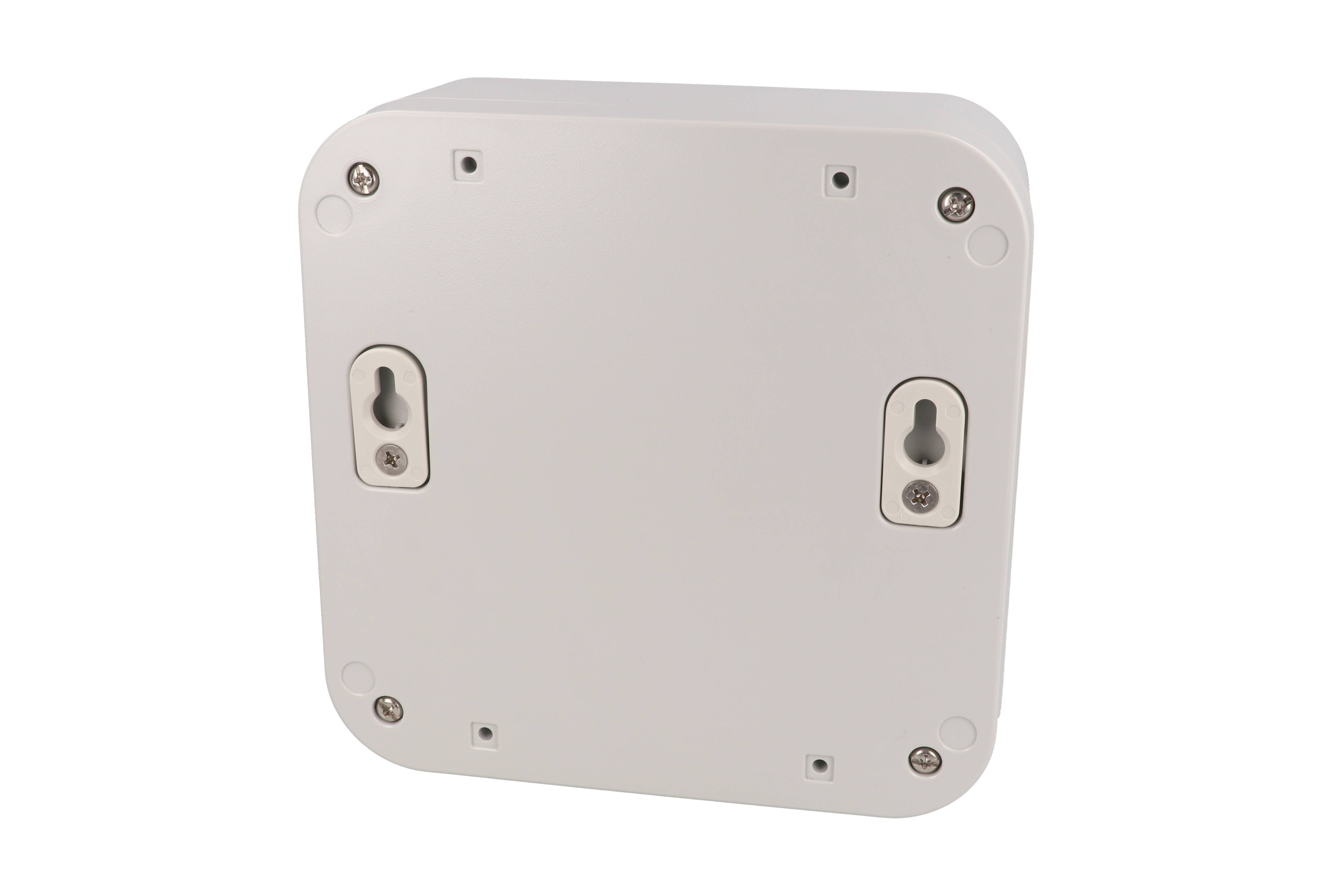

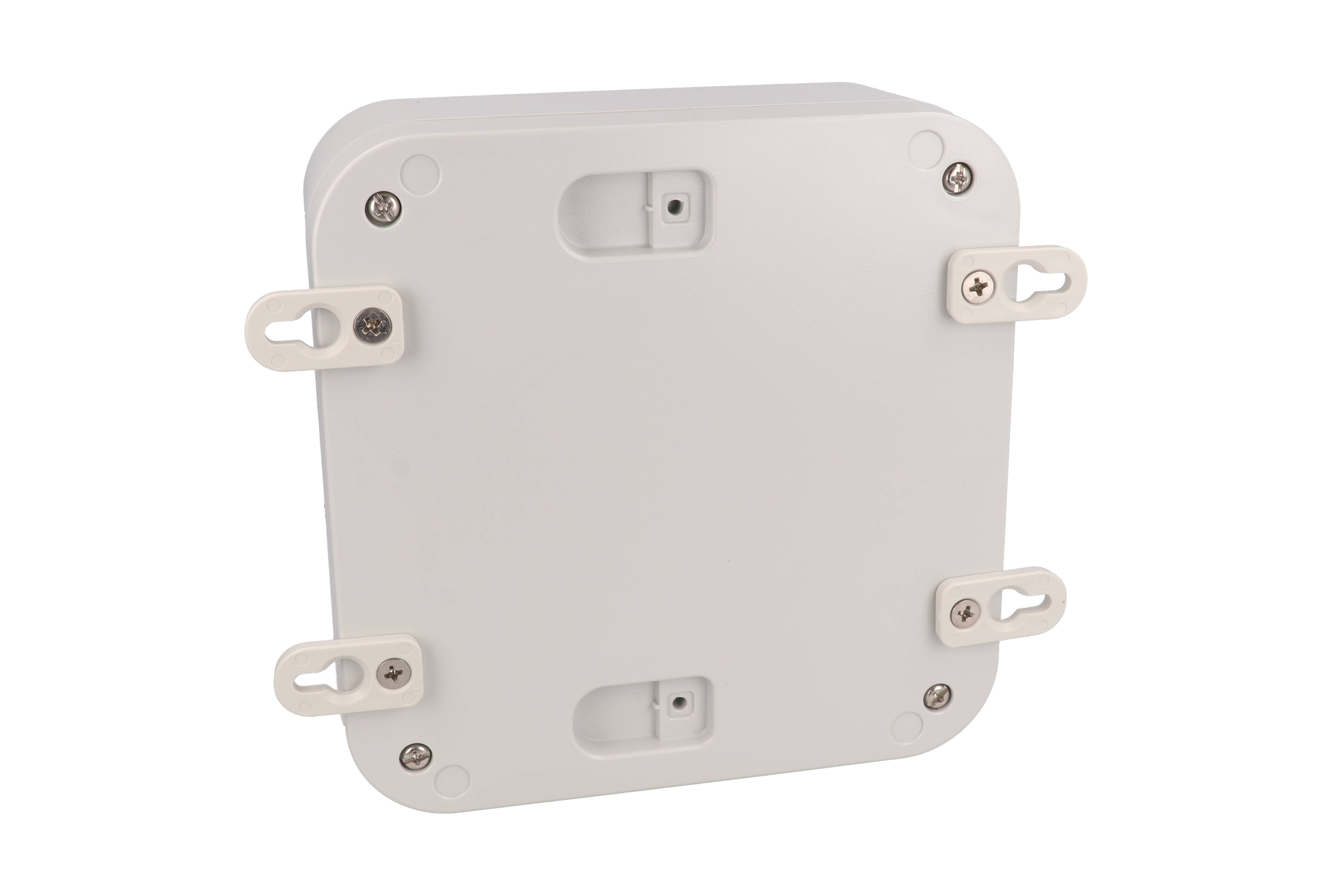

| Mounting Options | Desktop/tabletop (rubber feet), flush wall mount (mounting feet as keyhole slots), heavy duty wall flange mount (mounting feet outward) |
| Pole Mount Screw Type | #8 x 3/8" |
| Pole Mount Kit (7" Max) | PMB6687KIT3 |
| Pole Mount Kit (15" Max) | PMB6687KIT4 |
| Pole Mount Replacement Screw Pack | SCPMB5-20 |
| Wall Mount Foot Installation Torque | Polycarbonate 100-110 cN-m (8.8-9.7 lbf-in) |
Overview
| Type | Water-tight |
| Series | 1557 Series Type 4/4X, 6/6P Polycarbonate and ABS Plastic Enclosures |
| Description | RAL7035 grey PC plastic watertight enclosure |
| Enclosure Profile | 1557FA |
| Short Description | PC NEMA WALL MNT ENCL GY |
Dimensions
| Width | 6.30 in (160 mm) |
| Length | 6.30 in (160 mm) |
| Inside Width | 151.02 mm [5.95 in] |
| Total Height | 2.76 in (70 mm) |
| Inside Height | 63.80 mm [2.51 in] |
| Inside Length | 151.02 mm [5.95 in] |
| Size (L X W X H) | 6.3 in x 6.3 in x 2.76 in (160 mm x 160 mm x 70 mm) |
| Max. P.C. Board Width | 147.5 mm |
| Max. P.C. Board Length | 147.5 mm |
Accessories
| Aluminum Inner Panel | 1557FPL |
| Replacement Gasket (2-pack) | 1557FGASKET |
| Replacement Lid Screws (50-pack) | SC576-50 |
| Wall Mount Foot Screws (50-pack) | SC556-50 (#8 x 3/8" self tapping, stainless steel) |
| Replacement Rubber Feet (24-pack) | 1421T6CL |
| PC Board Mounting Screws (50-pack) | SC526-50 (#6 x 1/4" self tapping) |
| Replacement Wall Mount Foot Kit (24-pack) | 1557FOOT2GY-24 |
Identifiers
| UPC | 623980987590 |
| UNSPSC | 39121301 |
| Part Number | 1557FA2GY |
Related Versions
| Black ABS | 1557FABK |
| Light Gray ABS | 1557FAGY |
| Black Polycarbonate UL Listed) | 1557FA2BK |
Packaging & Shipping
| Included Items | Box, lid, 4 cover screws, preformed silicone gasket, 4 rubber feet, 4 wall mount foot screws, 4 wall mount feet |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.87 lbs (0.39 kg) |
Construction & Finish
| Color | Light Gray |
| Gasket | One piece preformed gasket made from high temperature UL listed silicone |
| Material | Polycarbonate |
| CAD Models | Solid models available in .stp or .x_t |
| Lid Fasteners | 4 stainless steel M4-0.7 x 20 mm cover screws threaded into corrosion resistant bushings (M4-0.7 inserts) |
| Color Standard | RAL7035 grey |
| Lid Construction | Gasketed lid with two piece tongue and groove construction |
| P.C. Board Mounting | Internal bosses accept #6 self-tapping screws |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Recommended Cover Screw Torque | 71-85 ozf-in (50-60 cN-m) |
Environmental & Protection
| IP Rating | IP68 (tested to IP66, IP67 and IP68) |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Resistance | UV stabilized for outdoor use |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| Flame Rating | UL94 V-0 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Material Flammability (Drawing Note) | UL94-5VA @ 3 mm |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the inside dimensions of the 1557FA2GY?▾
Inside length and width are 151.02 mm [5.95 in] and inside height is 63.80 mm [2.51 in].
Does the 1557FA2GY come with mounting feet?▾
Yes, it includes 4 wall mount feet with 4 wall mount foot screws plus 4 rubber feet for tabletop use.
What are the wall mount foot installation torques?▾
For polycarbonate, the wall mount foot instructions specify 100-110 cN-m or 8.8-9.7 lbf-in.
Can I mount it on a pole?▾
Yes, the 1557FA profile uses pole mount kit PMB6687KIT3 (7 in max) or PMB6687KIT4 (15 in max).
Is there a black version?▾
Yes, 1557FA2BK is the black polycarbonate version of the same size.
