Hammond 1557BGY 80mm Square, 45mm Gray ABS Low-Profile Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features

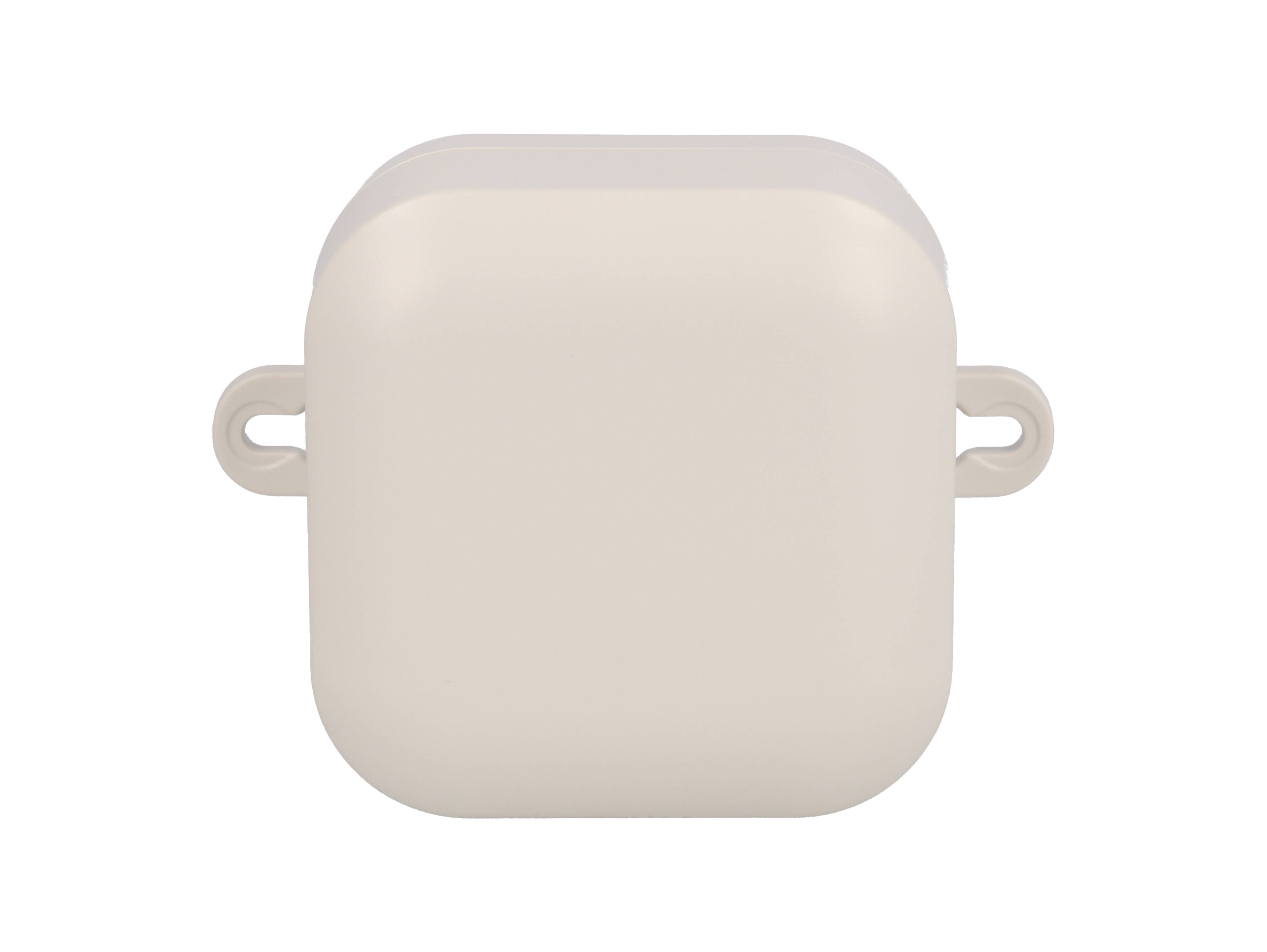

- Light gray RAL7035 ABS, 80 x 80 x 45 mm (3.15 x 3.15 x 1.77 in)
- IP66 tested with one piece silicone lid gasket
- Max PC board 70.64 x 70.64 mm; bosses take #6 self-tapping screws
- Inside 71.30 x 71.02 x 38.80 mm
- Includes rubber feet, 2 wall mount feet and foot screws
- Indoor rated -20°C to +60°C; IK07; UL94 HB
Specify the 1557BGY when you need the compact 1557B footprint in light gray. This RAL7035 grey general purpose ABS enclosure measures 3.15 in x 3.15 in x 1.77 in (80 mm x 80 mm x 45 mm) and is designed around mounting a small printed circuit board for indoor electronics, controls and interface work.
The lid seals with two piece tongue and groove construction and a one piece high temperature UL listed silicone gasket against oil, dust and water; the ABS body has been tested to and meets IP66. Four included M4 stainless steel machine screws engage corrosion resistant bushings, which lets technicians open the enclosure repeatedly for service. Recommended cover screw torque is 71-85 ozf-in (50-60 cN-m).
The drawing shows an inside length of 71.30 mm [2.81 in], inside width of 71.02 mm [2.80 in] and inside height of 38.80 mm [1.53 in], and the maximum PC board is 70.64 mm square. Board bosses accept #6 self-tapping screws.
Supplied with the 1557BGY are four rubber feet, two wall mount feet and two wall mount foot screws, giving a choice of tabletop, flush wall (keyhole) or heavy duty wall flange installation. The ABS material carries UL94 HB flammability and an IK07 impact rating per IEC 62262:2021, and the recommended operating range is -20°C to +60°C (-4°F to +140°F) for indoor use; it is not UL listed. Shipping weight is 0.25 lbs (0.11 kg).
Ideal For
- Indoor PCB housings
- Wall-mounted sensor and interface boxes
- Tabletop electronics enclosures
- OEM control modules in light gray
Mounting
| CAD Models | Solid models available in .stp or .x_t |
| Wall Fasteners | #8 pan head screws recommended (not included) |
| Wall Mount Feet | Accept #8 self-tapping screw |
| Factory Modification | Milling, drilling, printing etc. available from the factory (modshop@hammfg.com for quotes) |
| Pole Mount Screw Type | #8 x 1/2" |

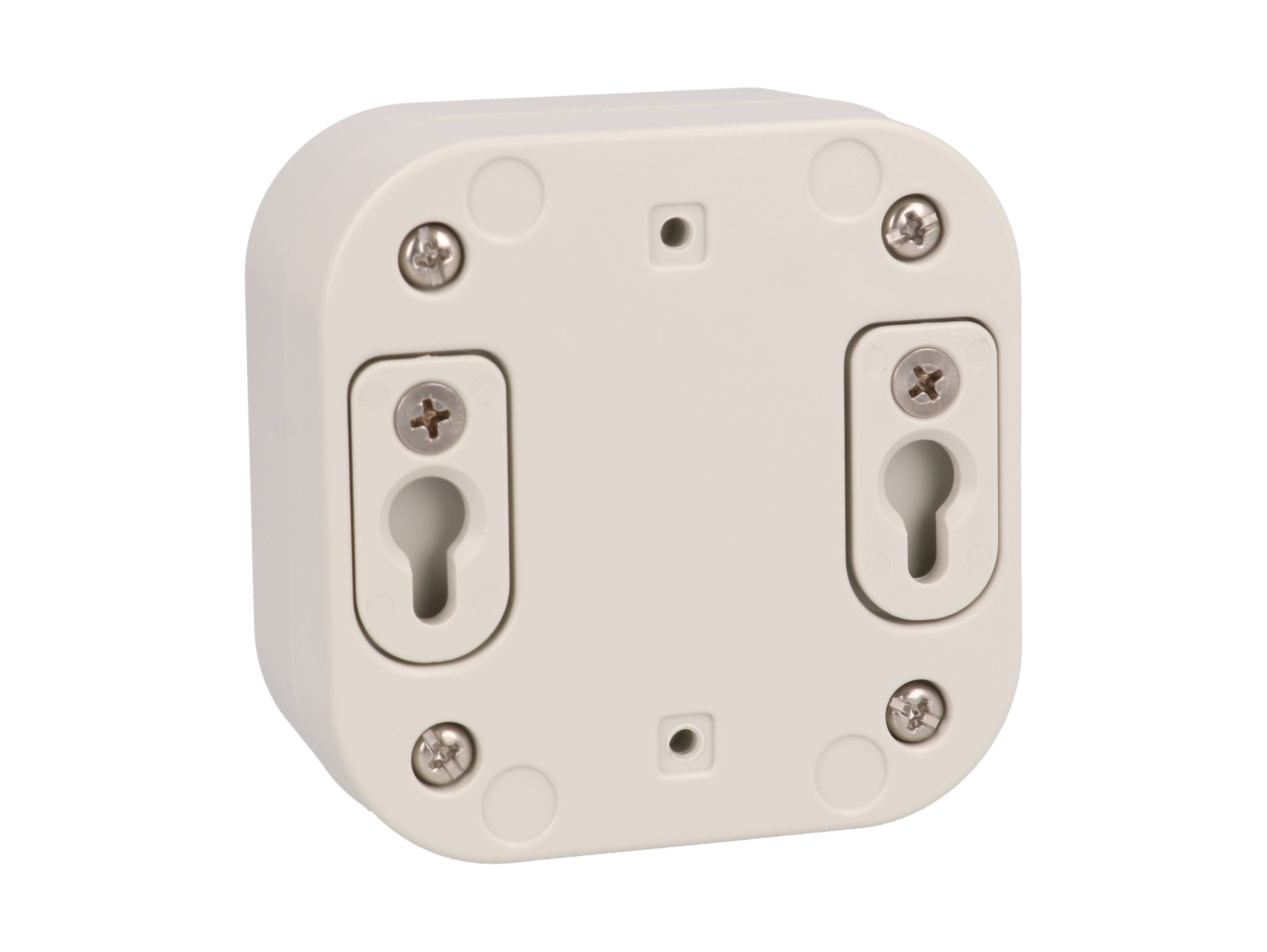

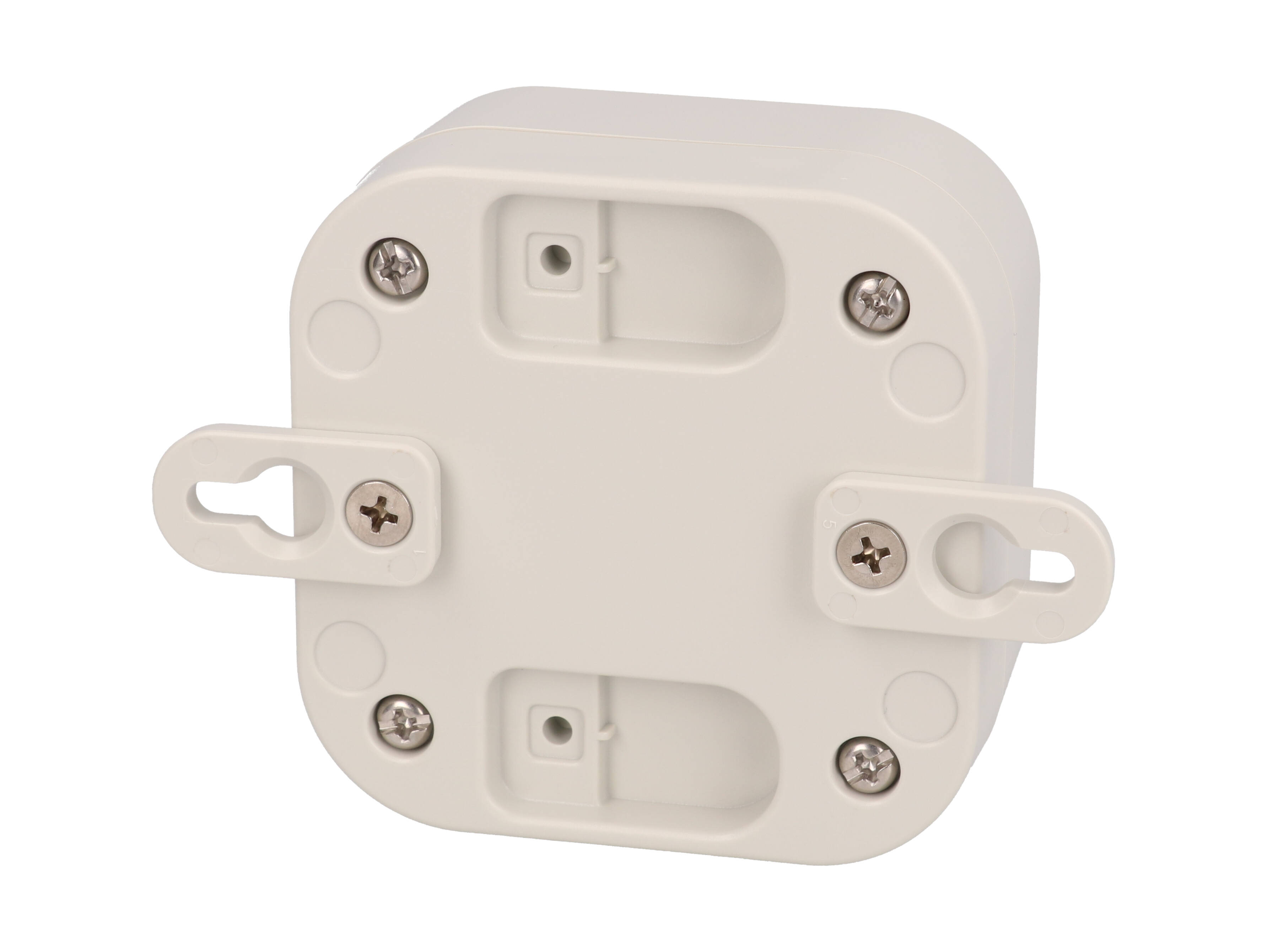

| Mounting Configurations | Desktop / tabletop (rubber feet), flush wall mount (mounting feet as keyhole slots), heavy duty wall flange mount (mounting feet outward) |
| Pole Mount Kit (7" Max) | PMB5057WKIT1 |
| Pole Mount Kit (15" Max) | PMB5057WKIT2 |
| Pole Mount Replacement Screw Pack | SCPMB4-20 |
| Wall Mount Foot Installation Torque | ABS 80 - 90 cN-m or 7 - 8 lbf-in |
Overview
| Type | Water-tight |
| Series | 1557 Series Type 4/4X, 6/6P Polycarbonate and ABS Plastic Enclosures |
| Long Description | RAL7035 grey ABS plastic watertight enclosure |
| Enclosure Profile | 1557B |
| Short Description | ABS NEMA WALL MNT ENCL GY |
Dimensions
| Width | 3.15 in (80 mm) |
| Length | 3.15 in (80 mm) |
| Inside Width | 71.02 mm [2.80 in] |
| Total Height | 1.77 in (45 mm) |
| Inside Height | 38.80 mm [1.53 in] |
| Inside Length | 71.30 mm [2.81 in] |
| Size (L X W X H) | 3.15 in x 3.15 in x 1.77 in (80 mm x 80 mm x 45 mm) |
| Max. P.C. Board Width | 70.64 mm |
| Max. P.C. Board Length | 70.64 mm |
Identifiers
| UPC | 623980987361 |
| UNSPSC | 39121301 |
| Same-Size Variants | 1557BBK, 1557B2BK, 1557B2GY |
| Aluminum Inner Panel | 1557BPL |
| Replacement Gasket (2-pack) | 1557BGASKET |
| Replacement Lid Screws (50-pack) | SC576-50 |
| Wall Mount Foot Screws (50-pack) | SC556-50 [#8 x 3/8" self tapping, stainless steel] |
| Replacement Rubber Feet (24-pack) | 1421T6CL |
| PC Board Mounting Screws (50-pack) | SC526-50 [#6 x 1/4" self tapping] |
| Replacement Wall Mount Foot Kit (24-pack) | 1557FOOTBK-24 (black ABS), 1557FOOTGY-24 (gray ABS) |
Packaging & Shipping

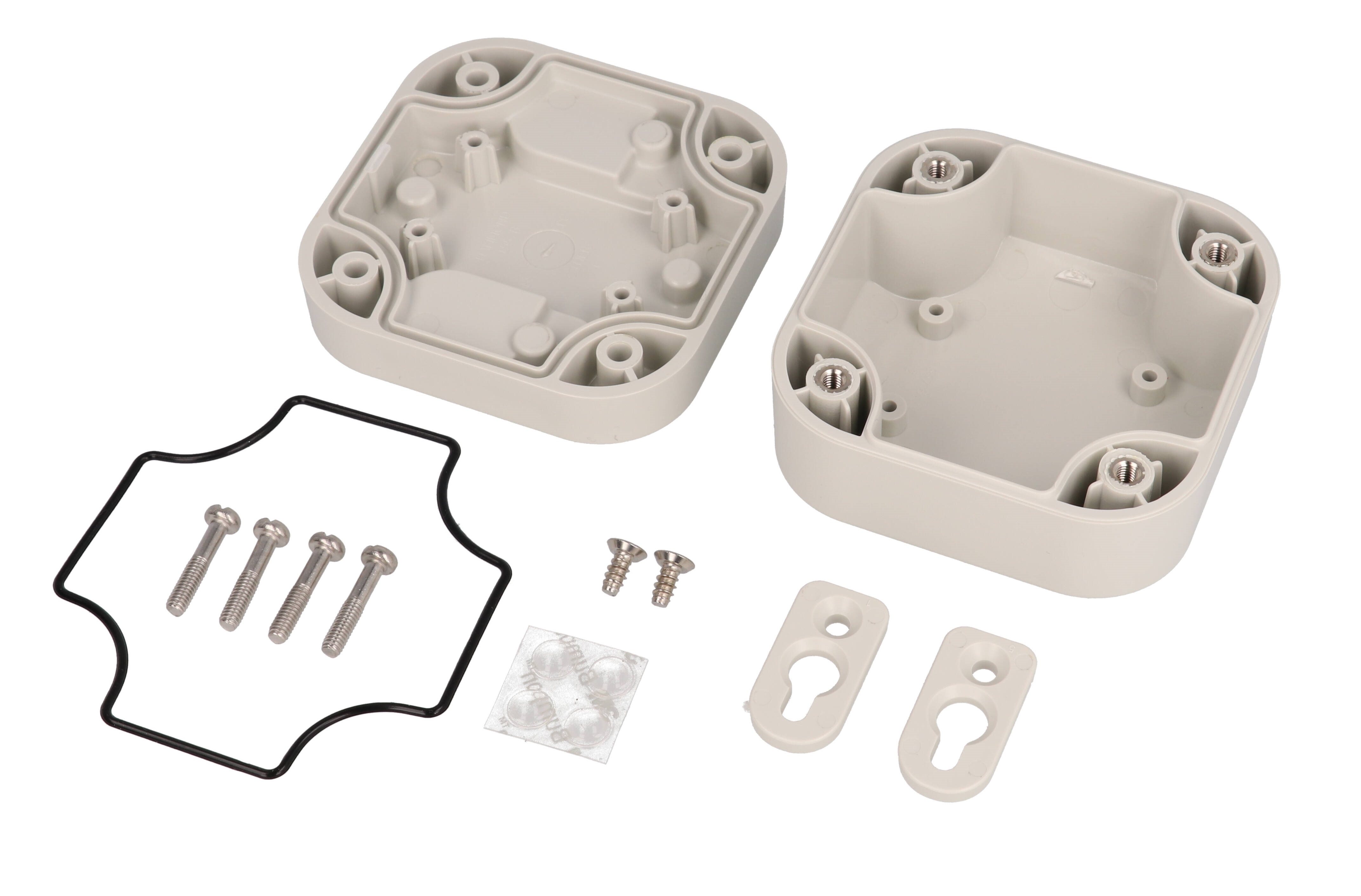

| Included | Box, lid, 4 cover screws, preformed silicone gasket, 4 rubber feet, 2 wall mount foot screws and 2 wall mount feet |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.25 lbs (0.11 kg) |
Construction & Finish
| Color | Light Gray (RAL7035 grey) |
| Gasket | One piece, preformed, high temperature UL listed silicone |
| Material | ABS Plastic (general purpose) |
| Lid Screws | Included M4 stainless steel machine screws [M4-0.7 x 20 mm] threaded into corrosion resistant bushings |
| Lid Inserts | M4-0.7 |
| Corner Styling | Rounded corners and face |
| Lid Construction | Gasketed lid with two piece tongue and groove construction |
| PCB Mounting Bosses | Accept #6 self-tapping screw |
| Recommended Cover Screw Torque | 71-85 ozf-in (50-60 cN-m) |
Environmental & Protection
| IP Rating | IP66 |
| Intended Use | Indoor use |
| Impact Rating | IK07 per IEC 62262:2021 |
| Chemical Caution | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
| Recommended Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | General purpose ABS version is not UL listed / not UL approved (tested to and meets IP66) |
| Flame Rating | UL94 HB |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What colour is the 1557BGY?▾
It is light gray, RAL7035 grey ABS plastic. The same size in black ABS is 1557BBK.
What are its dimensions?▾
Outside 3.15 in x 3.15 in x 1.77 in (80 mm x 80 mm x 45 mm); inside 71.30 mm long, 71.02 mm wide and 38.80 mm high.
What ratings does it carry?▾
The ABS version has been tested to and meets IP66, carries an IK07 impact rating per IEC 62262:2021 and uses UL94 HB material. It is intended for indoor use and is not UL listed.
What mounting hardware is included?▾
Four rubber feet, two wall mount feet and two wall mount foot screws. #8 pan head screws for fixing to a wall are not included.
Is an inner panel available?▾
Yes, the aluminum inner panel for the 1557B profile is 1557BPL, sold as an accessory.
