Hammond 1557DBK 120mm Square, 45mm Black ABS Low-Profile Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Black ABS, 120 x 120 x 45 mm (4.72 x 4.72 x 1.77 in)
- IP66 tested; gasketed tongue and groove lid
- 108.5 x 108.5 mm max PC board; 38.80 mm inside height
- Four M4 stainless lid screws into corrosion resistant bushings
- 4 rubber feet, 4 wall mount feet and screws included
- Indoor use, -20°C to +60°C; IK07; UL94 HB

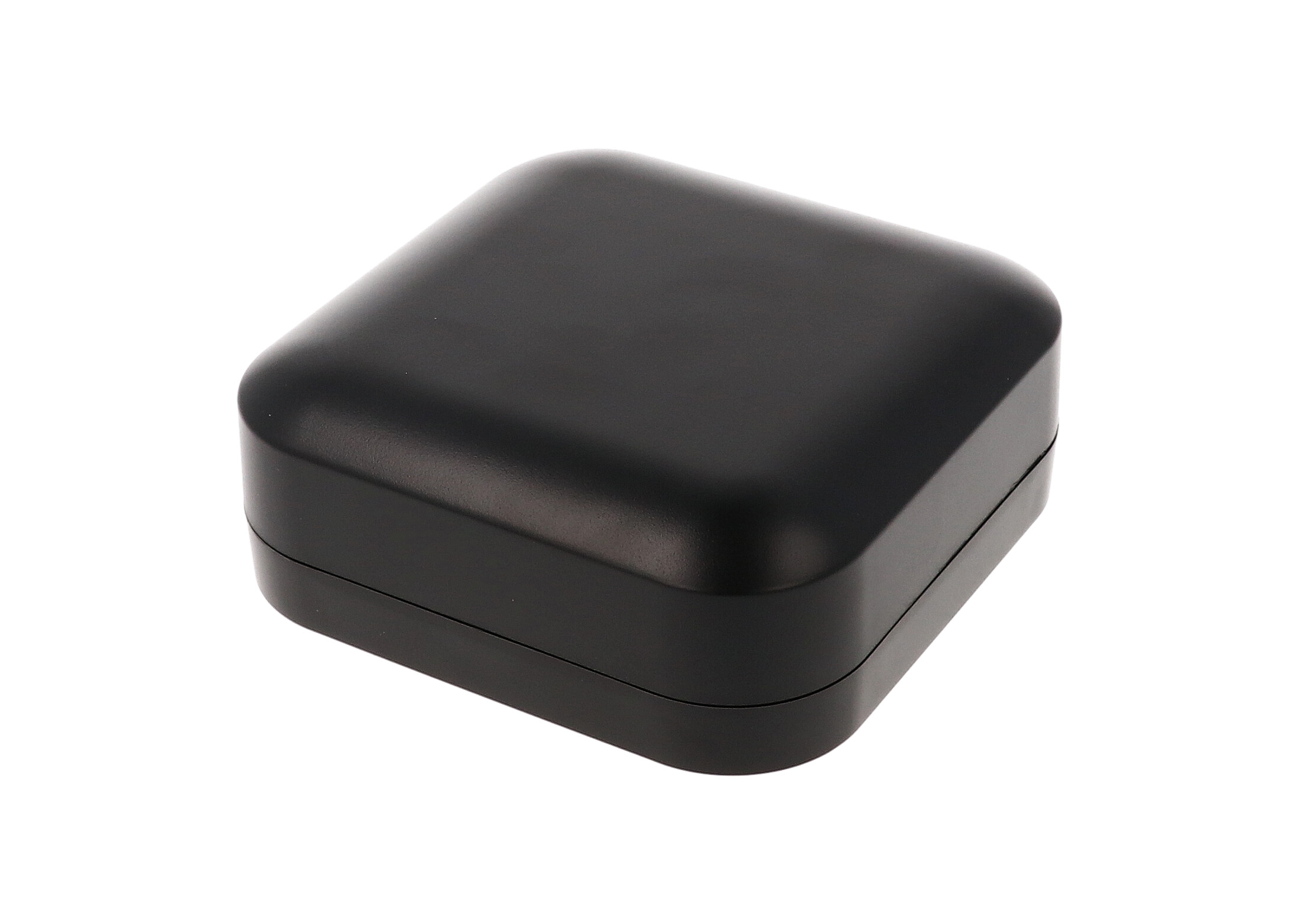

The 1557DBK is a black general purpose ABS enclosure in the low 1557D profile: 4.72 in x 4.72 in x 1.77 in (120 mm x 120 mm x 45 mm). Its square footprint and shallow depth suit flat PCB assemblies, keypads and interface electronics used indoors.
The enclosure protects against oil, dust and water through a two piece tongue and groove lid and a one piece high temperature UL listed silicone gasket, and the ABS version has been tested to and meets IP66. The lid is secured with four M4 stainless steel machine screws that thread into corrosion resistant bushings (recommended torque 71-85 ozf-in, 50-60 cN-m).
Inside dimensions are 111.02 mm x 111.02 mm [4.37 x 4.37 in] with 38.80 mm [1.53 in] of height. The maximum PC board is 108.5 mm x 108.5 mm, fastened to bosses that accept #6 self-tapping screws.
The 1557DBK comes with four rubber feet, four wall mount feet and four wall mount foot screws for tabletop, flush wall or heavy duty wall flange installation (ABS foot torque 80 - 90 cN-m, 7 - 8 lbf-in). Pole mount kits PMB5057KIT3 and PMB5057KIT4 are listed for the 1557D profile. The ABS material is UL94 HB with IK07 impact resistance and a recommended operating temperature of -20°C to +60°C (-4°F to +140°F) for indoor use; it is not UL listed. Shipping weight 0.44 lbs (0.20 kg).
Ideal For
- Indoor PCB housings
- Flat interface or keypad electronics
- Wall-mounted junction boxes
- Tabletop control modules
Mounting
| CAD Models | Solid models available in .stp or .x_t |
| Wall Fasteners | #8 pan head screws recommended (not included) |
| Wall Mount Feet | Accept #8 self-tapping screw |
| Factory Modification | Milling, drilling, printing etc. available from the factory (modshop@hammfg.com for quotes) |
| Pole Mount Screw Type | #8 x 3/8" |

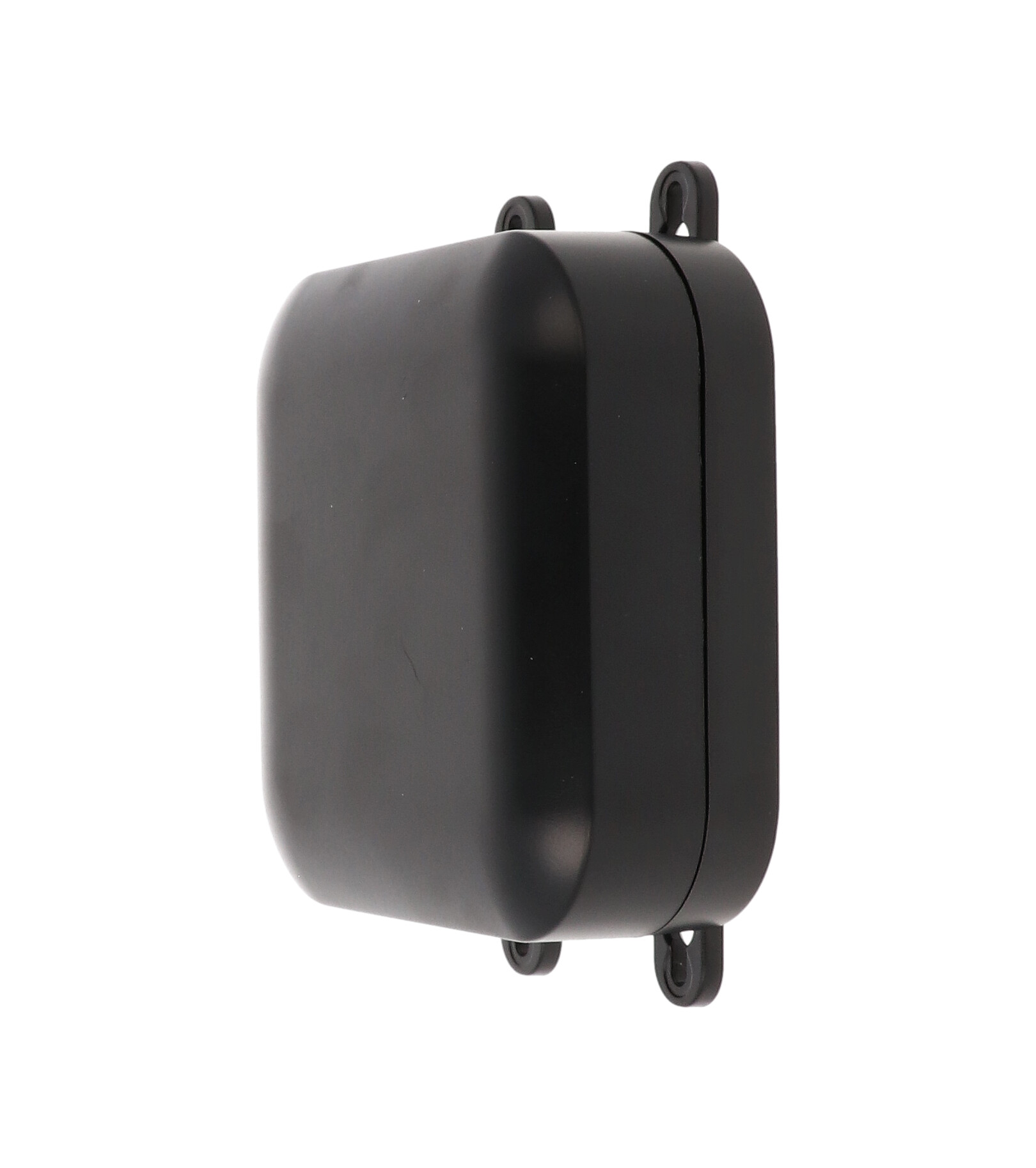

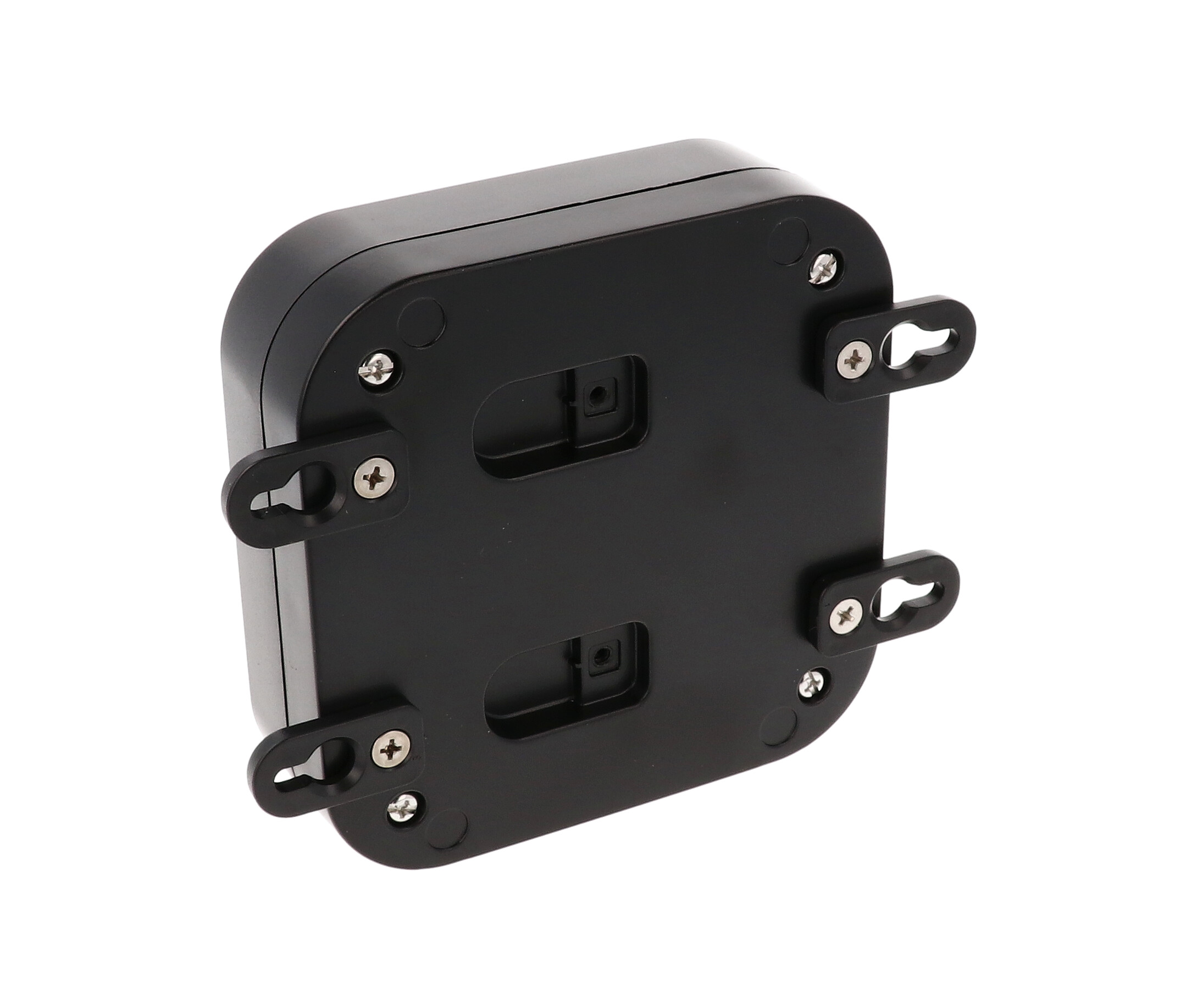

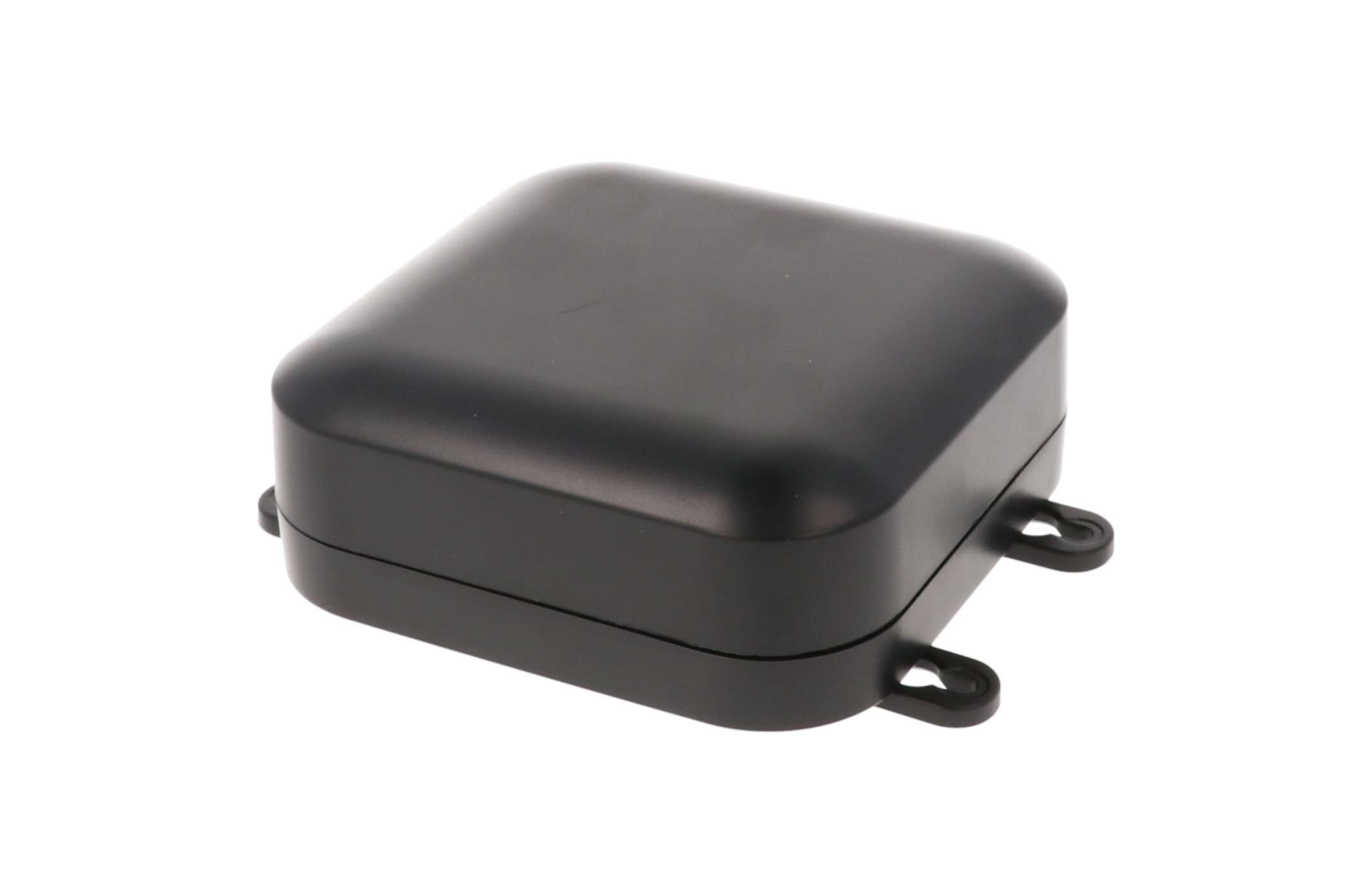

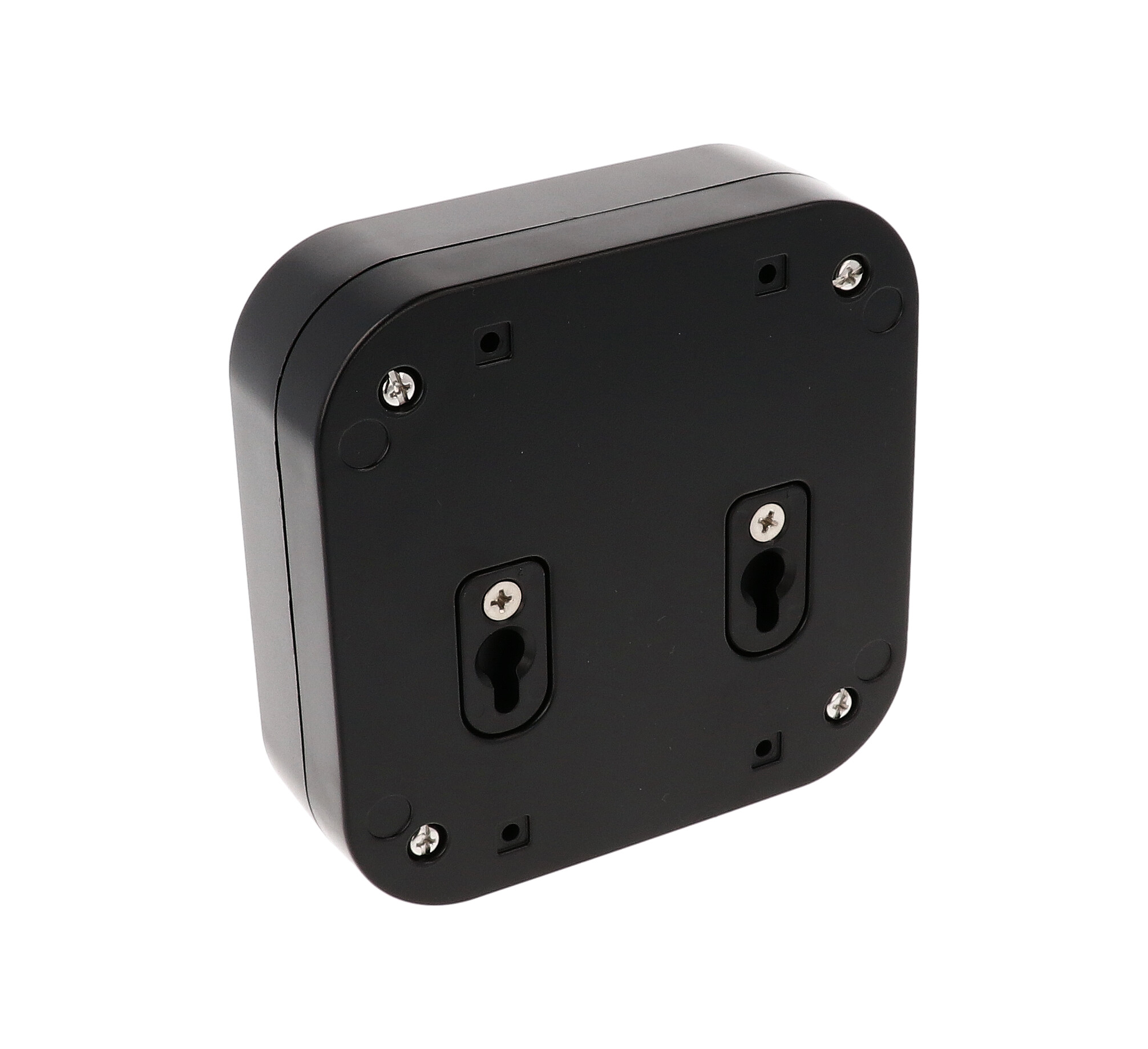

| Mounting Configurations | Desktop / tabletop (rubber feet), flush wall mount (mounting feet as keyhole slots), heavy duty wall flange mount (mounting feet outward) |
| Pole Mount Kit (7" Max) | PMB5057KIT3 |
| Pole Mount Kit (15" Max) | PMB5057KIT4 |
| Pole Mount Replacement Screw Pack | SCPMB5-20 |
| Wall Mount Foot Installation Torque | ABS 80 - 90 cN-m or 7 - 8 lbf-in |
Overview
| Type | Water-tight |
| Series | 1557 Series Type 4/4X, 6/6P Polycarbonate and ABS Plastic Enclosures |
| Long Description | BLACK GPABS plastic watertight enclosure |
| Enclosure Profile | 1557D |
| Short Description | ABS NEMA WALL MNT ENCL BK |
Dimensions
| Width | 4.72 in (120 mm) |
| Length | 4.72 in (120 mm) |
| Inside Width | 111.02 mm [4.37 in] |
| Total Height | 1.77 in (45 mm) |
| Inside Height | 38.80 mm [1.53 in] |
| Inside Length | 111.02 mm [4.37 in] |
| Size (L X W X H) | 4.72 in x 4.72 in x 1.77 in (120 mm x 120 mm x 45 mm) |
| Max. P.C. Board Width | 108.5 mm |
| Max. P.C. Board Length | 108.5 mm |
Identifiers
| UPC | 623980987422 |
| UNSPSC | 39121301 |
| Same-Size Variants | 1557DGY, 1557D2BK, 1557D2GY |
| Aluminum Inner Panel | 1557DPL |
| Replacement Gasket (2-pack) | 1557DGASKET |
| Replacement Lid Screws (50-pack) | SC576-50 |
| Wall Mount Foot Screws (50-pack) | SC556-50 [#8 x 3/8" self tapping, stainless steel] |
| Replacement Rubber Feet (24-pack) | 1421T6CL |
| PC Board Mounting Screws (50-pack) | SC526-50 [#6 x 1/4" self tapping] |
| Replacement Wall Mount Foot Kit (24-pack) | 1557FOOTBK-24 (black ABS), 1557FOOTGY-24 (gray ABS) |
Packaging & Shipping

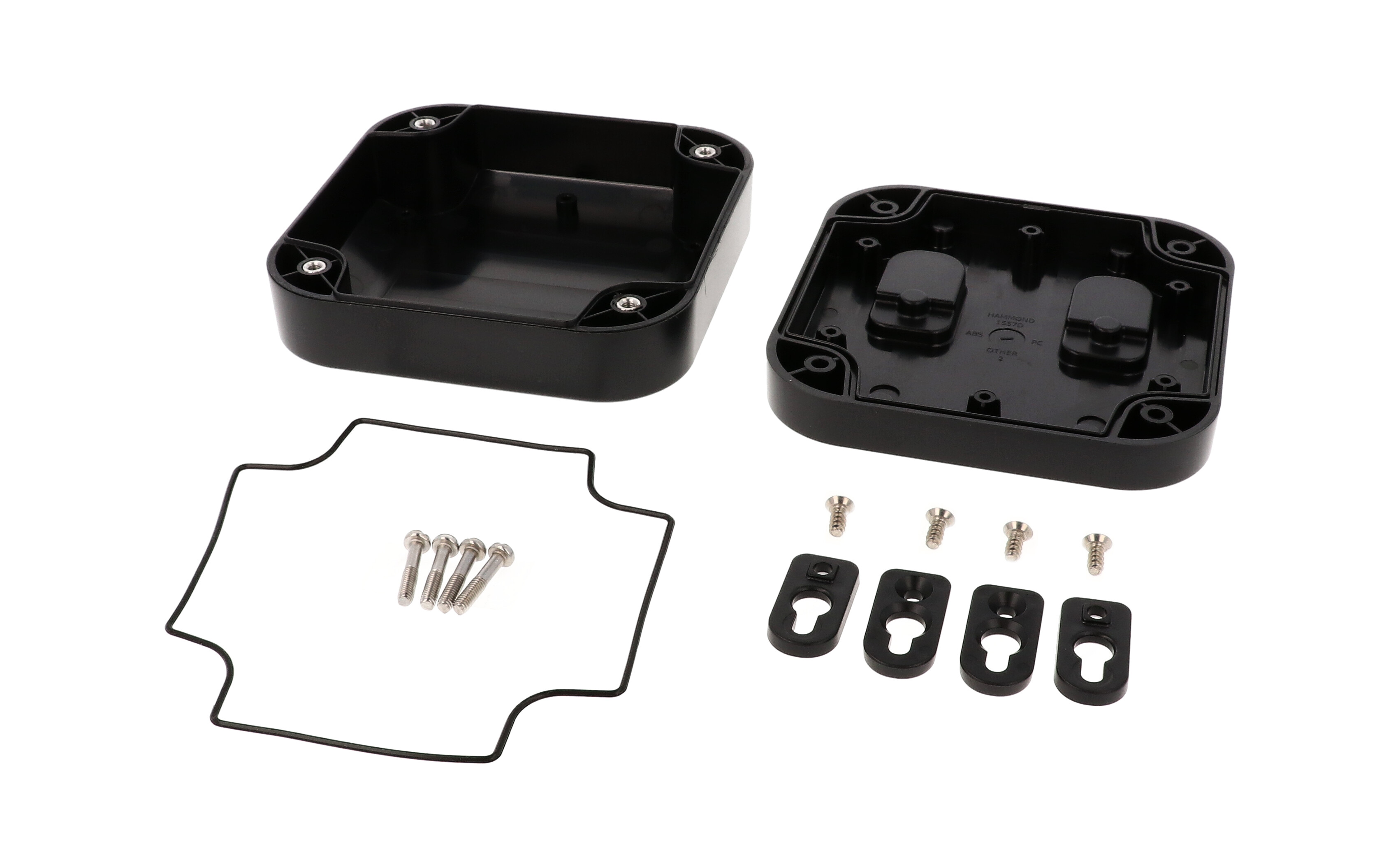

| Included | Box, lid, 4 cover screws, preformed silicone gasket, 4 rubber feet, 4 wall mount foot screws and 4 wall mount feet |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.44 lbs (0.20 kg) |
Construction & Finish
| Color | Black |
| Gasket | One piece, preformed, high temperature UL listed silicone |
| Material | ABS Plastic (general purpose) |
| Lid Screws | Included M4 stainless steel machine screws [M4-0.7 x 20 mm] threaded into corrosion resistant bushings |
| Lid Inserts | M4-0.7 |
| Corner Styling | Rounded corners and face |
| Lid Construction | Gasketed lid with two piece tongue and groove construction |
| PCB Mounting Bosses | Accept #6 self-tapping screw |
| Recommended Cover Screw Torque | 71-85 ozf-in (50-60 cN-m) |
Environmental & Protection
| IP Rating | IP66 |
| Intended Use | Indoor use |
| Impact Rating | IK07 per IEC 62262:2021 |
| Chemical Caution | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
| Recommended Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | General purpose ABS version is not UL listed / not UL approved (tested to and meets IP66) |
| Flame Rating | UL94 HB |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the inside dimensions of the 1557DBK?▾
111.02 mm x 111.02 mm [4.37 x 4.37 in] with an inside height of 38.80 mm [1.53 in].
Is it suitable for outdoor use?▾
The ABS versions are for indoor use. The UV stabilized polycarbonate 1557D2BK is the outdoor option in this size.
What mounting options are included?▾
Four rubber feet for tabletop use and four wall mount feet with screws for flush keyhole or heavy duty flange wall mounting.
Which pole mount kit fits?▾
PMB5057KIT3 for poles up to 7 in and PMB5057KIT4 for poles up to 15 in, with #8 x 3/8 in screws (replacement pack SCPMB5-20).
Which gasket fits the 1557DBK?▾
1557DGASKET, a 2-pack black pre-formed silicone gasket for the 1557D and 1557DA enclosures.
