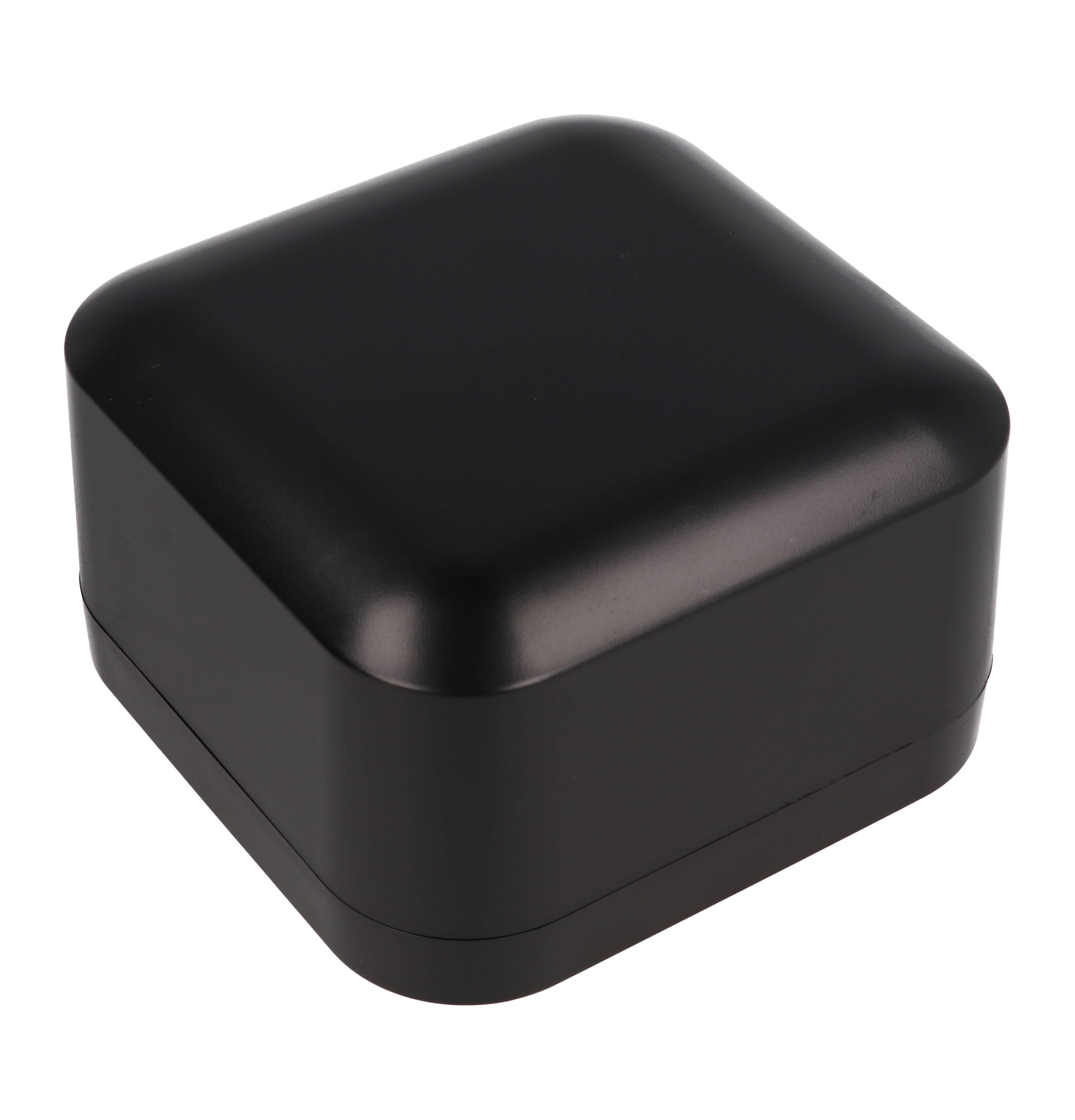

Hammond 1557DABK 120mm Square, 70mm Tall Black ABS Watertight Box

The 1557DABK is a black general purpose ABS enclosure in the deeper 1557DA profile, measuring 4.72 in x 4.72 in x 2.76 in (120 mm x 120 mm x 70 mm). It is a cost-conscious choice for indoor electronics, where a sealed box with room for a 108.5 mm PC board and taller parts is needed.

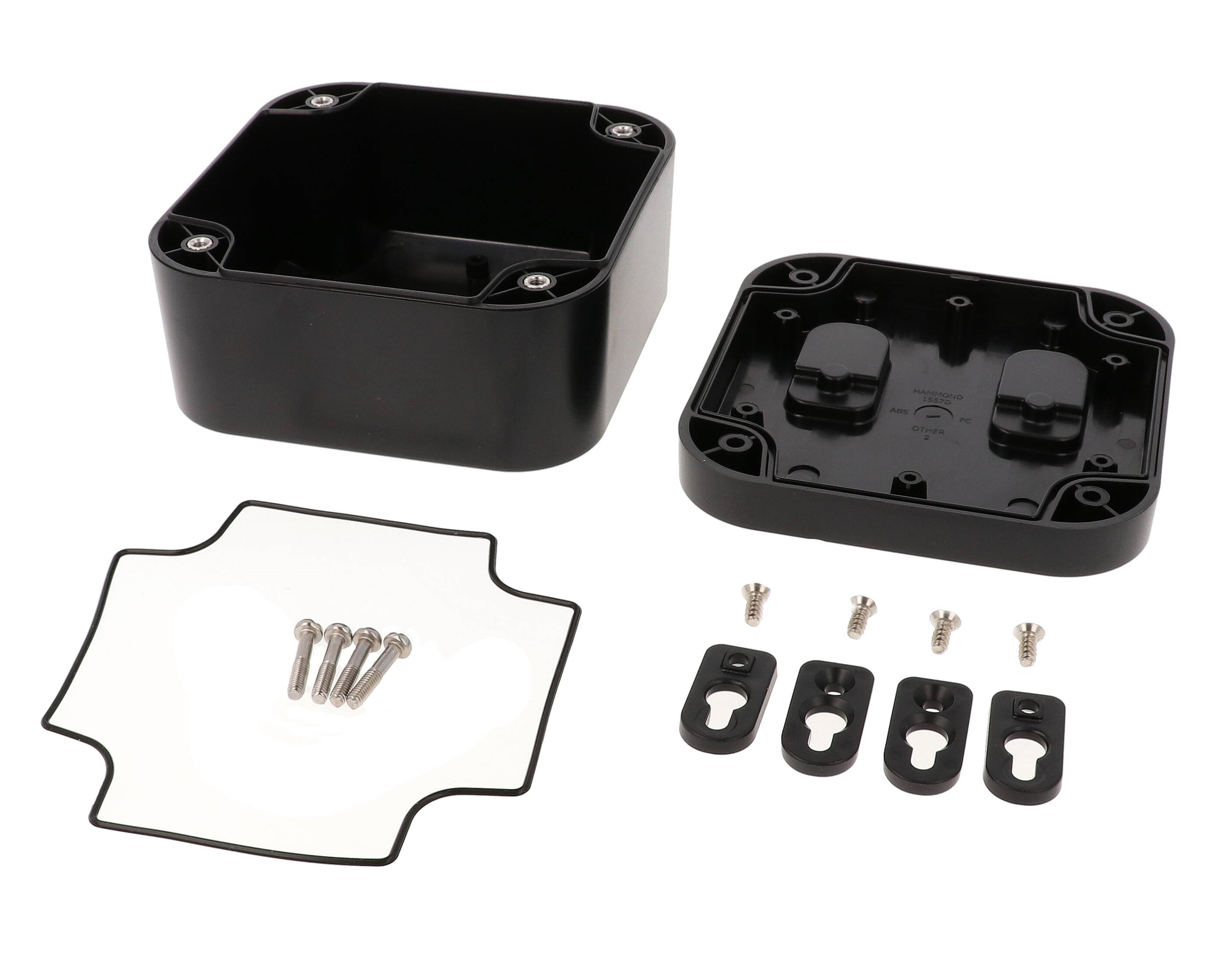

The ABS body has been tested to and meets IP66, and the lid seals with two piece tongue and groove construction and a one piece high temperature UL listed silicone gasket. Four M4 stainless steel machine screws thread into corrosion resistant bushings for repeated access; the drawing recommends 71-85 ozf-in (50-60 cN-m).

• Inside length and width 111.02 mm [4.37 in]; inside height 63.80 mm [2.51 in]
• Maximum PC board 108.5 mm x 108.5 mm, bosses accept #6 self-tapping screws
• UL94 HB material, IK07 impact rating per IEC 62262:2021
• Recommended operating temperature -20°C to +60°C (-4°F to +140°F), indoor use

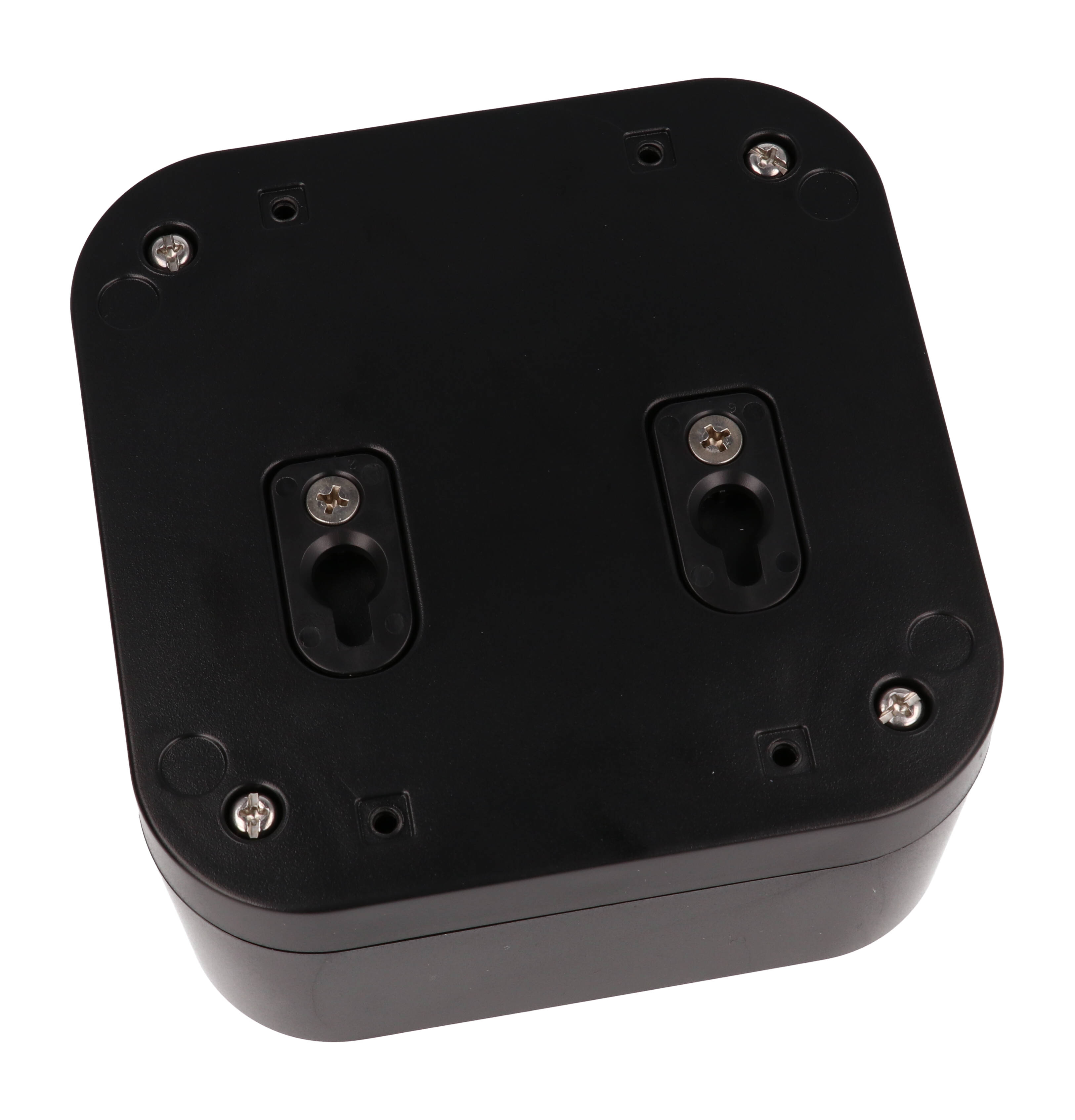

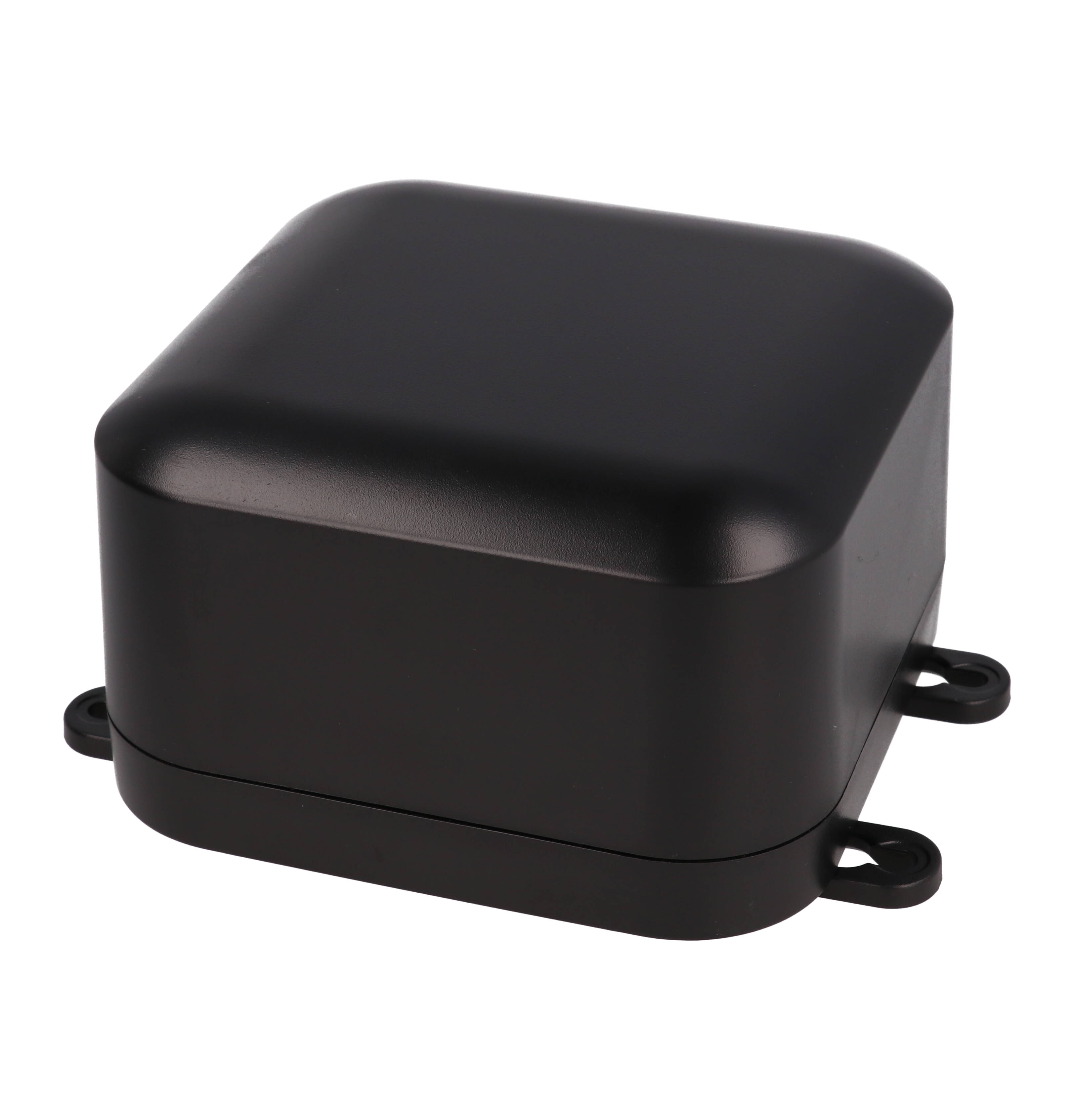

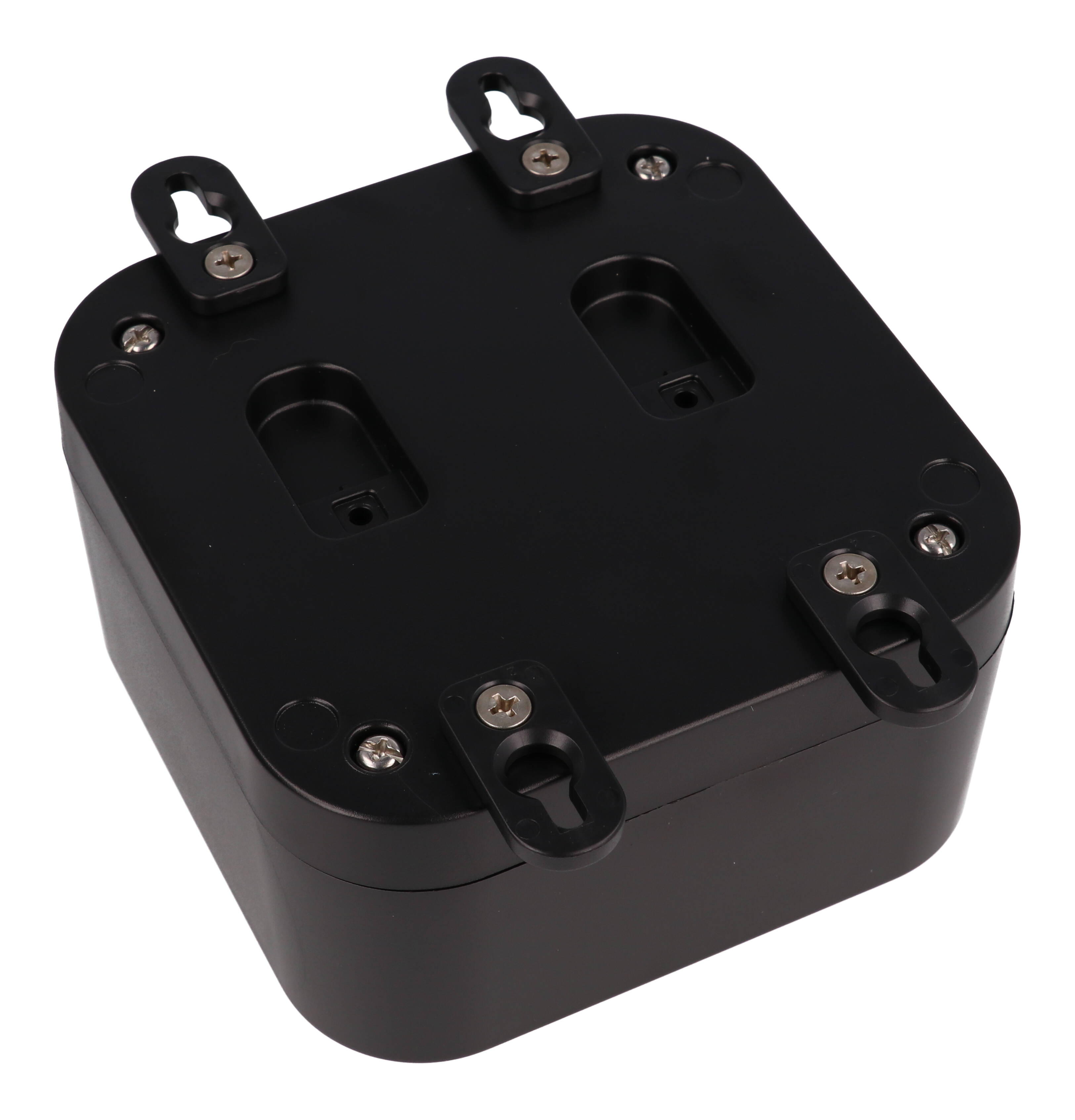

The 1557DABK is supplied with four rubber feet, four wall mount feet and four wall mount foot screws, supporting tabletop, flush wall (keyhole) and heavy duty wall flange mounting; ABS feet install at 80 - 90 cN-m (7 - 8 lbf-in). The ABS version is not UL listed. Shipping weight is 0.56 lbs (0.25 kg), shrink wrapped.
