Hammond 1557FA2BK 160mm Square, 70mm Tall Black Polycarbonate Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 70 mm (2.76 in) tall black polycarbonate body, 160 x 160 mm footprint
- 63.80 mm (2.51 in) inside height for taller board components
- IP68 and NEMA 4, 4X, 6, 6P, 12 & 13; cUL and UL 508A listed (E65324)
- UV stabilized for outdoor use; IK08 impact rating per IEC 62262:2021
- Fits P.C. boards up to 147.5 x 147.5 mm
- Silicone-gasketed lid with stainless M4 cover screws
- Desk, flush wall, heavy duty wall or pole mounting options

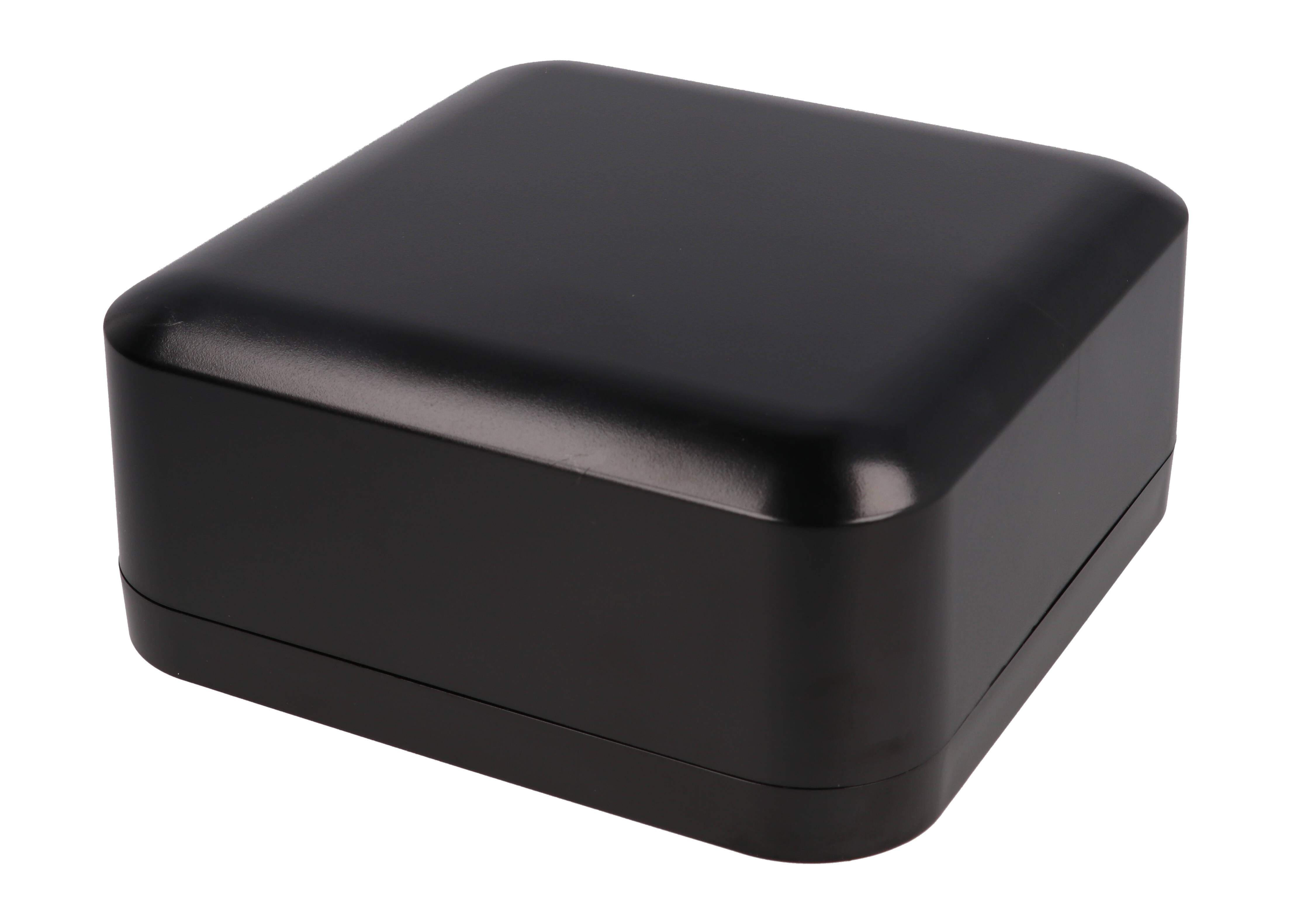

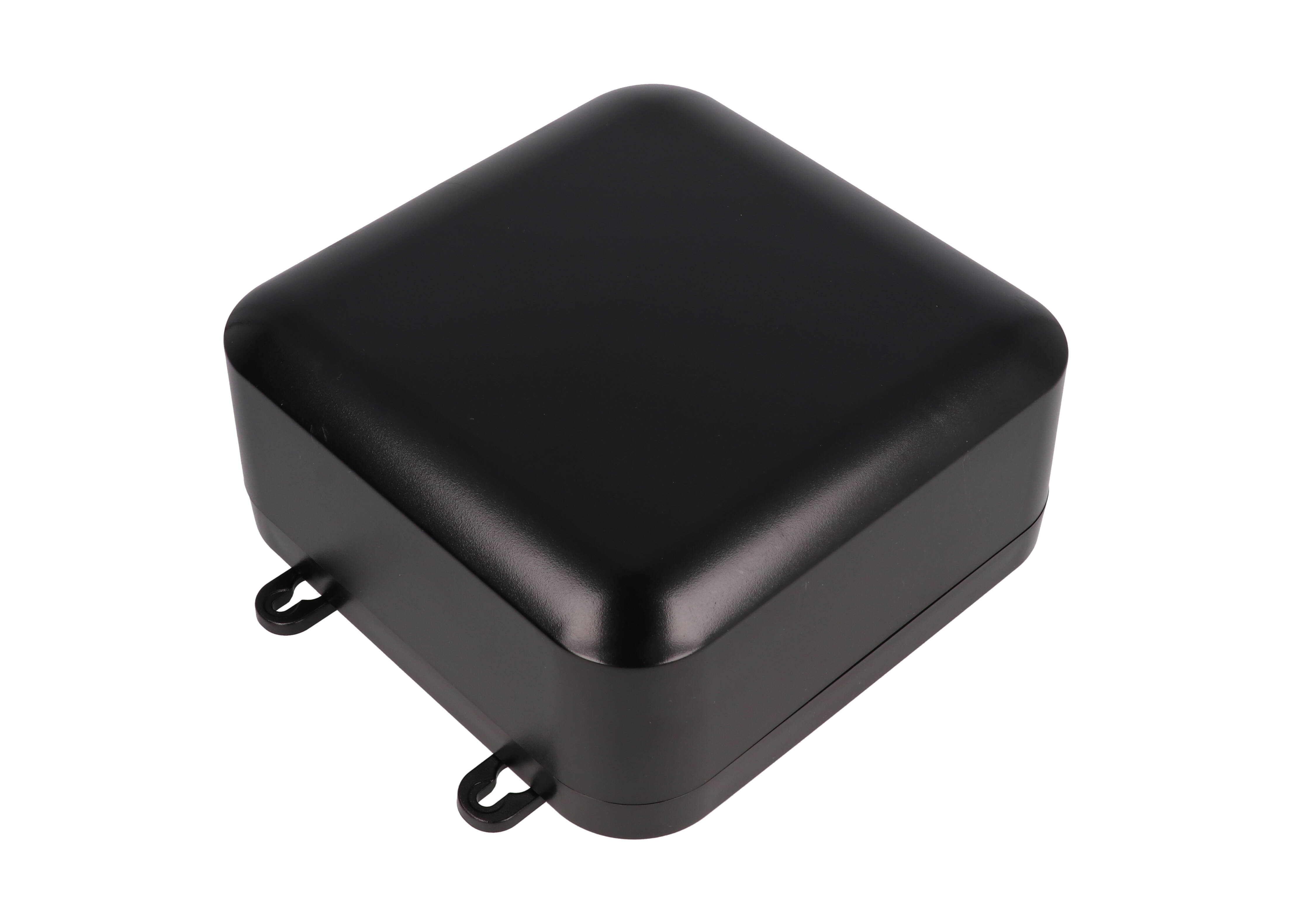

The 1557FA2BK is the deeper black polycarbonate model in the 1557 Series 160 mm family, measuring 6.3 in x 6.3 in x 2.76 in (160 mm x 160 mm x 70 mm). The extra height gives 63.80 mm [2.51 in] of inside height, useful when a printed circuit board carries taller components, terminal blocks or connectors. Boards up to 147.5 mm x 147.5 mm fit inside.
Being polycarbonate, the 1557FA2BK is UV stabilized for outdoor use, cUL and UL 508A listed under file E65324 and impact rated IK08 per IEC 62262:2021. The part page lists IP68, NEMA 4, 4X, 6, 6P, 12 & 13 and a UL94 V-0 flame rating; the recommended operating temperature for polycarbonate versions is -40°C to +110°C (-40°F to +230°F).
The lid seals with two piece tongue and groove construction and a preformed one piece silicone gasket, and is held by four stainless steel M4-0.7 x 20 mm screws in corrosion resistant inserts (recommended torque 71-85 ozf-in, 50-60 cN-m). Inside length and width are 151.02 mm [5.95 in].

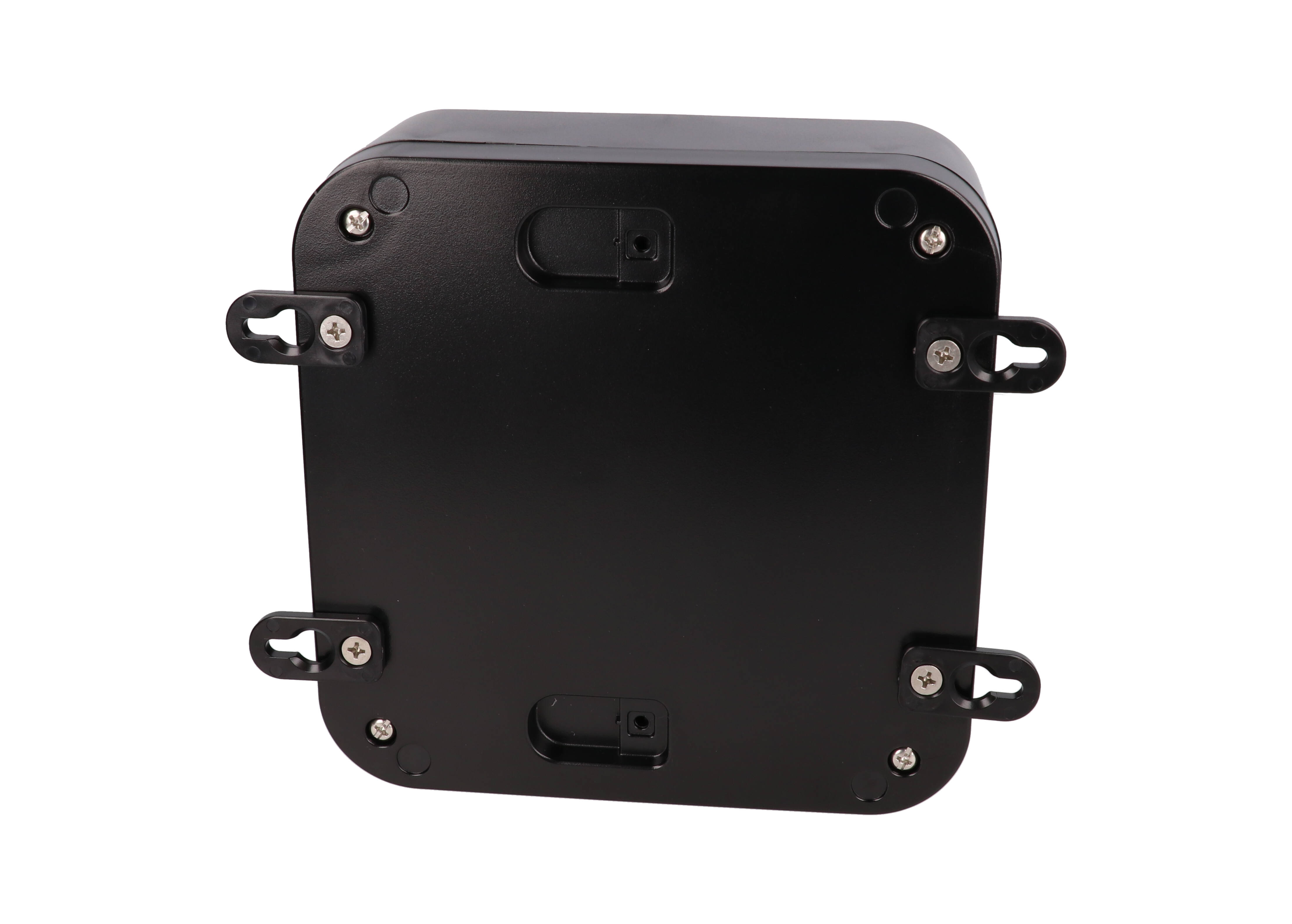

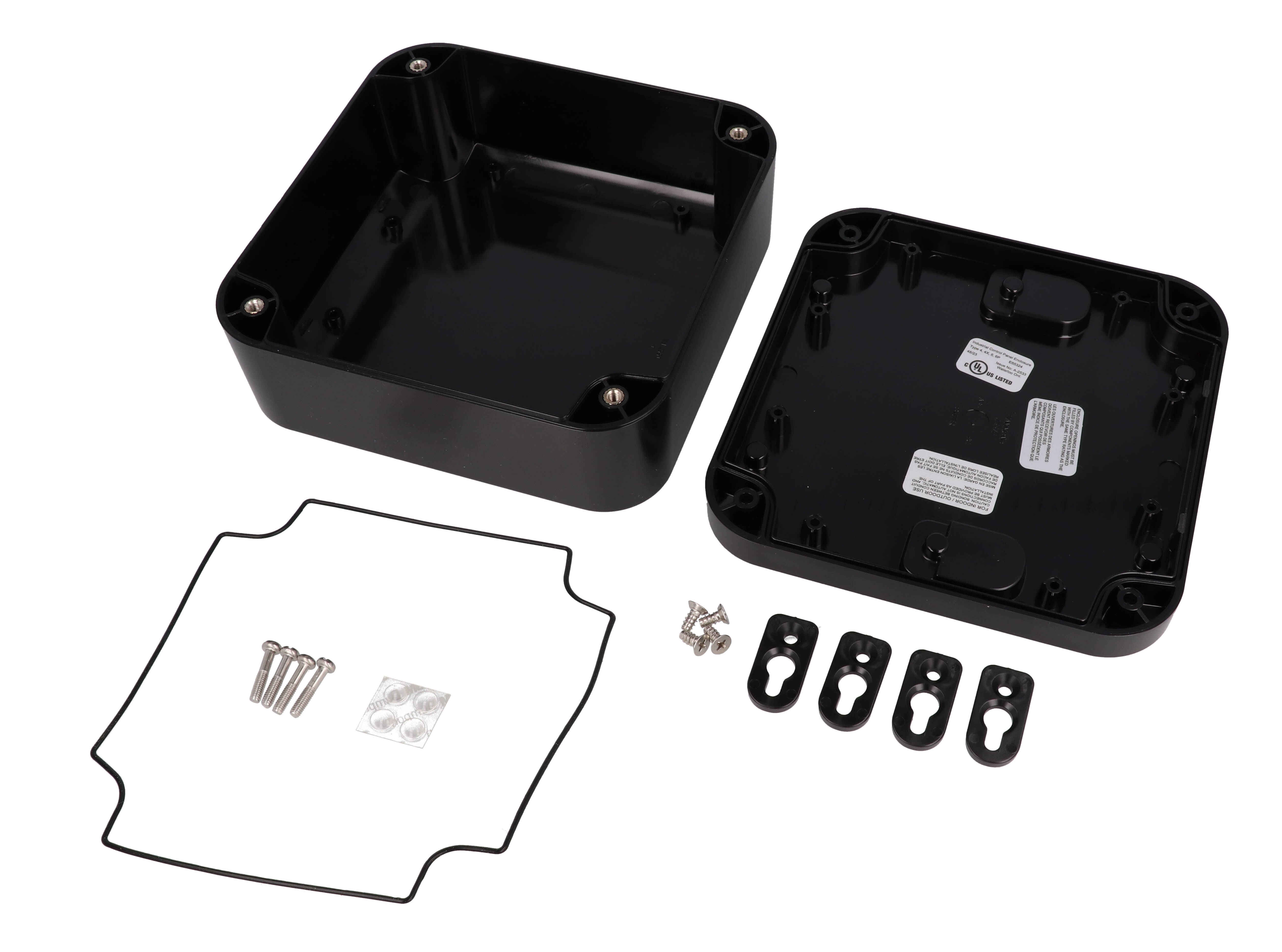

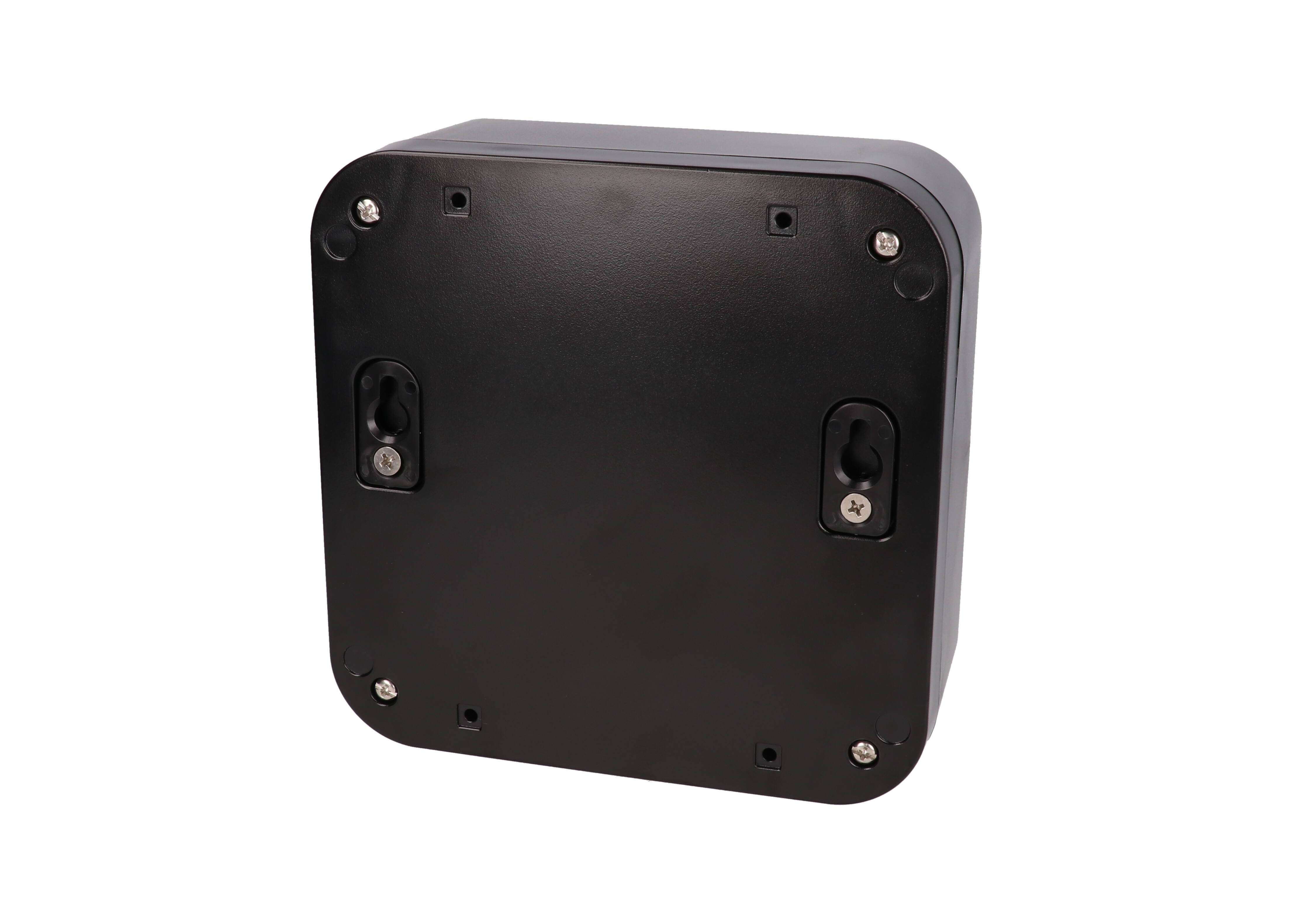

Included with the enclosure are the lid, 4 cover screws, silicone gasket, 4 rubber feet, 4 wall mount feet and 4 wall mount foot screws. Choose tabletop use, flush wall mounting through the keyhole-style feet or the heavy duty flange layout; pole mounting uses PMB6687KIT3 or PMB6687KIT4. Replacement gasket is 1557FGASKET and the matching aluminum inner panel is 1557FPL. Shipping weight is 0.87 lbs (0.39 kg).
Ideal For
- Outdoor PCB assemblies with tall components
- Wet-location control and sensor housings
- Pole-mounted field electronics
- Wall-mounted terminal and interface boxes
- Benchtop instrument enclosures
Mounting
| Wall Mount Feet | Accept #8 self-tapping screw; #8 pan head screws for wall mounting not included |
| Mounting Options | Desktop/tabletop (rubber feet), flush wall mount (mounting feet as keyhole slots), heavy duty wall flange mount (mounting feet outward) |
| Pole Mount Screw Type | #8 x 3/8" |
| Pole Mount Kit (7" Max) | PMB6687KIT3 |
| Pole Mount Kit (15" Max) | PMB6687KIT4 |
| Pole Mount Replacement Screw Pack | SCPMB5-20 |
| Wall Mount Foot Installation Torque | Polycarbonate 100-110 cN-m (8.8-9.7 lbf-in) |
Overview
| Type | Water-tight |
| Series | 1557 Series Type 4/4X, 6/6P Polycarbonate and ABS Plastic Enclosures |
| Description | BLACK PC plastic watertight enclosure |
| Enclosure Profile | 1557FA |
| Short Description | PC NEMA WALL MNT ENCL BK |
Dimensions
| Width | 6.30 in (160 mm) |
| Length | 6.30 in (160 mm) |
| Inside Width | 151.02 mm [5.95 in] |
| Total Height | 2.76 in (70 mm) |
| Inside Height | 63.80 mm [2.51 in] |
| Inside Length | 151.02 mm [5.95 in] |
| Size (L X W X H) | 6.3 in x 6.3 in x 2.76 in (160 mm x 160 mm x 70 mm) |
| Max. P.C. Board Width | 147.5 mm |
| Max. P.C. Board Length | 147.5 mm |
Accessories
| Aluminum Inner Panel | 1557FPL |
| Replacement Gasket (2-pack) | 1557FGASKET |
| Replacement Lid Screws (50-pack) | SC576-50 |
| Wall Mount Foot Screws (50-pack) | SC556-50 (#8 x 3/8" self tapping, stainless steel) |
| Replacement Rubber Feet (24-pack) | 1421T6CL |
| PC Board Mounting Screws (50-pack) | SC526-50 (#6 x 1/4" self tapping) |
| Replacement Wall Mount Foot Kit (24-pack) | 1557FOOT2BK-24 |
Identifiers
| UPC | 623980987583 |
| UNSPSC | 39121301 |
| Part Number | 1557FA2BK |
Related Versions
| Black ABS | 1557FABK |
| Light Gray ABS | 1557FAGY |
| Light Gray Polycarbonate UL Listed) | 1557FA2GY |
Packaging & Shipping
| Included Items | Box, lid, 4 cover screws, preformed silicone gasket, 4 rubber feet, 4 wall mount foot screws, 4 wall mount feet |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.87 lbs (0.39 kg) |
Construction & Finish
| Color | Black |
| Gasket | One piece preformed gasket made from high temperature UL listed silicone |
| Material | Polycarbonate |
| CAD Models | Solid models available in .stp or .x_t |
| Lid Fasteners | 4 stainless steel M4-0.7 x 20 mm cover screws threaded into corrosion resistant bushings (M4-0.7 inserts) |
| Lid Construction | Gasketed lid with two piece tongue and groove construction |
| P.C. Board Mounting | Internal bosses accept #6 self-tapping screws |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Recommended Cover Screw Torque | 71-85 ozf-in (50-60 cN-m) |
Environmental & Protection
| IP Rating | IP68 (tested to IP66, IP67 and IP68) |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Resistance | UV stabilized for outdoor use |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| Flame Rating | UL94 V-0 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Material Flammability (Drawing Note) | UL94-5VA @ 3 mm |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much inside height does the 1557FA2BK have?▾
The drawing shows an inside height of 63.80 mm [2.51 in], with inside length and width of 151.02 mm [5.95 in].
Is the 1557FA2BK suitable for outdoor use?▾
Yes. Polycarbonate 1557 versions are UV stabilized for outdoor use, and this part is rated IP68 and NEMA 4, 4X, 6, 6P, 12 & 13.
Which gasket and inner panel fit?▾
The replacement gasket is 1557FGASKET (2-pack) and the aluminum inner panel is 1557FPL; both are shared with the 45 mm tall 1557F versions.
What torque should the lid screws be tightened to?▾
The recommended cover screw torque is 71-85 ozf-in (50-60 cN-m).
What is included?▾
Box, lid, 4 cover screws, preformed silicone gasket, 4 rubber feet, 4 wall mount foot screws and 4 wall mount feet.
