Hammond 1557H2GY 200mm Square, 45mm Tall Gray Polycarbonate Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- RAL7035 light gray polycarbonate, 200 x 200 x 45 mm (7.87 x 7.87 x 1.77 in)
- Boards up to 187 x 187 mm; inside 191.02 x 191.02 x 38.80 mm
- IP68 and NEMA 4, 4X, 6, 6P, 12 & 13 rated
- cUL and UL 508A listed (E65324), IK08 impact rating
- UV stabilized for outdoor use, -40°C to +110°C
- Gasketed lid with stainless M4 screws in corrosion resistant inserts
- Rubber feet, wall mount feet and foot screws included

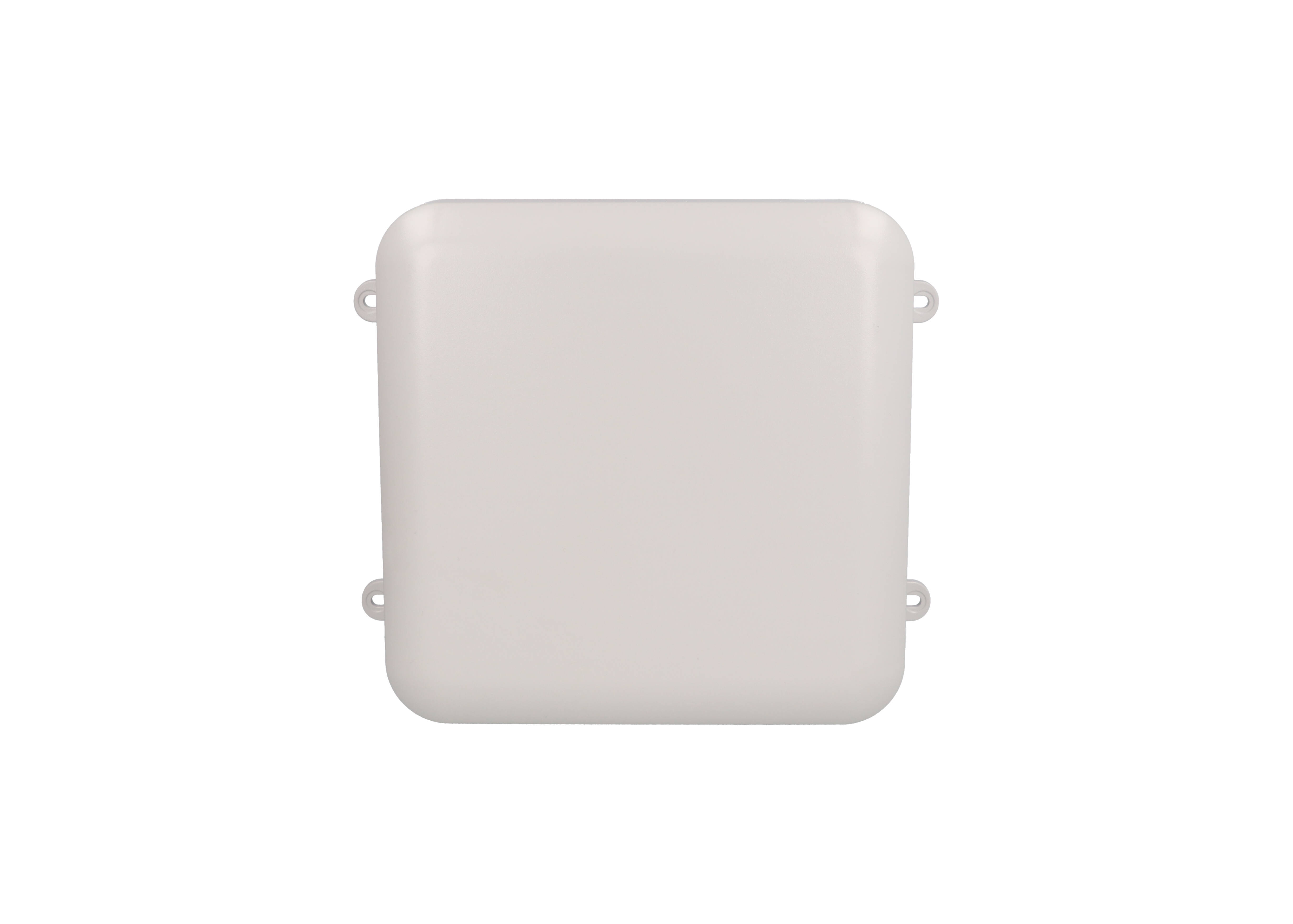

The 1557H2GY is a light gray (RAL7035 grey) polycarbonate watertight enclosure, 7.87 in x 7.87 in x 1.77 in (200 mm x 200 mm x 45 mm). Its wide, shallow shape suits larger circuit boards, up to 187 mm x 187 mm, and control electronics that must live outdoors or in wet, dusty locations.
- Ratings: IP68 and NEMA 4, 4X, 6, 6P, 12 & 13 per the part page; IK08 impact rating per IEC 62262:2021
- Listings: cUL and UL 508A listed, UL file E65324; flame rating UL94 V-0 on the part page
- Environment: UV stabilized for outdoor use, recommended -40°C to +110°C (-40°F to +230°F)
- Interior: 191.02 mm [7.52 in] square, 38.80 mm [1.53 in] high
The lid is built with two piece tongue and groove construction and a one piece high temperature silicone gasket, fastened by stainless steel M4-0.7 x 20 mm cover screws into corrosion resistant inserts. Recommended cover screw torque is 71-85 ozf-in (50-60 cN-m). Board mounting bosses accept #6 self-tapping screws, and the 1557HPL aluminum inner panel is available as an accessory.

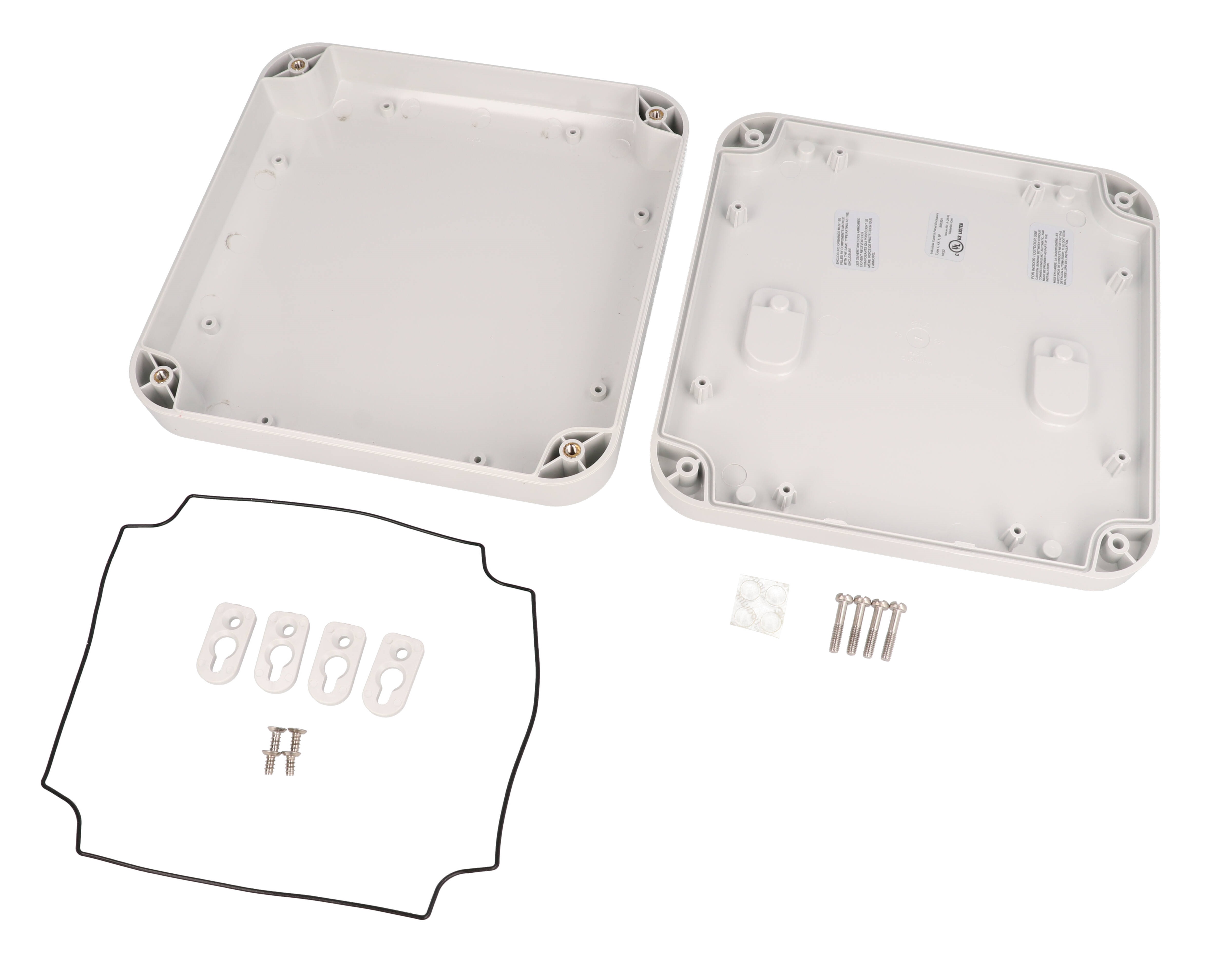

Included with the 1557H2GY are the lid, 4 cover screws, silicone gasket, 4 rubber feet, 4 wall mount feet and 4 wall mount foot screws. It can sit on a tabletop, mount flush or heavy duty on a wall, or go on a pole with PMB110127KIT3 or PMB110127KIT4. It ships shrink wrapped at 0.99 lbs (0.45 kg).
Ideal For
- Outdoor electronics with larger PCBs
- Building and facilities controls
- Pole-mounted sensors and radios
- Wet or dusty industrial locations
- Wall-mounted junction and interface boxes
Mounting
| Wall Mount Feet | Accept #8 self-tapping screw; #8 pan head screws for wall mounting not included |

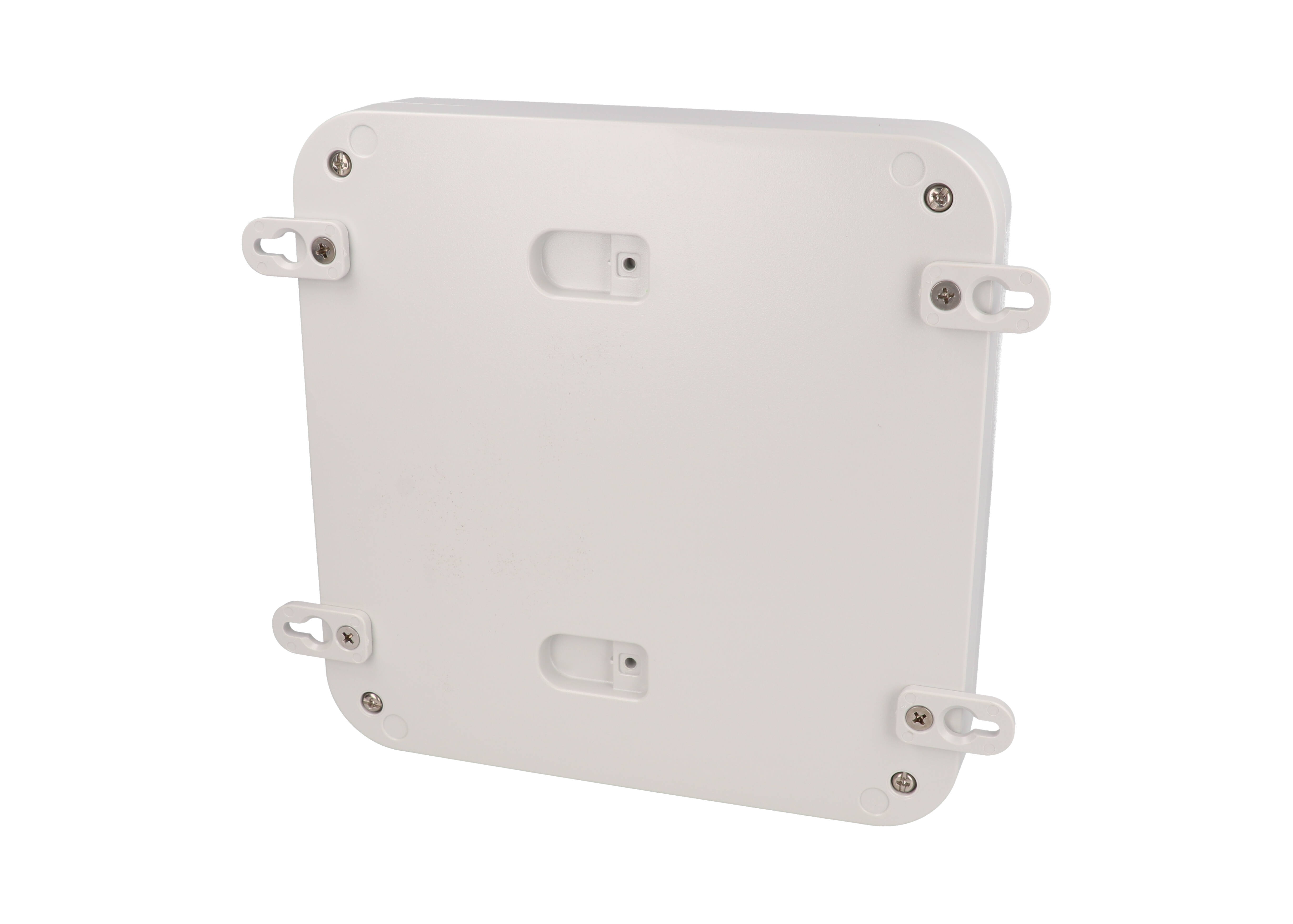

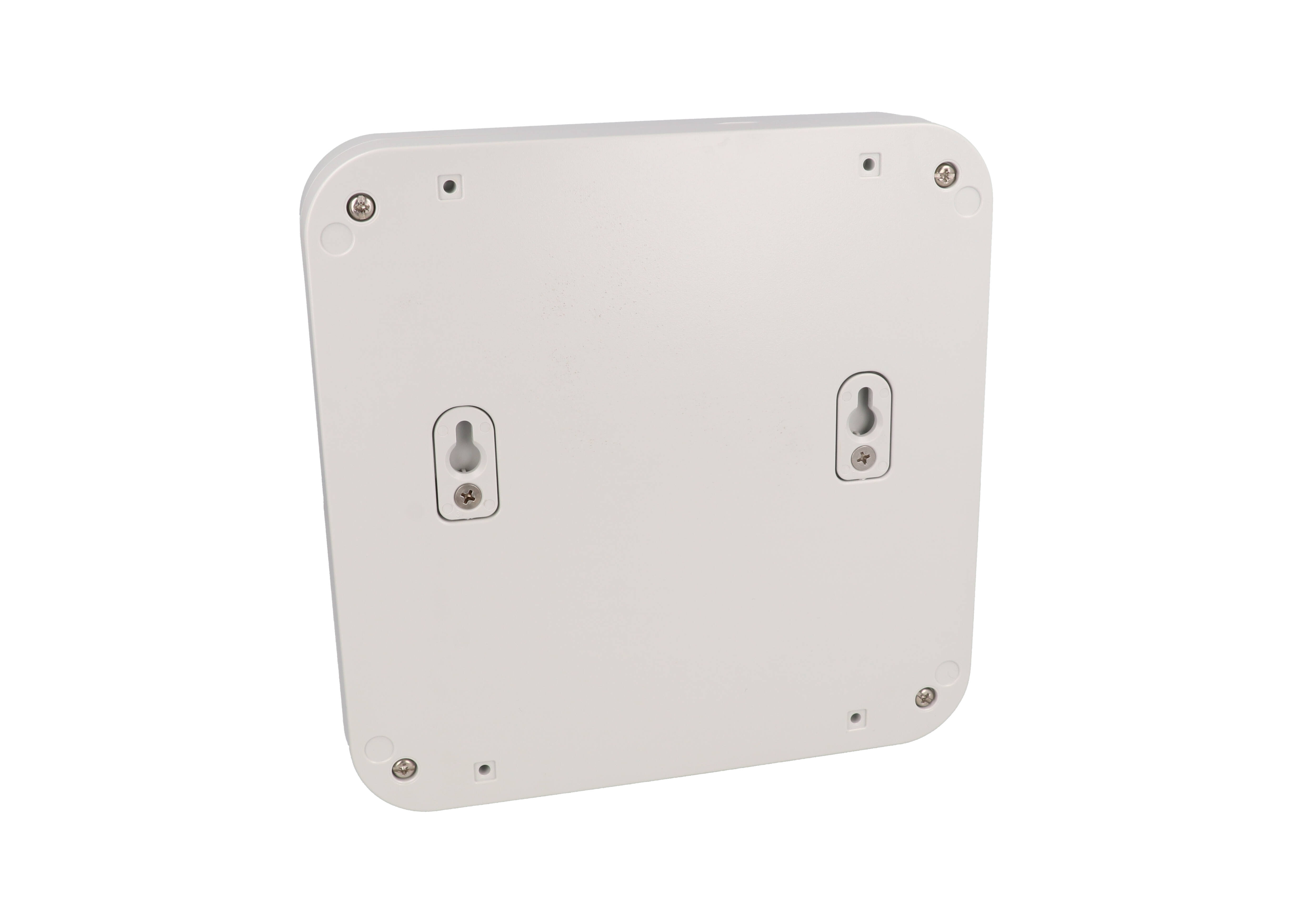

| Mounting Options | Desktop/tabletop (rubber feet), flush wall mount (mounting feet as keyhole slots), heavy duty wall flange mount (mounting feet outward) |
| Pole Mount Screw Type | #8 x 3/8" |
| Pole Mount Kit (7" Max) | PMB110127KIT3 |
| Pole Mount Kit (15" Max) | PMB110127KIT4 |
| Pole Mount Replacement Screw Pack | SCPMB5-20 |
| Wall Mount Foot Installation Torque | Polycarbonate 100-110 cN-m (8.8-9.7 lbf-in) |
Overview
| Type | Water-tight |
| Series | 1557 Series Type 4/4X, 6/6P Polycarbonate and ABS Plastic Enclosures |
| Description | RAL7035 grey PC plastic watertight enclosure |
| Enclosure Profile | 1557H |
| Short Description | PC NEMA WALL MNT ENCL GY |
Dimensions
| Width | 7.87 in (200 mm) |
| Length | 7.87 in (200 mm) |
| Inside Width | 191.02 mm [7.52 in] |
| Total Height | 1.77 in (45 mm) |
| Inside Height | 38.80 mm [1.53 in] |
| Inside Length | 191.02 mm [7.52 in] |
| Size (L X W X H) | 7.87 in x 7.87 in x 1.77 in (200 mm x 200 mm x 45 mm) |
| Max. P.C. Board Width | 187 mm |
| Max. P.C. Board Length | 187 mm |
Accessories
| Aluminum Inner Panel | 1557HPL |
| Replacement Gasket (2-pack) | 1557HGASKET |
| Replacement Lid Screws (50-pack) | SC576-50 |
| Wall Mount Foot Screws (50-pack) | SC556-50 (#8 x 3/8" self tapping, stainless steel) |
| Replacement Rubber Feet (24-pack) | 1421T6CL |
| PC Board Mounting Screws (50-pack) | SC526-50 (#6 x 1/4" self tapping) |
| Replacement Wall Mount Foot Kit (24-pack) | 1557FOOT2GY-24 |
Identifiers
| UPC | 623980987613 |
| UNSPSC | 39121301 |
| Part Number | 1557H2GY |
Related Versions
| Black ABS | 1557HBK |
| Light Gray ABS | 1557HGY |
| Black Polycarbonate UL Listed) | 1557H2BK |
Packaging & Shipping
| Included Items | Box, lid, 4 cover screws, preformed silicone gasket, 4 rubber feet, 4 wall mount foot screws, 4 wall mount feet |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.99 lbs (0.45 kg) |
Construction & Finish
| Color | Light Gray |
| Gasket | One piece preformed gasket made from high temperature UL listed silicone |
| Material | Polycarbonate |
| CAD Models | Solid models available in .stp or .x_t |
| Lid Fasteners | 4 stainless steel M4-0.7 x 20 mm cover screws threaded into corrosion resistant bushings (M4-0.7 inserts) |
| Color Standard | RAL7035 grey |
| Lid Construction | Gasketed lid with two piece tongue and groove construction |
| P.C. Board Mounting | Internal bosses accept #6 self-tapping screws |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Recommended Cover Screw Torque | 71-85 ozf-in (50-60 cN-m) |
Environmental & Protection
| IP Rating | IP68 (tested to IP66, IP67 and IP68) |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Resistance | UV stabilized for outdoor use |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| Flame Rating | UL94 V-0 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Material Flammability (Drawing Note) | UL94-5VA @ 3 mm |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What color is the 1557H2GY?▾
Light gray, described as RAL7035 grey polycarbonate. The black version is 1557H2BK.
How large is the 1557H2GY inside?▾
191.02 mm [7.52 in] long and wide, with 38.80 mm [1.53 in] of inside height.
Can it be used outdoors?▾
Yes. Polycarbonate 1557 versions are UV stabilized for outdoor use and this part is rated IP68 and NEMA 4, 4X, 6, 6P, 12 & 13.
How are the wall mount feet installed?▾
The feet attach with the supplied screws at 100-110 cN-m (8.8-9.7 lbf-in) for polycarbonate; #8 pan head screws (not included) are recommended for fixing to the wall.
What spare parts are available?▾
Replacement gasket 1557HGASKET, lid screws SC576-50, PC board screws SC526-50, rubber feet 1421T6CL and polycarbonate gray wall mount foot kit 1557FOOT2GY-24.
