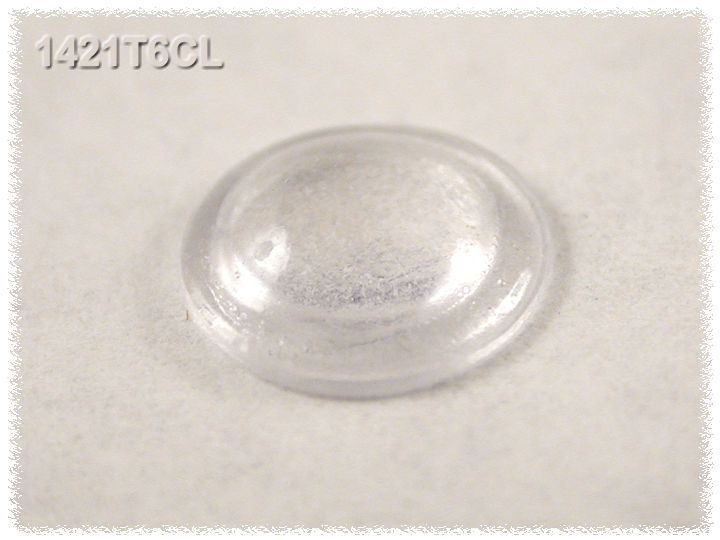

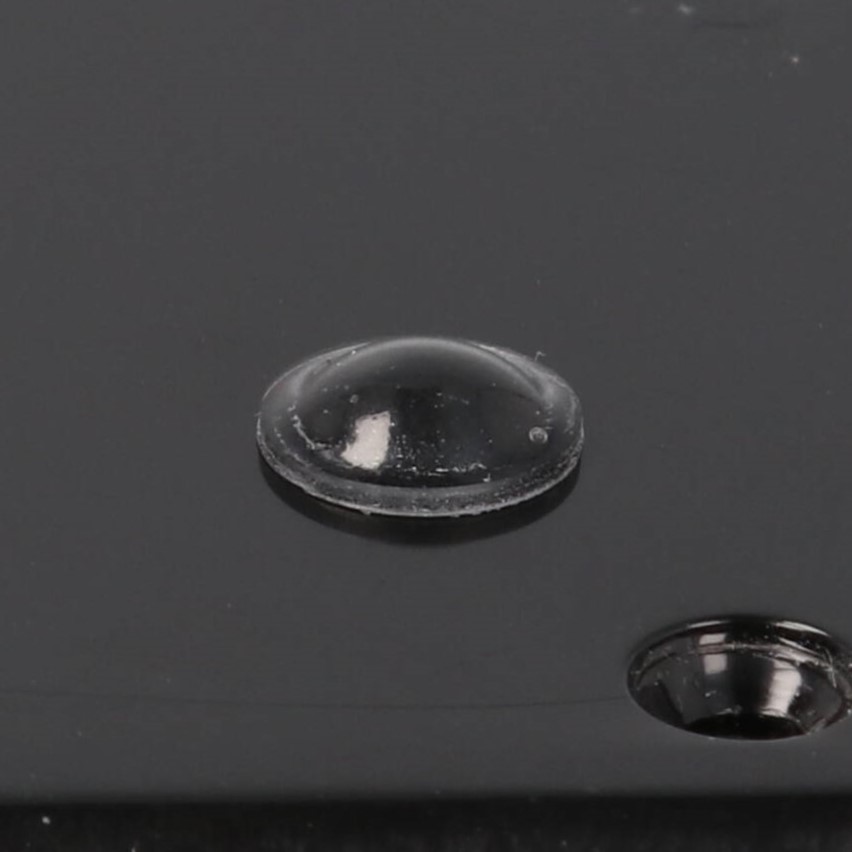

Hammond 1421T6CL 0.31 in Clear Flat Round Self-Adhesive Feet, 24 Pack

The 1421T6CL is the smallest foot in the 1421-FEET Series: a package of 24 clear flat round feet, each 0.31 in (8 mm) in diameter and 0.09 in (2 mm) high. It suits compact enclosures, desktop devices and other small products that need a low-profile anti-skid foot.

The feet are self-adhesive with Acrylic A-20 adhesive. The part drawing dimensions the foot at 7.95 mm [.31 in] in diameter and 2.10 mm [.08 in] high. The part page lists the material as rubber, and the series data states the feet are made from polyurethane material, except the 1421T7. The series service temperature rating is -34°C to 66°C (-30°F to 150°F).

Manufacturer adhesion guidance:

• Clean surfaces with isopropyl alcohol (rubbing alcohol)
• Apply firm pressure to generate good initial contact
• The adhesion bond will increase over time

The 1421T6CL is RoHS compliant and REACH compliant, and the package shipping weight is listed as 0.01 lbs (0.00 kg). For a wider clear flat round foot, see the 0.50 in 1421T2CL; for a raised clear dome, see the 0.44 in 1421T5CL. All three clear feet in the series share the same Acrylic A-20 adhesive.
