Hammond 1557DPL 108mm Square Aluminum Inner Panel with Screws
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Fits 1557 series enclosures with part numbers starting with 1557D
- Made from 0.081 in thick aluminum
- Nominal size 4.27 in x 4.27 in x 0.08 in
- Drawing overall 107.00 x 103.00 mm
- Assembly includes the aluminum panel and 4 screws
- Recommended cover screw torque 57-71 ozf-in (40-50 cN-m)
- RoHS compliant and REACH compliant

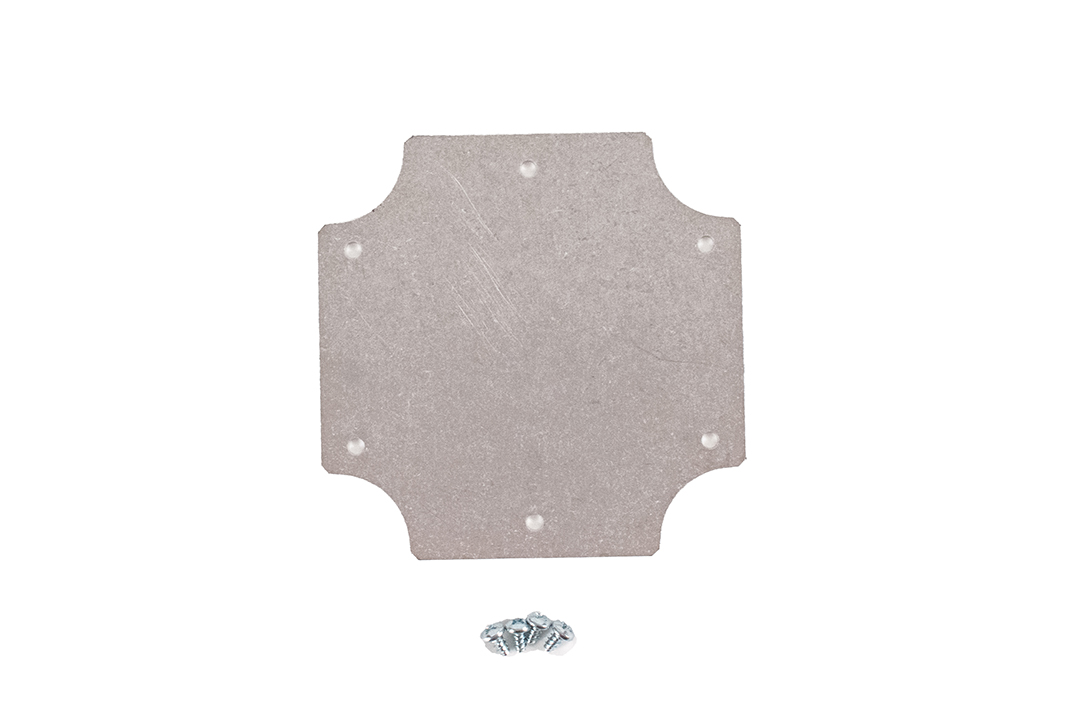

The 1557DPL is an aluminum inner panel designed to fit Hammond 1557 series enclosures with part numbers starting with 1557D. It is aimed at electronics designers, OEM engineers and integrators who want a removable mounting plate for circuit boards, terminal blocks or small components inside a 1557D enclosure.
The panel is made from 0.081 in thick aluminum and the part page lists its nominal size as 4.27 in x 4.27 in x 0.08 in (108 mm x 108 mm x 2 mm). On the part drawing the panel measures 107.00 mm (4.21 in) by 103.00 mm (4.06 in) overall, with a thickness call-out of 2.05 mm (0.08 in) and a 2.30 x 40.8° corner chamfer. Shipping weight is 0.12 lbs (0.05 kg), and it is packed in a bag.

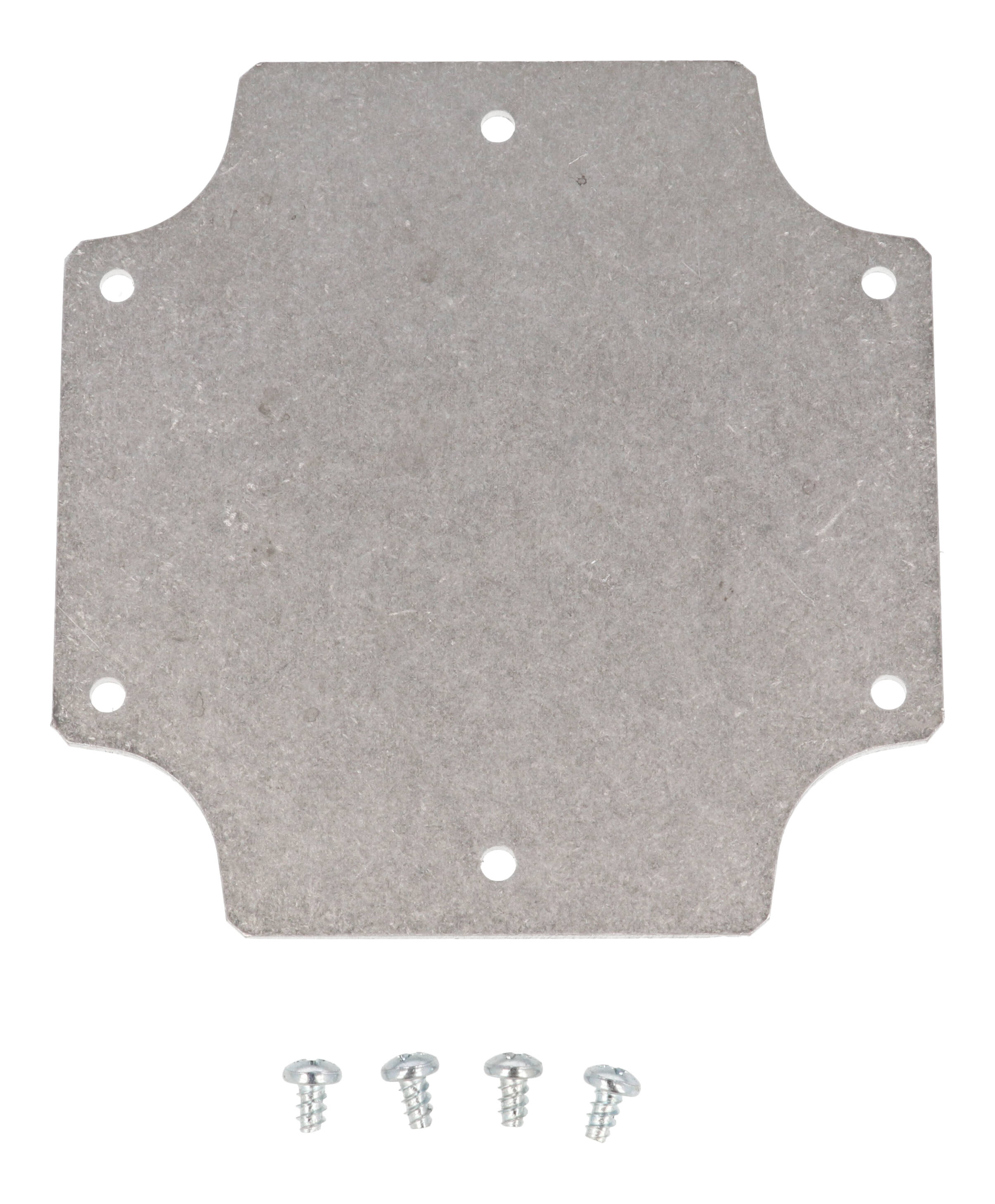

The purchased assembly includes the aluminum panel and 4 screws, the hardware needed to mount the panel to the inside of the enclosure. The drawing lists a recommended cover screw torque of 57-71 ozf-in (40-50 cN-m), and names SC526-50 (Steel P.C. Board Screw, #6 x 1/4 in self tapping, pkg 50) as a related accessory.
The 1557DPL can be factory modified (milling, drilling, printing and similar work), and solid models of the part are available in .stp or .x_t format. It is RoHS compliant and REACH compliant, and is identified by UPC 623980002583.
Ideal For
- Mounting PC boards or components inside a 1557D enclosure
- Creating a removable sub-panel for bench assembly
- Factory-modified mounting plates (milling, drilling, printing)
Overview
| Fits | 1557 series enclosures with part numbers starting with 1557D |
| Type | Inner Panel |
| Product | Inner panel |
| CAD Models | Solid models available in .stp or .x_t |
| Description | 1557D INNER PANEL |
| Modification | Can be factory modified (milling, drilling, printing etc.) |
| Long Description | Aluminum Panel |
Dimensions
| Thickness (Per Drawing) | 2.05 mm [.08 in] |
| Nominal Size (L X W X H) | 4.27 in x 4.27 in x 0.08 in (108 mm x 108 mm x 2 mm) |
| Overall Width (Per Drawing) | 103.00 mm [4.06 in] |
| Corner Chamfer (Per Drawing) | 2.30 x 40.8° |
| Overall Length (Per Drawing) | 107.00 mm [4.21 in] |
Identifiers
| UPC | 623980002583 |
| UNSPSC | 39121301 |
Installation
| Included | Aluminum panel and 4 screws |
| Mounting | Includes hardware to mount the panel to the inside of the enclosure |
| Related Accessory | SC526-50 Steel P.C. Board Screw, #6 x 1/4" self tapping (Pkg 50) |
| Recommended Cover Screw Torque | 57-71 ozf-in (40-50 cN-m) |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 0.12 lbs (0.05 kg) |
Construction & Finish
| Material | Aluminum |
| Material Thickness (Series) | 0.081 in |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosure does the 1557DPL fit?▾
It fits 1557 series enclosures with part numbers starting with 1557D.
What is the panel made of?▾
It is made from 0.081 in thick aluminum.
What comes in the package?▾
The purchased assembly includes the aluminum panel and 4 screws for mounting it inside the enclosure.
What size is the panel?▾
The part page lists a nominal size of 4.27 in x 4.27 in x 0.08 in (108 mm x 108 mm x 2 mm); the drawing shows 107.00 mm [4.21 in] by 103.00 mm [4.06 in] overall.
Are CAD models available?▾
Yes, solid models of this part are available in .stp or .x_t format.
