Hammond 1557F2BK 160mm Square, 45mm Tall Black Polycarbonate Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 160 x 160 x 45 mm (6.3 x 6.3 x 1.77 in) black polycarbonate housing
- IP68 and NEMA 4, 4X, 6, 6P, 12 & 13 rated; cUL and UL 508A listed, file E65324
- UV stabilized polycarbonate for outdoor use, IK08 impact rating
- Accepts PC boards up to 147.5 x 147.5 mm; 38.80 mm inside height
- Tongue and groove lid with one piece silicone gasket and stainless M4 cover screws
- Tabletop, flush wall and heavy duty wall flange mounting; feet and screws included
- Operating range -40°C to +110°C (-40°F to +230°F)

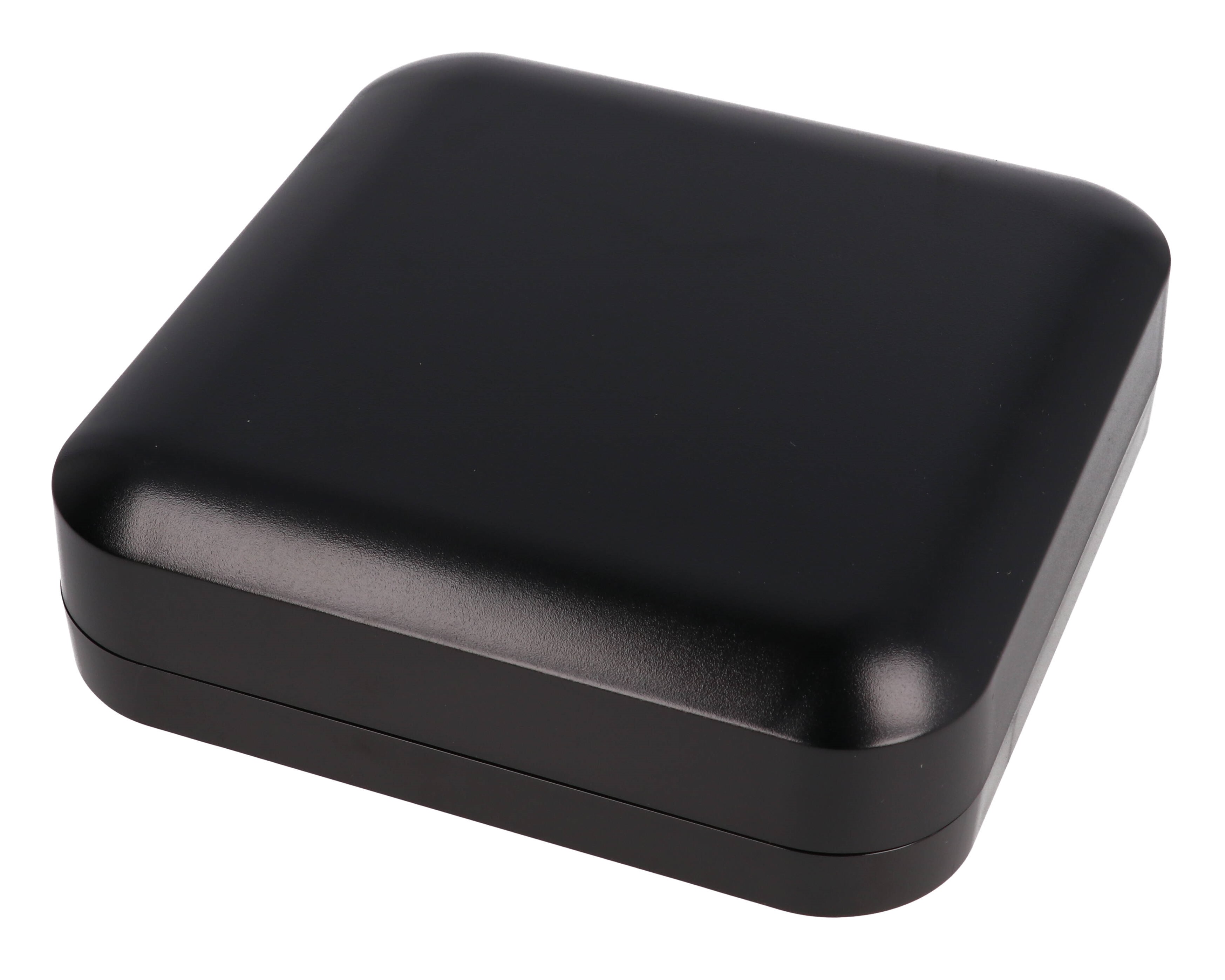

The 1557F2BK is a black polycarbonate watertight enclosure from the 1557 Series, sized 6.3 in x 6.3 in x 1.77 in (160 mm x 160 mm x 45 mm). It suits OEM engineers and integrators who need a low-profile, sealed housing for printed circuit boards, with room for a board up to 147.5 mm x 147.5 mm.
The polycarbonate body is UV stabilized for outdoor use and is cUL and UL 508A listed under file E65324. The part page lists IP68 and NEMA 4, 4X, 6, 6P, 12 & 13, and polycarbonate versions carry an IK08 impact rating per IEC 62262:2021 with a recommended operating range of -40°C to +110°C (-40°F to +230°F). The flame rating shown for this part is UL94 V-0.
A gasketed lid with two piece tongue and groove construction and a one piece high temperature silicone gasket guards against oil, dust and water. Four stainless steel M4 cover screws thread into corrosion resistant bushings, so the lid can be opened and closed repeatedly; the recommended cover screw torque is 71-85 ozf-in (50-60 cN-m). Inside, the cavity measures 151.02 mm [5.95 in] square with 38.80 mm [1.53 in] of height.

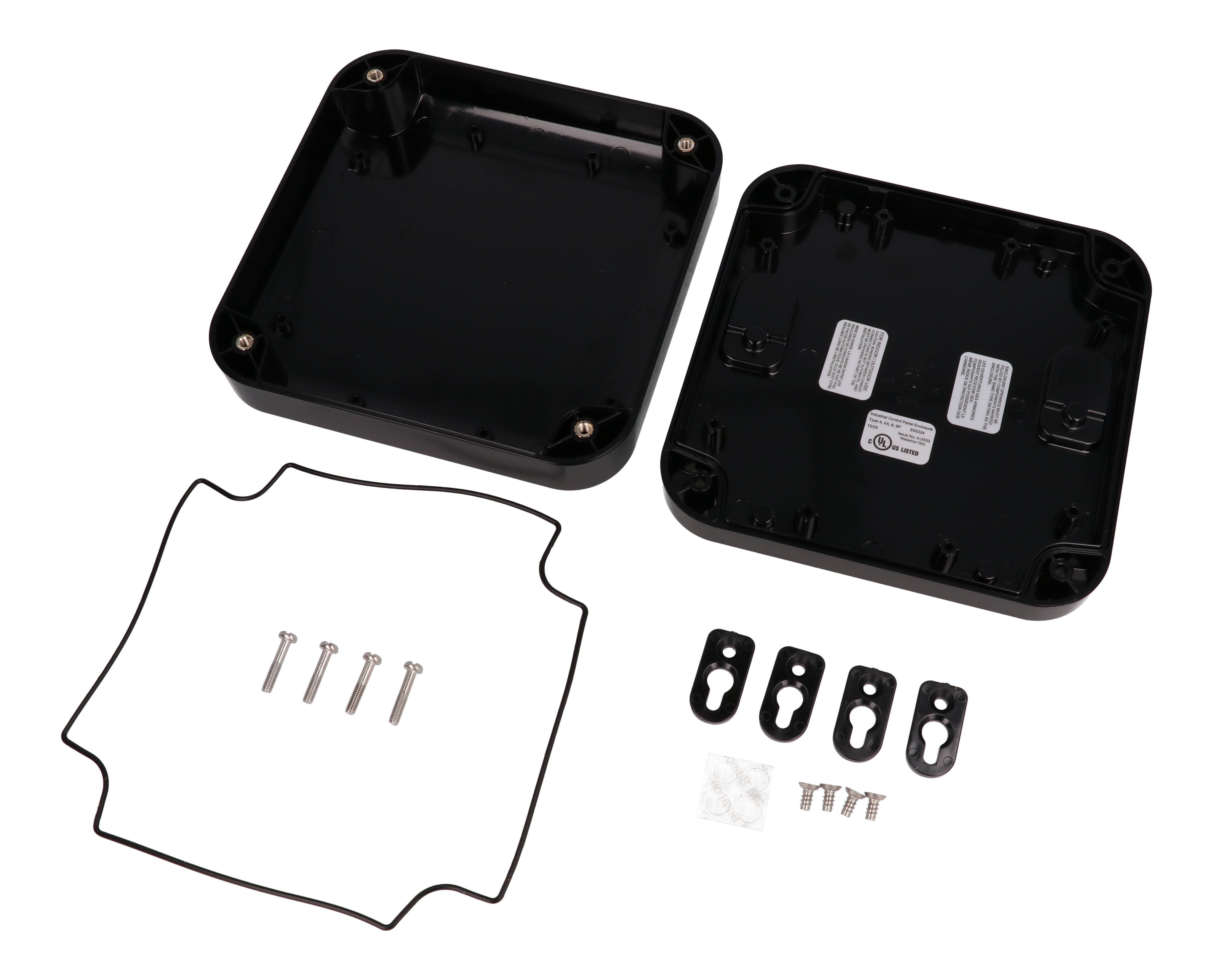

Every 1557F2BK ships with the box, lid, 4 cover screws, the preformed silicone gasket, 4 rubber feet, 4 wall mount feet and 4 wall mount foot screws. Use it on a tabletop, flush on a wall with the feet acting as keyhole slots, or in a heavy duty wall flange configuration; pole mount kits PMB6687KIT3 and PMB6687KIT4 fit this profile. Shipping weight is 0.71 lbs (0.32 kg).
Ideal For
- Outdoor PCB and control electronics housings
- Wash-down or wet-location sensor boxes
- Wall-mounted junction and interface boxes
- Pole-mounted field electronics
- Tabletop instrument housings
Mounting
| Wall Mount Feet | Accept #8 self-tapping screw; #8 pan head screws for wall mounting not included |

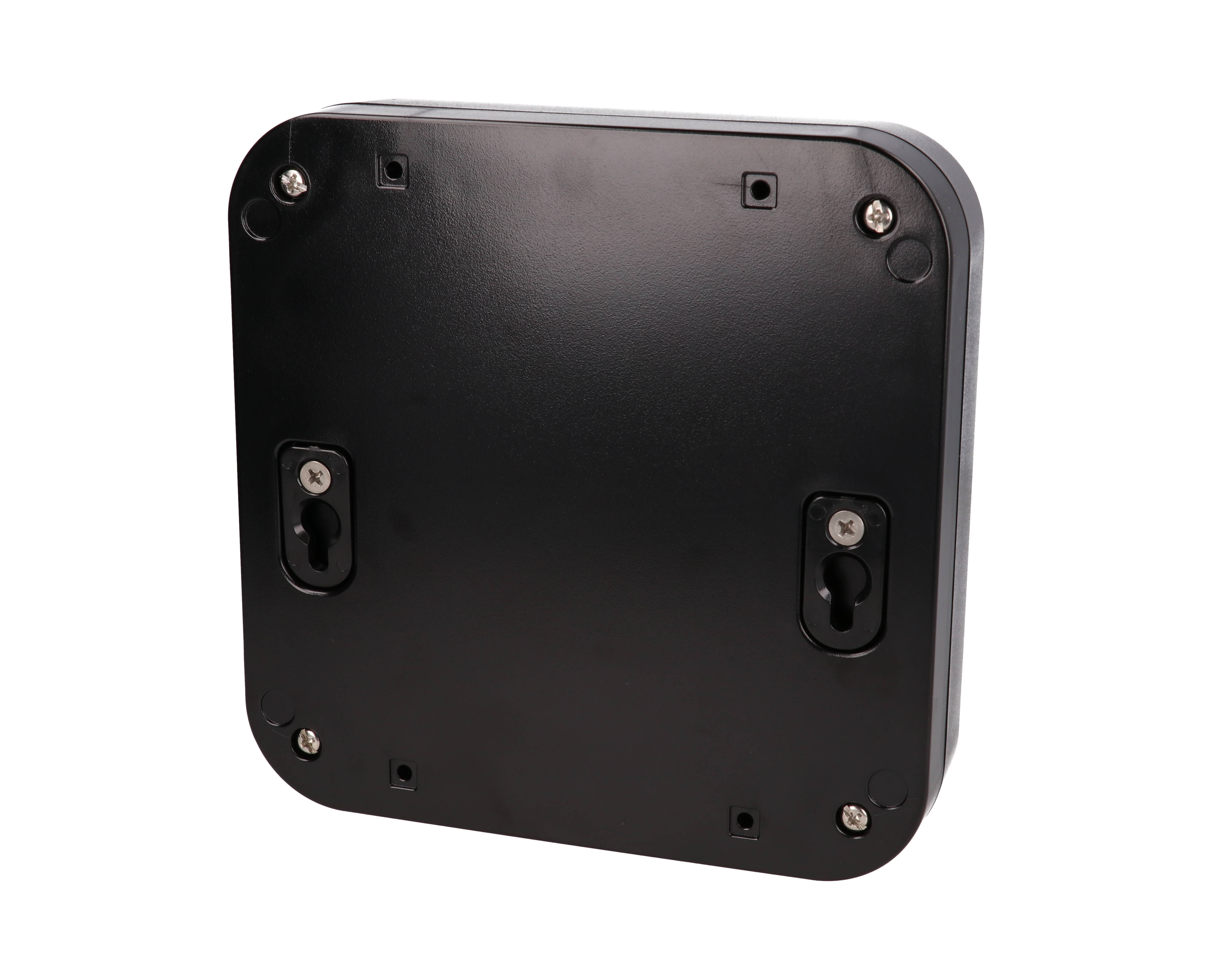

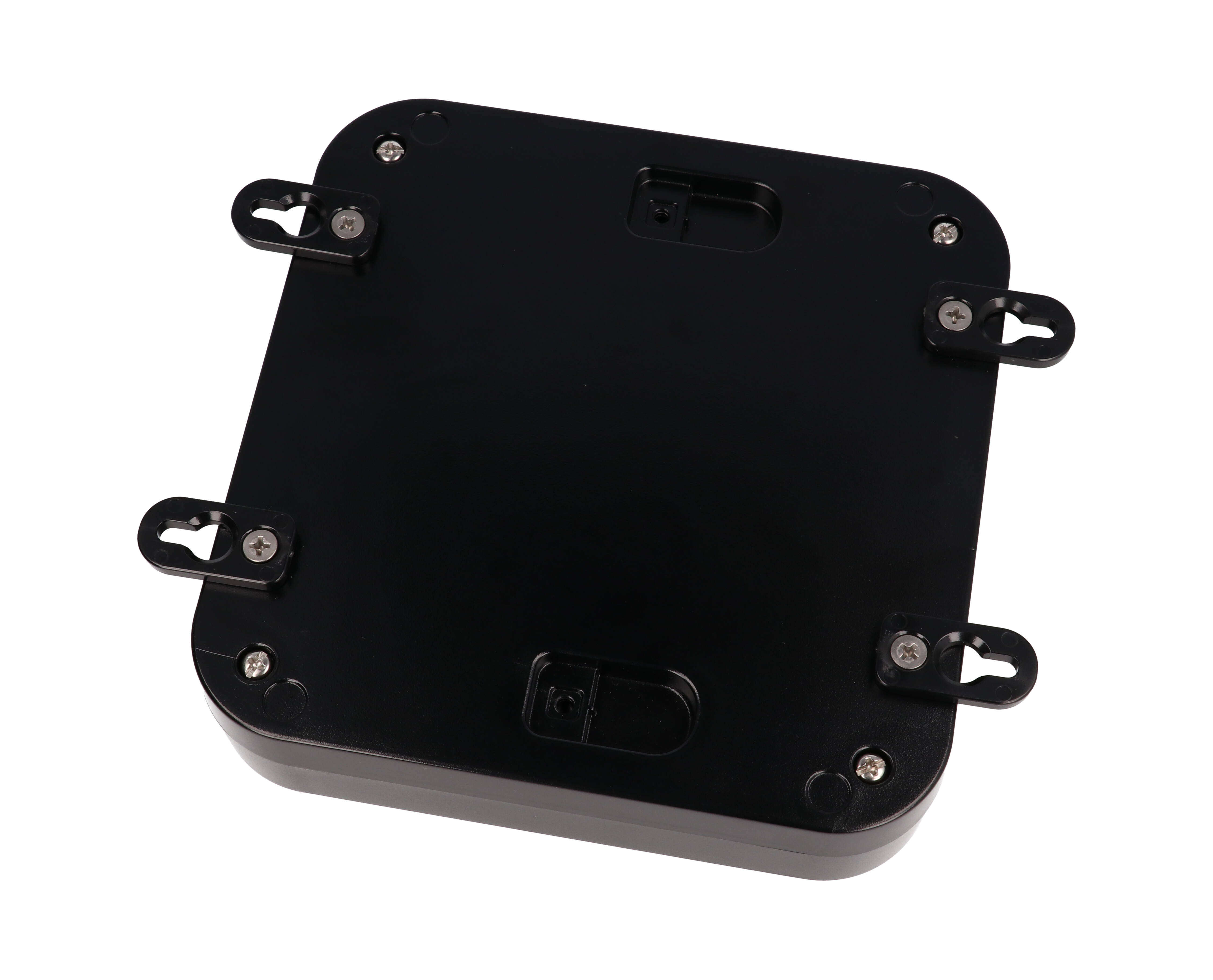

| Mounting Options | Desktop/tabletop (rubber feet), flush wall mount (mounting feet as keyhole slots), heavy duty wall flange mount (mounting feet outward) |
| Pole Mount Screw Type | #8 x 3/8" |
| Pole Mount Kit (7" Max) | PMB6687KIT3 |
| Pole Mount Kit (15" Max) | PMB6687KIT4 |
| Pole Mount Replacement Screw Pack | SCPMB5-20 |
| Wall Mount Foot Installation Torque | Polycarbonate 100-110 cN-m (8.8-9.7 lbf-in) |
Overview
| Type | Water-tight |
| Series | 1557 Series Type 4/4X, 6/6P Polycarbonate and ABS Plastic Enclosures |
| Description | BLACK PC plastic watertight enclosure |
| Enclosure Profile | 1557F |
| Short Description | PC NEMA WALL MNT ENCL BK |
Dimensions
| Width | 6.30 in (160 mm) |
| Length | 6.30 in (160 mm) |
| Inside Width | 151.02 mm [5.95 in] |
| Total Height | 1.77 in (45 mm) |
| Inside Height | 38.80 mm [1.53 in] |
| Inside Length | 151.02 mm [5.95 in] |
| Size (L X W X H) | 6.3 in x 6.3 in x 1.77 in (160 mm x 160 mm x 45 mm) |
| Max. P.C. Board Width | 147.5 mm |
| Max. P.C. Board Length | 147.5 mm |
Accessories
| Aluminum Inner Panel | 1557FPL |
| Replacement Gasket (2-pack) | 1557FGASKET |
| Replacement Lid Screws (50-pack) | SC576-50 |
| Wall Mount Foot Screws (50-pack) | SC556-50 (#8 x 3/8" self tapping, stainless steel) |
| Replacement Rubber Feet (24-pack) | 1421T6CL |
| PC Board Mounting Screws (50-pack) | SC526-50 (#6 x 1/4" self tapping) |
| Replacement Wall Mount Foot Kit (24-pack) | 1557FOOT2BK-24 |
Identifiers
| UPC | 623980987569 |
| UNSPSC | 39121301 |
| Part Number | 1557F2BK |
Related Versions
| Black ABS | 1557FBK |
| Light Gray ABS | 1557FGY |
| Light Gray Polycarbonate UL Listed) | 1557F2GY |
Packaging & Shipping
| Included Items | Box, lid, 4 cover screws, preformed silicone gasket, 4 rubber feet, 4 wall mount foot screws, 4 wall mount feet |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.71 lbs (0.32 kg) |
Construction & Finish
| Color | Black |
| Gasket | One piece preformed gasket made from high temperature UL listed silicone |
| Material | Polycarbonate |
| CAD Models | Solid models available in .stp or .x_t |
| Lid Fasteners | 4 stainless steel M4-0.7 x 20 mm cover screws threaded into corrosion resistant bushings (M4-0.7 inserts) |
| Lid Construction | Gasketed lid with two piece tongue and groove construction |
| P.C. Board Mounting | Internal bosses accept #6 self-tapping screws |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Recommended Cover Screw Torque | 71-85 ozf-in (50-60 cN-m) |
Environmental & Protection
| IP Rating | IP68 (tested to IP66, IP67 and IP68) |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Resistance | UV stabilized for outdoor use |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| Flame Rating | UL94 V-0 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| Material Flammability (Drawing Note) | UL94-5VA @ 3 mm |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How big a circuit board fits in the 1557F2BK?▾
The part data lists a maximum P.C. board length and width of 147.5 mm. Inside dimensions are 151.02 mm [5.95 in] square with an inside height of 38.80 mm [1.53 in].
Can the 1557F2BK be installed outdoors?▾
Yes. Polycarbonate versions of the 1557 Series are UV stabilized for outdoor use and are rated IP68 and NEMA 4, 4X, 6, 6P, 12 & 13.
What mounting hardware comes with it?▾
The purchased assembly includes 4 rubber feet, 4 wall mount feet and 4 wall mount foot screws, along with the box, lid, 4 cover screws and the preformed silicone gasket. The #8 pan head screws used to fix it to a wall are not included.
Is there a replacement gasket for this enclosure?▾
Yes, 1557FGASKET is the replacement silicone gasket (2-pack) for the 1557F profile.
