Hammond 1590ZGRP131PL 179 x 63 mm Steel Inner Mounting Panel
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Inner panel for the 1590ZGRP131 enclosure
- 179 x 63 mm (7.03 x 2.48 in) plate
- 16 gauge galvanized steel, 1.61 mm [.06 in] thick per drawing
- Panel mounting screws and washers included
- Recommended panel screw torque 45-50 cN-m [65-70 ozf-in]
- Uses M4 copper ground hardware SCGM4-50 for extra screws

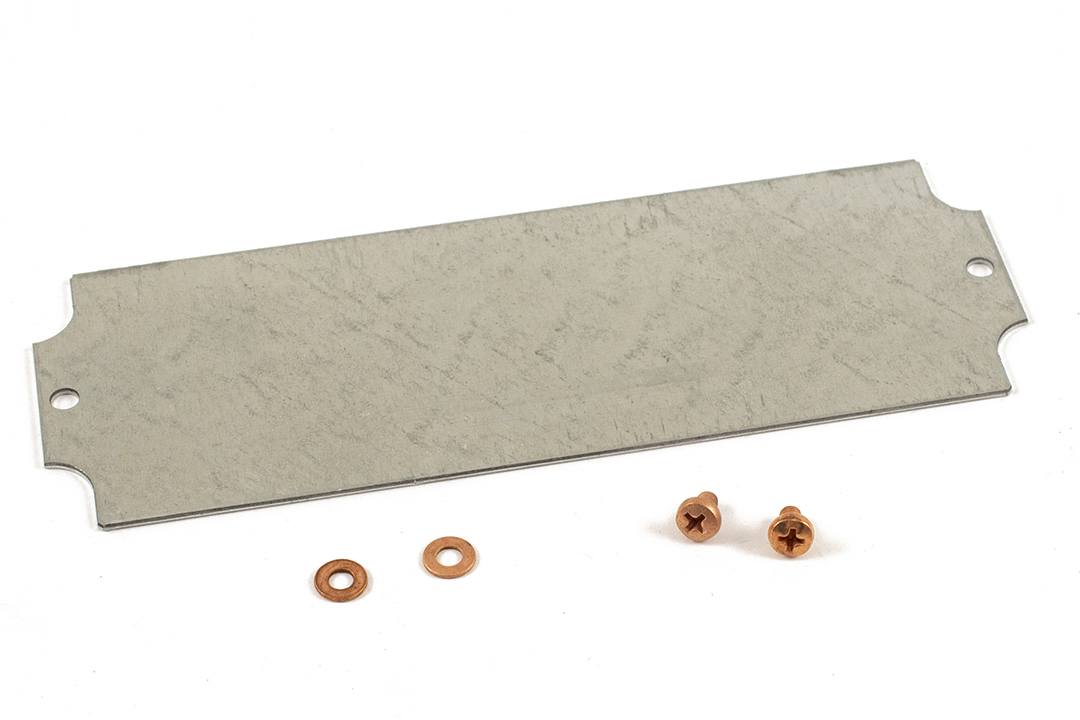

The 1590ZGRP131PL is the steel inner mounting panel for the 1590ZGRP131 glass reinforced polyester enclosure. It gives installers a flat metal plate to mount PC boards, components or ground connections inside the slim 190 x 75 mm box, instead of fixing parts directly to the enclosure wall.
The panel measures 7.03 x 2.48 x 0.06 in (179 x 63 mm), and the drawing shows 1.61 mm [.06 in] galvanized steel, 16 gauge, with 1.00 x 45.0° chamfered corners. It sits on the enclosure's internal mounting shelf, which has molded-in bonding/mounting nuts.
The purchased assembly includes the panel mounting screws and washers. Additional copper ground hardware is available as SCGM4-50 (50 pack of M4 - 0.7 x 6mm screws with M4 washers), and the drawing lists the SCGM4 copper plated M4-0.7 x 6mm mounting screw as the matching accessory.
Hammond specifies a recommended panel screw torque of 45-50 cN-m [65-70 ozf-in]. The 1590ZGRP131PL is RoHS and REACH compliant, ships shrink wrapped at 0.28 lbs (0.13 kg). The drawing notes that factory modification (milling, drilling, printing etc.) is available and that solid models can be had in .stp or .x_t format. It is listed under UL file E65324.
Ideal For
- Mounting PC boards inside a 1590ZGRP131
- Component backplate for a slim fiberglass enclosure
- Ground bonding point inside the enclosure
Overview
| Type | Inner Panel |
| Description | 1590ZGRP131 INNER PANEL |
| Part Number | 1590ZGRP131PL |
| Long Description | inner mounting panel for 1590ZGRP131 enclosures |
| Fits Enclosure(s) | 1590ZGRP131 (190 x 75 x 55 mm enclosure) |
Dimensions
| Size (L X W X H) | 7.03 in x 2.48 in x 0.06 in (179 mm x 63 mm x 2 mm) |
| Panel Thickness (Per Drawing) | 1.61 mm [.06 in] |
Identifiers
| UPC | 623980012834 |
| UNSPSC | 39121301 |
Customization
| CAD Models | Solid models available in .stp or .x_t |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
Hardware & Mounting
| Extra Panel Screws | SCGM4-50 - Copper Ground Hardware (50 Pack) [M4 - 0.7 X 6mm / M4 Washer] |
| Mounting Screw Accessory | SCGM4 - Copper Plated Mounting Screw M4-0.7 X 6mm |
| Purchased Assembly Includes | Panel mounting screws and washers |
| Recommended Panel Screw Torque | 45-50 cN-m [65-70 ozf-in] |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.28 lbs (0.13 kg) |
Construction & Finish
| Material | Steel |
| Edge Detail (Per Drawing) | 1.00 X 45.0° chamfer |
| Panel Material (Per Drawing) | Galvanized steel, 16 gauge |
Compliance & Certifications
| UL File # | E65324 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosure does the 1590ZGRP131PL fit?▾
The 1590ZGRP131 glass reinforced polyester enclosure (190 x 75 x 55 mm).
What is the panel made of?▾
Galvanized steel, 16 gauge.
Are mounting screws included?▾
Yes, the purchased assembly includes panel mounting screws and washers.
What torque should the panel screws be tightened to?▾
45-50 cN-m [65-70 ozf-in].
Where can I get extra panel screws?▾
SCGM4-50 copper ground hardware, a 50 pack of M4 - 0.7 x 6mm screws with M4 washers.
