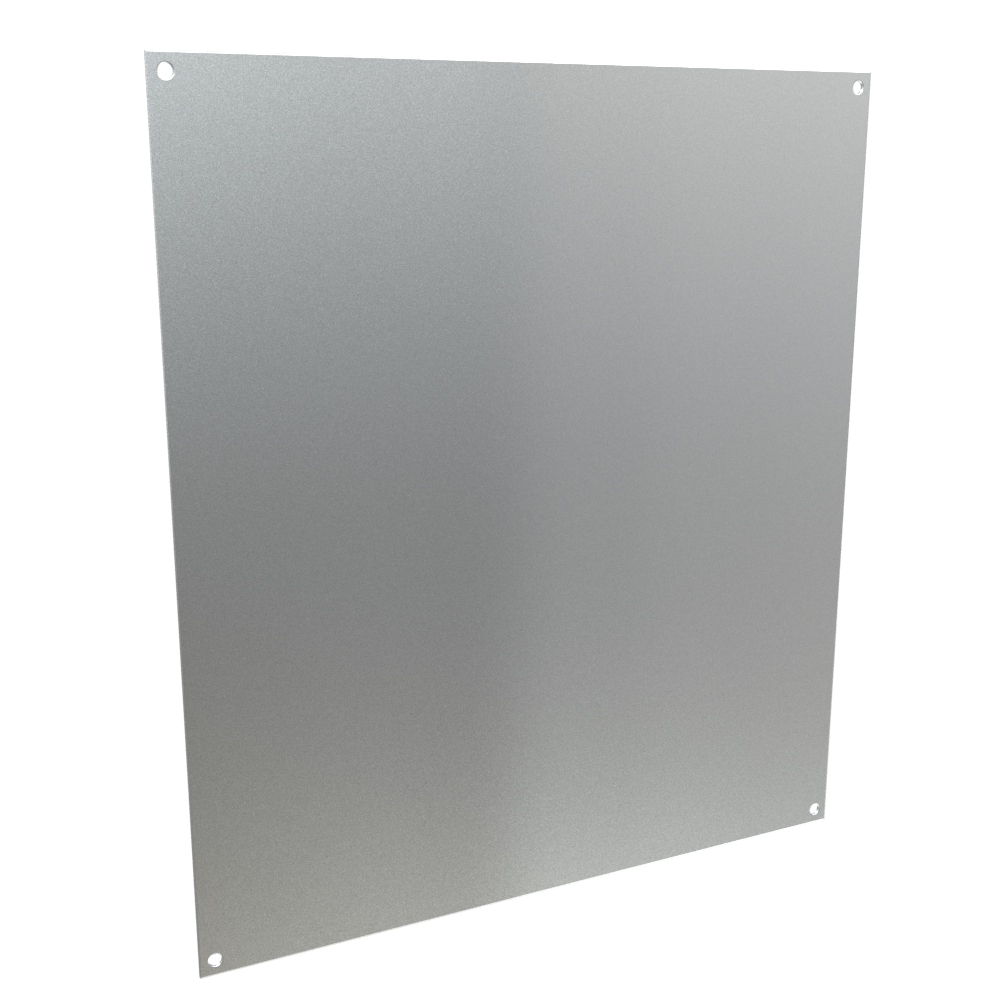

Hammond P1868 16.88 x 14.88 in Formed Steel Inner Panel, PJ

The P1868 is a formed steel inner panel measuring 16.88 x 14.88 in, finished in white, for mounting controls, terminal blocks and other components inside PJ Series enclosures. The series ordering table lists it for PJ Series enclosures measuring 19.34 x 17.34 in (H x W), making it a fit for OEM and industrial control builders working in that enclosure size.

The 14A, 14F, 14G, 14R and 14R-SS inner panel family serves 1414, EJ, HJ and PJ Series enclosures. Across the family, steel panels are 14 gauge steel finished in white, fiberglass panels are off-white in NEMA sizes, aluminum panels are 0.080 type 5052 H-32 aluminum left unpainted, galvanized panels are 14 gauge unpainted galvanized steel, and stainless steel panels are 14 gauge brushed 304 SS. The long description for the P1868 states the size as 16.875 x 14.875 in, while the series ordering table lists 16.88 in (429 mm) x 14.88 in (378 mm).

Construction is 14 gauge steel finished in white. The part drawing shows a 0.07 in panel with four 0.27 in diameter mounting holes set on 16.25 x 14.25 in centers, and the shipping weight is 5.32 lbs (2.41 kg), packed in a bag.

Per the series literature, mounting hardware is included with the enclosure. Mounting hardware is included with PJ Series enclosures, and the panel is ordered separately.

The same panel size is offered in other materials: F1868 (fiberglass), A1868 (aluminum). The P1868 is RoHS and REACH compliant, with UPC 623980952413 and UNSPSC 39121302 for procurement systems.
