Hammond 14R1109 10.75 x 8.88 in White Steel Enclosure Inner Panel

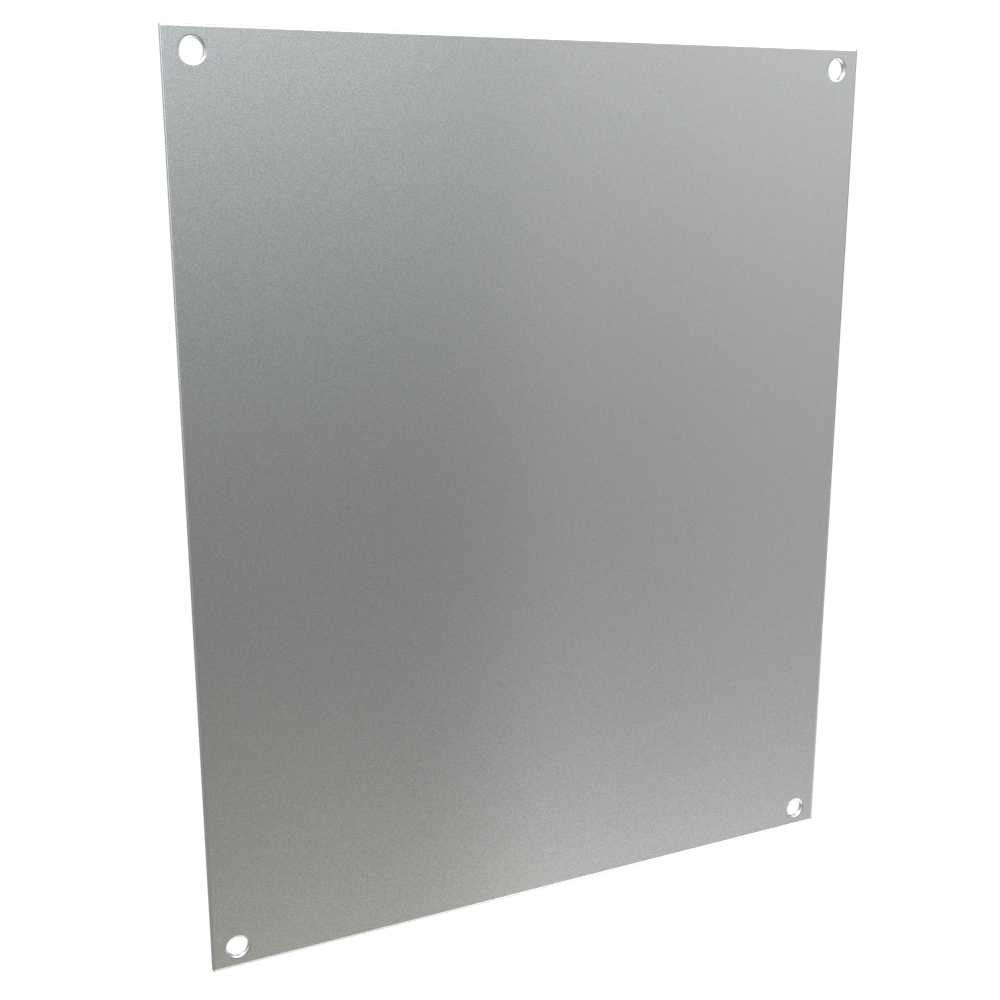

The Hammond 14R1109 is a 10.75 x 8.88 in (273 x 226 mm) inner panel in 14 gauge white steel, sized for 12 x 10 in 1414 and EJ Series enclosures and the matching PJ Series enclosure. It gives OEM engineers, panel builders and electricians a flat, pre-drilled surface for mounting components inside the enclosure, and belongs to Hammond's 14A, 14F, 14G, 14R and 14R-SS inner panel family.

It is formed from 14 gauge steel and finished in white. Hammond's series notes state that steel panels and mounting hardware are included with 1414 Series enclosures, making the 14R1109 the separately ordered white steel panel for the 12 x 10 in size. The part drawing shows a 0.07 in panel section with four 0.27 in diameter mounting holes.

Per the series ordering table the panel measures 10.75 in (273 mm) long by 8.88 in (226 mm) wide; Hammond's product description rounds this to a nominal 10.9 x 8.9 in panel that fits a 12 x 10 enclosure. It is listed for 1414 and EJ enclosures measuring 12.00 x 10.00 in H x W (305 x 254 mm), and for PJ Series enclosures measuring 13.08 x 11.20 in (332 x 284 mm).

The drawing places the four mounting holes on a 10.25 x 8.25 in pattern. Mounting hardware is included with the enclosure rather than listed with the panel. For PJ Series enclosures Hammond notes the hardware comes with the enclosure while the panel is ordered separately. Shipping weight is 2 lbs (0.91 kg), packed in a bag, and the 14R1109 is listed as RoHS and REACH compliant.

The same 10.75 x 8.88 in footprint is also offered in fiberglass (14F1109), aluminum (14A1109), galvanized steel (14G1109) and stainless steel (14R1109SS), so a matching panel can be chosen in white-finished steel or another material without changing the layout.
