Hammond PJP74 4x3.13 In Aluminum Inner Panel for Inline Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Optional inner panel for PJ744 and PJ744FS inline enclosures
- 4.00 x 3.13 in (101.60 x 79.38 mm) panel
- 0.100 in (2.54 mm) Aluminum 3003-H14
- Protective peel-off film; natural aluminum finish
- Four 0.22 in (5.54 mm) mounting holes
- Mounts to the threaded brass inserts provided in the enclosure
The PJP74 is the optional inner panel for the 6.74 x 3.93 x 3.88 in PJI inline enclosures, PJ744 (with feet) and PJ744FS (without feet). It gives you a flat, removable plate for mounting small instruments, terminals or control components inside the enclosure, so drilling and layout can be done on the bench before installation.
According to the drawing, the panel is Aluminum 3003-H14, 0.100 in (2.54 mm) thick, supplied with a protective peel-off film; the series describes the optional aluminum inner panel as natural finish. The part page long description reads "Inner Panel - For use with PJ744 - Steel", while the drawing and the series ordering table identify it as an aluminum panel.
The PJP74 measures 4.00 in (101.60 mm) high by 3.13 in (79.38 mm) wide. It has four 0.22 in (5.54 mm) mounting holes on 3.56 in (90.47 mm) by 2.63 in (66.68 mm) centres, which line up with the threaded brass inserts the PJI series provides for an optional inner panel.
The shipping weight is 0.2 lbs (0.09 kg). The PJP74 is REACH and RoHS compliant and is identified by UPC 623980415475 and UNSPSC 39121301. For the taller PJ944 and PJ944FS enclosures, the matching panel is PJP94.
Ideal For
- Mounting components inside PJ744 enclosures
- Mounting components inside PJ744FS enclosures
- Instrument and terminal mounting in inline enclosures
Overview
| For Use With | PJ744 (with feet) and PJ744FS (without feet) |
| Product Type | Optional inner panel for PJI inline enclosure |
| Long Description | Inner Panel - For use with PJ744 - Steel |
| Short Description | PANEL FOR PJ744 |
Dimensions
| Panel Width | 3.13 in (79.38 mm) |
| Panel Height | 4.00 in (101.60 mm) |
| Panel Thickness | 0.100 in (2.54 mm) |
| Mounting Hole Centres | 3.56 in (90.47 mm) x 2.63 in (66.68 mm) |
Identifiers
| UPC | 623980415475 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Shipping Weight | 0.2 lbs (0.09 kg) |
Construction & Finish
| Finish (Series) | Optional aluminum inner panel natural finish |
| Material (Drawing) | Aluminum 3003-H14 |
| Surface Protection | Protective peel-off film |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the PJP74 fit?▾
It is the optional aluminum panel listed for the PJ744 and PJ744FS inline enclosures, which measure 6.74 x 3.93 x 3.88 in.
Is the PJP74 steel or aluminum?▾
The part page long description says steel, but the drawing specifies Aluminum 3003-H14 and the series ordering table lists it as the optional aluminum panel.
How big is the panel?▾
4.00 x 3.13 in (101.60 x 79.38 mm), 0.100 in (2.54 mm) thick.
How does it mount?▾
Through four 0.22 in (5.54 mm) holes on 3.56 x 2.63 in centres into the threaded brass inserts provided in the enclosure.
Related Products

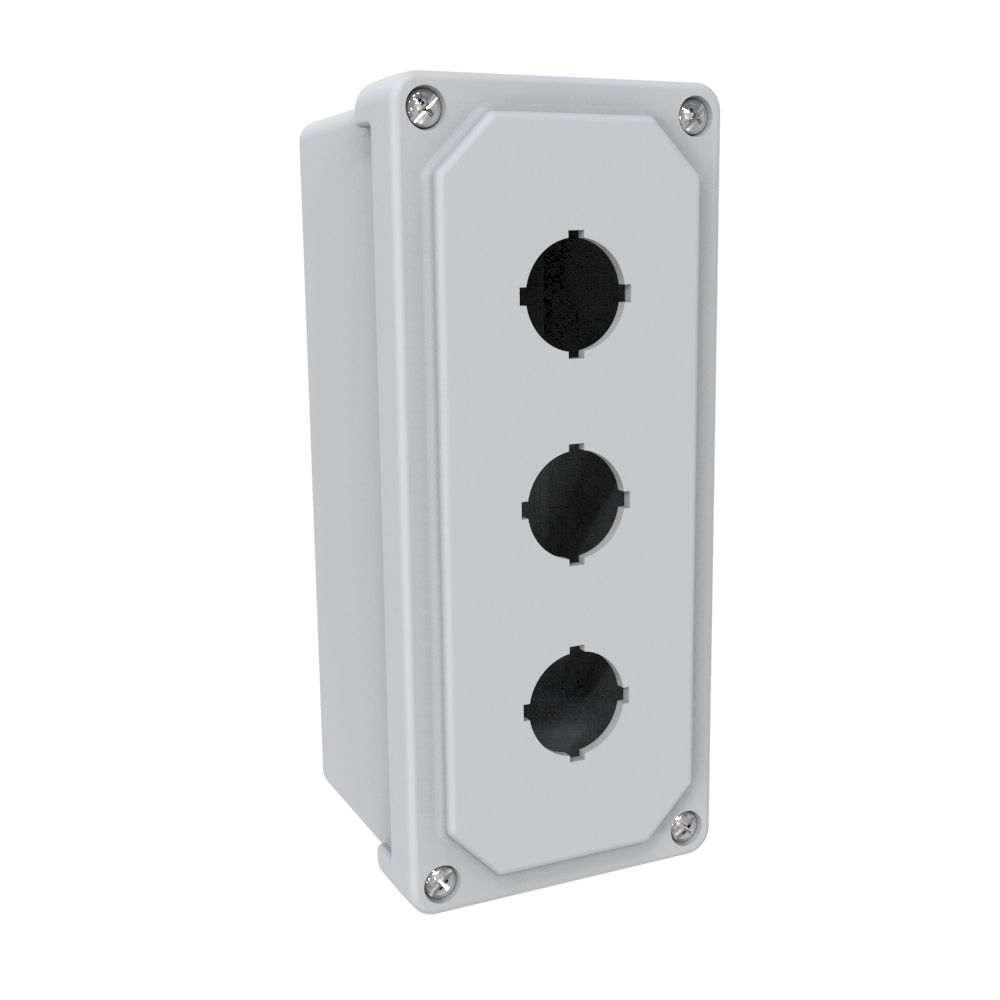

Save 31%PJ944P3 — N4X Wallmount Encl - 9x4x4 3 Hole Pbutton - Fiberglass
Hammond Manufacturing · PJ944P3
Save 31%PJP94 — Inner Panel - For use with PJ944 - Steel
Hammond Manufacturing · PJP94

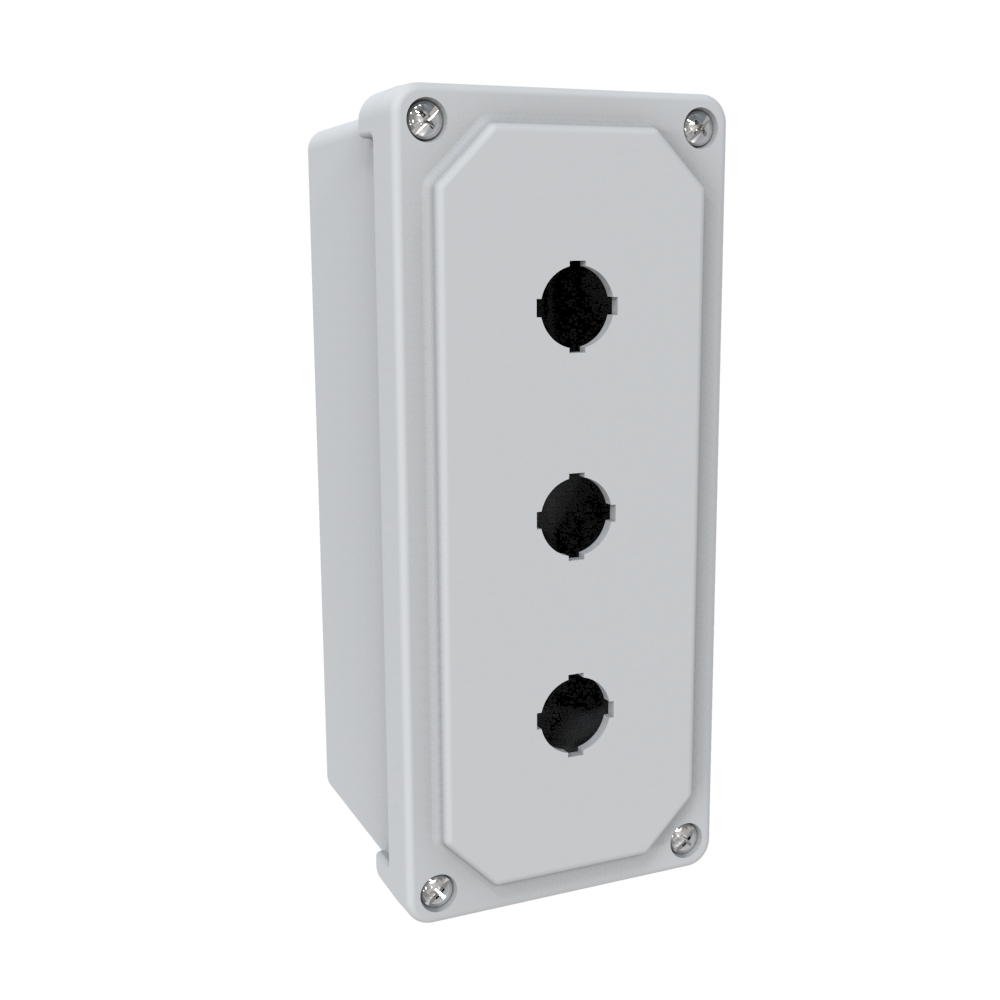

Save 31%PJ944P223 — N4X Wallmount Encl - 9x4x4 3 Hole Pbutton 22MM - Fiberglass
Hammond Manufacturing · PJ944P223

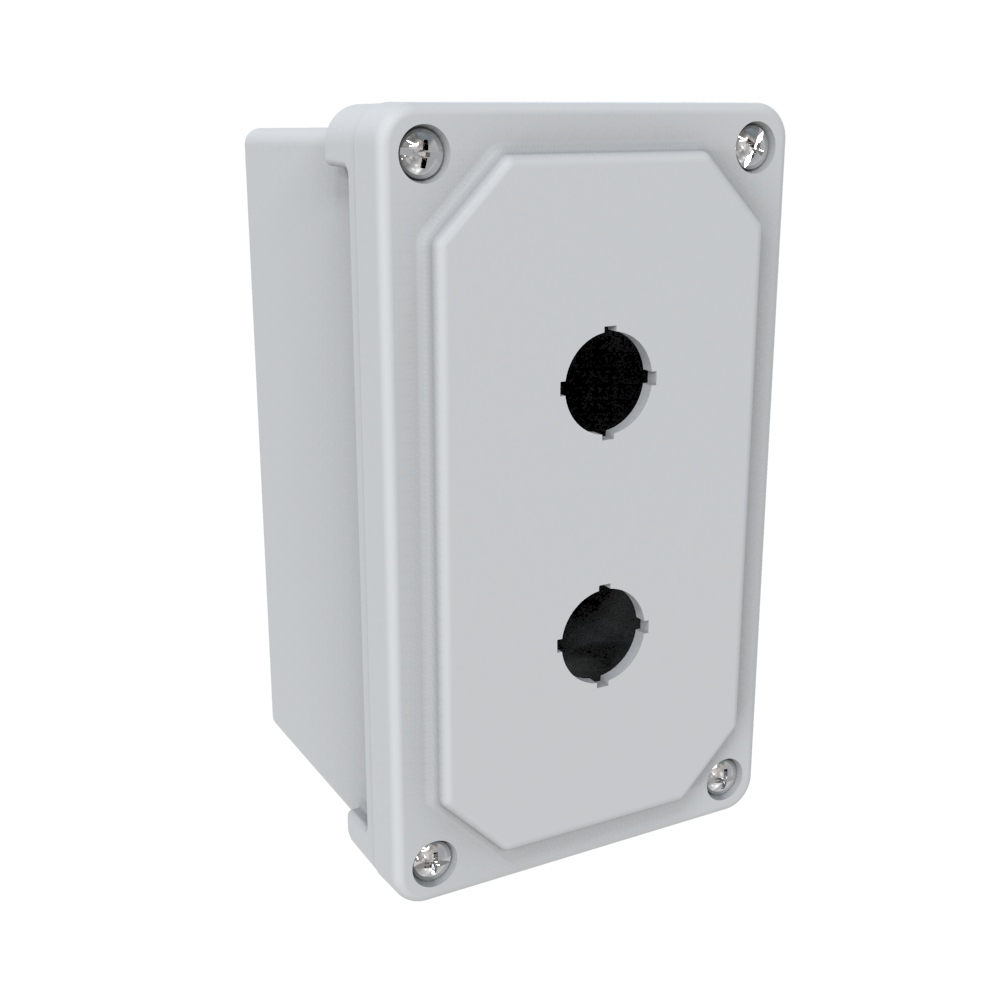

Save 31%PJ744P222 — N4X Wallmount Encl - 7x4x4 2 Hole Pbutton 22MM - Fiberglass
Hammond Manufacturing · PJ744P222

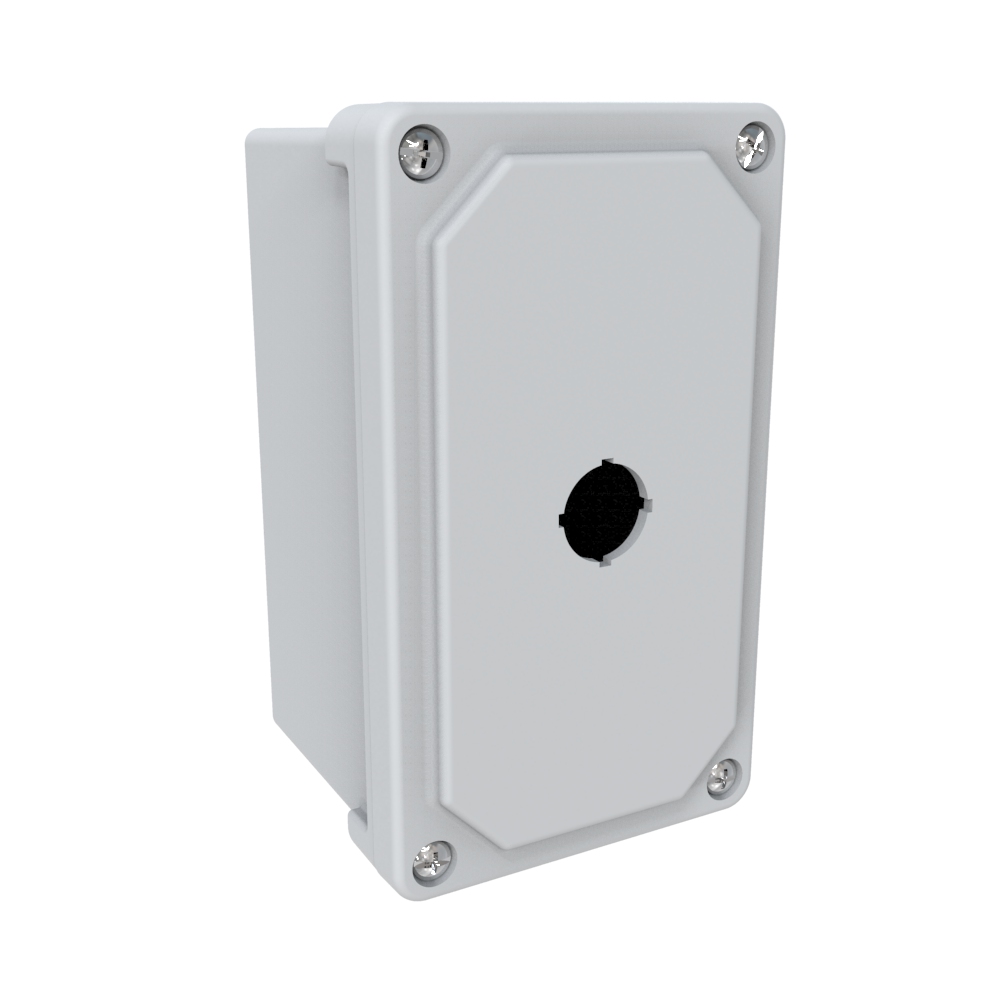

Save 31%PJ744P221 — N4X Wallmount Encl - 7x4x4 1 Hole Pbutton 22MM - Fiberglass
