Hammond 1555R2F17GY 160mm Square Low-Profile Polycarbonate NEMA Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 160 x 160 x 38 mm (6.30 x 6.30 x 1.50 in) not including flanges
- IP68 and NEMA 4, 4X, 6, 6P, 12 and 13; UL94 5VA polycarbonate
- cUL and UL 508A listed under file #E65324; UV stabilized for outdoor use
- Accepts P.C. boards up to 148 x 149 mm
- Flanged base with 178 mm hole spacing; 200 mm overall length
- Gasketed tongue and groove lid, M4 stainless screws in corrosion resistant inserts
- Optional 1555RFPL galvanized steel inner panel

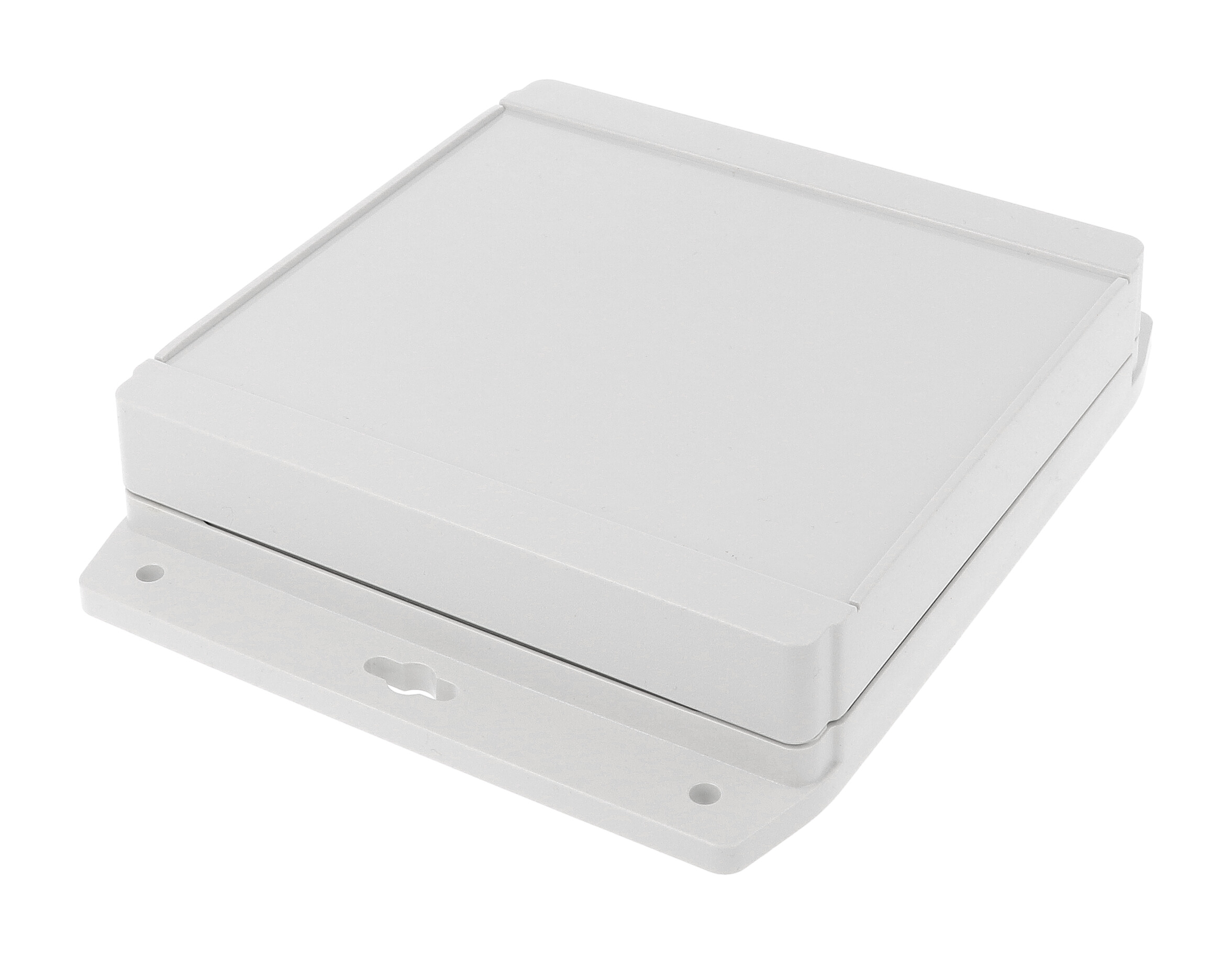

The 1555R2F17GY is a low-profile, UL listed polycarbonate enclosure from the 1555F Series with a flanged base for wall mounting. It is aimed at builders of outdoor wireless, security and control electronics who need a watertight 160 mm square housing for a circuit board or DIN rail components.
The series table gives 6.30 x 6.30 x 1.50 in (160 x 160 x 38 mm) not including flanges. The drawing shows 200.00 mm [7.87 in] overall length with flanges, 178.00 mm [7.01 in] flange hole spacing, 37.70 mm [1.48 in] assembled height, 17.44 mm [.69 in] inner box depth and 12.50 mm [.49 in] inner lid depth. The part page lists a maximum P.C. board size of 148 mm length by 149 mm width.
Listed ratings for the 1555R2F17GY are IP68, NEMA 4, 4X, 6, 6P, 12 and 13, and UL94 5VA flame rating. Polycarbonate versions are UV stabilized for outdoor use, cUL and UL 508A listed under file #E65324, IK08 impact rated per IEC 62262:2021 and recommended for -40°C to +110°C (-40°F to +230°F).
The light gray RAL7035 lid carries a smooth recessed area for a membrane keypad or label and seals with a tongue and groove joint and loose-supplied one-piece silicone gasket. M4 stainless steel screws behind the lid thread into corrosion resistant inserts. Internal standoffs accept #4 x 1/4" self-tapping screws for the 1555RFPL galvanized steel inner panel, sold separately. The unit ships shrink wrapped at 0.31 lbs (0.14 kg).
Ideal For
- Outdoor wireless and antenna electronics
- Security and access control devices
- Industrial controls exposed to washdown or dust
- Wall-mounted PCB housings
Overview
| Type | Water-tight, flanged |
| Color | Light Gray |
| Series | 1555F Series, Type 4X, 6P Enclosures (Watertight, Flanged Lid) |
| Material | Polycarbonate |
| CAD Models | Solid models available in .stp or .x_t |
| Part Number | 1555R2F17GY |
| Long Description | RAL7035 grey watertight plastic enclosure |
| Short Description | P/C FLANGED BASE NEMA ENCL. |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| ABS Equivalent Part Number | 1555RF17GY |
Dimensions
| Inner Box Depth | 17.44 mm [.69 in] |
| Inner Lid Depth | 12.50 mm [.49 in] |
| Lid Inlay Width | 126.00 mm [4.96 in] |
| Lid Inlay Length | 127.00 mm [5.00 in] |
| Flange Mounting Holes | 4X Ø5.00 mm [.20 in] |
| Max. P.C. Board Width | 149 mm |
| Max. P.C. Board Length | 148 mm |
| Size L X W X H (Part Page) | 6.3 in x 6.3 in x 1.48 in (160 mm x 160 mm x 38 mm) |
| Body Length X Width (Drawing) | 160.19 mm [6.31 in] x 160.13 mm [6.30 in] |
| Width (Not Including Flanges) | 6.30 in (160 mm) |
| Height (Not Including Flanges) | 1.50 in (38 mm) |
| Length (Not Including Flanges) | 6.30 in (160 mm) |
| Overall Height, Assembled (Drawing) | 37.70 mm [1.48 in] |
| Flange Mounting Hole Spacing (Drawing) | 178.00 mm [7.01 in] |
| Overall Length Including Flanges (Drawing) | 200.00 mm [7.87 in] |
Identifiers
| UPC | 623980902012 |
| UNSPSC | 39121301 |
| Drawing Revision | REV 01.11.2019 |
Rack Mounting
| DIN Rail | Internal DIN rail mounting tabs molded into lid |
| Mounting | Designed for wall mounting via base mounting flanges |
| Internal Standoffs | Standoffs molded in the lid and enclosure interior for PC board or inner panel; accept #4 x 1/4" self-tapping screws |
| Inner Panel (Order Separately) | 1555RFPL (galvanized steel) |
| Self-Tapping Screw (Order Separately) | 1555TS100 (Steel Panel / P.C. Board Self Tapping Screw, #4 x 1/4" (6.4mm), Plated) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.31 lbs (0.14 kg) |
Construction & Finish
| Finish | Satin texture RAL7035 grey |
| Gasket | One-piece, high temperature, UL listed silicone; supplied loose inside the enclosure (not pre-installed) |

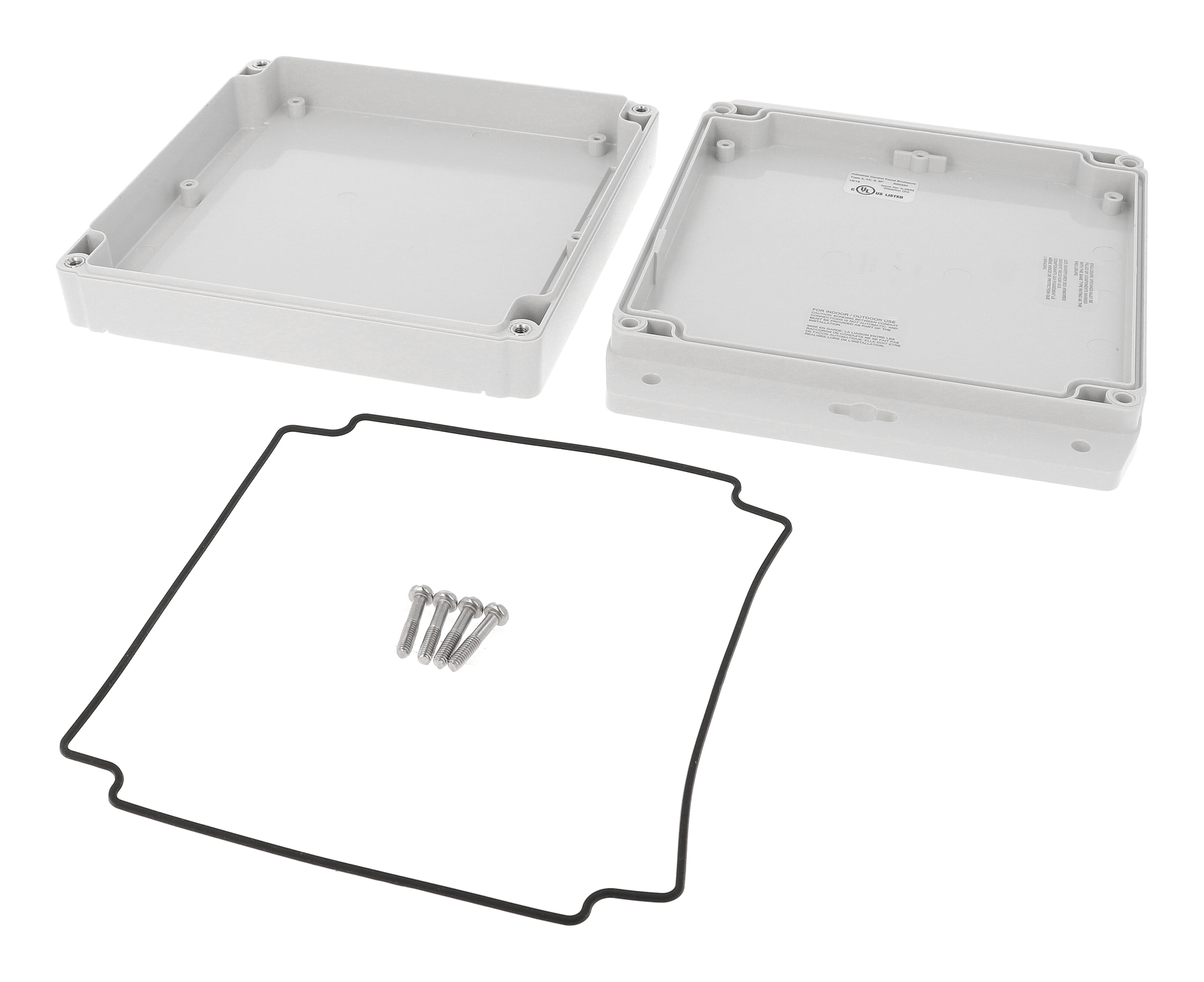

| Included | Styled box, flanged lid, 4 cover screws and preformed silicone gasket |
| Lid Seal | Gasketed lid with two-piece tongue and groove construction; protection against access of oil, dust and water |
| Lid Surface | Smooth recessed surface on lid for a membrane keypad or label |
| Lid Fasteners | Included M4 stainless steel machine screws threaded into corrosion resistant bushings (M4 corrosion resistant inserts) for repetitive assembly and disassembly; lid screws are behind the lid |
| Replacement Lid Screws | SC576-50 (Stainless Steel Cover Screws, M4-0.7 x 20mm, Pkg 50) |
| Replacement Gasket (Pair) | 1554RGASKET |
| Recommended Cover Screw Torque | 2.5 lbf-in (30 cN-m) |
Environmental & Protection
| Impact Rating | IK08 per IEC 62262:2021 |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents and some greases and oils |
| Outdoor Suitability | UV stabilized for outdoor use (polycarbonate versions) |
| IP Rating (Part Page) | IP68 |
| Flame Rating (Material) | UL94-5VA (gray polycarbonate); drawing: Matl UL94 - 5VA @ 3mm |
| NEMA Rating (Part Page) | 4, 4X, 6, 6P, 12 & 13 |
| Flame Rating (Part Page) | UL94 5VA |
| NEMA Type Ratings (Series) | Type 4, 4X, 6, 6P, 12 and 13 |
| Ingress Protection (Series) | Independently tested to meet IP66, IP67 and IP68 |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F); customers should conduct their own testing to determine suitability for any specific application |
Compliance & Certifications
| UL Listing | cUL and UL 508A listed under file #E65324 (polycarbonate versions) |
| Drawing Note | Polycarbonate version is UL 508 approved (Matl UL94 - 5VA @ 3mm) |
| RoHS Compliant | Yes |
| Drawing Marking | cULus Listed, File #E65324, Type 4, 4X, 6, 6P (polycarbonate version only) |
| REACH Compliant | Yes |
| UL File # (Part Page) | E65324 |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size PCB fits the 1555R2F17GY?▾
The part page lists a maximum P.C. board length of 148 mm and width of 149 mm.
What ratings does it carry?▾
IP68, NEMA 4, 4X, 6, 6P, 12 and 13, and a UL94 5VA flame rating. Polycarbonate versions are also IK08 impact rated.
How deep is the inside?▾
The drawing shows an inner box depth of 17.44 mm [.69 in] and inner lid depth of 12.50 mm [.49 in].
How is it mounted?▾
It is designed for wall mounting using the base flanges; the drawing shows 178.00 mm [7.01 in] flange hole spacing.
What is the recommended lid screw torque?▾
The drawing specifies 2.5 lbf-in (30 cN-m).
Is there a deeper version?▾
Yes. The 1555R2F42GY shares the 160 mm footprint with a 63 mm height.
