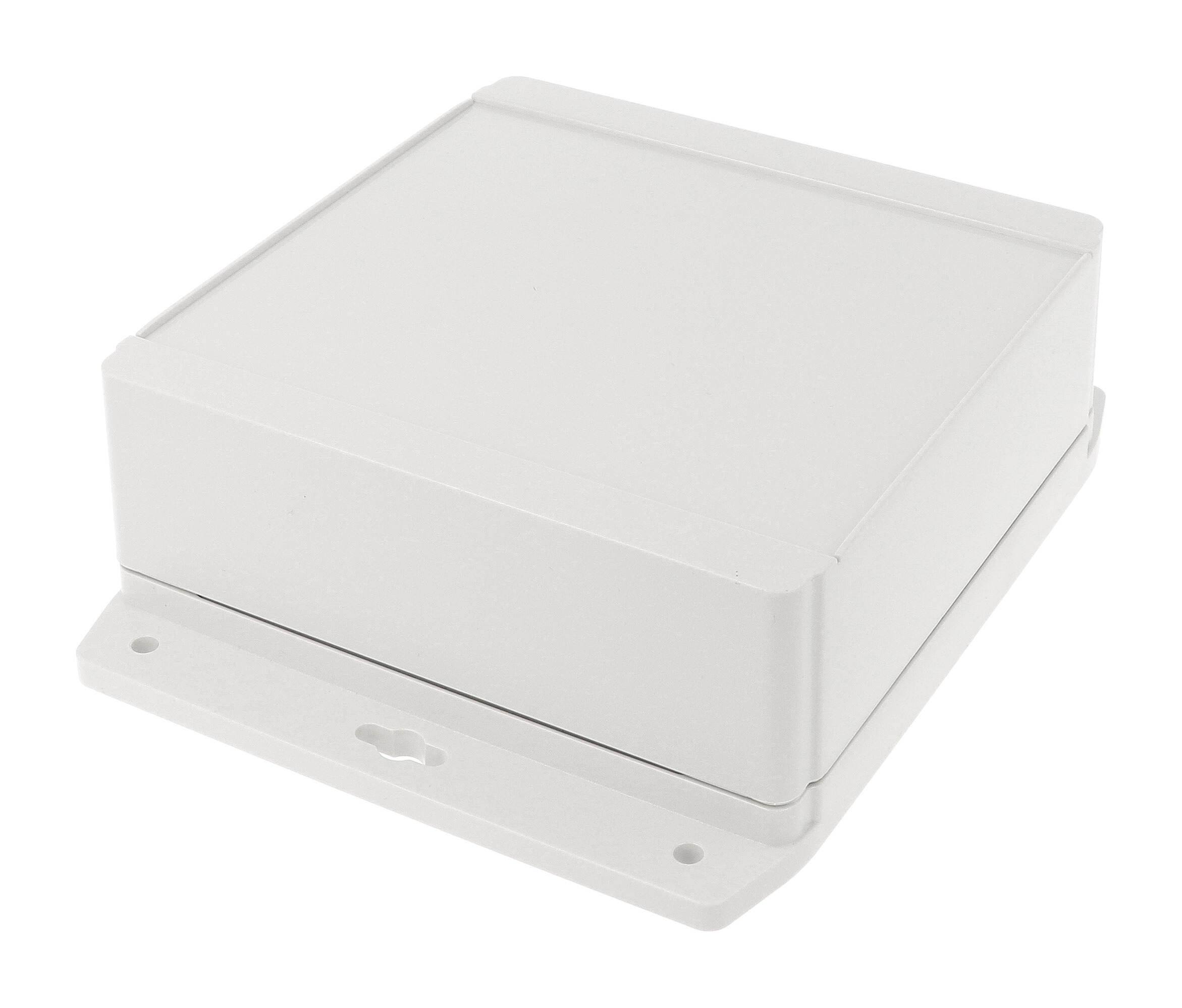

Hammond 1555RF42GY 160mm Square Deep ABS Flanged Enclosure, IP66
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 160 x 160 x 63 mm (6.30 x 6.30 x 2.48 in) not including flanges
- 42.14 mm inner box depth for taller boards and DIN rail parts
- ABS plastic, IP66 and UL94 HB, for indoor use
- Holds P.C. boards up to 148 x 149 mm
- Wall-mount flanges on 178 mm spacing; 200 mm overall length
- Gasketed tongue and groove lid with M4 stainless steel screws
- Accessories: 1555RFPL inner panel, 1554RGASKET gasket, SC576-50 screws
The 1555RF42GY is the deeper general purpose ABS enclosure in the R size of the 1555F Series. It is intended for indoor electronics such as controls, keypads and circuit board assemblies that need a sealed 160 mm square housing with a wall-mount flange and extra internal depth.
Per the series table the 1555RF42GY measures 6.30 x 6.30 x 2.48 in (160 x 160 x 63 mm) not including flanges; the part page lists 6.3 x 6.3 x 2.46 in (160 x 160 x 62 mm). The drawing shows 200.00 mm [7.87 in] overall length with flanges, 178.00 mm [7.01 in] flange hole spacing, 62.50 mm [2.46 in] assembled height, 42.14 mm [1.66 in] inner box depth and 12.50 mm [.49 in] inner lid depth. P.C. boards up to 148 x 149 mm fit.
The material is ABS plastic with a UL94 HB flame rating and IP66 rating. ABS versions are for indoor use, are not UL listed, carry an IK07 impact rating per IEC 62262:2021 and are recommended for -20°C to +60°C (-4°F to +140°F).
A satin RAL7035 grey finish, recessed lid face, two-piece tongue and groove seal and loose-supplied silicone gasket complete the design. M4 stainless steel lid screws sit behind the lid in corrosion resistant inserts. DIN rail tabs are molded into the lid, and standoffs take #4 x 1/4" self-tapping screws for the separately sold 1555RFPL inner panel. Shipping weight is 0.31 lbs (0.14 kg).
Ideal For
- Indoor industrial controls
- Instrument and keypad housings
- DIN rail terminal and relay enclosures
- Wall-mounted electronics assemblies
Overview
| Type | Water-tight, flanged |
| Color | Light Gray |
| Series | 1555F Series, Type 4X, 6P Enclosures (Watertight, Flanged Lid) |
| Material | ABS Plastic |
| CAD Models | Solid models available in .stp or .x_t |
| Part Number | 1555RF42GY |
| Long Description | RAL7035 grey watertight plastic enclosure |
| Short Description | ABS FLANGED BASE NEMA ENCL. |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Polycarbonate UL Listed) Equivalent Part Number | 1555R2F42GY |
Dimensions
| Inner Box Depth | 42.14 mm [1.66 in] |
| Inner Lid Depth | 12.50 mm [.49 in] |
| Lid Inlay Width | 126.00 mm [4.96 in] |
| Lid Inlay Length | 127.00 mm [5.00 in] |
| Flange Mounting Holes | 4X Ø5.00 mm [.20 in] |
| Max. P.C. Board Width | 149 mm |
| Max. P.C. Board Length | 148 mm |
| Size L X W X H (Part Page) | 6.3 in x 6.3 in x 2.46 in (160 mm x 160 mm x 62 mm) |
| Body Length X Width (Drawing) | 160.19 mm [6.31 in] x 160.13 mm [6.30 in] |
| Width (Not Including Flanges) | 6.30 in (160 mm) |
| Height (Not Including Flanges) | 2.48 in (63 mm) |
| Length (Not Including Flanges) | 6.30 in (160 mm) |
| Overall Height, Assembled (Drawing) | 62.50 mm [2.46 in] |
| Flange Mounting Hole Spacing (Drawing) | 178.00 mm [7.01 in] |
| Overall Length Including Flanges (Drawing) | 200.00 mm [7.87 in] |
Identifiers
| UPC | 623980902029 |
| UNSPSC | 39121301 |
| Drawing Revision | REV 01.11.2019 |
Rack Mounting
| DIN Rail | Internal DIN rail mounting tabs molded into lid |
| Mounting | Designed for wall mounting via base mounting flanges |
| Internal Standoffs | Standoffs molded in the lid and enclosure interior for PC board or inner panel; accept #4 x 1/4" self-tapping screws |
| Inner Panel (Order Separately) | 1555RFPL (galvanized steel) |
| Self-Tapping Screw (Order Separately) | 1555TS100 (Steel Panel / P.C. Board Self Tapping Screw, #4 x 1/4" (6.4mm), Plated) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.31 lbs (0.14 kg) |
Construction & Finish
| Finish | Satin texture RAL7035 grey |
| Gasket | One-piece, high temperature, UL listed silicone; supplied loose inside the enclosure (not pre-installed) |

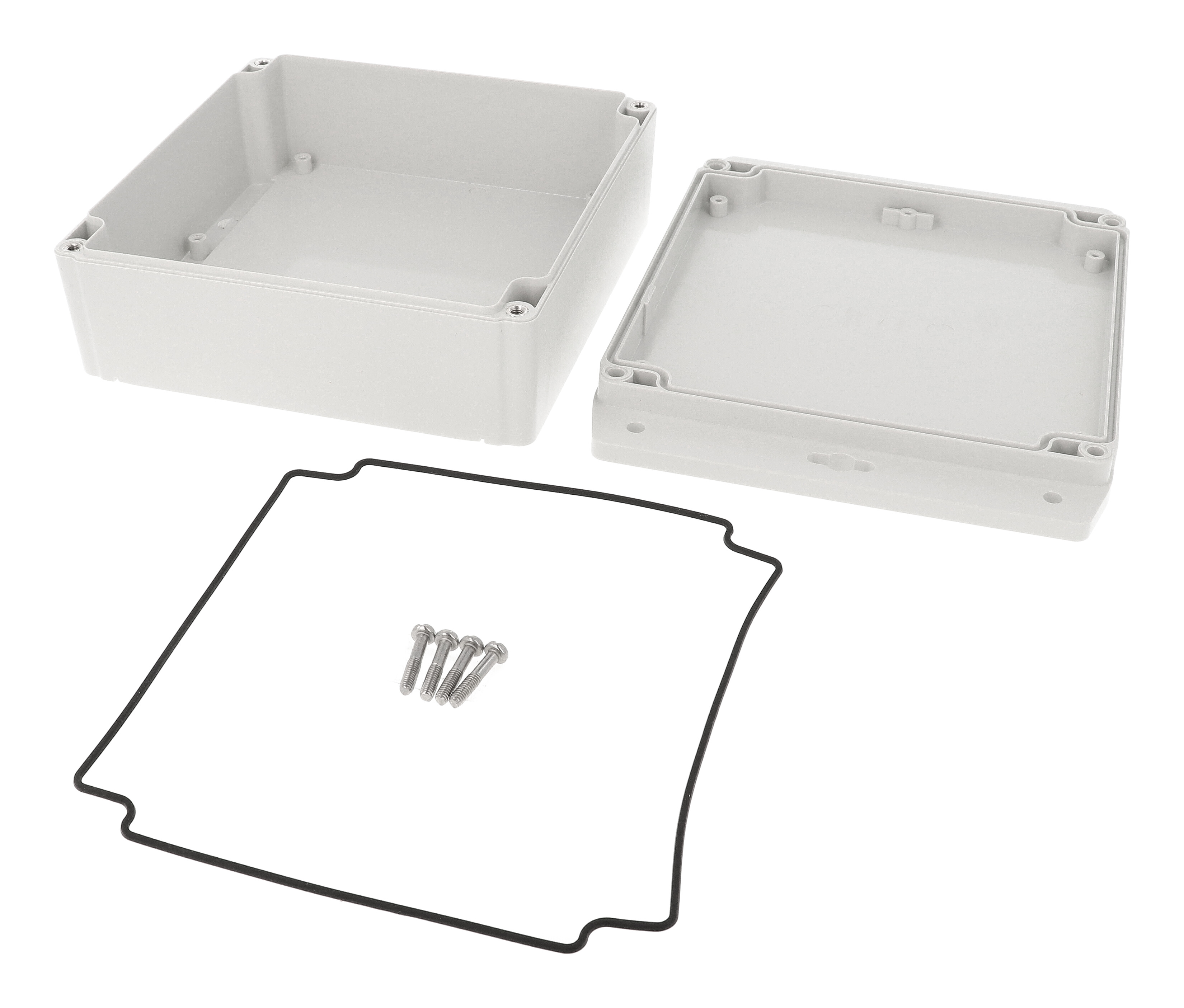

| Included | Styled box, flanged lid, 4 cover screws and preformed silicone gasket |
| Lid Seal | Gasketed lid with two-piece tongue and groove construction; protection against access of oil, dust and water |
| Lid Surface | Smooth recessed surface on lid for a membrane keypad or label |
| Lid Fasteners | Included M4 stainless steel machine screws threaded into corrosion resistant bushings (M4 corrosion resistant inserts) for repetitive assembly and disassembly; lid screws are behind the lid |
| Replacement Lid Screws | SC576-50 (Stainless Steel Cover Screws, M4-0.7 x 20mm, Pkg 50) |
| Replacement Gasket (Pair) | 1554RGASKET |
| Recommended Cover Screw Torque | 2.5 lbf-in (30 cN-m) |
Environmental & Protection
| Intended Use | Indoor use (ABS versions) |
| Impact Rating | IK07 per IEC 62262:2021 |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents and some greases and oils |
| IP Rating (Part Page) | IP66 |
| Flame Rating (Material) | UL94-HB (general purpose ABS) |
| Flame Rating (Part Page) | UL94 HB |
| Ingress Protection (Series) | Tested to and meets IP66 (ABS versions) |
| Recommended Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
Compliance & Certifications
| UL Listing | Not UL listed (ABS versions); drawing note: General Purpose ABS version is not UL approved |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| UL File # (Part Page) | E65324 |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How deep is the 1555RF42GY inside?▾
The drawing shows a 42.14 mm [1.66 in] inner box depth and 12.50 mm [.49 in] inner lid depth.
Can the 1555RF42GY be used outdoors?▾
ABS versions are specified for indoor use. For outdoor use the UV stabilized polycarbonate 1555R2F42GY is available.
What is its IP rating?▾
IP66.
How is the lid secured?▾
With included M4 stainless steel machine screws threaded into corrosion resistant bushings, located behind the lid.
Is the gasket pre-installed?▾
No, the one-piece silicone gasket is supplied loose inside the enclosure.
