Hammond 1555JF17GY 160x90x38 mm ABS Flanged Watertight Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- General purpose ABS, tested to and meets IP66
- 160 x 90 x 38 mm body; 200.79 mm overall with flanges
- PC board capacity up to 76 x 148 mm
- UL94 HB flame rating, IK07 impact, -20°C to +60°C, for indoor use
- Silicone gasket with tongue and groove lid, M4 stainless lid screws
- DIN rail tabs in lid; optional 1555JFPL galvanized steel panel
- RAL7035 grey satin finish with recessed lid area for a label or keypad

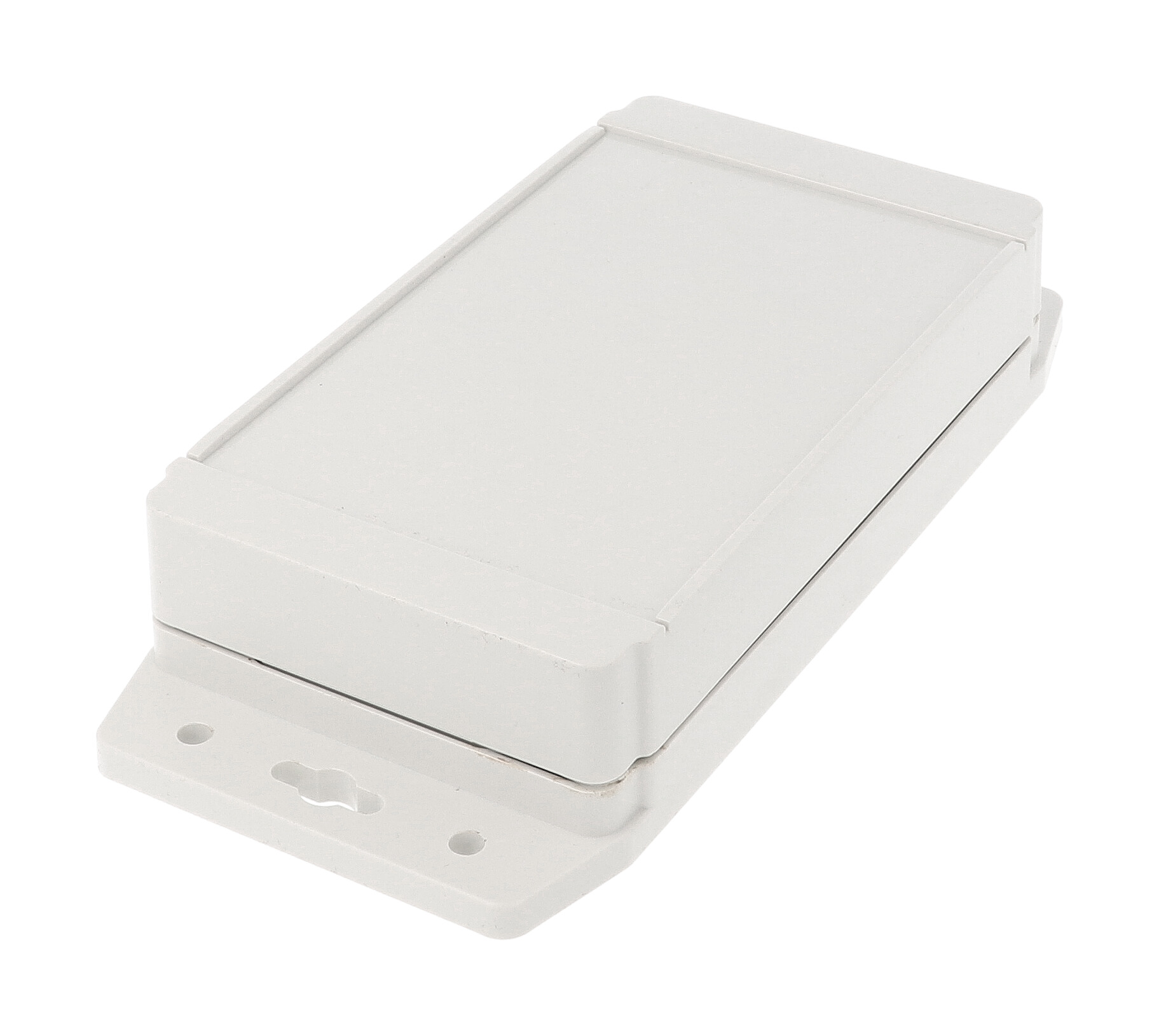

The 1555JF17GY is the general purpose ABS version of the shallow 1555JF enclosure, a light grey (RAL7035) watertight box with a flanged base for wall mounting. It is a practical choice for indoor control, security and electronics projects that need an IP66 seal without a UL listing.
The ABS material carries a UL94 HB flammability rating and an IK07 impact rating per IEC 62262:2021. Although not UL listed, ABS versions have been tested to and meet IP66. The recommended operating temperature is -20°C to +60°C, and the series specifies ABS versions for indoor use.
Size on the part page is 6.3 x 3.6 x 1.47 in (160 x 91 x 37 mm); the series table lists 160 x 90 x 38 mm without flanges, and the drawing shows 200.79 mm overall across the flanges with 4X Ø5.00 mm holes. Inside there is a 17.70 mm deep box and 12.00 mm deep lid, taking PC boards up to 76 x 148 mm. Shipping weight is 0.46 lbs (0.21 kg).
A two-piece tongue and groove lid seals on a one-piece silicone gasket, supplied loose, and four included M4 stainless steel screws thread into corrosion resistant inserts. For internal mounting the 1555JF17GY offers standoffs for #4 x 1/4 in self-tapping screws (1555TS100), DIN rail tabs in the lid and the optional 1555JFPL steel panel. Need outdoor or UL listed use? The polycarbonate equivalent is 1555J2F17GY.
Ideal For
- Indoor control electronics
- Security system boards
- PC board and DIN rail component housings
- Wall-mounted indoor junction boxes
Mounting
| DIN Rail | Internal DIN rail mounting tabs molded into lid |
| Inner Panel | 1555JFPL galvanized steel inner panel (order separately) |
| Mounting Style | Wall mounting via flanged base; lid screws are behind the lid for a secure interior |
| Standoff Screw | #4 x 1/4" (6.4 mm) plated self-tapping screw, part number 1555TS100 (standoffs molded in lid and enclosure interior) |
| Flange Mounting Holes | 4X Ø5.00 mm [.20 in] |
| Flange Mounting Hole Spacing (Drawing) | 180.79 mm [7.12 in] |
Overview
| Type | Water-tight, flanged |
| Series | 1555F Series, Type 4X, 6P Enclosures (Watertight, Flanged Lid) |
| Version | General Purpose ABS |
| Description | RAL7035 grey watertight plastic enclosure, flange |
| Part Number | 1555JF17GY |
| Enclosure Family | 1555JF Regular Enclosure |
| Short Description | ABS FLANGED BASE NEMA ENCL. |
| Equivalent Polycarbonate Part Number | 1555J2F17GY |
Dimensions
| Inner Box Depth | 17.70 mm [.70 in] |
| Inner Lid Depth | 12.00 mm [.47 in] |
| Lid Inlay Depth | 2.00 mm [.08 in] |
| Shipping Weight | 0.46 lbs (0.21 kg) |
| Size (L X W X H) | 6.3 in x 3.6 in x 1.47 in (160 mm x 91 mm x 37 mm) |
| Lid Height (Drawing) | 15.50 mm [.61 in] |
| Base Height (Drawing) | 22.20 mm [.87 in] |
| Max. P.C. Board Width | 148 mm |
| Max. P.C. Board Length | 76 mm |
| Overall Height, Assembled (Drawing) | 37.82 mm [1.49 in] |
| Overall Length Including Flanges (Drawing) | 200.79 mm [7.90 in] |
| Series Table Width (Not Including Flanges) | 3.54 in (90 mm) |
| Series Table Height (Not Including Flanges) | 1.50 in (38 mm) |
| Series Table Length (Not Including Flanges) | 6.30 in (160 mm) |
Identifiers
| UPC | 623980036212 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
Construction & Finish
| Color | Light Gray, RAL7035 grey |
| Finish | Satin texture with smooth recessed surface on lid for a membrane keypad or label |
| Gasket | One-piece preformed black silicone gasket, high temperature, UL listed silicone; supplied loose inside the enclosure (not pre-installed) |
| Material | ABS Plastic |
| Solid Models | Available in .stp or .x_t |
| Lid Fasteners | 4 included M4 stainless steel machine screws threaded into M4 corrosion resistant inserts |

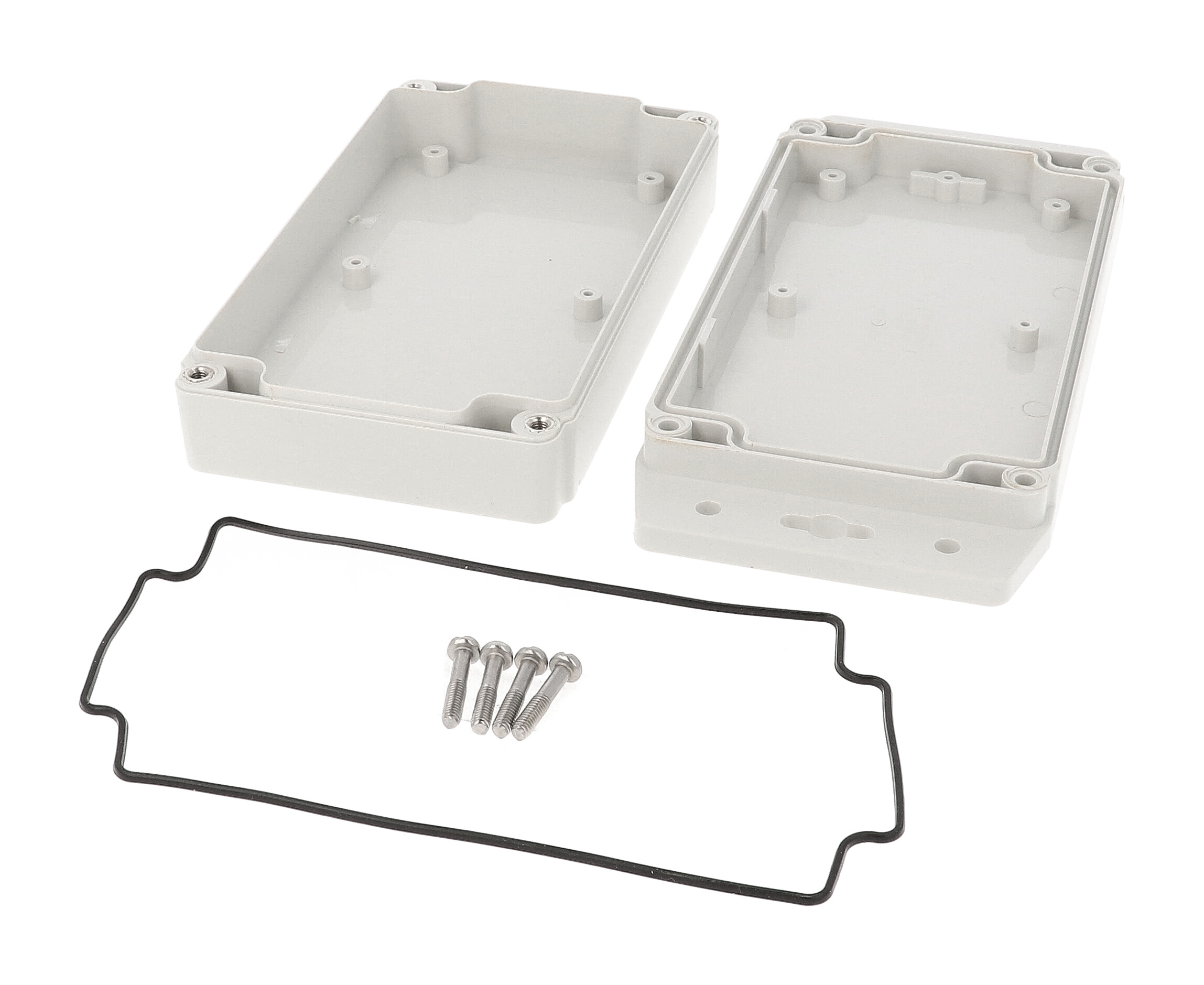

| Included Items | Styled box, flanged lid, 4 cover screws and preformed silicone gasket |
| Lid Construction | Gasketed flanged lid with two-piece tongue and groove construction |
| Replacement Gasket | 1554JGASKET (pair) |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, water detection or anti-seize paste, strong solvents or cleaners, and some greases and oils |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.); contact the factory for quotes |
| Replacement Cover Screws | SC576-50, stainless steel M4-0.7 x 20 mm (Pkg 50) |
| Recommended Cover Screw Torque | 2.5 lbf-in (30 cN-m) |
Environmental & Protection
| Flame Rating | UL94 HB |
| Impact Rating | IK07 per IEC 62262:2021 |
| Intended Environment | For indoor use |
| Recommended Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
Compliance & Certifications
| UL Listing | Not UL listed (general purpose ABS version is not UL approved) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| UL File # (Listed On Part Page) | E65324 (series file; covers the polycarbonate version) |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1555JF17GY UL listed?▾
No. ABS versions are not UL listed, but they have been tested to and meet IP66.
Can it be used outdoors?▾
The series lists ABS versions for indoor use. The polycarbonate equivalent, 1555J2F17GY, is UV stabilized for outdoor use.
What is the operating temperature range?▾
The recommended operating temperature for ABS versions is -20°C to +60°C (-4°F to +140°F).
What is the largest PC board it holds?▾
The part data lists a maximum PC board length of 76 mm and width of 148 mm.
What replacement parts are available?▾
The 1554JGASKET replacement gasket (pair) and SC576-50 stainless M4-0.7 x 20 mm cover screws (Pkg 50).
