Hammond 1555NFPL 108x107 mm Galvanized Steel Inner Panel, 1555NF Size
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Galvanized steel inner panel for 1555NF enclosures
- 107.70 x 106.85 mm, 1.45 mm [.06 in] thick per drawing
- Fits 1555NF17GY, 1555N2F17GY, 1555NF42GY and 1555N2F42GY
- Mounts on enclosure standoffs with #4 self-tapping screws (1555TS100)
- R9.53 mm corners; 0.28 lbs (0.13 kg) shipping weight
- RoHS and REACH compliant

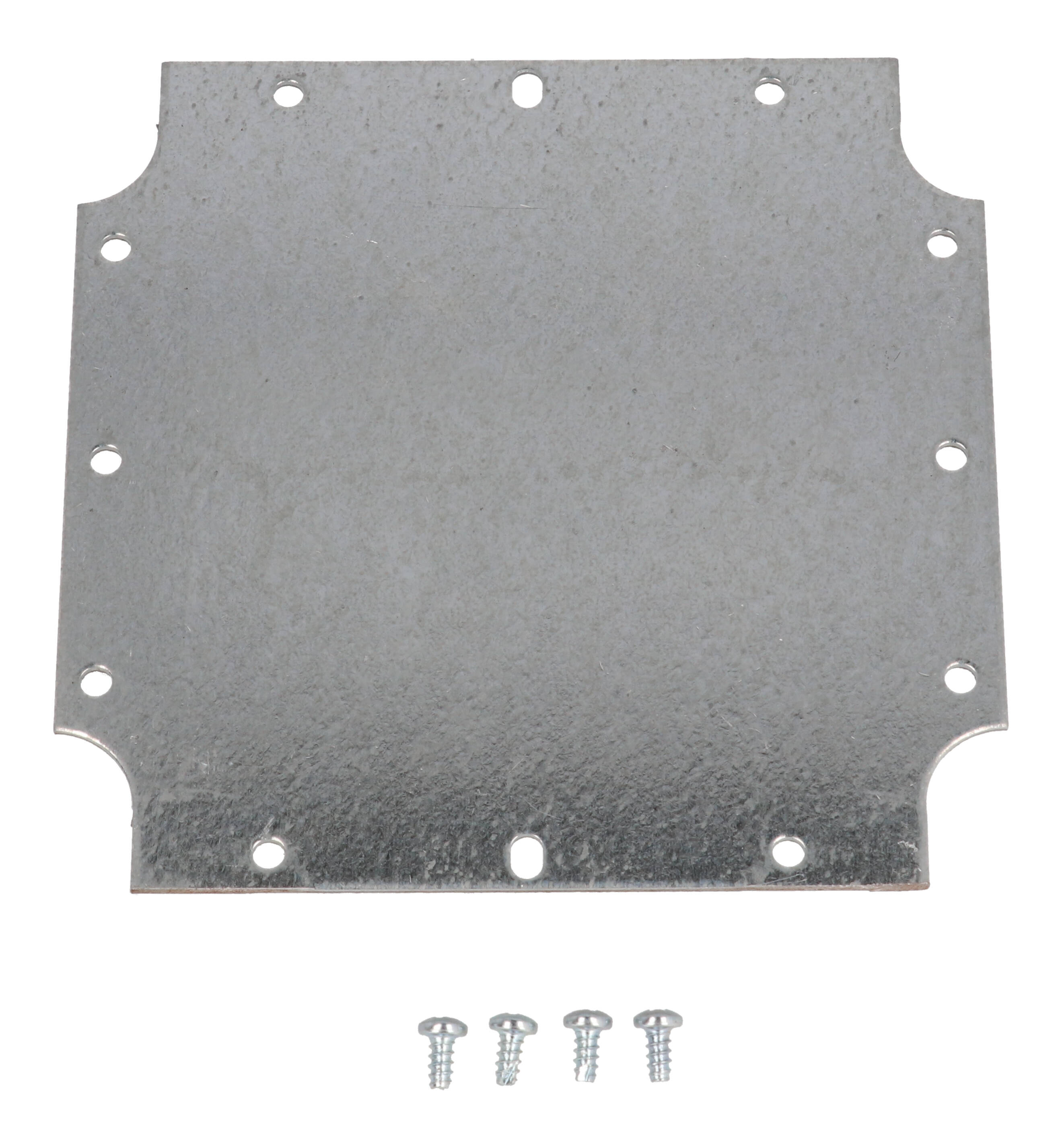

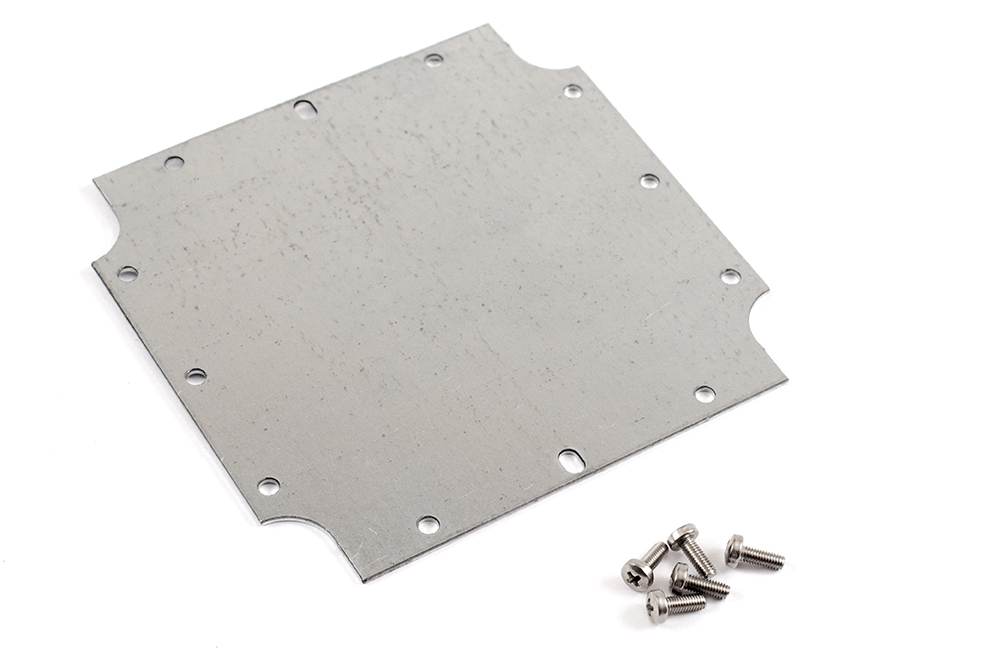

The 1555NFPL is a nearly square galvanized steel inner panel for the 1555NF enclosures of the 1555F watertight, flanged series. It gives electricians and OEM builders a rigid metal mounting plate for components inside the enclosure.
According to the series ordering table, the 1555NFPL is the inner panel for the ABS 1555NF17GY and 1555NF42GY and the polycarbonate 1555N2F17GY and 1555N2F42GY. It is sold separately from those enclosures, whose drawings mark the steel panel as order separately.
The part page gives a size of 4.24 x 4.21 x 0.06 in (108 x 107 x 2 mm). On the drawing the panel measures 107.70 mm [4.24 in] by 106.85 mm [4.21 in], 1.45 mm [.06 in] thick, with R9.53 mm [R.38 in] corners. The 106.85 x 107.7 mm outline matches the maximum PC board size listed for the 1555NF enclosures. Shipping weight is 0.28 lbs (0.13 kg), packed in shrink wrap.
The standoffs in 1555NF enclosures are designed for #4 x 1/4 in self-tapping screws, part number 1555TS100. The 1555NFPL is RoHS and REACH compliant, and it can be factory modified (milling, drilling, printing) to suit a build.
Ideal For
- Component mounting inside 1555NF enclosures
- Backplate for relays, terminals and modules
- Drilled mounting plates for OEM assemblies
Overview
| Type | Inner Panel |
| Series | 1555F Series, Type 4X, 6P Enclosures |
| Description | galvanized steel inner panel for 1555NF enclosures |
| Part Number | 1555NFPL |
| Short Description | 1555NF INNER PANEL |
Dimensions
| Shipping Weight | 0.28 lbs (0.13 kg) |
| Size (L X W X H) | 4.24 in x 4.21 in x 0.06 in (108 mm x 107 mm x 2 mm) |
| Panel Width (Drawing) | 106.85 mm [4.21 in] |
| Panel Length (Drawing) | 107.70 mm [4.24 in] |
| Corner Radius (Drawing) | R9.53 mm [R.38 in] |
| Panel Thickness (Drawing) | 1.45 mm [.06 in] |
Identifiers
| UPC | 623980025964 |
| UNSPSC | 39121301 |
Compatibility
| Fits Enclosures | 1555NF17GY, 1555N2F17GY, 1555NF42GY, 1555N2F42GY |
| Enclosure Dimensions (Not Including Flanges) | 4.72 in (120 mm) x 4.53 in (115 mm) x 1.50 in (38 mm) for the 17 versions; 4.72 in (120 mm) x 4.72 in (120 mm) x 2.48 in (63 mm) for the 42 versions |
Packaging & Shipping
| Packaging Type | Shrink wrap |
Construction & Finish
| Material | Steel (galvanized) |
| Solid Models | Available in STEP or IGES |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.); contact the factory for quotes |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| UL File # (Listed On Part Page) | E65324 |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1555NFPL fit?▾
The 1555NF17GY, 1555N2F17GY, 1555NF42GY and 1555N2F42GY, per the series ordering table.
What material is it?▾
Galvanized steel.
How thick is the panel?▾
The drawing shows 1.45 mm [.06 in]; the part page lists 0.06 in (2 mm).
Does it come with the enclosure?▾
No. The enclosure drawings mark the steel panel as order separately.
Can the panel be modified?▾
The drawing notes it can be factory modified by milling, drilling or printing; contact the factory for quotes.
