Hammond 1555FF17GY 120x90x38mm ABS Flanged IP66 Watertight Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 120 x 90 x 38 mm (4.72 x 3.54 x 1.50 in) body, not including flanges
- IP66 tested ABS; IK07 impact rating
- DIN rail tabs molded into the lid
- Standoffs for #4 self-tapping screws; PC board up to 76 x 108 mm
- Flanged base with 5.00 mm mounting holes
- M4 stainless lid screws in corrosion resistant inserts

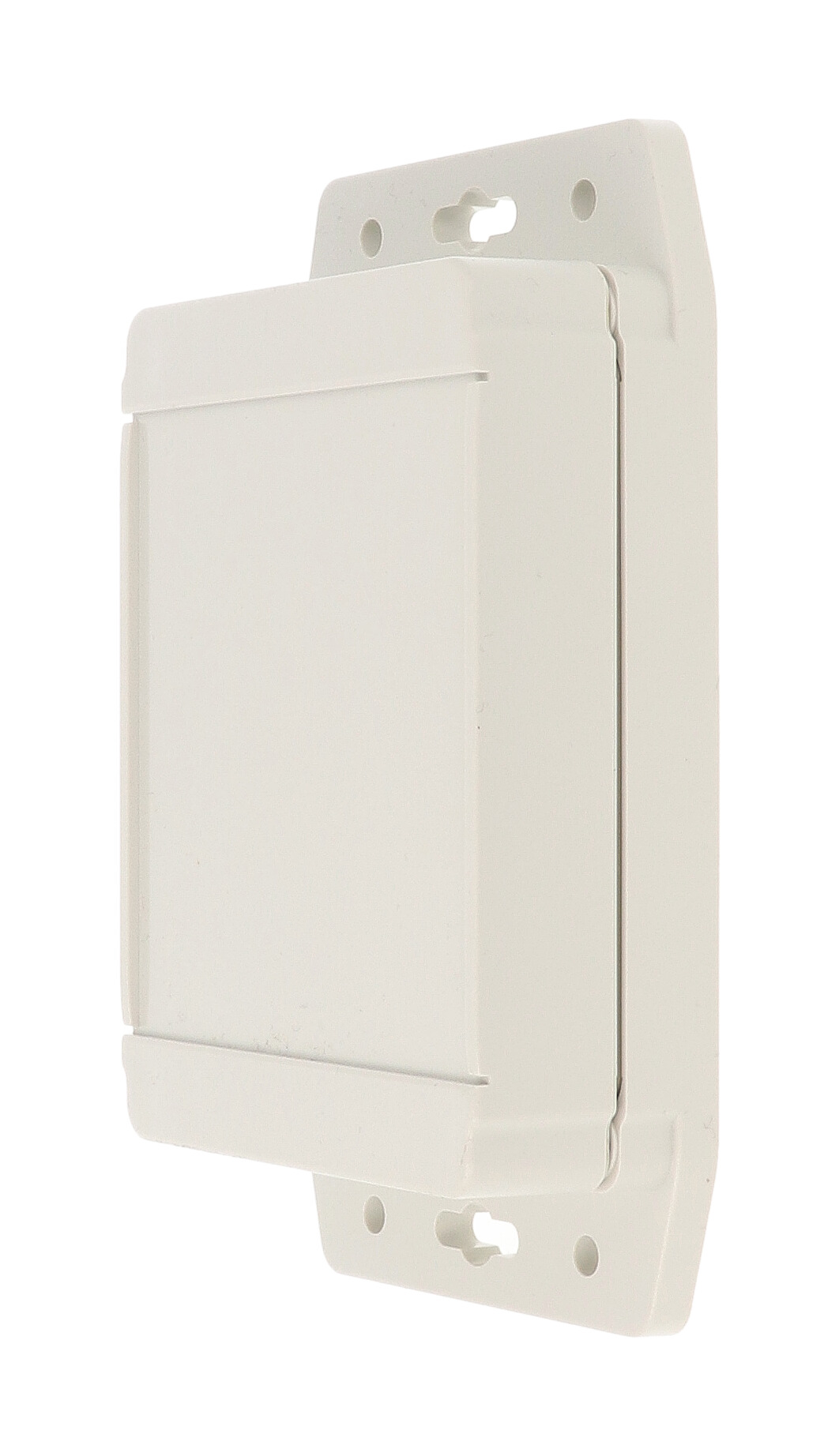

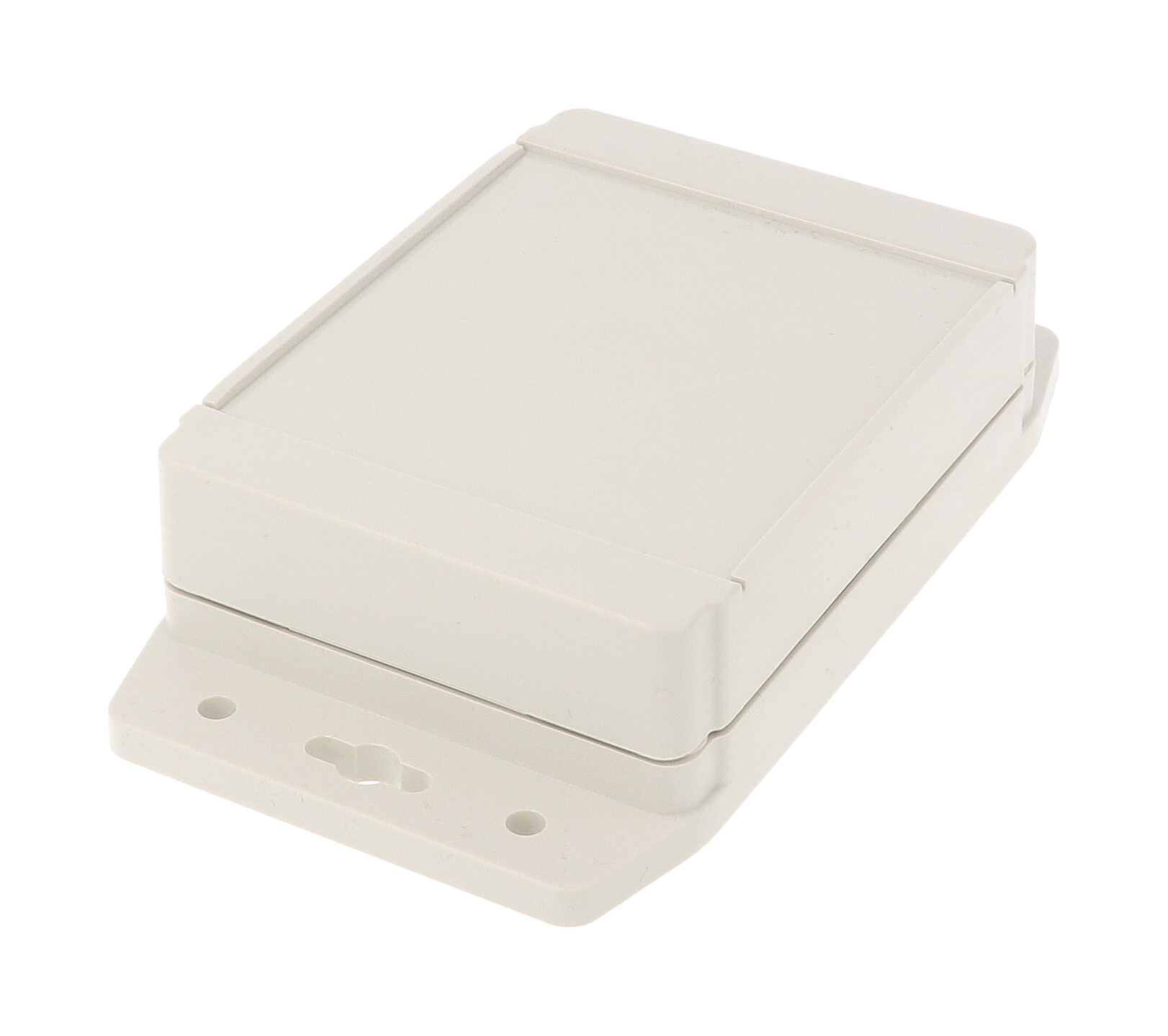

The 1555FF17GY is a 120 x 90 mm low-profile ABS enclosure from the 1555F Series for indoor equipment that benefits from a gasketed, wall-mounted housing. The flanged base fastens directly to a surface, and the smooth recessed lid area takes a membrane keypad or label.
The box is general purpose ABS with a UL94-HB flammability rating in satin RAL7035 grey. It is not UL listed but has been tested to and meets IP66, with an IK07 impact rating per IEC 62262:2021. Recommended operating temperature is -20°C to +60°C (-4°F to +140°F).
Without flanges it measures 4.72 x 3.54 x 1.50 in (120 x 90 x 38 mm); the part page lists 119 x 91 x 37 mm, and the drawing shows 160.79 mm overall across the flanges and a 37.71 mm assembly height. Inside, the base is 17.70 mm deep and the lid 12.00 mm. The lid includes molded DIN rail tabs, and standoffs for #4 x 1/4 in self-tapping screws (1555TS100) hold a PC board up to 76 x 108 mm or the optional 1555FFPL steel inner panel.
A one-piece silicone gasket, supplied loose, seals the tongue and groove joint, and four included M4 stainless screws fasten into corrosion resistant inserts behind the lid (2.5 lbf-in / 30 cN-m recommended). The 1555FF17GY is RoHS and REACH compliant and weighs 0.38 lbs (0.17 kg).
Ideal For
- Indoor controls and instrumentation
- PC board housings
- DIN rail mounted modules
- Membrane keypad interfaces
Mounting
| Mounting Style | Wall mounting via base mounting flanges |
| DIN Rail Mounting | Internal DIN rail mounting tabs molded into lid |
| Internal Standoffs | Molded in lid and enclosure for #4 x 1/4" self-tapping screws (part number 1555TS100); for PC board or inner panel |
| Flange Mounting Holes | 4X 5.00 mm [0.20 in] |
| Inner Panel (Order Separately) | 1555FFPL galvanized steel inner panel |
Overview
| Type | Water-tight, flanged |
| Series | 1555F Series (Type 4X, 6P Enclosures) |
| Version | General Purpose ABS |
| Part Number | 1555FF17GY |
| Long Description | RAL7035 grey watertight plastic enclosure, flange |
| Short Description | ABS FLANGED BASE NEMA ENCL. |
| Included In Assembly | Styled box, flanged lid, 4 cover screws and preformed silicone gasket |
| Equivalent Polycarbonate UL Listed) Part Number | 1555F2F17GY |
Dimensions
| Max. P.C. Board Width | 108 mm |
| Max. P.C. Board Length | 76 mm |
| Inner Box Depth (Drawing) | 17.70 mm [0.70 in] |
| Inner Lid Depth (Drawing) | 12.00 mm [0.47 in] |
| Size L X W X H (Part Page) | 4.7 in x 3.6 in x 1.47 in (119 mm x 91 mm x 37 mm) |
| Width (Not Including Flanges) | 3.54 in (90 mm) |
| Height (Not Including Flanges) | 1.50 in (38 mm) |
| Length (Not Including Flanges) | 4.72 in (120 mm) |
| Assembly Height (Drawing Side View) | 37.71 mm [1.48 in] |
| Overall Length Including Flanges (Drawing) | 160.79 mm [6.33 in] |
Accessories
| Inner Panel | 1555FFPL |
| Replacement Gasket (Pair) | 1554FGASKET (silicone pre-formed gasket, black) |
| Steel Panel / P.C. Board Self Tapping Screw | 1555TS100 (#4 x 1/4" (6.4 mm), plated) |
Identifiers
| UPC | 623980036199 |
| UNSPSC | 39121301 |
| Drawing Reference | 1555FF17 (REV 01.11.2019) |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.38 lbs (0.17 kg) |
Construction & Finish
| Color | Light Gray (RAL7035) |
| Finish | Satin texture with smooth recessed surface on lid for a membrane keypad or label |
| Gasket | One-piece preformed silicone gasket (high temperature, UL listed silicone), black; supplied loose inside the enclosure (not pre-installed) |
| Material | ABS Plastic |
| Lid Screws | M4 stainless steel machine screws, included; located behind the lid |
| Lid Construction | Flanged lid; gasketed two-piece tongue and groove construction |
| Lid Screw Inserts | M4 corrosion resistant inserts (bushings) for repetitive assembly and disassembly |
| Recommended Cover Screw Torque | 2.5 lbf-in (30 cN-m) |
Environmental & Protection
| Intended Use | Indoor use |
| Impact Rating | IK07 per IEC 62262:2021 |
| Recommended Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | ABS version is not UL listed / not UL approved |
| Flame Rating | UL94 HB |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is 1555FF17GY suitable for outdoor use?▾
The ABS version is intended for indoor use. The UV stabilized polycarbonate 1555F2F17GY is the outdoor-rated equivalent.
What is its IP rating?▾
IP66. The ABS version has been tested to and meets IP66 but is not UL listed.
What does the enclosure include?▾

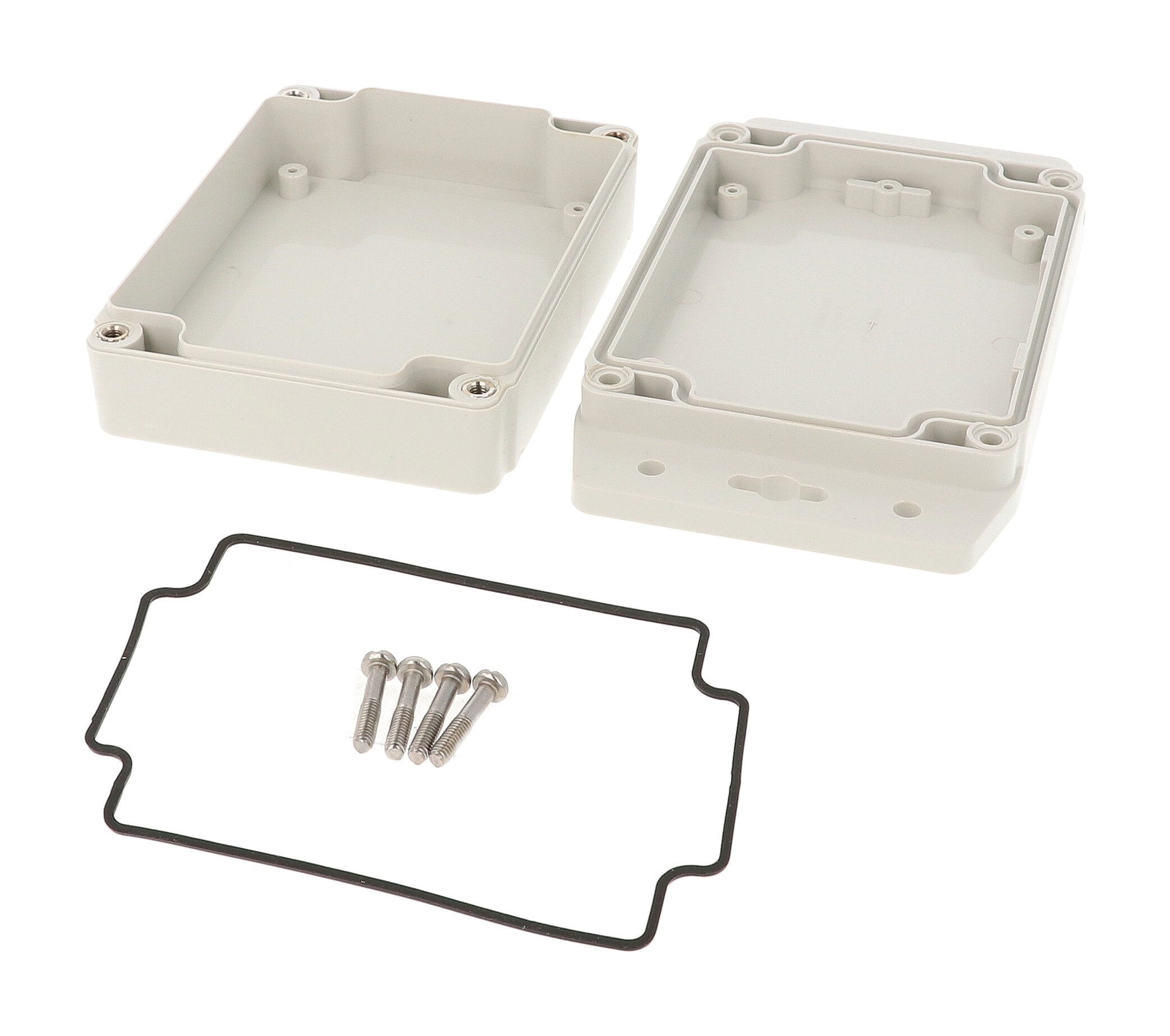

The box, flanged lid, four M4 stainless steel cover screws and a preformed silicone gasket supplied loose.
Which inner panel fits?▾
1555FFPL, a galvanized steel inner panel sold separately.
