Hammond 1555Q2F17GY 141x140x37 mm Polycarbonate Flanged NEMA Enclosure

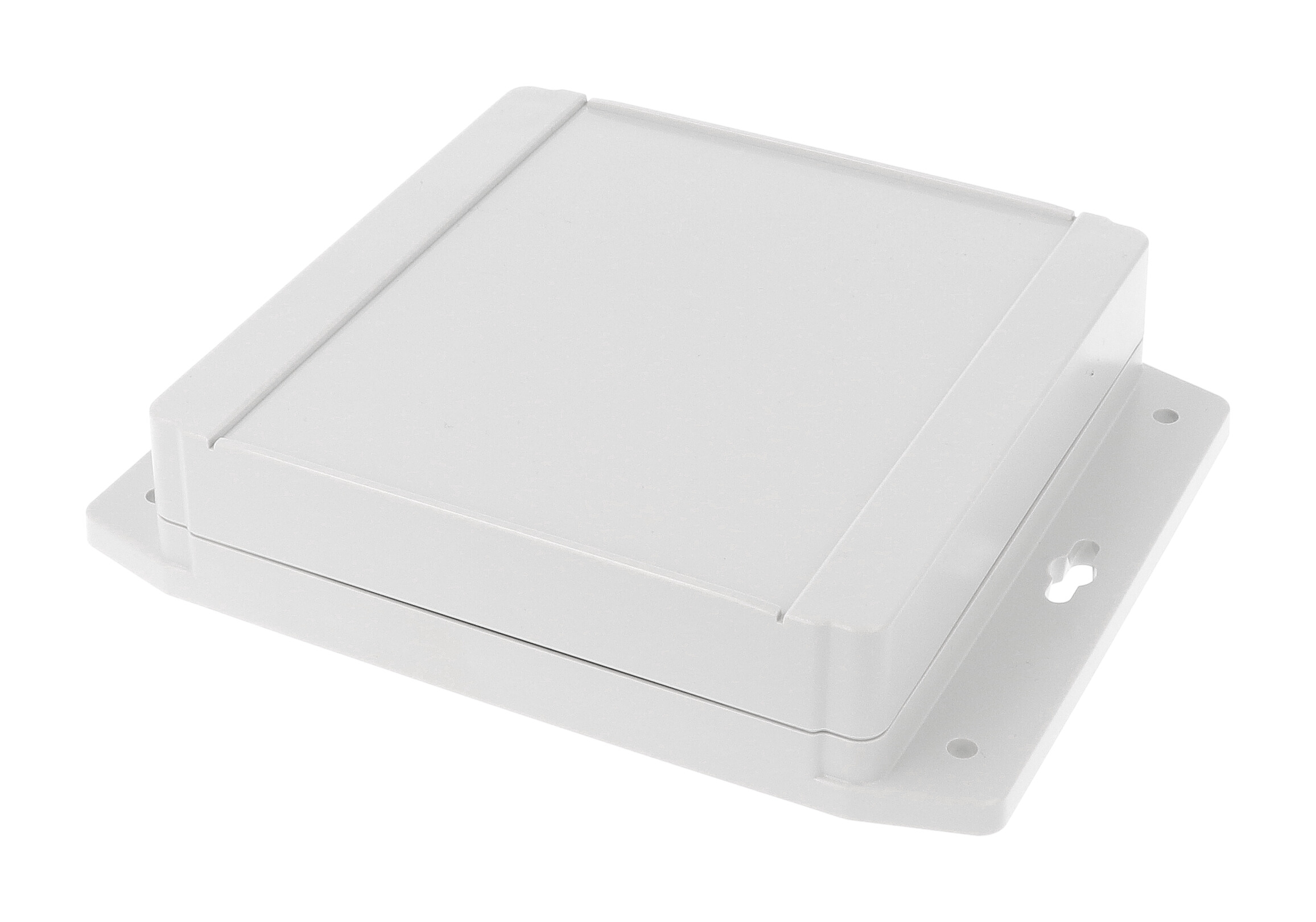

The 1555Q2F17GY is a shallow, square polycarbonate enclosure in the 1555QF size, with a flanged base for wall mounting and a gasketed, watertight lid. At 141 x 140 mm it gives a broad, low-profile housing for outdoor wireless, security and control electronics.

This part appears in the Polycarb (UL Listed) column of the series table, and the drawing lists it as Polycarbonate RAL-7035. Polycarbonate versions are UV stabilized for outdoor use, rated UL94 5VA, cUL and UL 508A listed under file E65324, tested to IP66, IP67, IP68 and NEMA 4, 4X, 6, 6P, 12 and 13, with IK08 impact and a -40°C to +110°C recommended range.

The part page lists 5.51 x 5.51 x 1.46 in (140 x 140 x 37 mm); the series table gives 141 x 140 x 37 mm without flanges. The drawing shows 180.00 mm overall across the flanges with 4X Ø5.00 mm holes at 158.00 mm spacing, a 17.00 mm inner box depth and a 12.00 mm inner lid depth. Shipping weight is 0.58 lbs (0.26 kg).

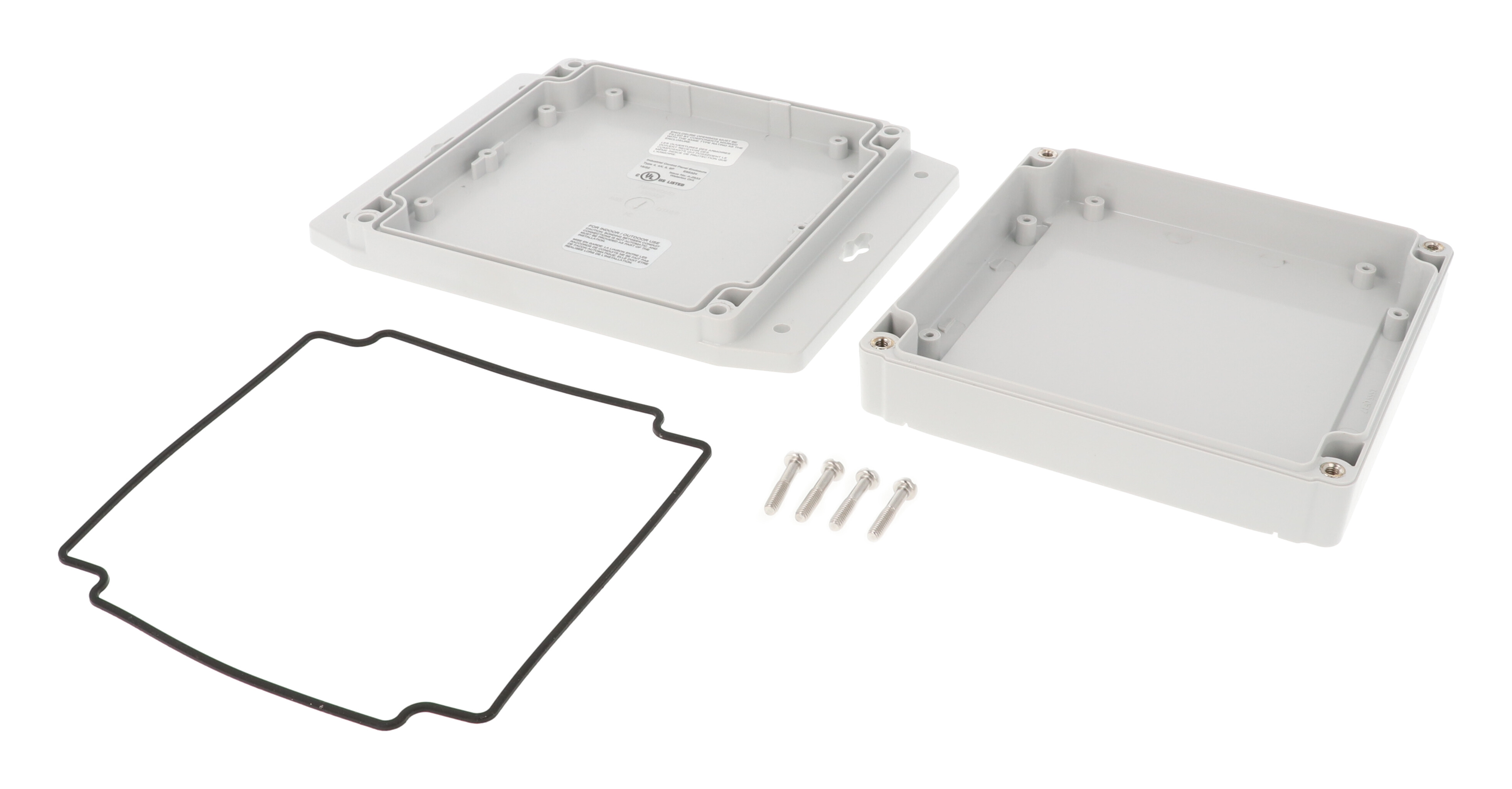

Inside the 1555Q2F17GY, six Ø2.25 mm bosses accept #4 self-tapping screws for a PC board or the 1554QPL steel inner panel, and DIN rail tabs are molded into the lid. The lid closes with M4 stainless steel screws into corrosion resistant inserts; the replacement gasket is 1554QGASKET (Pkg 2).
