Hammond 1555Q2F42GY 140mm Square UL Listed Polycarbonate Flanged Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Body 5.55 x 5.51 x 2.44 in (141 x 140 x 62 mm) not including flanges; 180 mm overall across flanges
- Polycarbonate, cUL and UL 508A listed under file #E65324, UV stabilized for outdoor use
- Tested to IP66, IP67, IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13; IK08 impact rating
- 42.00 mm inner box depth plus 12.00 mm inner lid depth
- Tongue and groove lid with one-piece silicone gasket; M4 stainless screws in corrosion resistant inserts
- Molded DIN rail tabs in lid and standoffs for #4 x 1/4" self-tapping screws
- Optional 1554QPL steel inner panel; replacement gasket pair 1554QGASKET

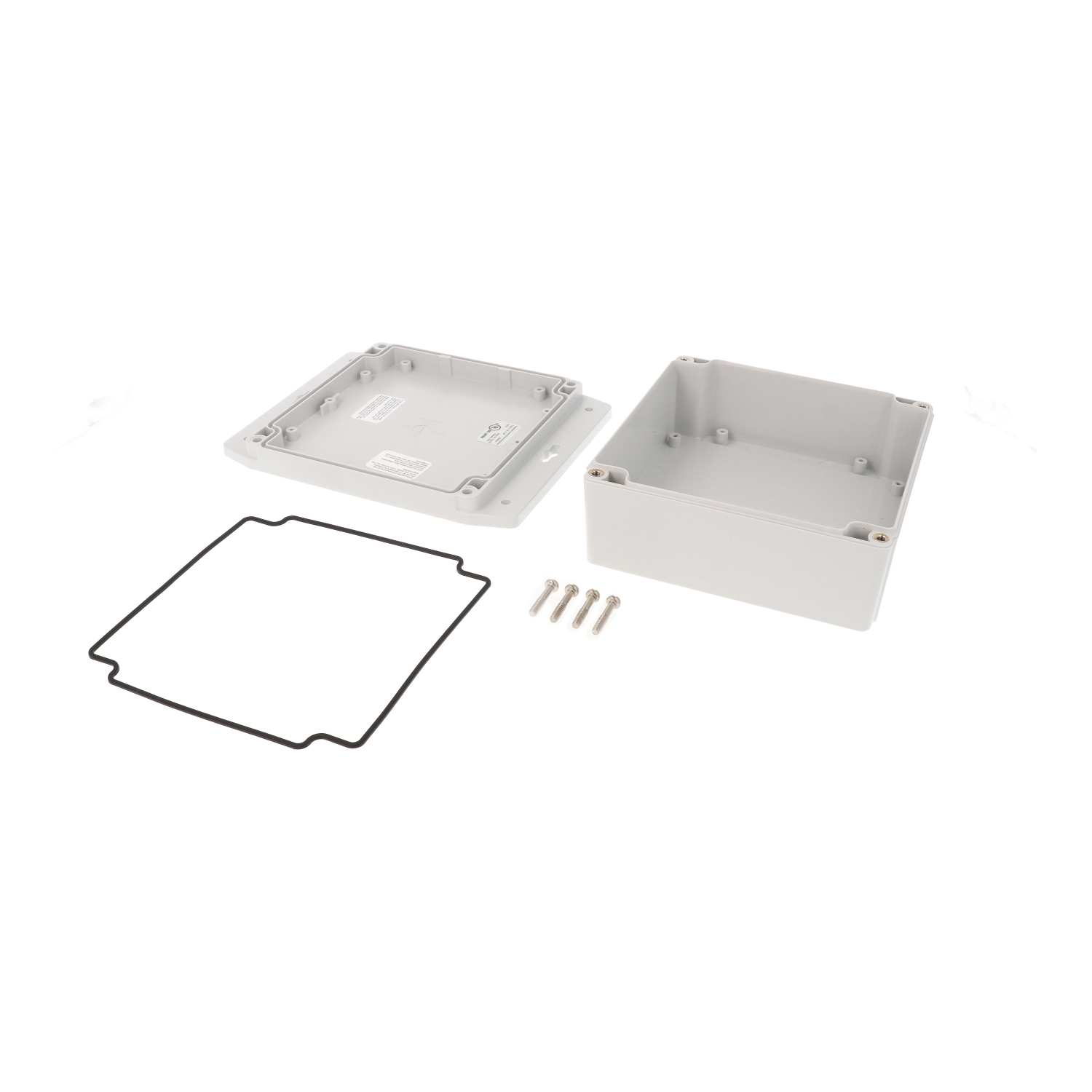

The 1555Q2F42GY is the polycarbonate, UL listed version of the 1555F Series flanged-base enclosure in the Q size, built for outdoor wireless, security, controls and other harsh industrial installations. It gives OEM engineers and integrators a watertight, wall-mountable housing for printed circuit boards, panels or DIN rail mounted components.
This is the taller of the two Q heights. The body measures 5.55 x 5.51 x 2.44 in (141 x 140 x 62 mm) not including flanges, and the drawing shows 180.00 mm [7.09 in] overall length across the flanges with a 158.00 mm [6.22 in] flange hole spacing. Inner box depth is 42.00 mm [1.65 in] and inner lid depth 12.00 mm [.47 in], leaving useful room for taller components.
The polycarbonate is UV stabilized, carries a UL94-5VA rating and is cUL and UL 508A listed under file #E65324. Polycarbonate versions have been independently tested to IP66, IP67 and IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13, carry an IK08 impact rating per IEC 62262:2021, and have a recommended operating range of -40°C to +110°C (-40°F to +230°F).
The satin RAL7035 grey lid seals through a two-piece tongue and groove joint with a one-piece silicone gasket, supplied loose. M4 stainless steel lid screws thread into corrosion resistant inserts behind the lid (recommended torque 2.5 lbf-in / 30 cN-m). Inside, DIN rail tabs are molded into the lid and standoffs accept #4 x 1/4" self-tapping screws; the 1554QPL steel inner panel is ordered separately.
Ideal For
- Outdoor wireless equipment housings
- Security system electronics
- Industrial controls in harsh environments
- PCB and DIN rail component mounting
- Wall-mounted sealed junction housings
Overview
| Series | 1555F Series, Type 4X, 6P Enclosures (Watertight, Flanged Lid) |
| Material | Polycarbonate |
| CAD Models | Solid models available in .stp or .x_t |
| Part Number | 1555Q2F42GY |
| Long Description | RAL7035 grey watertight plastic enclosure, flange |
| Short Description | PC FLANGED BASE NEMA ENCL. |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| ABS Equivalent Part Number | 1555QF42GY |
Dimensions
| Inner Box Depth | 42.00 mm [1.65 in] |
| Inner Lid Depth | 12.00 mm [.47 in] |
| Lid Inlay Width | 134.00 mm [5.28 in] |
| Lid Inlay Length | 107.00 mm [4.21 in] |
| Flange Mounting Holes | 4X Ø5.00 mm [.20 in] |
| Size L X W X H (Part Page) | 5.51 in x 5.51 in x 2.44 in (140 mm x 140 mm x 62 mm) |
| Body Length X Width (Drawing) | 141.05 mm [5.55 in] x 140.13 mm [5.52 in] |
| Width (Not Including Flanges) | 5.51 in (140 mm) |
| Height (Not Including Flanges) | 2.44 in (62 mm) |
| Length (Not Including Flanges) | 5.55 in (141 mm) |
| Overall Height, Assembled (Drawing) | 62.20 mm [2.45 in] |
| Flange Mounting Hole Spacing (Drawing) | 158.00 mm [6.22 in] |
| Overall Length Including Flanges (Drawing) | 180.00 mm [7.09 in] |
Identifiers
| UPC | 623980043319 |
| UNSPSC | 39121301 |
| Drawing Revision | REV 23.08.2022 |
Rack Mounting
| DIN Rail | Internal DIN rail mounting tabs molded into lid |
| Mounting | Designed for wall mounting via base mounting flanges |
| Internal Standoffs | Standoffs molded in the lid and enclosure interior for PC board or inner panel; accept #4 x 1/4" self-tapping screws |
| Inner Panel (Order Separately) | 1554QPL (galvanized steel) |
| Self-Tapping Screw (Order Separately) | 1555TS100 (Steel Panel / P.C. Board Self Tapping Screw, #4 x 1/4" (6.4mm), Plated) |
Packaging & Shipping
| Shipping Weight | 0.7 lbs (0.32 kg) |
Construction & Finish
| Finish | Satin texture RAL7035 grey |
| Gasket | One-piece, high temperature, UL listed silicone; supplied loose inside the enclosure (not pre-installed) |
| Included | Styled box, flanged lid, 4 cover screws and preformed silicone gasket |
| Lid Seal | Gasketed lid with two-piece tongue and groove construction; protection against access of oil, dust and water |
| Lid Surface | Smooth recessed surface on lid for a membrane keypad or label |
| Lid Fasteners | Included M4 stainless steel machine screws threaded into corrosion resistant bushings (M4 corrosion resistant inserts) for repetitive assembly and disassembly; lid screws are behind the lid |
| Replacement Lid Screws | SC576-50 (Stainless Steel Cover Screws, M4-0.7 x 20mm, Pkg 50) |
| Replacement Gasket (Pair) | 1554QGASKET |
| Recommended Cover Screw Torque | 2.5 lbf-in (30 cN-m) |
Environmental & Protection
| Impact Rating | IK08 per IEC 62262:2021 |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents and some greases and oils |
| Outdoor Suitability | UV stabilized for outdoor use (polycarbonate versions) |
| Flame Rating (Material) | UL94-5VA (gray polycarbonate); drawing: Matl UL94 - 5VA @ 3mm |
| NEMA Type Ratings (Series) | Type 4, 4X, 6, 6P, 12 and 13 |
| Ingress Protection (Series) | Independently tested to meet IP66, IP67 and IP68 |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F); customers should conduct their own testing to determine suitability for any specific application |
Compliance & Certifications
| UL Listing | cUL and UL 508A listed under file #E65324 (polycarbonate versions) |
| Drawing Note | Polycarbonate version is UL 508 approved (Matl UL94 - 5VA @ 3mm) |
| RoHS Compliant | Yes |
| Drawing Marking | cULus Listed, File #E65324, Type 4, 4X, 6, 6P (polycarbonate version only) |
| REACH Compliant | Yes |
| UL File # (Part Page) | E65324 |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1555Q2F42GY?▾
The body is 5.55 x 5.51 x 2.44 in (141 x 140 x 62 mm) not including flanges. The drawing gives 180.00 mm [7.09 in] overall length with flanges and 62.20 mm [2.45 in] assembled height.
Is the 1555Q2F42GY suitable for outdoor use?▾
Yes. Polycarbonate versions are UV stabilized for outdoor use and have been tested to IP66, IP67, IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13.
Is it UL listed?▾
Polycarbonate versions are cUL and UL 508A listed under file #E65324.
Which inner panel fits this enclosure?▾
The series table lists 1554QPL as the steel inner panel for the Q size; it is ordered separately.
Is the gasket installed?▾
No. The one-piece silicone gasket is supplied loose inside the enclosure. The replacement gasket pair is 1554QGASKET.
What is the ABS equivalent?▾
The general purpose ABS version of this size and height is 1555QF42GY.
