Hammond 1555UF42GY 200 x 120mm Deep ABS Watertight Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Body 7.87 x 4.72 x 2.56 in (200 x 120 x 65 mm) not including flanges
- 42.00 mm inner box depth plus 14.50 mm inner lid depth
- ABS plastic, IP66 and UL94 HB, for indoor use
- Accepts P.C. boards up to 189 x 107 mm
- Flanged base, 218 mm hole spacing, 240 mm overall length
- Molded DIN rail tabs and #4 self-tapping screw standoffs
- Accessories: 1555UFPL inner panel, 1554UGASKET, SC576-50 screws

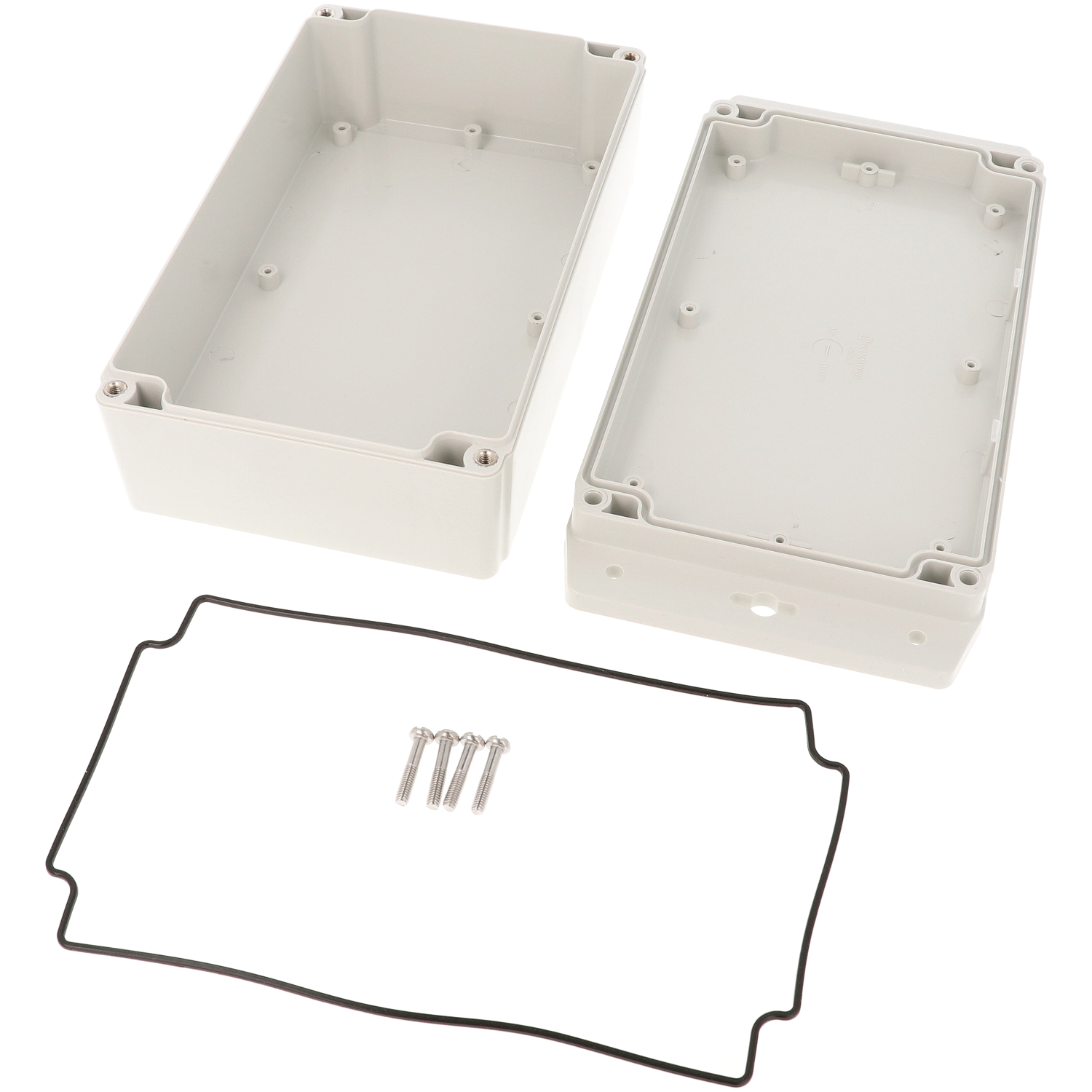

The 1555UF42GY is the deeper general purpose ABS enclosure in the U size of the 1555F Series. It provides a watertight rectangular housing with wall-mount flanges for indoor electronics that need more height than the 40 mm low-profile model offers, such as DIN rail devices or populated circuit boards.
It measures 7.87 x 4.72 x 2.56 in (200 x 120 x 65 mm) not including flanges. The drawing shows 240.00 mm [9.45 in] overall length with flanges, 218.00 mm [8.58 in] flange hole spacing, 65.20 mm [2.57 in] assembled height, 42.00 mm [1.65 in] inner box depth and 14.50 mm [.57 in] inner lid depth. Boards up to 189 x 107 mm are accepted, and shipping weight is 0.77 lbs (0.35 kg).
The part page lists ABS plastic, light gray, IP66 and UL94 HB. ABS versions of the series are for indoor use, are not UL listed, carry an IK07 impact rating per IEC 62262:2021 and are recommended for -20°C to +60°C (-4°F to +140°F).
Construction details include a satin RAL7035 grey finish, recessed lid face for a keypad or label, a two-piece tongue and groove seal with loose-supplied silicone gasket, and M4 stainless steel lid screws in corrosion resistant inserts behind the lid. Standoffs accept #4 x 1/4" self-tapping screws for the separately sold 1555UFPL inner panel.
Ideal For
- Indoor industrial controls
- DIN rail relay and terminal housings
- Instrument enclosures with front keypads
- Wall-mounted electronics
Overview
| Type | Water-tight |
| Color | Light Gray |
| Series | 1555F Series, Type 4X, 6P Enclosures (Watertight, Flanged Lid) |
| Material | ABS Plastic |
| CAD Models | Solid models available in .stp or .x_t |
| Part Number | 1555UF42GY |
| Long Description | RAL7035 grey watertight plastic enclosure, flange |
| Short Description | ABS FLANGED BASE NEMA ENCL. |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Polycarbonate UL Listed) Equivalent Part Number | 1555U2F42GY |
Dimensions
| Inner Box Depth | 42.00 mm [1.65 in] |
| Inner Lid Depth | 14.50 mm [.57 in] |
| Flange Mounting Holes | Ø5.00 mm [.20 in] |
| Max. P.C. Board Width | 107 mm |
| Max. P.C. Board Length | 189 mm |
| Size L X W X H (Part Page) | 7.87 in x 4.72 in x 2.56 in (200 mm x 120 mm x 65 mm) |
| Body Length X Width (Drawing) | 200.13 mm [7.88 in] x 120.63 mm [4.75 in] |
| Width (Not Including Flanges) | 4.72 in (120 mm) |
| Height (Not Including Flanges) | 2.56 in (65 mm) |
| Length (Not Including Flanges) | 7.87 in (200 mm) |
| Overall Height, Assembled (Drawing) | 65.20 mm [2.57 in] |
| Flange Mounting Hole Spacing (Drawing) | 218.00 mm [8.58 in] |
| Overall Length Including Flanges (Drawing) | 240.00 mm [9.45 in] |
Identifiers
| UPC | 623980032528 |
| UNSPSC | 39121301 |
| Drawing Revision | REV 16.01.2025 |
Rack Mounting
| DIN Rail | Internal DIN rail mounting tabs molded into lid |
| Mounting | Designed for wall mounting via base mounting flanges |
| Internal Standoffs | Standoffs molded in the lid and enclosure interior for PC board or inner panel; accept #4 x 1/4" self-tapping screws |
| Inner Panel (Order Separately) | 1555UFPL (galvanized steel) |
Packaging & Shipping
| Shipping Weight | 0.77 lbs (0.35 kg) |
Construction & Finish
| Finish | Satin texture RAL7035 grey |
| Gasket | One-piece, high temperature, UL listed silicone; supplied loose inside the enclosure (not pre-installed) |
| Lid Seal | Gasketed lid with two-piece tongue and groove construction; protection against access of oil, dust and water |
| Lid Surface | Smooth recessed surface on lid for a membrane keypad or label |
| Lid Fasteners | Included M4 stainless steel machine screws threaded into corrosion resistant bushings (M4 corrosion resistant inserts) for repetitive assembly and disassembly; lid screws are behind the lid |
| Replacement Gasket (Pair) | 1554UGASKET |
Environmental & Protection
| Intended Use | Indoor use (ABS versions) |
| Impact Rating | IK07 per IEC 62262:2021 |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents and some greases and oils |
| IP Rating (Part Page) | IP66 |
| Flame Rating (Material) | UL94-HB (general purpose ABS) |
| Flame Rating (Part Page) | UL94 HB |
| Ingress Protection (Series) | Tested to and meets IP66 (ABS versions) |
| Recommended Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
Compliance & Certifications
| UL Listing | Not UL listed (ABS versions); drawing note: General Purpose ABS version is not UL approved |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| UL File # (Part Page) | E65324 |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is the 1555UF42GY different from the 1555UF17GY?▾
Both are 200 x 120 mm; the 1555UF42GY is 65 mm high with a 42.00 mm inner box depth, the 1555UF17GY is 40 mm high with a 17.00 mm inner box depth.
What is the IP rating?▾
IP66.
Is it for outdoor use?▾
ABS versions are specified for indoor use; the polycarbonate 1555U2F42GY is UV stabilized for outdoor use.
What is the maximum board size?▾
189 mm by 107 mm, per the part page.
Is the gasket installed?▾
No, the silicone gasket is supplied loose inside the enclosure.
