Hammond 1555UFPL Galvanized Steel Inner Panel, 189 x 107mm

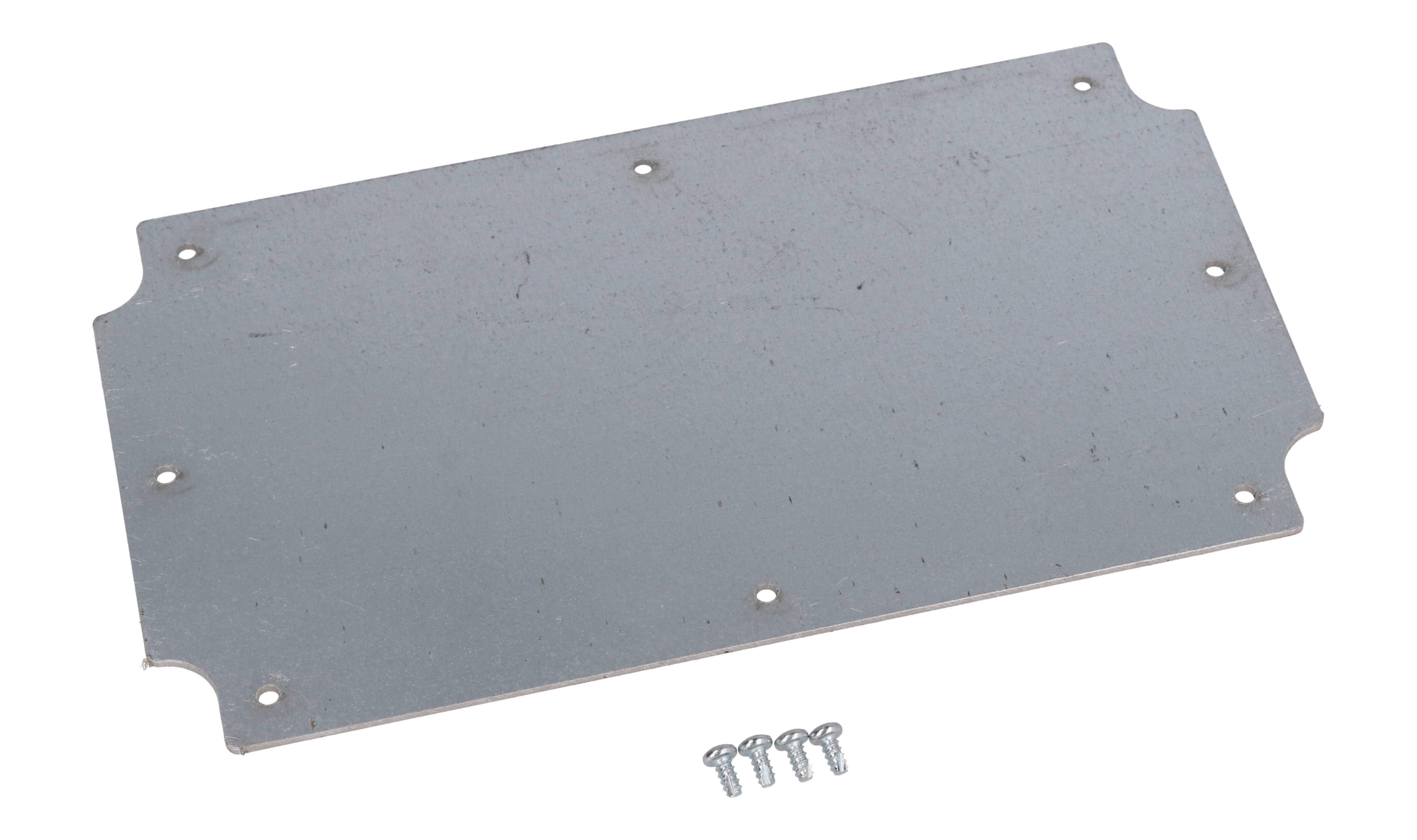

The 1555UFPL is the galvanized steel inner panel for the U size of the 1555F Series flanged enclosures. It gives panel builders and OEM engineers a flat plate for mounting components inside the enclosure rather than fastening them directly to the plastic housing.

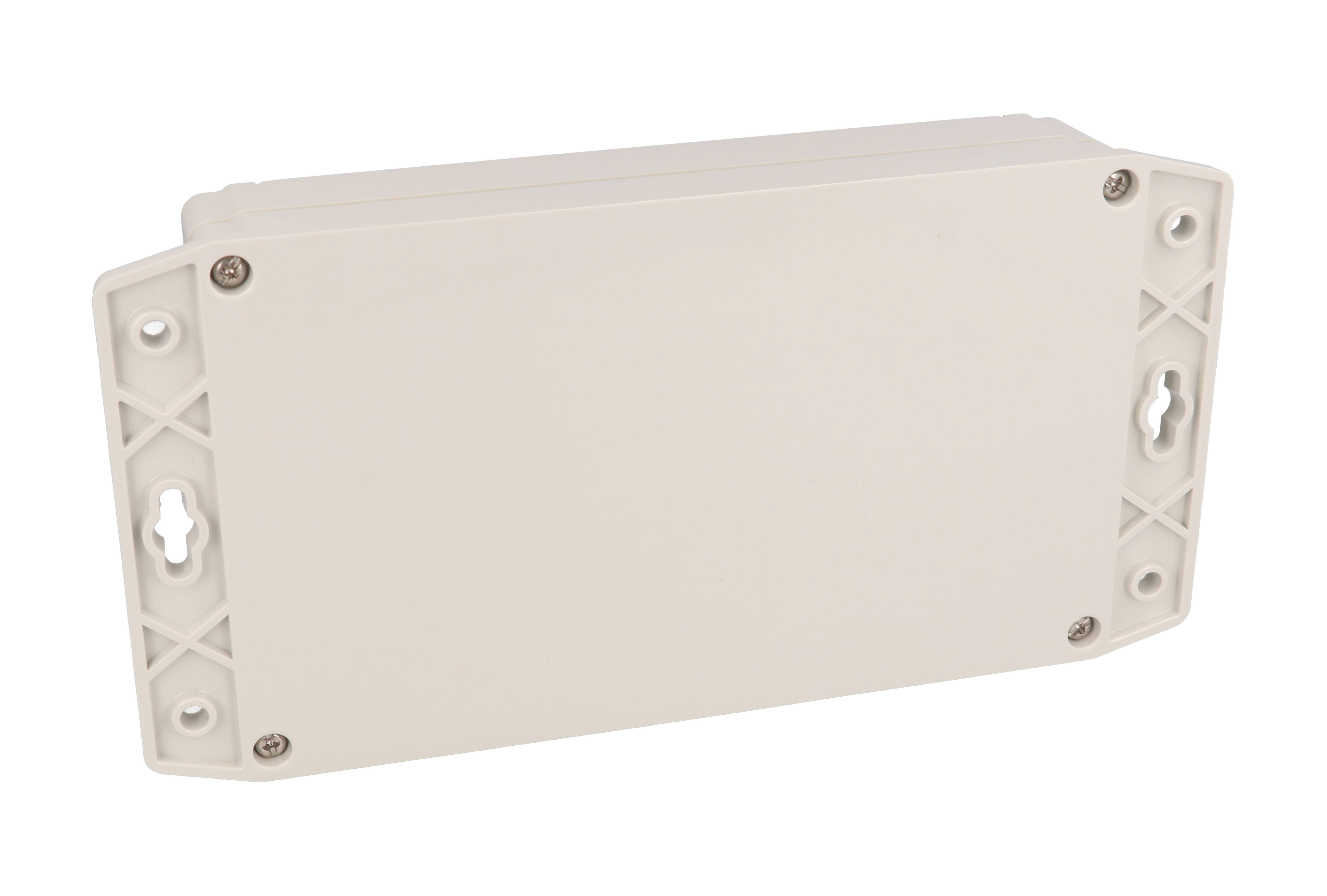

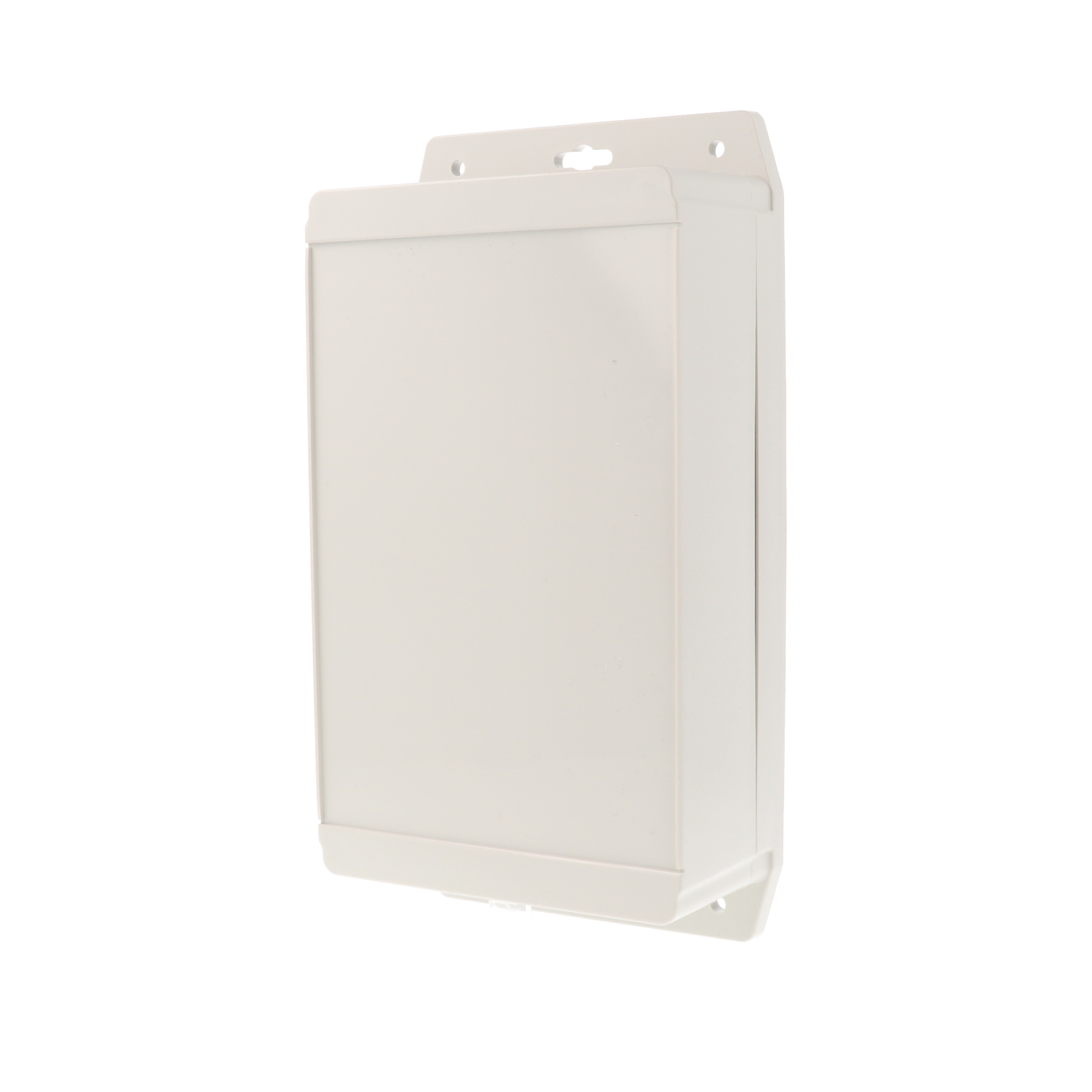

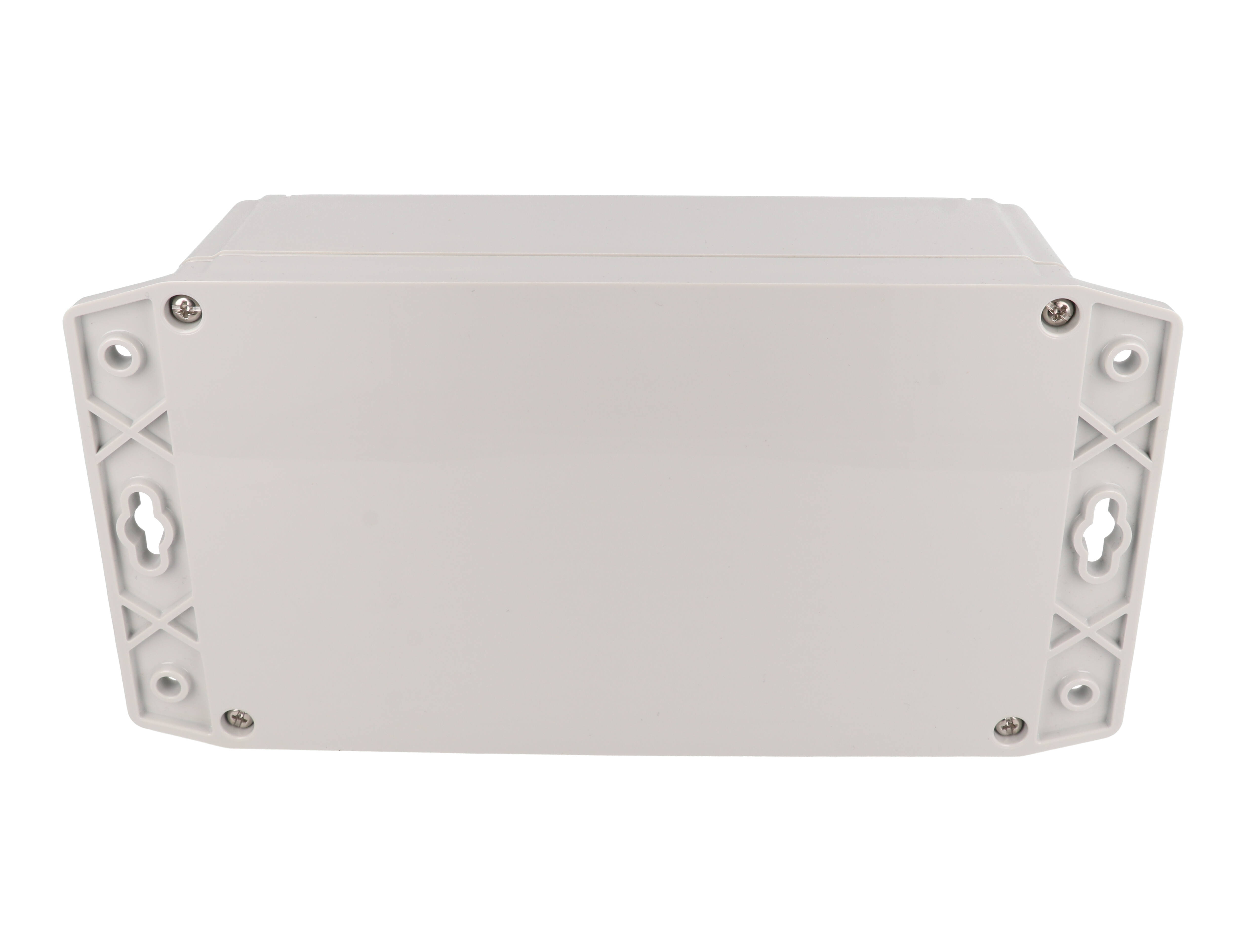

The series ordering table lists the 1555UFPL for four enclosures: 1555UF17GY and 1555UF42GY in ABS, and 1555U2F17GY and 1555U2F42GY in polycarbonate. Those enclosures measure 7.87 x 4.72 in (200 x 120 mm) not including flanges, in 40 mm and 65 mm heights.

The panel measures 7.44 x 4.21 x 0.06 in (189 x 107 x 2 mm). The drawing dimensions it at 189.00 mm [7.44 in] by 107.00 mm [4.21 in] with a 1.63 mm [.06 in] thickness, R8.50 mm [.33 in] corners and 8 x 3.25 mm [.128 in] holes. The drawing recommends a #4 self-tapping screw torque of 42.5-49.5 ozf-in (30-35 cN-m) and lists 1591MM100 [#4 x 1/4" (6.4mm) Plated] as the self-tapping screw accessory.

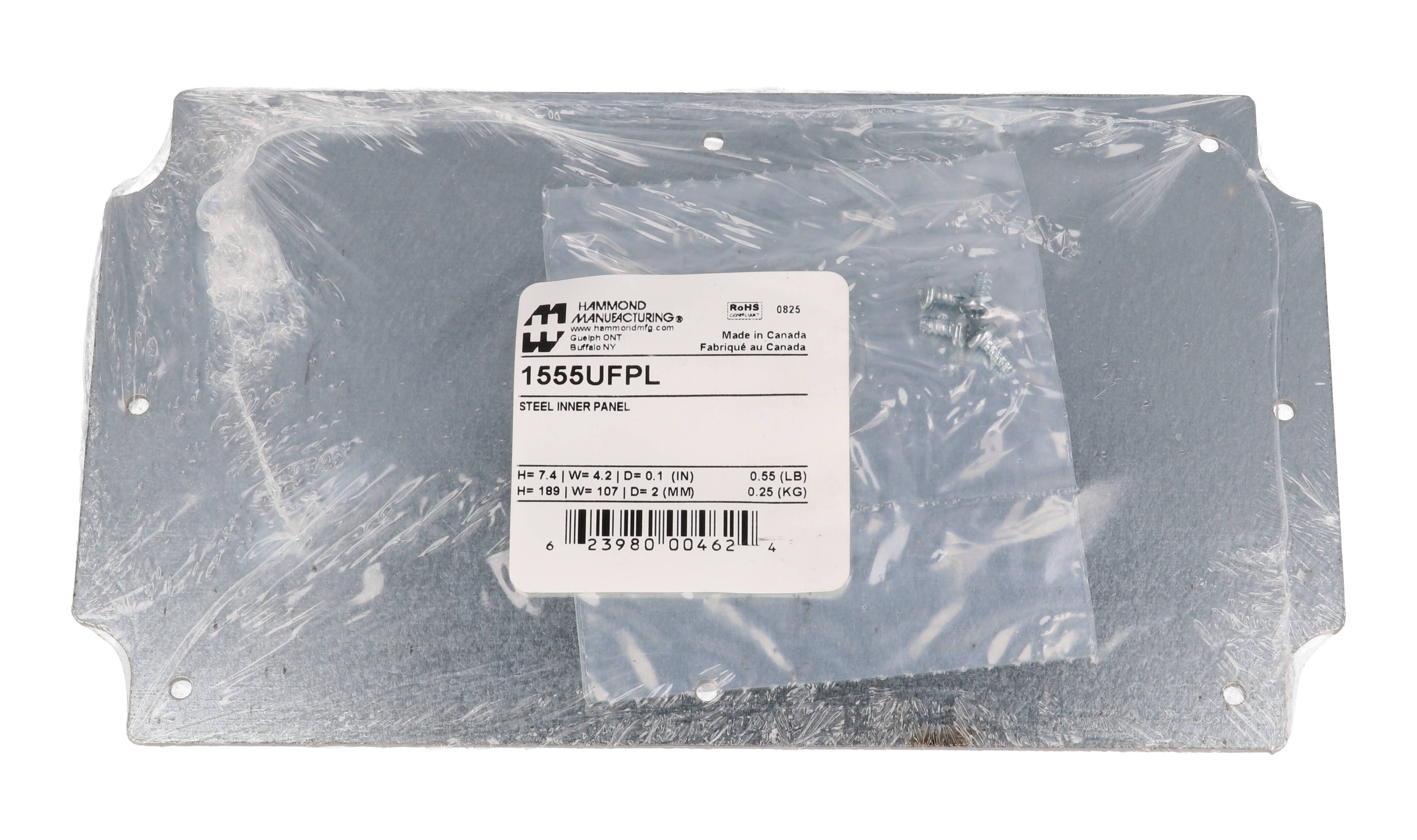

The part page lists the material as steel, category Accessories and type Inner Panel; the part is REACH and RoHS compliant and has a shipping weight of 0.55 lbs (0.25 kg). The 1555UFPL can be factory modified (milling, drilling, printing etc.), and solid models are available in .stp or .x_t.
