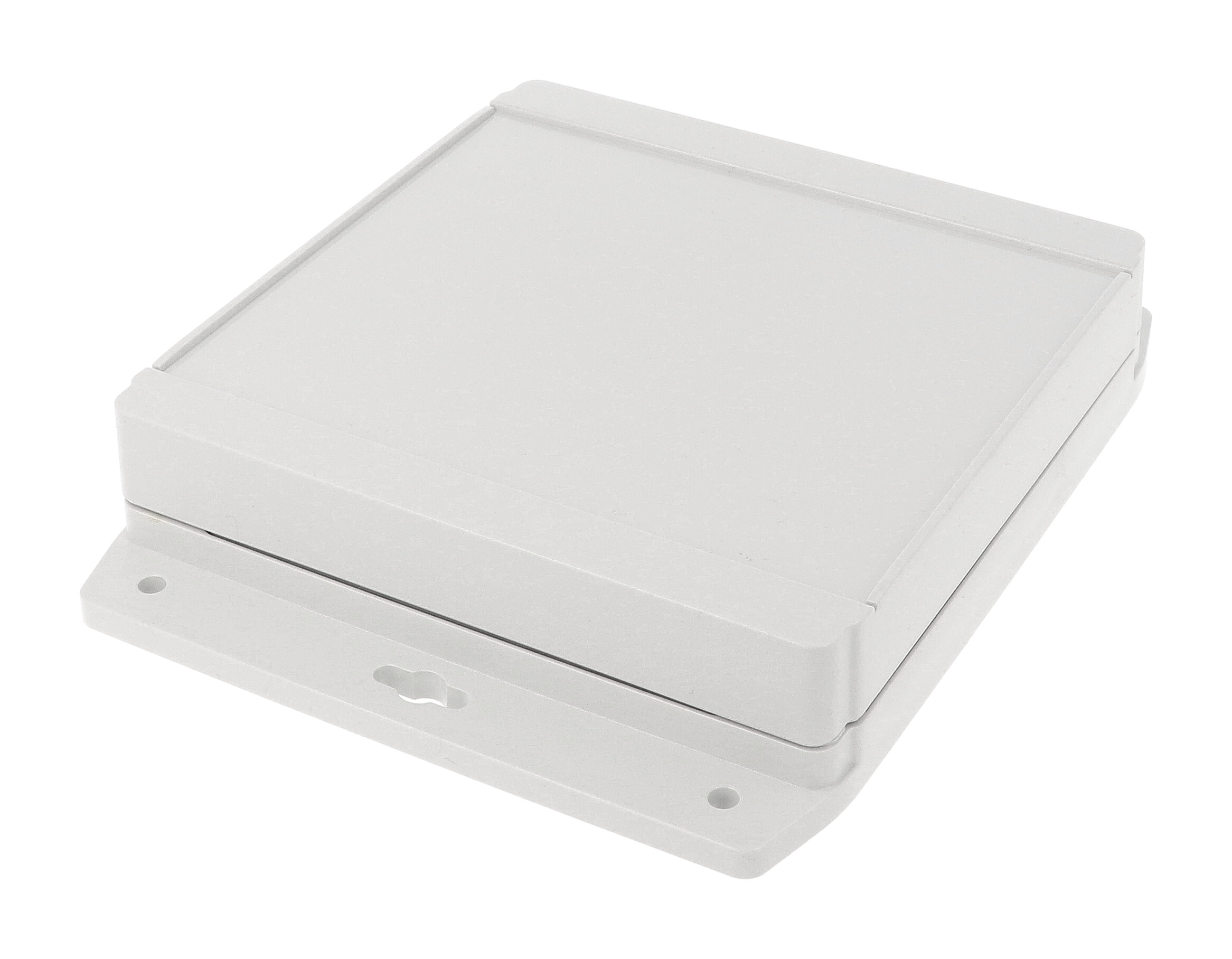

Hammond 1555RF17GY 160mm Square Low-Profile ABS Watertight Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 160 x 160 x 38 mm (6.30 x 6.30 x 1.50 in) not including flanges per series table
- ABS plastic rated IP66 and UL94 HB for indoor use
- Accepts P.C. boards up to 148 x 149 mm
- 17.44 mm inner box depth and 12.50 mm inner lid depth
- Flanged base with 178 mm hole spacing for wall mounting
- Recessed lid face for a membrane keypad or label
- Uses 1555RFPL inner panel and 1554RGASKET replacement gasket
The 1555RF17GY is the low-profile general purpose ABS enclosure in the R size of the 1555F Series. It provides a watertight, wall-mountable 160 mm square housing for indoor electronics, P.C. boards and DIN rail components where a UL listing is not required.
The series ordering table lists this part at 6.30 x 6.30 x 1.50 in (160 x 160 x 38 mm) not including flanges, and the drawing shows a 37.70 mm [1.48 in] assembled height. Note that the part page size field reads 6.3 x 6.3 x 2.46 in (160 x 160 x 62 mm). The drawing also gives 200.00 mm [7.87 in] overall length with flanges, 178.00 mm [7.01 in] flange hole spacing, 17.44 mm [.69 in] inner box depth and 12.50 mm [.49 in] inner lid depth. Maximum board size is 148 x 149 mm.
The part page lists ABS plastic, light gray color, IP66 and UL94 HB. ABS versions are for indoor use, are not UL listed, carry an IK07 impact rating per IEC 62262:2021 and have a recommended operating range of -20°C to +60°C (-4°F to +140°F).
The lid features a smooth recessed area for a membrane keypad or label and seals with a two-piece tongue and groove joint and a one-piece silicone gasket supplied loose. M4 stainless steel screws behind the lid thread into corrosion resistant inserts (recommended torque 2.5 lbf-in / 30 cN-m). The 1555RF17GY accepts the 1555RFPL steel inner panel and ships shrink wrapped at 0.31 lbs (0.14 kg).
Ideal For
- Indoor control panels and interfaces
- OEM PCB housings
- DIN rail component boxes
- Wall-mounted keypad enclosures
Overview
| Type | Water-tight, flanged |
| Color | Light Gray |
| Series | 1555F Series, Type 4X, 6P Enclosures (Watertight, Flanged Lid) |
| Material | ABS Plastic |
| CAD Models | Solid models available in .stp or .x_t |
| Part Number | 1555RF17GY |
| Long Description | RAL7035 grey watertight plastic enclosure |
| Short Description | ABS FLANGED BASE NEMA ENCL. |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Polycarbonate UL Listed) Equivalent Part Number | 1555R2F17GY |
Dimensions
| Inner Box Depth | 17.44 mm [.69 in] |
| Inner Lid Depth | 12.50 mm [.49 in] |
| Lid Inlay Width | 126.00 mm [4.96 in] |
| Lid Inlay Length | 127.00 mm [5.00 in] |
| Flange Mounting Holes | 4X Ø5.00 mm [.20 in] |
| Max. P.C. Board Width | 149 mm |
| Max. P.C. Board Length | 148 mm |
| Size L X W X H (Part Page) | 6.3 in x 6.3 in x 2.46 in (160 mm x 160 mm x 62 mm) |
| Body Length X Width (Drawing) | 160.19 mm [6.31 in] x 160.13 mm [6.30 in] |
| Width (Not Including Flanges) | 6.30 in (160 mm) |
| Height (Not Including Flanges) | 1.50 in (38 mm) |
| Length (Not Including Flanges) | 6.30 in (160 mm) |
| Overall Height, Assembled (Drawing) | 37.70 mm [1.48 in] |
| Flange Mounting Hole Spacing (Drawing) | 178.00 mm [7.01 in] |
| Overall Length Including Flanges (Drawing) | 200.00 mm [7.87 in] |
Identifiers
| UPC | 623980902005 |
| UNSPSC | 39121301 |
| Drawing Revision | REV 01.11.2019 |
Rack Mounting
| DIN Rail | Internal DIN rail mounting tabs molded into lid |
| Mounting | Designed for wall mounting via base mounting flanges |
| Internal Standoffs | Standoffs molded in the lid and enclosure interior for PC board or inner panel; accept #4 x 1/4" self-tapping screws |
| Inner Panel (Order Separately) | 1555RFPL (galvanized steel) |
| Self-Tapping Screw (Order Separately) | 1555TS100 (Steel Panel / P.C. Board Self Tapping Screw, #4 x 1/4" (6.4mm), Plated) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.31 lbs (0.14 kg) |
Construction & Finish
| Finish | Satin texture RAL7035 grey |
| Gasket | One-piece, high temperature, UL listed silicone; supplied loose inside the enclosure (not pre-installed) |

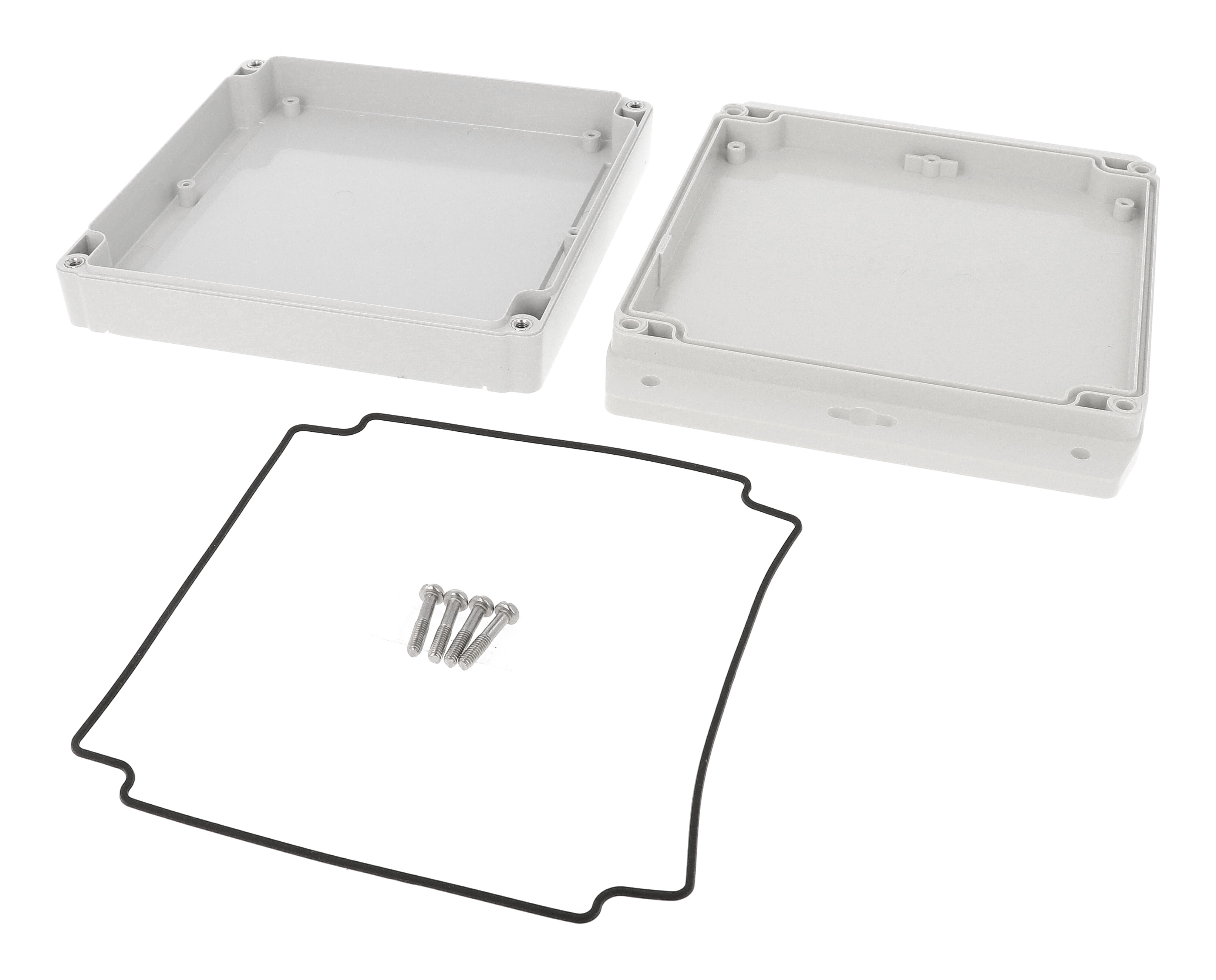

| Included | Styled box, flanged lid, 4 cover screws and preformed silicone gasket |
| Lid Seal | Gasketed lid with two-piece tongue and groove construction; protection against access of oil, dust and water |
| Lid Surface | Smooth recessed surface on lid for a membrane keypad or label |
| Lid Fasteners | Included M4 stainless steel machine screws threaded into corrosion resistant bushings (M4 corrosion resistant inserts) for repetitive assembly and disassembly; lid screws are behind the lid |
| Replacement Lid Screws | SC576-50 (Stainless Steel Cover Screws, M4-0.7 x 20mm, Pkg 50) |
| Replacement Gasket (Pair) | 1554RGASKET |
| Recommended Cover Screw Torque | 2.5 lbf-in (30 cN-m) |
Environmental & Protection
| Intended Use | Indoor use (ABS versions) |
| Impact Rating | IK07 per IEC 62262:2021 |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents and some greases and oils |
| IP Rating (Part Page) | IP66 |
| Flame Rating (Material) | UL94-HB (general purpose ABS) |
| Flame Rating (Part Page) | UL94 HB |
| Ingress Protection (Series) | Tested to and meets IP66 (ABS versions) |
| Recommended Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
Compliance & Certifications
| UL Listing | Not UL listed (ABS versions); drawing note: General Purpose ABS version is not UL approved |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| UL File # (Part Page) | E65324 |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What height is the 1555RF17GY?▾
The series table lists 1.50 in (38 mm) not including flanges and the drawing shows 37.70 mm [1.48 in]. The part page size field shows 2.46 in (62 mm).
Is the 1555RF17GY UL listed?▾
No. ABS versions are not UL listed; they have been tested to and meet IP66.
What is the polycarbonate equivalent?▾
1555R2F17GY, which is UV stabilized, IP68 rated and cUL/UL 508A listed.
What PCB size fits?▾
Up to 148 mm length by 149 mm width, per the part page.
Where can the lid screws be replaced?▾
Replacement M4 x 20mm lid assembly screws are part number SC576-50.
