Hammond 1555U2F17GY 200 x 120mm Low-Profile Polycarbonate Flanged Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Body 7.87 x 4.72 x 1.57 in (200 x 120 x 40 mm) not including flanges
- Accepts P.C. boards up to 189 x 107 mm
- Polycarbonate, IP68, UL94 5VA; cUL and UL 508A listed (file #E65324)
- UV stabilized for outdoor use; IK08 impact rating
- 240 mm overall length with flanges; 218 mm flange hole spacing
- 17.00 mm inner box depth and 14.50 mm inner lid depth
- Optional 1555UFPL steel inner panel; 1554UGASKET replacement gasket

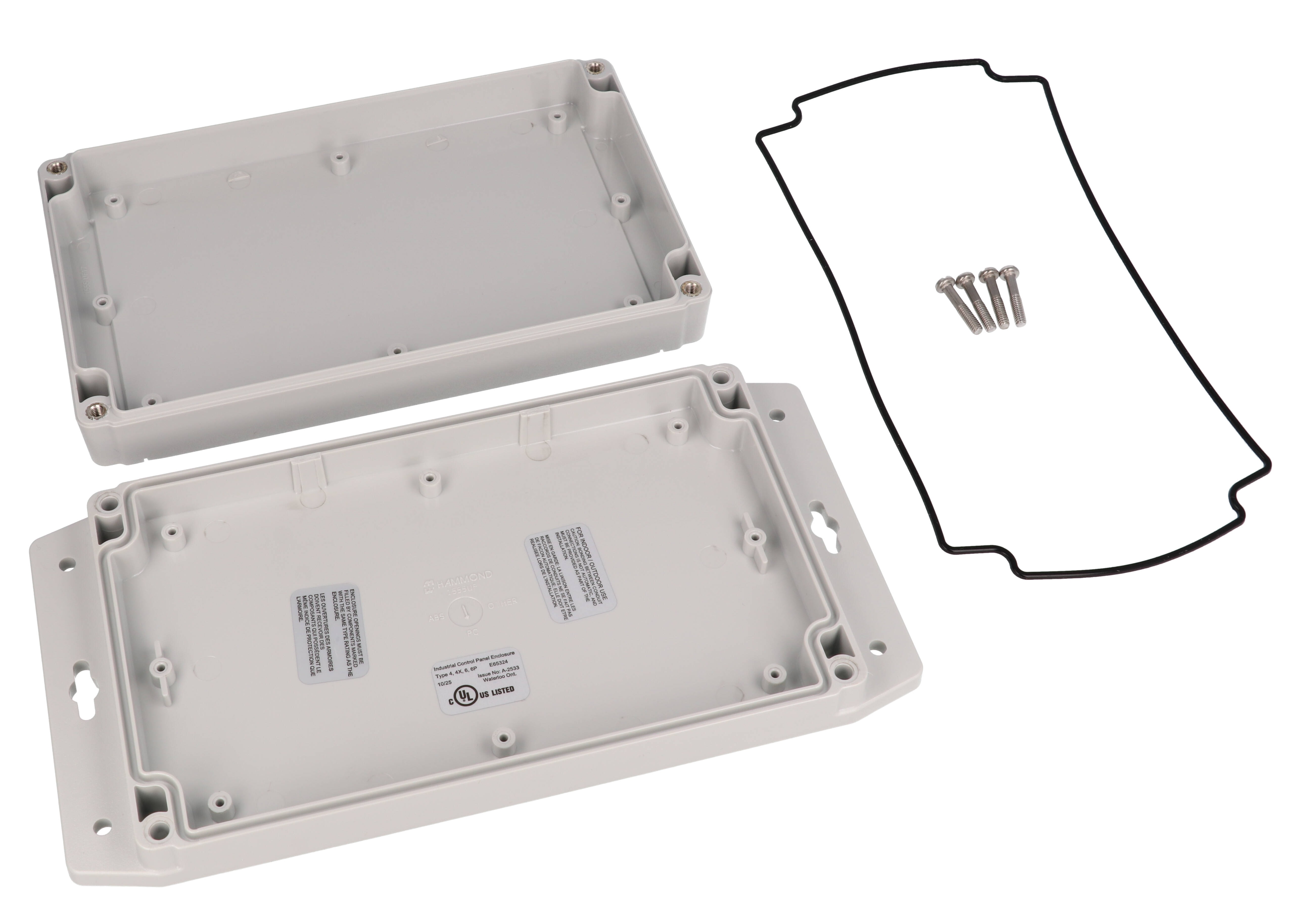

The 1555U2F17GY is a low-profile rectangular polycarbonate enclosure from the 1555F Series with a flanged base for wall mounting. Its 200 x 120 mm footprint suits longer circuit boards and DIN rail layouts in outdoor wireless, security and control applications.
The body measures 7.87 x 4.72 x 1.57 in (200 x 120 x 40 mm) not including flanges. The drawing gives 240.00 mm [9.45 in] overall length with flanges, 218.00 mm [8.58 in] flange hole spacing, 40.20 mm [1.58 in] assembled height, 17.00 mm [.67 in] inner box depth and 14.50 mm [.57 in] inner lid depth. The part page lists a maximum P.C. board size of 189 x 107 mm.
The part page lists polycarbonate plastic in light gray, IP68 and UL94 5VA. Polycarbonate versions of the series are UV stabilized for outdoor use, cUL and UL 508A listed under file #E65324, tested to NEMA Type 4, 4X, 6, 6P, 12 and 13, IK08 impact rated per IEC 62262:2021 and recommended for -40°C to +110°C (-40°F to +230°F).
The satin RAL7035 grey lid has a smooth recessed area for a keypad or label and seals with a tongue and groove joint and one-piece silicone gasket supplied loose. M4 stainless steel lid screws thread into corrosion resistant inserts behind the lid. Standoffs accept #4 self-tapping screws for the separately sold 1555UFPL galvanized steel inner panel. Shipping weight is 0.73 lbs (0.33 kg).
Ideal For
- Outdoor wireless electronics
- Security and access control boards
- Industrial controls in wet or dusty areas
- Rectangular DIN rail component layouts
Overview
| Type | Water-tight |
| Color | Light Gray |
| Series | 1555F Series, Type 4X, 6P Enclosures (Watertight, Flanged Lid) |
| Material | Polycarbonate Plastic |
| CAD Models | Solid models available in .stp or .x_t |
| Part Number | 1555U2F17GY |
| Long Description | RAL7035 grey watertight plastic enclosure, flange |
| Short Description | P/C FLANGED BASE NEMA ENCL. |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| ABS Equivalent Part Number | 1555UF17GY |
Dimensions
| Inner Box Depth | 17.00 mm [.67 in] |
| Inner Lid Depth | 14.50 mm [.57 in] |
| Flange Mounting Holes | Ø5.00 mm [.20 in] |
| Max. P.C. Board Width | 107 mm |
| Max. P.C. Board Length | 189 mm |
| Size L X W X H (Part Page) | 7.87 in x 4.72 in x 1.57 in (200 mm x 120 mm x 40 mm) |
| Body Length X Width (Drawing) | 200.13 mm [7.88 in] x 120.63 mm [4.75 in] |
| Width (Not Including Flanges) | 4.72 in (120 mm) |
| Height (Not Including Flanges) | 1.57 in (40 mm) |
| Length (Not Including Flanges) | 7.87 in (200 mm) |
| Overall Height, Assembled (Drawing) | 40.20 mm [1.58 in] |
| Flange Mounting Hole Spacing (Drawing) | 218.00 mm [8.58 in] |
| Overall Length Including Flanges (Drawing) | 240.00 mm [9.45 in] |
Identifiers
| UPC | 623980032535 |
| UNSPSC | 39121301 |
| Drawing Revision | REV 16.01.2025 |
Rack Mounting
| DIN Rail | Internal DIN rail mounting tabs molded into lid |
| Mounting | Designed for wall mounting via base mounting flanges |
| Internal Standoffs | Standoffs molded in the lid and enclosure interior for PC board or inner panel; accept #4 x 1/4" self-tapping screws |
| Inner Panel (Order Separately) | 1555UFPL (galvanized steel) |
Packaging & Shipping
| Shipping Weight | 0.73 lbs (0.33 kg) |
Construction & Finish
| Finish | Satin texture RAL7035 grey |
| Gasket | One-piece, high temperature, UL listed silicone; supplied loose inside the enclosure (not pre-installed) |
| Lid Seal | Gasketed lid with two-piece tongue and groove construction; protection against access of oil, dust and water |
| Lid Surface | Smooth recessed surface on lid for a membrane keypad or label |
| Lid Fasteners | Included M4 stainless steel machine screws threaded into corrosion resistant bushings (M4 corrosion resistant inserts) for repetitive assembly and disassembly; lid screws are behind the lid |
| Replacement Gasket (Pair) | 1554UGASKET |
Environmental & Protection
| Impact Rating | IK08 per IEC 62262:2021 |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents and some greases and oils |
| Outdoor Suitability | UV stabilized for outdoor use (polycarbonate versions) |
| IP Rating (Part Page) | IP68 |
| NEMA Rating (Part Page) | 4, 4X, 6, 6P, 12 & 31 |
| Flame Rating (Part Page) | UL94 5VA |
| NEMA Type Ratings (Series) | Type 4, 4X, 6, 6P, 12 and 13 |
| Ingress Protection (Series) | Independently tested to meet IP66, IP67 and IP68 |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F); customers should conduct their own testing to determine suitability for any specific application |
Compliance & Certifications
| UL Listing | cUL and UL 508A listed under file #E65324 (polycarbonate versions) |
| RoHS Compliant | Yes |
| Drawing Marking | cULus Listed, File #E65324, Type 4, 4X, 6, 6P (polycarbonate version only) |
| REACH Compliant | Yes |
| UL File # (Part Page) | E65324 |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size is the 1555U2F17GY?▾
7.87 x 4.72 x 1.57 in (200 x 120 x 40 mm) not including flanges, and 240.00 mm [9.45 in] long with flanges per the drawing.
What is the largest board it accepts?▾
The part page lists a maximum P.C. board length of 189 mm and width of 107 mm.
Is it suitable outdoors?▾
Yes. Polycarbonate versions are UV stabilized for outdoor use, and the part page lists IP68.
Which inner panel fits?▾
The 1555UFPL galvanized steel inner panel, 189 x 107 mm, ordered separately.
Is there a deeper version?▾
The 1555U2F42GY has the same footprint with a 65 mm height.
