Hammond 1555U2F42GY 200 x 120mm Deep Polycarbonate Flanged Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Body 7.87 x 4.72 x 2.56 in (200 x 120 x 65 mm) not including flanges
- 42.00 mm inner box depth for taller components
- Polycarbonate, IP68, UL94 5VA; cUL and UL 508A listed (file #E65324)
- UV stabilized for outdoor use; -40°C to +110°C recommended range
- Accepts P.C. boards up to 189 x 107 mm or the 1555UFPL panel
- Flanged base for wall mounting, 218 mm hole spacing
- Tongue and groove gasketed lid with M4 stainless steel screws

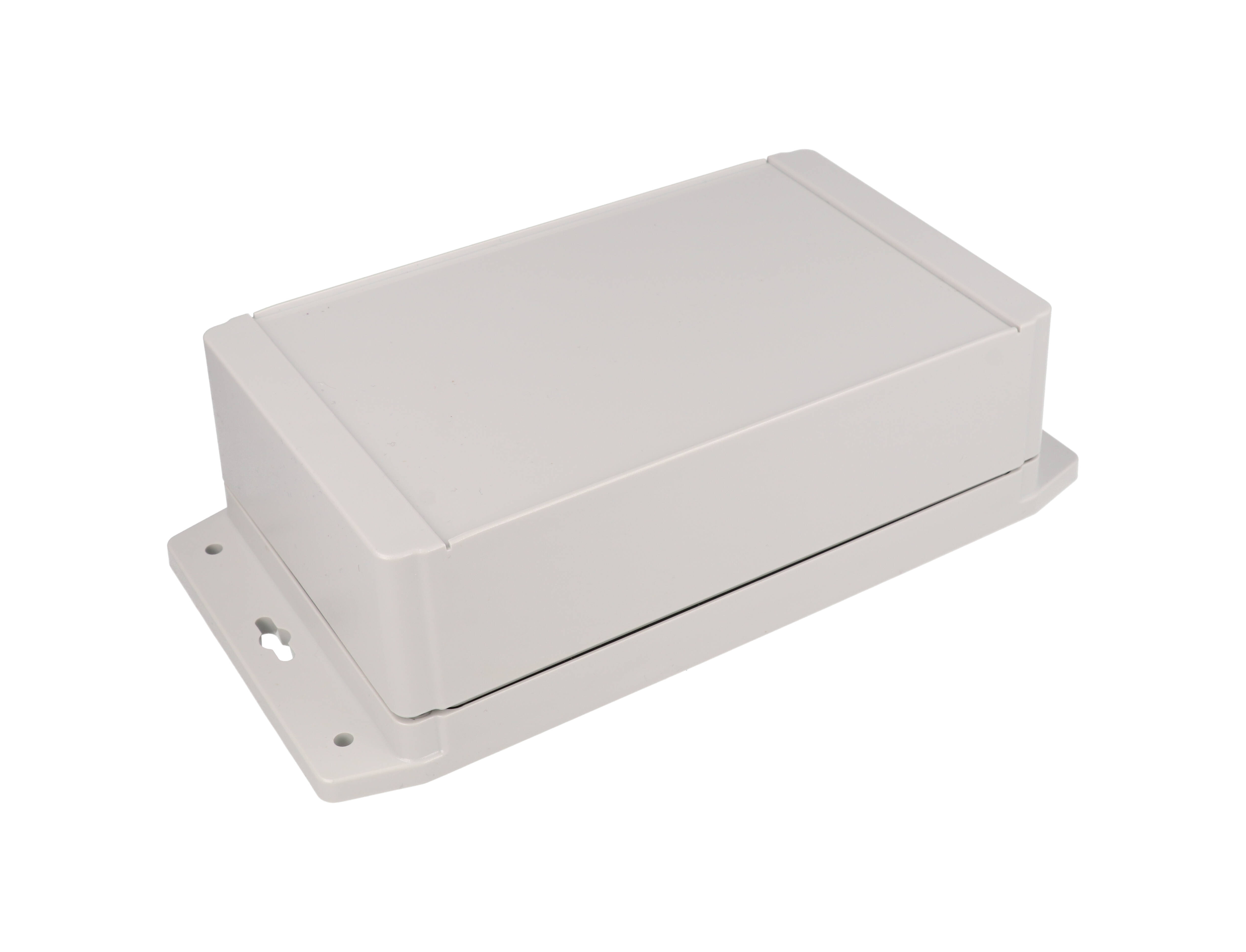

The 1555U2F42GY is the deeper polycarbonate model in the U size of the 1555F Series. The rectangular 200 x 120 mm body with wall-mount flanges suits outdoor wireless, security and control equipment that needs room for taller components or DIN rail devices.
Not including flanges it measures 7.87 x 4.72 x 2.56 in (200 x 120 x 65 mm). The drawing gives 240.00 mm [9.45 in] overall length with flanges, 218.00 mm [8.58 in] flange hole spacing, 65.20 mm [2.57 in] assembled height, 42.00 mm [1.65 in] inner box depth and 14.50 mm [.57 in] inner lid depth. The part page lists a maximum P.C. board of 189 x 107 mm, and the unit ships at 0.87 lbs (0.39 kg).
Material is polycarbonate plastic in light gray with IP68 and UL94 5VA listed on the part page. Polycarbonate versions are UV stabilized for outdoor use, cUL and UL 508A listed under file #E65324, tested to NEMA Type 4, 4X, 6, 6P, 12 and 13, IK08 impact rated per IEC 62262:2021 and recommended for -40°C to +110°C (-40°F to +230°F).

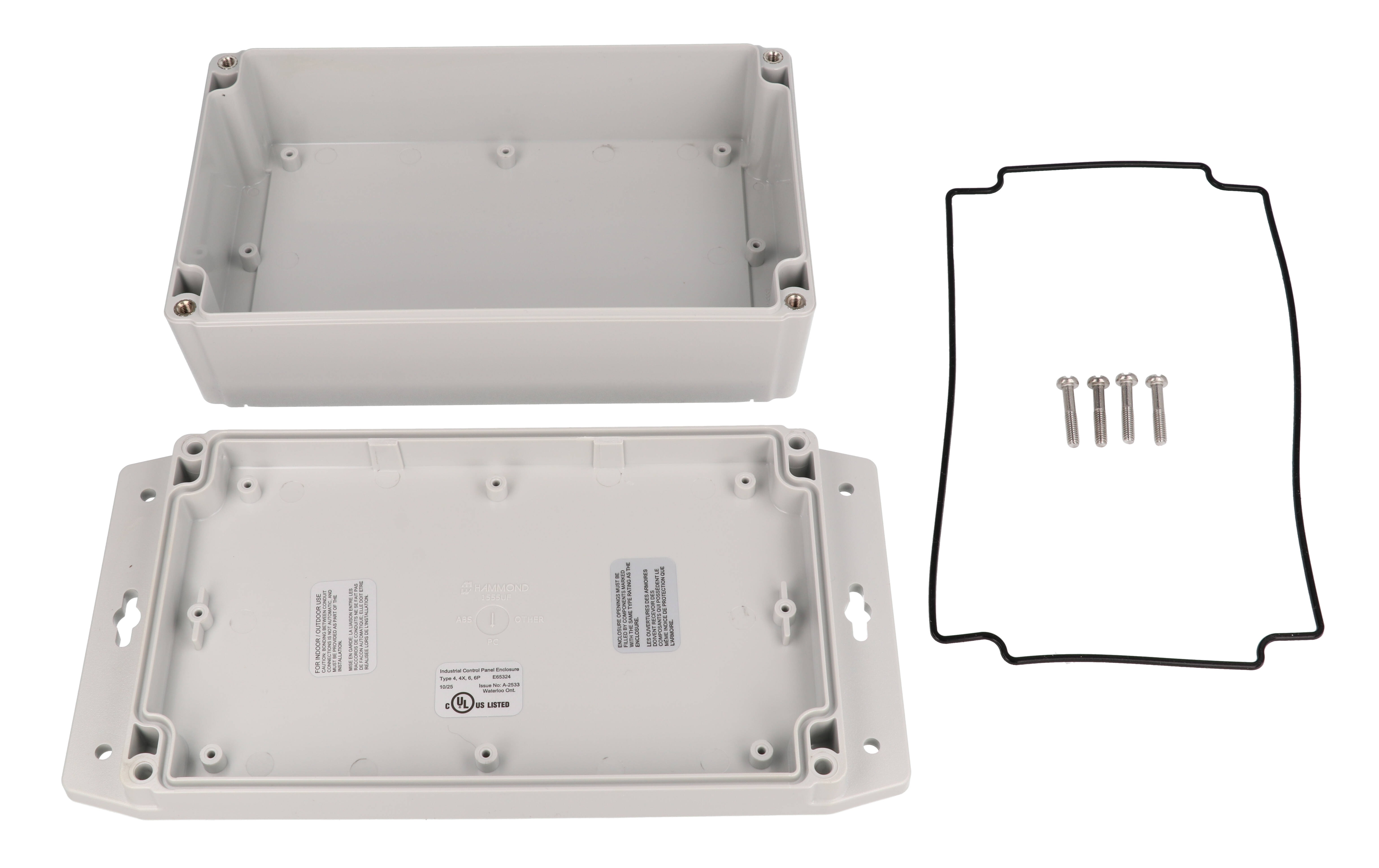

- Two-piece tongue and groove lid seal with one-piece silicone gasket, supplied loose
- M4 stainless steel lid screws in corrosion resistant inserts, located behind the lid
- DIN rail tabs molded into the lid; standoffs for #4 x 1/4" self-tapping screws
- Recessed lid surface for a membrane keypad or label
Ideal For
- Outdoor communications and wireless gear
- Security electronics
- Industrial control and DIN rail assemblies
- Wall-mounted sealed instrument housings
Overview
| Type | Water-tight |
| Color | Light Gray |
| Series | 1555F Series, Type 4X, 6P Enclosures (Watertight, Flanged Lid) |
| Material | Polycarbonate Plastic |
| CAD Models | Solid models available in .stp or .x_t |
| Part Number | 1555U2F42GY |
| Long Description | RAL7035 grey watertight plastic enclosure, flange |
| Short Description | P/C FLANGED BASE NEMA ENCL. |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| ABS Equivalent Part Number | 1555UF42GY |
Dimensions
| Inner Box Depth | 42.00 mm [1.65 in] |
| Inner Lid Depth | 14.50 mm [.57 in] |
| Flange Mounting Holes | Ø5.00 mm [.20 in] |
| Max. P.C. Board Width | 107 mm |
| Max. P.C. Board Length | 189 mm |
| Size L X W X H (Part Page) | 7.87 in x 4.72 in x 2.56 in (200 mm x 120 mm x 65 mm) |
| Body Length X Width (Drawing) | 200.13 mm [7.88 in] x 120.63 mm [4.75 in] |
| Width (Not Including Flanges) | 4.72 in (120 mm) |
| Height (Not Including Flanges) | 2.56 in (65 mm) |
| Length (Not Including Flanges) | 7.87 in (200 mm) |
| Overall Height, Assembled (Drawing) | 65.20 mm [2.57 in] |
| Flange Mounting Hole Spacing (Drawing) | 218.00 mm [8.58 in] |
| Overall Length Including Flanges (Drawing) | 240.00 mm [9.45 in] |
Identifiers
| UPC | 623980032542 |
| UNSPSC | 39121301 |
| Drawing Revision | REV 16.01.2025 |
Rack Mounting
| DIN Rail | Internal DIN rail mounting tabs molded into lid |
| Mounting | Designed for wall mounting via base mounting flanges |
| Internal Standoffs | Standoffs molded in the lid and enclosure interior for PC board or inner panel; accept #4 x 1/4" self-tapping screws |
| Inner Panel (Order Separately) | 1555UFPL (galvanized steel) |
Packaging & Shipping
| Shipping Weight | 0.87 lbs (0.39 kg) |
Construction & Finish
| Finish | Satin texture RAL7035 grey |
| Gasket | One-piece, high temperature, UL listed silicone; supplied loose inside the enclosure (not pre-installed) |
| Lid Seal | Gasketed lid with two-piece tongue and groove construction; protection against access of oil, dust and water |
| Lid Surface | Smooth recessed surface on lid for a membrane keypad or label |
| Lid Fasteners | Included M4 stainless steel machine screws threaded into corrosion resistant bushings (M4 corrosion resistant inserts) for repetitive assembly and disassembly; lid screws are behind the lid |
| Replacement Gasket (Pair) | 1554UGASKET |
Environmental & Protection
| Impact Rating | IK08 per IEC 62262:2021 |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents and some greases and oils |
| Outdoor Suitability | UV stabilized for outdoor use (polycarbonate versions) |
| IP Rating (Part Page) | IP68 |
| NEMA Rating (Part Page) | 4, 4X, 6, 6P, 12 & 32 |
| Flame Rating (Part Page) | UL94 5VA |
| NEMA Type Ratings (Series) | Type 4, 4X, 6, 6P, 12 and 13 |
| Ingress Protection (Series) | Independently tested to meet IP66, IP67 and IP68 |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F); customers should conduct their own testing to determine suitability for any specific application |
Compliance & Certifications
| UL Listing | cUL and UL 508A listed under file #E65324 (polycarbonate versions) |
| RoHS Compliant | Yes |
| Drawing Marking | cULus Listed, File #E65324, Type 4, 4X, 6, 6P (polycarbonate version only) |
| REACH Compliant | Yes |
| UL File # (Part Page) | E65324 |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How deep is the 1555U2F42GY?▾
Height is 2.56 in (65 mm) not including flanges; the drawing shows 42.00 mm [1.65 in] inner box depth and 14.50 mm [.57 in] inner lid depth.
What ratings are listed?▾
The part page lists IP68 and UL94 5VA; polycarbonate versions are also cUL and UL 508A listed and IK08 impact rated.
What PCB size fits?▾
Up to 189 x 107 mm, per the part page.
What is the ABS equivalent?▾
1555UF42GY is the general purpose ABS version of this size and height.
What replacement gasket does it use?▾
1554UGASKET, the replacement gasket pair listed for the U size.
