Hammond 1555QF17GY 140mm Square Low-Profile ABS Flanged Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features

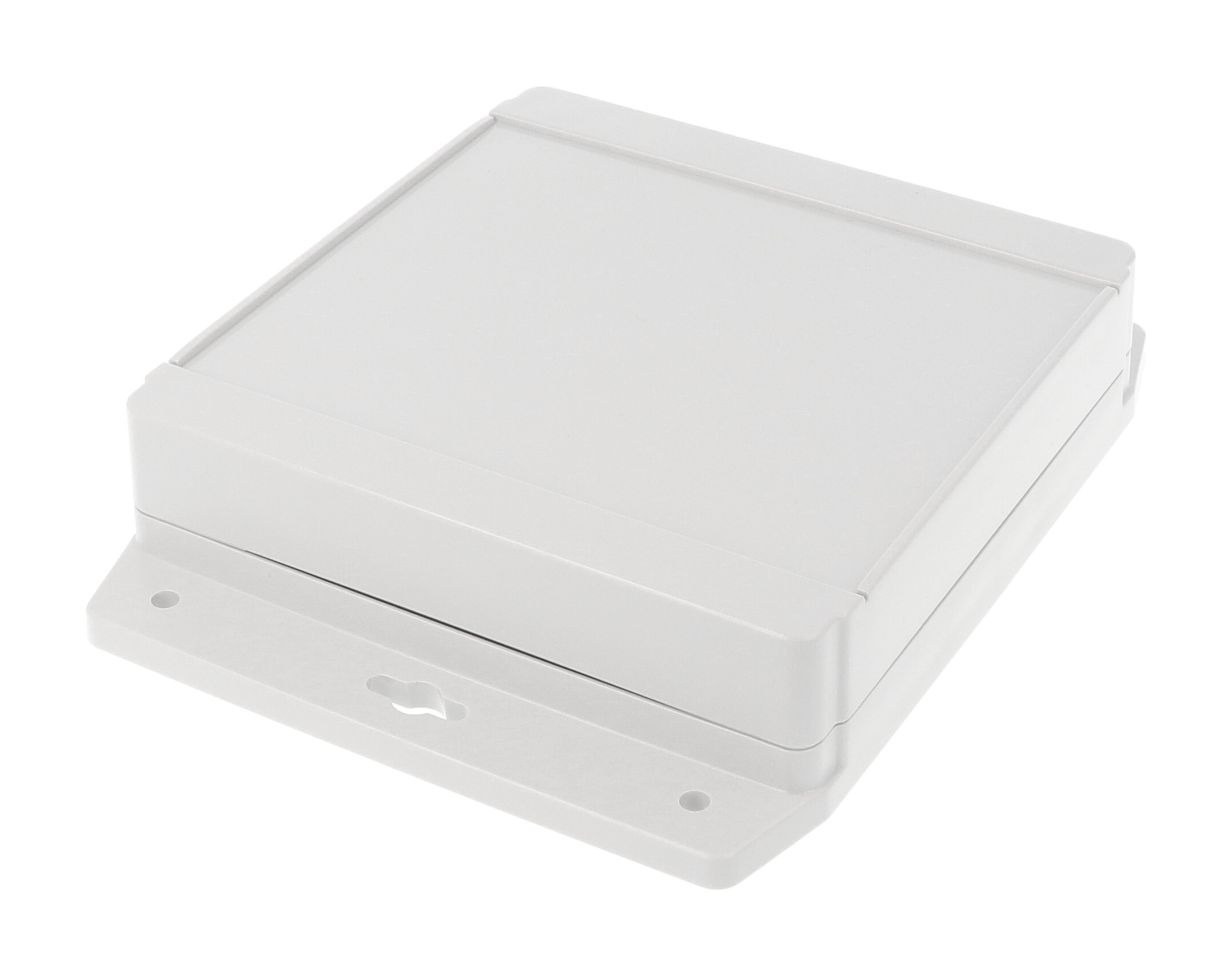

- Low-profile body 5.55 x 5.51 x 1.46 in (141 x 140 x 37 mm) not including flanges
- General purpose ABS, tested to and meets IP66; IK07 impact rating
- 180 mm overall length across mounting flanges; 158 mm hole spacing
- 17.00 mm inner box depth and 12.00 mm inner lid depth
- Gasketed tongue and groove lid secured by M4 stainless steel screws behind the lid
- Molded DIN rail tabs and PCB/panel standoffs for #4 x 1/4" self-tapping screws
- Indoor rated, -20°C to +60°C recommended operating temperature
The 1555QF17GY is the low-profile, general purpose ABS model in the Q size of the 1555F Series watertight flanged enclosures. It suits electronics designers and panel builders who need a sealed, wall-mounted housing for a printed circuit board, small panel or DIN rail mounted components in indoor locations.
The body measures 5.55 x 5.51 x 1.46 in (141 x 140 x 37 mm) not including flanges. The drawing shows 180.00 mm [7.09 in] overall length with the flanges, 158.00 mm [6.22 in] flange hole spacing, a 37.20 mm [1.46 in] assembled height, 17.00 mm [.67 in] inner box depth and 12.00 mm [.47 in] inner lid depth. Shipping weight is 0.58 lbs (0.26 kg).
ABS versions are molded from general purpose UL94-HB material for indoor use. They are not UL listed but have been tested to and meet IP66, carry an IK07 impact rating per IEC 62262:2021 and have a recommended operating temperature of -20°C to +60°C (-4°F to +140°F).
- Satin RAL7035 grey finish with a smooth recessed lid area for a membrane keypad or label
- Two-piece tongue and groove lid with a one-piece silicone gasket, supplied loose
- M4 stainless steel lid screws in corrosion resistant inserts, secured behind the lid
- DIN rail tabs molded into the lid and standoffs for #4 x 1/4" self-tapping screws (1555TS100)
Accessories for the 1555QF17GY include the 1554QPL steel inner panel and the 1554QGASKET replacement gasket pair. A UL listed polycarbonate equivalent is available as 1555Q2F17GY.
Ideal For
- Indoor control electronics
- PCB housings for OEM products
- DIN rail component enclosures
- Wall-mounted sensor or keypad housings
Overview
| Series | 1555F Series, Type 4X, 6P Enclosures (Watertight, Flanged Lid) |
| Material | General Purpose ABS |
| CAD Models | Solid models available in .stp or .x_t |
| Part Number | 1555QF17GY |
| Long Description | RAL7035 grey watertight plastic enclosure, flange |
| Short Description | ABS FLANGED BASE NEMA ENCL. |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| Polycarbonate UL Listed) Equivalent Part Number | 1555Q2F17GY |
Dimensions
| Inner Box Depth | 17.00 mm [.67 in] |
| Inner Lid Depth | 12.00 mm [.47 in] |
| Lid Inlay Width | 134.00 mm [5.28 in] |
| Lid Inlay Length | 107.00 mm [4.21 in] |
| Flange Mounting Holes | 4X Ø5.00 mm [.20 in] |
| Size L X W X H (Part Page) | 5.51 in x 5.51 in x 1.46 in (140 mm x 140 mm x 37 mm) |
| Body Length X Width (Drawing) | 141.05 mm [5.55 in] x 140.13 mm [5.52 in] |
| Width (Not Including Flanges) | 5.51 in (140 mm) |
| Height (Not Including Flanges) | 1.46 in (37 mm) |
| Length (Not Including Flanges) | 5.55 in (141 mm) |
| Overall Height, Assembled (Drawing) | 37.20 mm [1.46 in] |
| Flange Mounting Hole Spacing (Drawing) | 158.00 mm [6.22 in] |
| Overall Length Including Flanges (Drawing) | 180.00 mm [7.09 in] |
Identifiers
| UPC | 623980043296 |
| UNSPSC | 39121301 |
| Drawing Revision | REV 23.08.2022 |
Rack Mounting
| DIN Rail | Internal DIN rail mounting tabs molded into lid |
| Mounting | Designed for wall mounting via base mounting flanges |
| Internal Standoffs | Standoffs molded in the lid and enclosure interior for PC board or inner panel; accept #4 x 1/4" self-tapping screws |
| Inner Panel (Order Separately) | 1554QPL (galvanized steel) |
| Self-Tapping Screw (Order Separately) | 1555TS100 (Steel Panel / P.C. Board Self Tapping Screw, #4 x 1/4" (6.4mm), Plated) |
Packaging & Shipping
| Shipping Weight | 0.58 lbs (0.26 kg) |
Construction & Finish
| Finish | Satin texture RAL7035 grey |
| Gasket | One-piece, high temperature, UL listed silicone; supplied loose inside the enclosure (not pre-installed) |
| Included | Styled box, flanged lid, 4 cover screws and preformed silicone gasket |
| Lid Seal | Gasketed lid with two-piece tongue and groove construction; protection against access of oil, dust and water |
| Lid Surface | Smooth recessed surface on lid for a membrane keypad or label |
| Lid Fasteners | Included M4 stainless steel machine screws threaded into corrosion resistant bushings (M4 corrosion resistant inserts) for repetitive assembly and disassembly; lid screws are behind the lid |
| Replacement Lid Screws | SC576-50 (Stainless Steel Cover Screws, M4-0.7 x 20mm, Pkg 50) |
| Replacement Gasket (Pair) | 1554QGASKET |
| Recommended Cover Screw Torque | 2.5 lbf-in (30 cN-m) |
Environmental & Protection
| Intended Use | Indoor use (ABS versions) |
| Impact Rating | IK07 per IEC 62262:2021 |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, water detection paste, anti-seize paste, strong solvents and some greases and oils |
| Flame Rating (Material) | UL94-HB (general purpose ABS) |
| Ingress Protection (Series) | Tested to and meets IP66 (ABS versions) |
| Recommended Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
Compliance & Certifications
| UL Listing | Not UL listed (ABS versions); drawing note: General Purpose ABS version is not UL approved |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| UL File # (Part Page) | E65324 |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How big is the 1555QF17GY?▾
It measures 5.55 x 5.51 x 1.46 in (141 x 140 x 37 mm) not including flanges, and 180.00 mm [7.09 in] long including flanges per the drawing.
Is the ABS version UL listed?▾
No. ABS versions are not UL listed, but they have been tested to and meet IP66.
Can it be used outdoors?▾
ABS versions are specified for indoor use. The UV stabilized polycarbonate equivalent, 1555Q2F17GY, is intended for outdoor use.
What screws hold the lid?▾
Included M4 stainless steel machine screws threaded into corrosion resistant bushings. Replacement M4 x 20mm screws are part number SC576-50.
What is included?▾

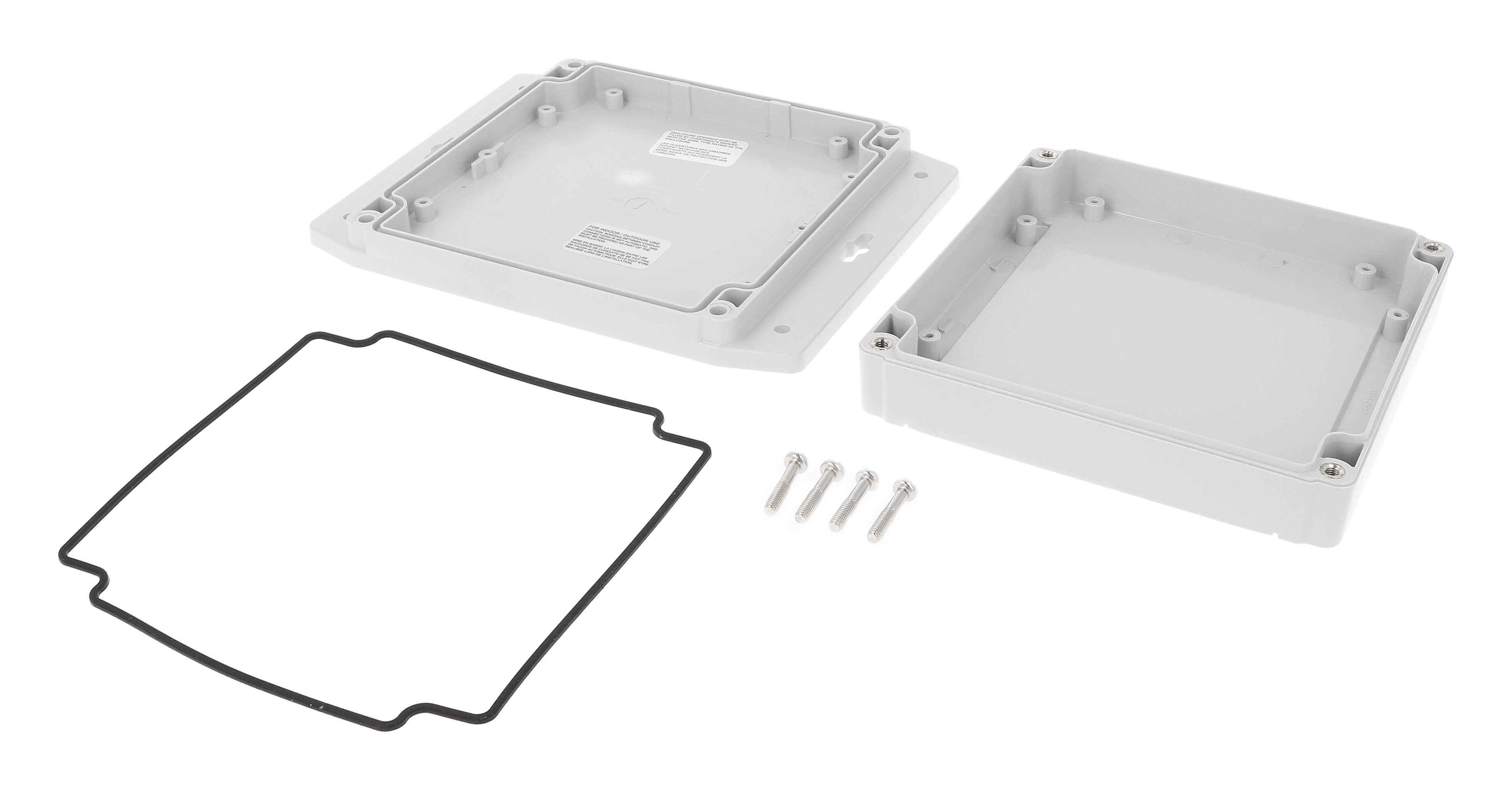

The drawing lists a styled box, flanged lid, 4 cover screws and a preformed silicone gasket.
