Hammond 1555R2F42GY 160mm Square Deep Polycarbonate NEMA 4X Enclosure
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 160 x 160 x 63 mm (6.30 x 6.30 x 2.48 in) not including flanges
- 42.14 mm inner box depth plus 12.50 mm inner lid depth
- IP68 and NEMA 4, 4X, 6, 6P, 12 and 13; UL94 5VA
- cUL and UL 508A listed under file #E65324; UV stabilized
- Holds P.C. boards up to 148 x 149 mm or the 1555RFPL inner panel
- Wall-mount flanges on 178 mm hole spacing
- IK08 impact rating; -40°C to +110°C recommended operating range

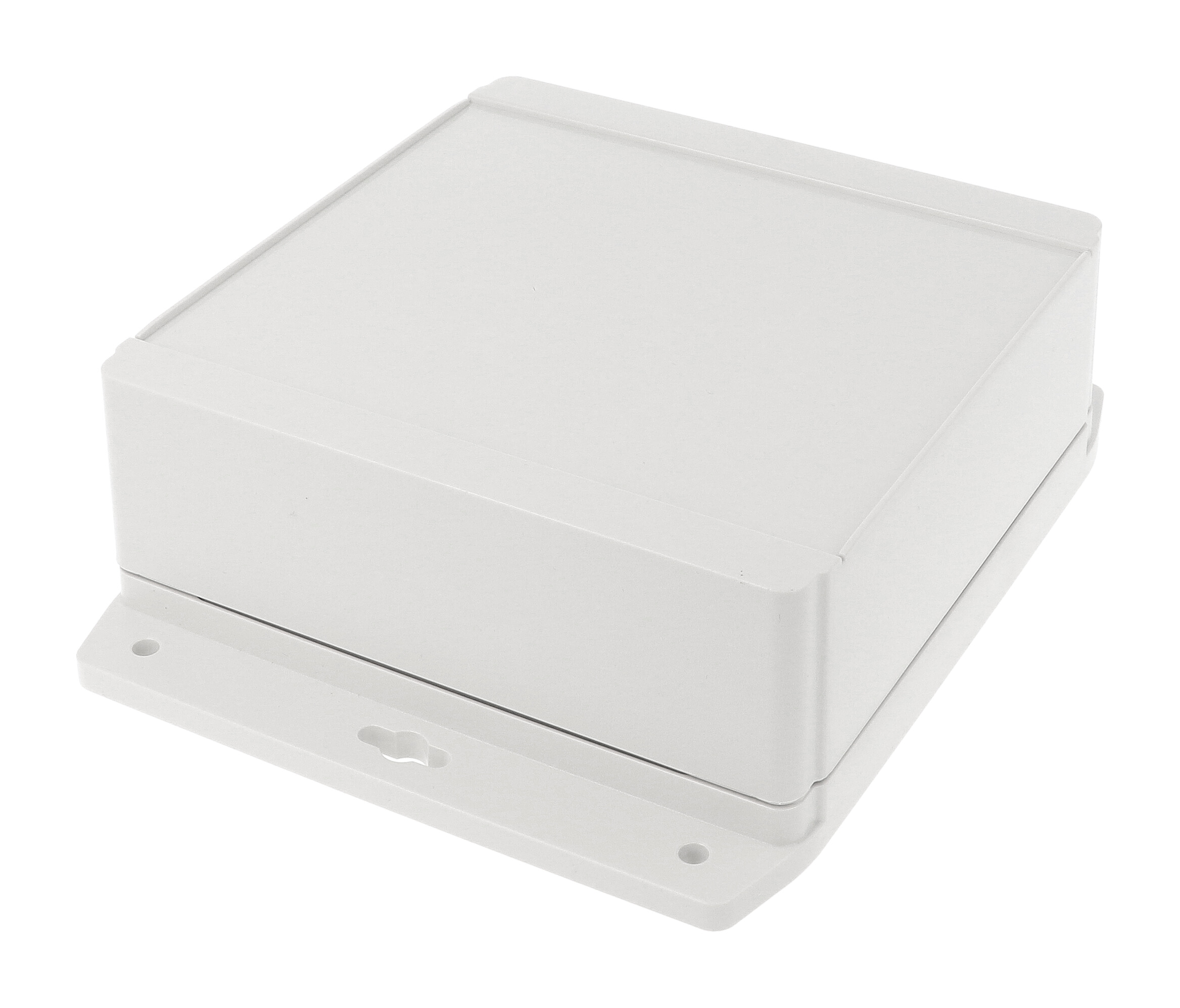

The 1555R2F42GY is the deeper polycarbonate model in the R size of the 1555F Series flanged enclosures. With a UV stabilized, UL listed body and a wall-mount flange, it fits outdoor wireless, security and industrial control projects where components need more headroom than the low-profile version provides.
The series table lists 6.30 x 6.30 x 2.48 in (160 x 160 x 63 mm) not including flanges, while the part page gives 6.3 x 6.3 x 2.46 in (160 x 160 x 62 mm). The drawing shows 200.00 mm [7.87 in] overall length with flanges, 178.00 mm [7.01 in] hole spacing, 62.50 mm [2.46 in] assembled height, a 42.14 mm [1.66 in] inner box depth and 12.50 mm [.49 in] inner lid depth. Boards up to 148 x 149 mm are accepted.
The part page rates the 1555R2F42GY IP68, NEMA 4, 4X, 6, 6P, 12 and 13, and UL94 5VA. It is cUL and UL 508A listed under file #E65324, carries an IK08 impact rating per IEC 62262:2021 and has a recommended operating temperature of -40°C to +110°C (-40°F to +230°F).
Construction includes a satin RAL7035 grey finish, recessed lid surface for keypads or labels, a two-piece tongue and groove seal and a one-piece silicone gasket supplied loose. M4 stainless steel lid screws are secured behind the lid in corrosion resistant inserts. The 1555RFPL steel inner panel and 1554RGASKET replacement gasket are available separately; shipping weight is 0.31 lbs (0.14 kg), shrink wrapped.
Ideal For
- Outdoor wireless and communications gear
- Security and surveillance electronics
- Industrial control and instrumentation
- Wall-mounted DIN rail assemblies
Overview
| Type | Water-tight, flanged |
| Color | Light Gray |
| Series | 1555F Series, Type 4X, 6P Enclosures (Watertight, Flanged Lid) |
| Material | Polycarbonate |
| CAD Models | Solid models available in .stp or .x_t |
| Part Number | 1555R2F42GY |
| Long Description | RAL7035 grey watertight plastic enclosure |
| Short Description | P/C FLANGED BASE NEMA ENCL. |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
| ABS Equivalent Part Number | 1555RF42GY |
Dimensions
| Inner Box Depth | 42.14 mm [1.66 in] |
| Inner Lid Depth | 12.50 mm [.49 in] |
| Lid Inlay Width | 126.00 mm [4.96 in] |
| Lid Inlay Length | 127.00 mm [5.00 in] |
| Flange Mounting Holes | 4X Ø5.00 mm [.20 in] |
| Max. P.C. Board Width | 149 mm |
| Max. P.C. Board Length | 148 mm |
| Size L X W X H (Part Page) | 6.3 in x 6.3 in x 2.46 in (160 mm x 160 mm x 62 mm) |
| Body Length X Width (Drawing) | 160.19 mm [6.31 in] x 160.13 mm [6.30 in] |
| Width (Not Including Flanges) | 6.30 in (160 mm) |
| Height (Not Including Flanges) | 2.48 in (63 mm) |
| Length (Not Including Flanges) | 6.30 in (160 mm) |
| Overall Height, Assembled (Drawing) | 62.50 mm [2.46 in] |
| Flange Mounting Hole Spacing (Drawing) | 178.00 mm [7.01 in] |
| Overall Length Including Flanges (Drawing) | 200.00 mm [7.87 in] |
Identifiers
| UPC | 623980902036 |
| UNSPSC | 39121301 |
| Drawing Revision | REV 01.11.2019 |
Rack Mounting
| DIN Rail | Internal DIN rail mounting tabs molded into lid |
| Mounting | Designed for wall mounting via base mounting flanges |
| Internal Standoffs | Standoffs molded in the lid and enclosure interior for PC board or inner panel; accept #4 x 1/4" self-tapping screws |
| Inner Panel (Order Separately) | 1555RFPL (galvanized steel) |
| Self-Tapping Screw (Order Separately) | 1555TS100 (Steel Panel / P.C. Board Self Tapping Screw, #4 x 1/4" (6.4mm), Plated) |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.31 lbs (0.14 kg) |
Construction & Finish
| Finish | Satin texture RAL7035 grey |
| Gasket | One-piece, high temperature, UL listed silicone; supplied loose inside the enclosure (not pre-installed) |

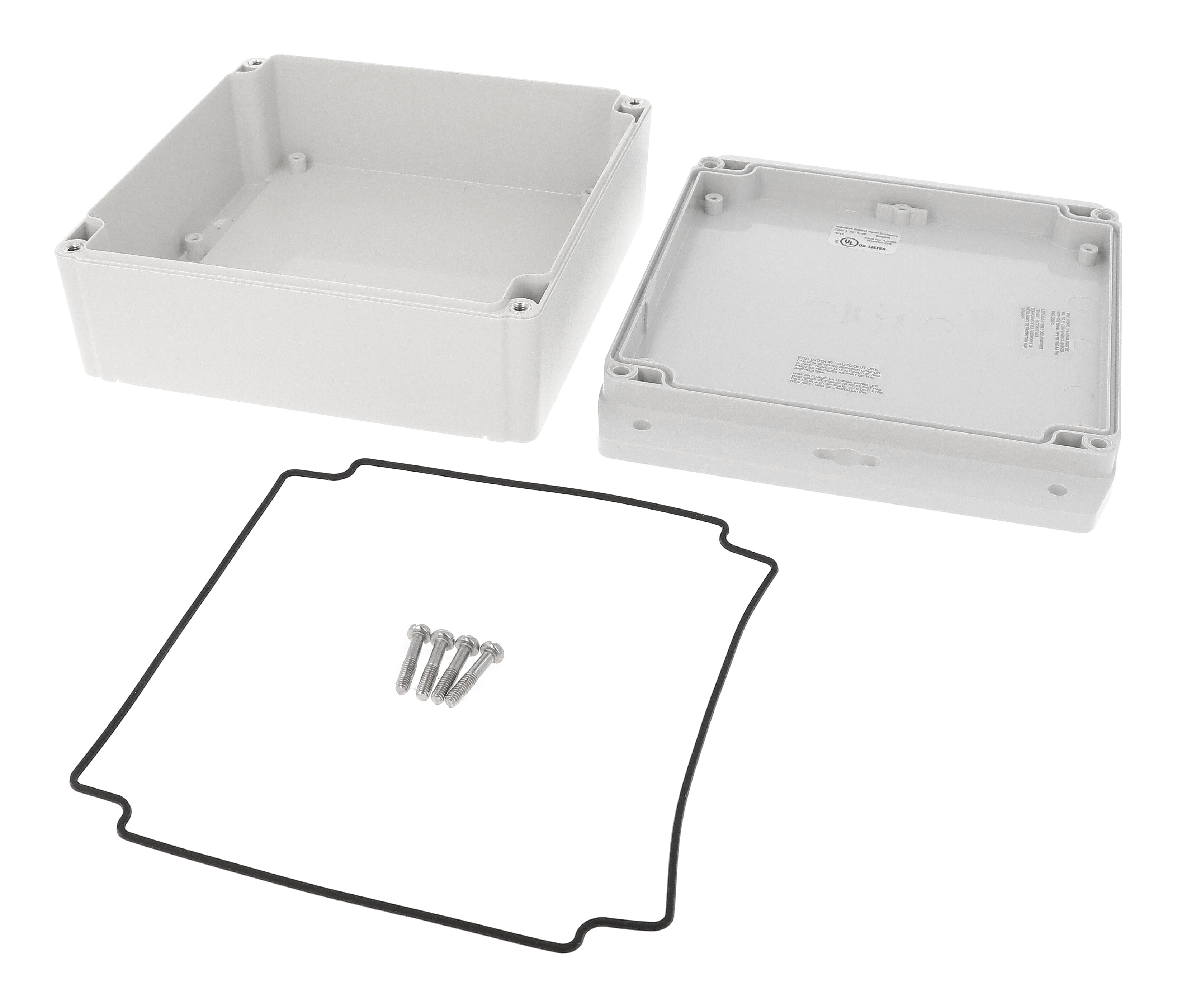

| Included | Styled box, flanged lid, 4 cover screws and preformed silicone gasket |
