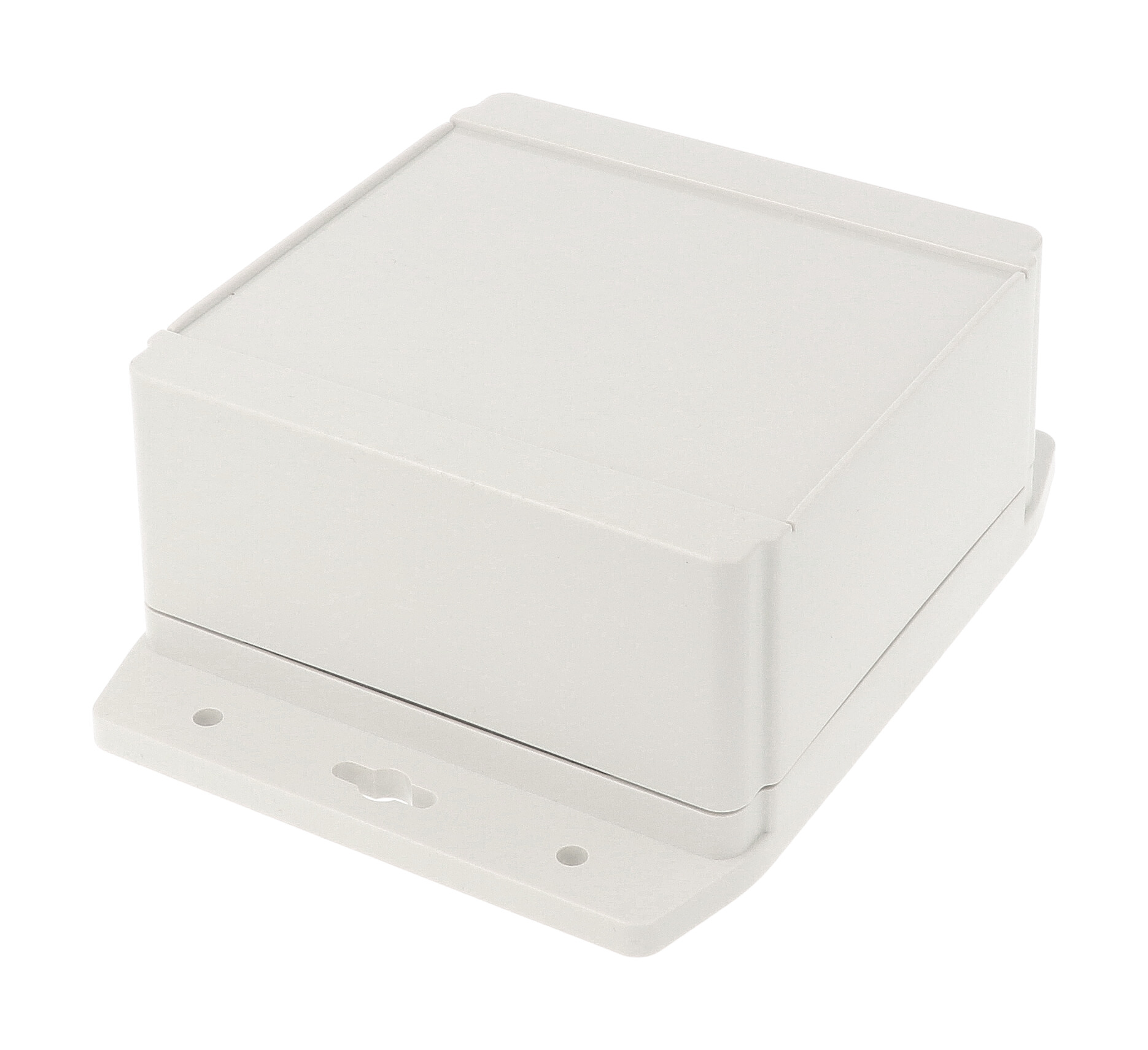

Hammond 1555NF42GY 120x120x63 mm Deep ABS Flanged Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Deep ABS body with 42.50 mm inner box depth
- Tested to and meets IP66; indoor use
- Holds PC boards up to 106.85 x 107.7 mm
- 160.79 mm overall with flanges; 4X Ø5.00 mm holes
- UL94 HB, IK07 impact, -20°C to +60°C
- DIN rail tabs, 8 standoffs, optional 1555NFPL panel
- Replacement gasket 1554NGASKET
The 1555NF42GY is the deep, general purpose ABS enclosure in the square 1555NF size. With a body up to 63 mm tall, it gives indoor projects room for taller components, DIN rail devices and wiring in a watertight, flange-mounted housing.
ABS versions are UL94 HB rated, carry IK07 impact resistance, are not UL listed but have been tested to and meet IP66, and are recommended for indoor use at -20°C to +60°C. For outdoor or UL 508A applications, the polycarbonate 1555N2F42GY shares this size.
- Part page size: 4.7 x 4.7 x 2.44 in (119 x 119 x 62 mm)
- Series table, not including flanges: 120 x 120 x 63 mm
- Overall length with flanges: 160.79 mm [6.33 in]
- Inner box depth 42.50 mm; inner lid depth 12.00 mm
- Max. PC board: 106.85 x 107.7 mm; shipping weight 0.3 lbs (0.14 kg)

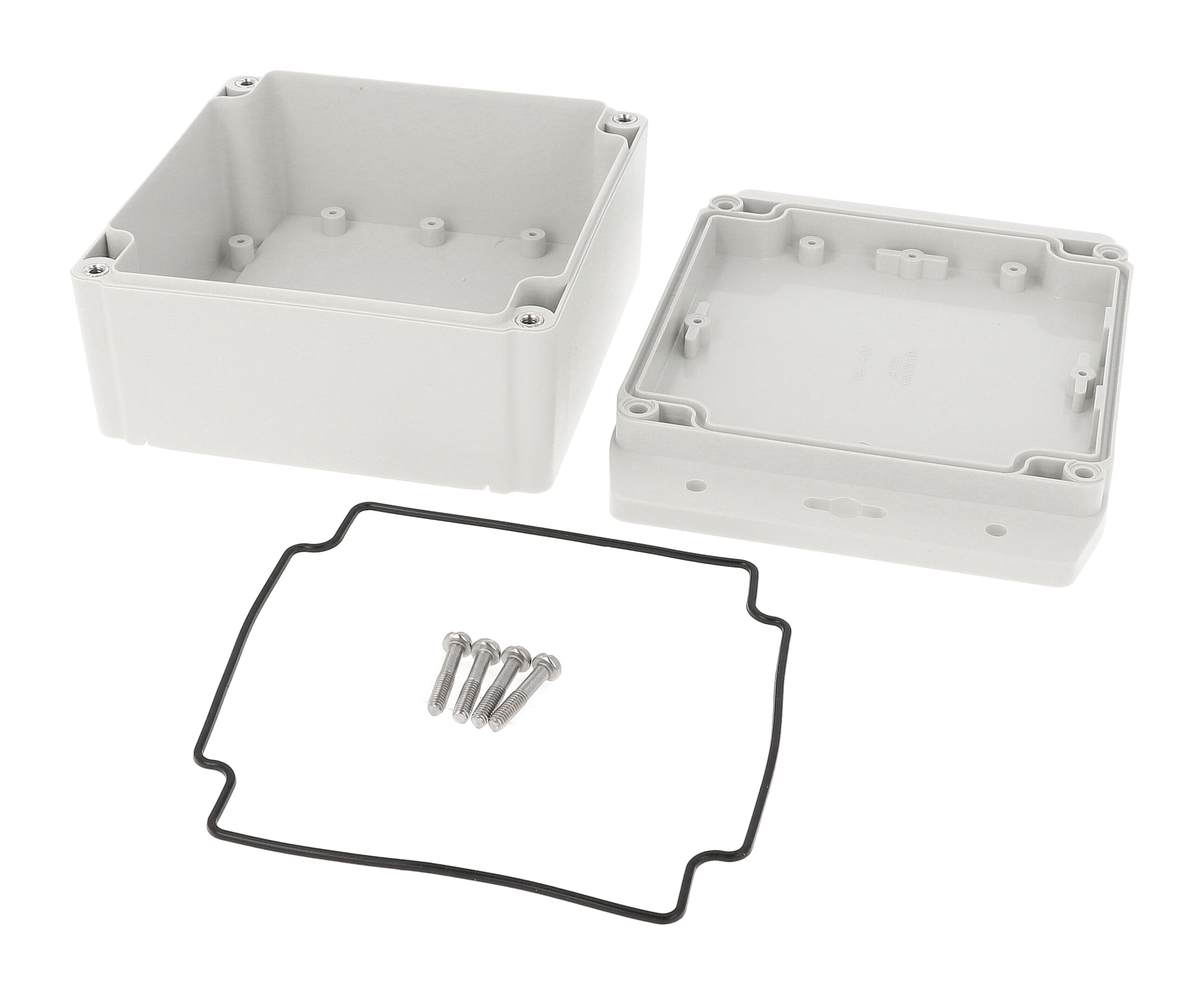

The 1555NF42GY comes with the styled box, flanged lid, 4 cover screws and a preformed silicone gasket. The lid screws are behind the lid and thread into corrosion resistant M4 inserts; recommended torque is 2.5 lbf-in (30 cN-m). Eight #4 screw standoffs, DIN rail tabs in the lid and the optional 1555NFPL panel handle internal mounting.
Ideal For
- Indoor DIN rail controls
- Taller PC board assemblies
- Security and access control equipment
- Indoor junction and wiring boxes
Mounting
| DIN Rail | Internal DIN rail mounting tabs molded into lid |
| Inner Panel | 1555NFPL galvanized steel inner panel (order separately) |
| Mounting Style | Wall mounting via flanged base; lid screws are behind the lid for a secure interior |
| Standoff Screw | #4 x 1/4" (6.4 mm) plated self-tapping screw, part number 1555TS100 (standoffs molded in lid and enclosure interior) |
| Flange Mounting Holes | 4X Ø5.00 mm [.20 in] |
| Flange Mounting Hole Spacing (Drawing) | 140.79 mm [5.54 in] |
Overview
| Type | Water-tight, flanged |
| Series | 1555F Series, Type 4X, 6P Enclosures (Watertight, Flanged Lid) |
| Version | General Purpose ABS |
| Description | RAL7035 grey watertight plastic enclosure |
| Part Number | 1555NF42GY |
| Enclosure Family | 1555NF Regular Enclosure |
| Short Description | ABS FLANGED BASE NEMA ENCL. |
| Equivalent Polycarbonate Part Number | 1555N2F42GY |
Dimensions
| Inner Box Depth | 42.50 mm [1.67 in] |
| Inner Lid Depth | 12.00 mm [.47 in] |
| Lid Inlay Depth | 2.00 mm [.08 in] |
| Shipping Weight | 0.3 lbs (0.14 kg) |
| Size (L X W X H) | 4.7 in x 4.7 in x 2.44 in (119 mm x 119 mm x 62 mm) |
| Lid Height (Drawing) | 15.50 mm [.61 in] |
| Base Height (Drawing) | 47.00 mm [1.85 in] |
| Max. P.C. Board Width | 107.7 mm |
| Max. P.C. Board Length | 106.85 mm |
| Overall Height, Assembled (Drawing) | 62.51 mm [2.46 in] |
| Overall Length Including Flanges (Drawing) | 160.79 mm [6.33 in] |
| Series Table Width (Not Including Flanges) | 4.72 in (120 mm) |
| Series Table Height (Not Including Flanges) | 2.48 in (63 mm) |
| Series Table Length (Not Including Flanges) | 4.72 in (120 mm) |
Identifiers
| UPC | 623980023496 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
Construction & Finish
| Color | Light Gray, RAL7035 grey |
| Finish | Satin texture with smooth recessed surface on lid for a membrane keypad or label |
| Gasket | One-piece preformed black silicone gasket, high temperature, UL listed silicone; supplied loose inside the enclosure (not pre-installed) |
| Material | ABS Plastic |
| Solid Models | Available in .stp or .x_t |
| Lid Fasteners | 4 included M4 stainless steel machine screws threaded into M4 corrosion resistant inserts |
| Included Items | Styled box, flanged lid, 4 cover screws and preformed silicone gasket |
| Lid Construction | Gasketed flanged lid with two-piece tongue and groove construction |
| Replacement Gasket | 1554NGASKET (pair) |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, water detection or anti-seize paste, strong solvents or cleaners, and some greases and oils |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.); contact the factory for quotes |
| Replacement Cover Screws | SC576-50, stainless steel M4-0.7 x 20 mm (Pkg 50) |
| Recommended Cover Screw Torque | 2.5 lbf-in (30 cN-m) |
Environmental & Protection
| Flame Rating | UL94 HB |
| Impact Rating | IK07 per IEC 62262:2021 |
| Intended Environment | For indoor use |
| Recommended Operating Temperature | -20°C to +60°C (-4°F to +140°F) |
Compliance & Certifications
| UL Listing | Not UL listed (general purpose ABS version is not UL approved) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| UL File # (Listed On Part Page) | E65324 (series file; covers the polycarbonate version) |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is it UL listed?▾
No. ABS versions are not UL listed; the polycarbonate 1555N2F42GY is cUL and UL 508A listed.
What is included?▾
The styled box, flanged lid, 4 cover screws and a preformed silicone gasket, which is supplied loose.
What torque should I use on the lid screws?▾
The recommended cover screw torque is 2.5 lbf-in (30 cN-m).
