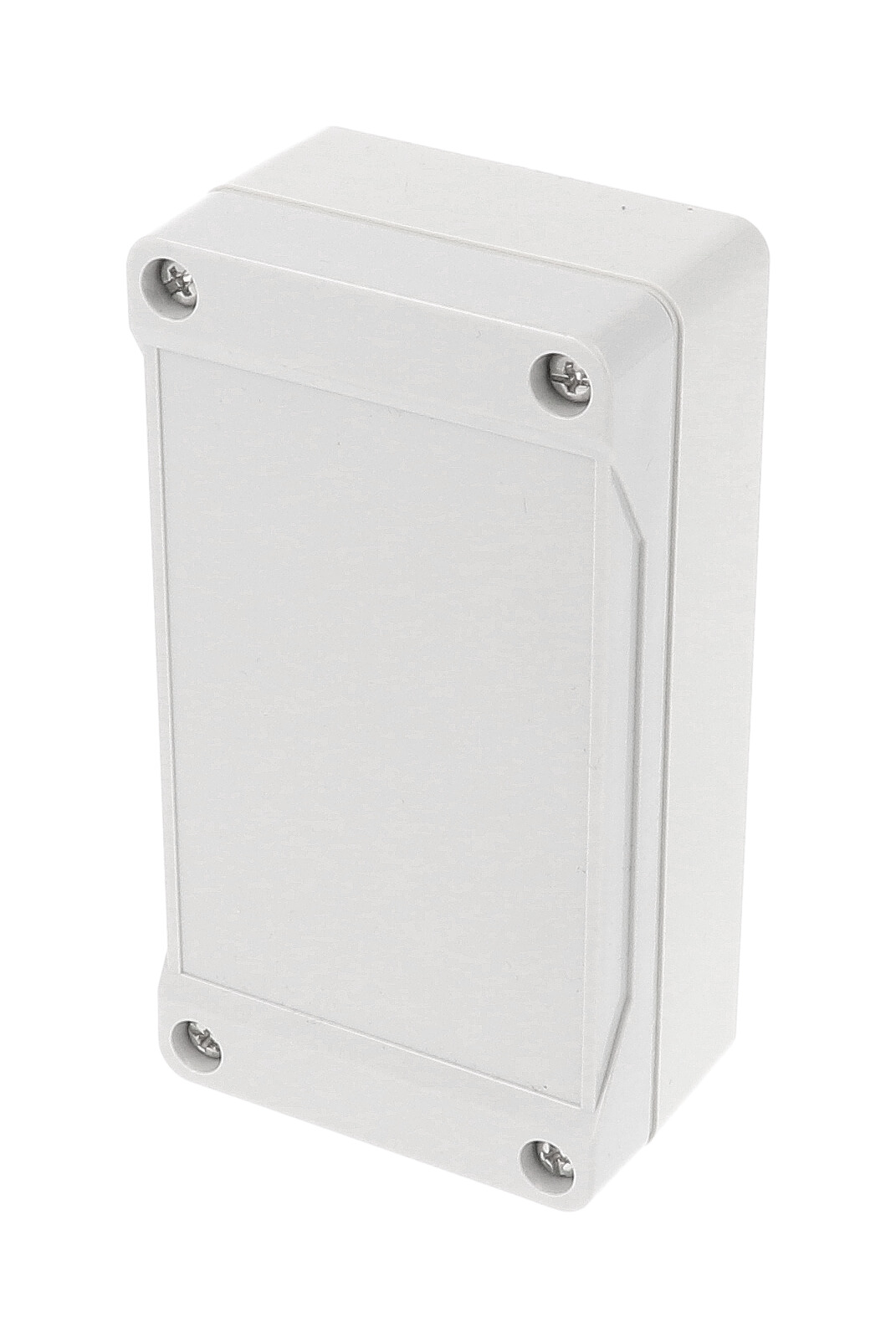

Hammond 1555C2GY 120x65x41mm Flanged Polycarbonate NEMA 4X Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 120 x 65 x 41 mm nominal flanged polycarbonate enclosure, light gray RAL 7035
- cUL and UL 508A listed, file E65324; NEMA Type 4, 4X, 6, 6P, 12 & 13
- Tested to IP66, IP67 and IP68; IK08 impact rating; UL94-5VA
- UV stabilized for outdoor use, -40°C to +110°C recommended
- M3 brass inserts, PC card guides for 1.5 mm boards and lid standoffs
- Accepts P.C. boards up to 52.83 x 110.49 mm
- No internal DIN rail tabs on size C; 1554CPL panel fits box or lid
The 1555C2GY is a long, low-profile polycarbonate enclosure from the 1555 Series, 120 x 65 x 41 mm nominal (the part page lists 4.7 x 2.6 x 1.6 in, or 119 x 66 x 41 mm) and described by the manufacturer as a water-tight, flanged type. It suits OEM engineers and integrators packaging elongated circuit boards for outdoor or UL 508A applications.
Polycarbonate versions are cUL and UL 508A listed under file E65324 and independently tested to IP66, IP67 and IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13. The UV stabilized material is rated UL94-5VA, carries IK08 impact resistance per IEC 62262:2021, and is recommended for -40°C to +110°C (-40°F to +230°F).
From size C upward, the interior adds threaded M3 integral brass inserts and/or standoffs for #6 self tapping screws, vertical card guides for 1.5 mm thick P.C. boards, and standoffs molded into the lid. The 1555C2GY accepts a board up to 52.83 x 110.49 mm. Note that sizes C and D do not have the internal DIN rail mounting tabs found in most other sizes. The optional 1554CPL steel inner panel fits in the box or the lid.
Four included M4 stainless steel lid screws thread into corrosion resistant inserts (recommended torque 43-57 ozf-in, 30-40 cN-m), sealing a tongue and groove lid over a loose-supplied silicone gasket. Two 4.00 mm mounting holes sit outside the gasket channel and also take the 1554FT foot kit. Clear lid 1554CCL and gasket 1554CGASKET are available. Shipping weight is 0.3 lbs (0.14 kg).
Ideal For
- Outdoor electronics housings
- Elongated PCB assemblies
- UL 508A industrial control components
- NEMA Type 4X and 6P locations
- Wall or foot-kit mounted boxes
Overview
| Lid | Gray lid, styled (smooth recessed surface for a membrane keypad or label) |
| Series | 1555 Series (Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures) |
| Size Code | C |
| CAD Models | Solid models available in .stp or .x_t |
| Part Number | 1555C2GY |
| Enclosure Type | Water-tight, flanged |
| Long Description | RAL7035 grey watertight plastic enclosure |
| Short Description | 120X65X40MM P/C NEMA ENCL. |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.); contact the factory for quotes |
| Equivalent ABS (Gray Lid) Version | 1555CGY |
Dimensions
| Width | 2.56 in (65 mm) |
| Length | 4.72 in (120 mm) |
| Total Height | 1.61 in (41 mm) |
| Mounting Holes | 2X Ø4.00 mm [.16 in] |
| Max. P.C. Board Width | 110.49 mm |
| Max. P.C. Board Length | 52.83 mm |
| Size L X W X H (Part Page) | 4.7 in x 2.6 in x 1.6 in (119 mm x 66 mm x 41 mm) |
| Nominal Size (L X W X Total Height) | 4.72 in x 2.56 in x 1.61 in (120 mm x 65 mm x 41 mm) |
Accessories
| Foot Kit | 1554FT |
| Replacement Gasket | 1554CGASKET (silicone pre-formed gasket, black, pkg 2) |
| Stainless Steel Cover Screws | SC576-50 (M4-0.7 x 20mm, pkg 50) |
| Steel Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8mm plated, pkg 100) |
| Compatible Clear Lid (Not Styled) | 1554CCL (120 x 65 x 15 mm lid) |
| Steel Inner Panel (Order Separately) | 1554CPL |
| Steel Panel / P.C. Board Self Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4mm) plated, pkg 100) |
Identifiers
| UPC | 623980842653 |
| UNSPSC | 39121301 |
Packaging & Shipping

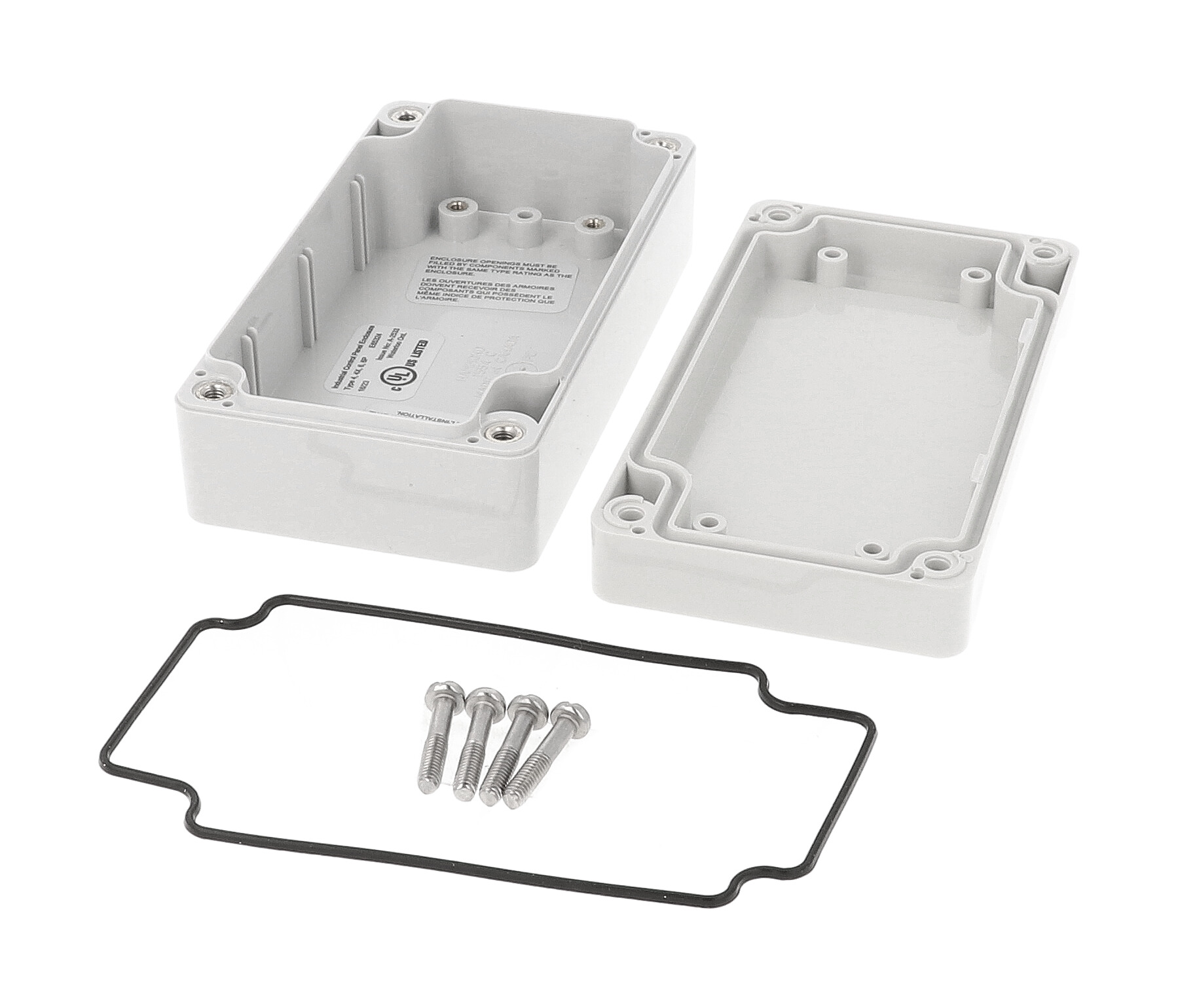

| Included | Enclosure, 4 cover screws and preformed silicone gasket |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.3 lbs (0.14 kg) |
Construction & Finish
| Color | Light Gray (RAL 7035) |
| Gasket | One-piece replaceable preformed silicone gasket (black), high temperature UL listed silicone; supplied loose inside the enclosure, not pre-installed |
| Material | Polycarbonate (UV stabilized) |
| Lid Screws | 4 x M4 stainless steel machine screws (included), threaded into corrosion resistant inserts; self captivating |
| Lid Standoffs | Molded in the interior of the lid; designed for #6 self tapping screws |
| Wall Mounting | Wall-mounting holes located outside of the gasket channel |
| PC Card Guides | Vertical card guides molded in, for 1.5 mm thick P.C. boards |
| Lid Construction | Gasketed lid with two piece tongue and groove construction |
| DIN Rail Mounting Tabs | Not molded in size C |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
| PC Board / Inner Panel Mounting | Threaded M3 integral brass inserts and/or standoffs (for #6 self tapping screws) |
Environmental & Protection
| IP Rating | IP66, IP67, IP68 (independently tested); part page lists IP68 |
| NEMA Rating | Type 4, 4X, 6, 6P, 12 & 13 |
| Flame Rating | UL94 5VA (UL94 - 5VA @ 3mm) |
| Impact Rating | IK08 per IEC 62262:2021 |
| Indoor / Outdoor | UV stabilized for outdoor use |
| Chemical Resistance | Some chemicals can damage or weaken plastic; avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread locking compounds, cutting or tapping fluid, water detection paste, anti-seize paste, strong solvents or cleaners, and some greases and oils |
| Recommended Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Does the 1555C2GY have DIN rail mounting tabs?▾
No. Internal DIN rail mounting tabs are molded into most 1555 sizes, except sizes C and D.
What board mounting features are inside?▾
Threaded M3 integral brass inserts and/or standoffs for #6 self tapping screws, vertical card guides for 1.5 mm thick P.C. boards, and standoffs molded into the lid.
What is the maximum board size?▾
52.83 mm by 110.49 mm.
Is it UL listed?▾
Yes. Polycarbonate versions are cUL and UL 508A listed under file E65324.
Is a clear lid available?▾
Yes, the compatible clear lid (not styled) is 1554CCL, 120 x 65 x 15 mm.
Which screws fit the M3 inserts?▾
The drawing lists 1591MM100, M3-0.5 x 8mm plated steel panel / P.C. board screws in a pack of 100.
