Hammond 1554RPL R/RL/S Size Galvanized Steel Inner Panel, 16 Gauge
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Inner panel for 1554 and 1555 series enclosures, sizes R, RL and S
- Made from 16ga galvanized steel
- Overall 150.95 x 147.40 mm, 1.63 mm thick per drawing
- Installation hardware is included
- Replacement screws: 1591MM100 (pack of 100)
- RoHS compliant and REACH compliant
- Ships in shrink wrap packaging

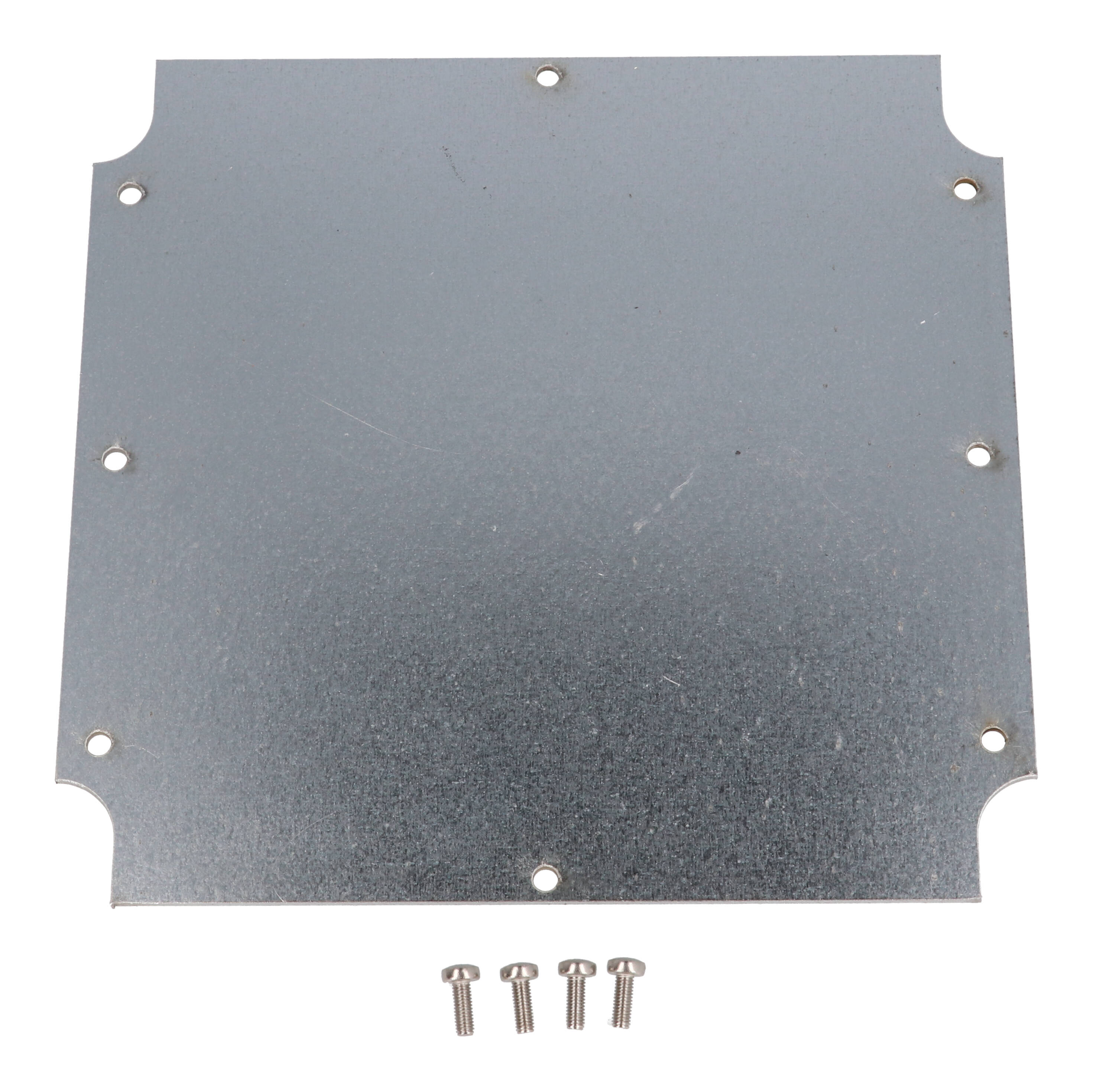

The 1554RPL is an inner panel for Hammond 1554 and 1555 series enclosures in sizes R, RL and S. It gives integrators, OEM engineers and panel builders a flat, removable steel plate to mount components, DIN hardware or circuit boards on inside the enclosure, so the build-out can be done on the bench and then installed as one piece. The manufacturer describes it as "1554R/S INNER PANEL".
The panel is made from 16ga galvanized steel. Installation hardware is included with the panel, and it ships in shrink wrap packaging.
According to the part drawing, the 1554RPL measures 150.95 mm (5.94 in) by 147.40 mm (5.80 in) overall, with a thickness of 1.63 mm (.06 in). Shipping weight is 0.57 lbs (0.26 kg).
Because installation hardware is included, the panel can go straight into a matching R/RL/S size enclosure. If mounting screws are lost, Hammond lists 1591MM100 (pack of 100 screws) as the replacement screw for all sizes other than A and B. The panel is RoHS compliant and REACH compliant, is catalogued under product category Accessories with UNSPSC 39121301, and carries UPC 623980843087 for receiving and inventory matching.
Ideal For
- Mounting components inside a 1554 or 1555 R/RL/S size enclosure
- Pre-building an enclosure layout on the bench before installation
- Replacing or adding an inner mounting panel on an existing enclosure
Overview
| Type | Inner Panel |
| Product | Inner panel |
| Description | 1554R/S INNER PANEL |
| Long Description | galvanized steel inner panel for 1554/55 sizes R & S |
| Fits Enclosure Sizes | 1554 or 1555 series sizes R, RL, S |
Dimensions
| Thickness (Per Drawing) | 1.63 mm [.06 in] |
| Overall Width (Per Drawing) | 147.40 mm [5.80 in] |
| Overall Length (Per Drawing) | 150.95 mm [5.94 in] |
Identifiers
| UPC | 623980843087 |
| UNSPSC | 39121301 |
Installation
| Replacement Screws | 1591MM100 (pack of 100 screws) |
| Installation Hardware | Included |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.57 lbs (0.26 kg) |
Construction & Finish
| Material | Steel |
| Panel Material (Series) | 16ga galvanized steel |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1554RPL fit?▾
It is the inner panel for Hammond 1554 or 1555 series enclosures in sizes R, RL and S.
What material is the panel made from?▾
The 1554/1555 inner panel series is made from 16ga galvanized steel.
How big is the panel?▾
The part drawing shows 150.95 mm [5.94 in] by 147.40 mm [5.80 in] overall, 1.63 mm [.06 in] thick.
Is mounting hardware included?▾
Yes, installation hardware is included. Replacement screws for this size are 1591MM100 (pack of 100 screws).
Is it RoHS and REACH compliant?▾
Yes, the part is listed as RoHS compliant and REACH compliant.
