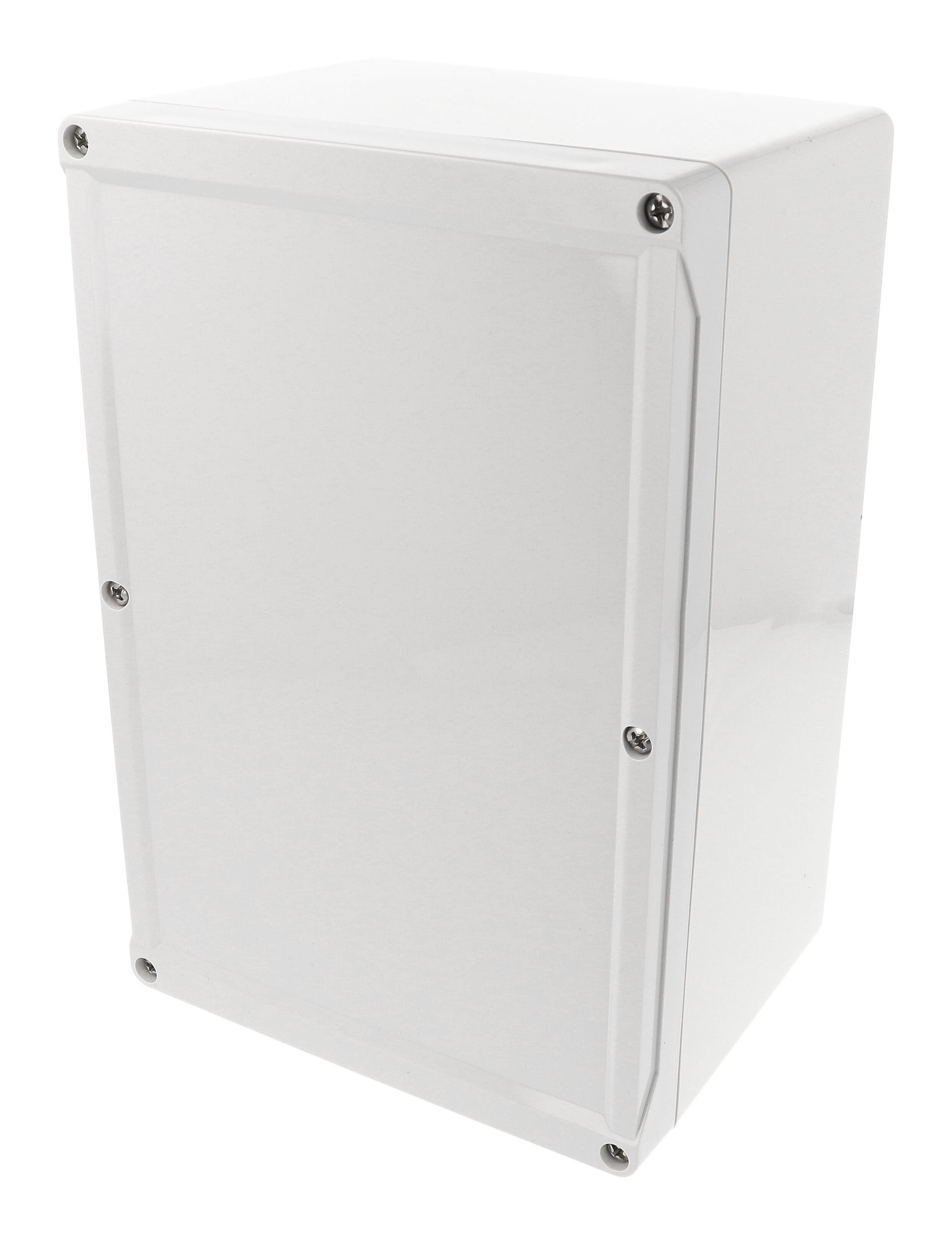

Hammond 1555VB2GY 240x160x120mm Polycarbonate NEMA 4X Enclosure, IP68
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- UV stabilized polycarbonate, 240 x 160 x 120 mm (9.45 in x 6.30 in x 4.72 in), light gray RAL 7035
- cUL and UL 508A listed (file E65324); IP66/IP67/IP68 and NEMA Type 4, 4X, 6, 6P, 12 & 13
- Inside length 230.24 mm, inside height 110.80 mm; max P.C. board 145.5 x 226.82 mm
- 6 self captivating M4 stainless steel lid screws in corrosion resistant inserts; torque 43-57 ozf-in (30-40 cN-m)
- Tongue and groove lid with replaceable one piece silicone gasket, supplied loose inside the enclosure
- Molded DIN rail tabs, M3 brass inserts, #6 self-tapping screw mounting and card guides for 1.5 mm boards
- Wall-mounting holes outside the gasket channel; accepts 1554FT foot kit and 1554VAPL steel inner panel
- IK08 impact rating, UL94-5VA material, -40°C to +110°C recommended range
The 1555VB2GY is the tallest 240 x 160 mm enclosure in the 1555 Series, with a total height of 120 mm (4.72 in). Molded from UV stabilized light gray polycarbonate, it is intended for outdoor and harsh-environment installations where taller DIN rail components or PC board assemblies need a sealed, UL listed housing.
It is cUL and UL 508A listed under file E65324 and tested to IP66, IP67 and IP68 as well as NEMA Type 4, 4X, 6, 6P, 12 and 13. Material flammability is UL94-5VA, impact rating is IK08 per IEC 62262:2021, and the recommended operating temperature range is -40°C to +110°C (-40°F to +230°F).
- Inside length 230.24 mm, inside width 146.24 mm, inside height 110.80 mm
- Maximum P.C. board 145.5 x 226.82 mm
- Six self captivating M4 stainless steel lid screws into corrosion resistant inserts, torqued to 43-57 ozf-in (30-40 cN-m)
- Molded DIN rail tabs, M3 brass inserts, #6 standoffs and 1.5 mm card guides
The tongue and groove lid seals on a replaceable one piece silicone gasket supplied loose inside the enclosure. Wall-mounting holes (4X 4.50 mm) sit outside the gasket channel and double as the attachment point for the 1554FT foot kit. The 1555VB2GY accepts the 1554VAPL steel inner panel and uses the 1554VAGASKET replacement gasket; shipping weight is 1.34 lbs (0.61 kg).
Ideal For
- Outdoor DIN rail control assemblies
- Tall component and terminal housings
- NEMA 4X corrosive or washdown areas
- UL 508A industrial control panels
Overview
| Type | Water-tight |
| Series | 1555 Series |
| Description | RAL7035 grey watertight plastic enclosure |
| Part Number | 1555VB2GY |
| Material Version | Polycarbonate (UL Listed) |
| Short Description | 240X160X120MM P/C NEMA ENCL. |
| Enclosure Size Code | 1555VB |
| Alternate Material Version | 1555VBGY (General Purpose ABS) |
Dimensions
| Inside Width | 146.24 mm [5.76 in] |
| Inside Height | 110.80 mm [4.36 in] |
| Inside Length | 230.24 mm [9.06 in] |
| Size (L X W X H) | 9.4 in x 6.3 in x 4.7 in (239 mm x 160 mm x 119 mm) |
| Max. P.C. Board Width | 226.82 mm |
| Max. P.C. Board Length | 145.5 mm |
| Width (Ordering Table) | 6.30 in (160 mm) |
| Length (Ordering Table) | 9.45 in (240 mm) |
| Total Height (Ordering Table) | 4.72 in (120 mm) |
Accessories
| Foot Kit | 1554FT |
| Replacement Gasket | 1554VAGASKET (silicone pre-formed gasket, black, Pkg 2) |
| Replacement Cover Screws | SC583-50 (M4-0.7 x 25mm, Pkg 50), stainless steel |
| Steel Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8mm Plated, Pkg 100) |
| Steel Inner Panel (Order Separately) | 1554VAPL (fits in box or lid) |
| Steel Panel / P.C. Board Self Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4mm) Plated, Pkg 100) |
Identifiers
| UPC | 623980401522 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 1.34 lbs (0.61 kg) |
Construction & Finish
| Color | Light Gray (RAL 7035) |
| Gasket | One piece, high temperature UL listed silicone, replaceable; supplied loose inside the enclosure (not pre-installed) |

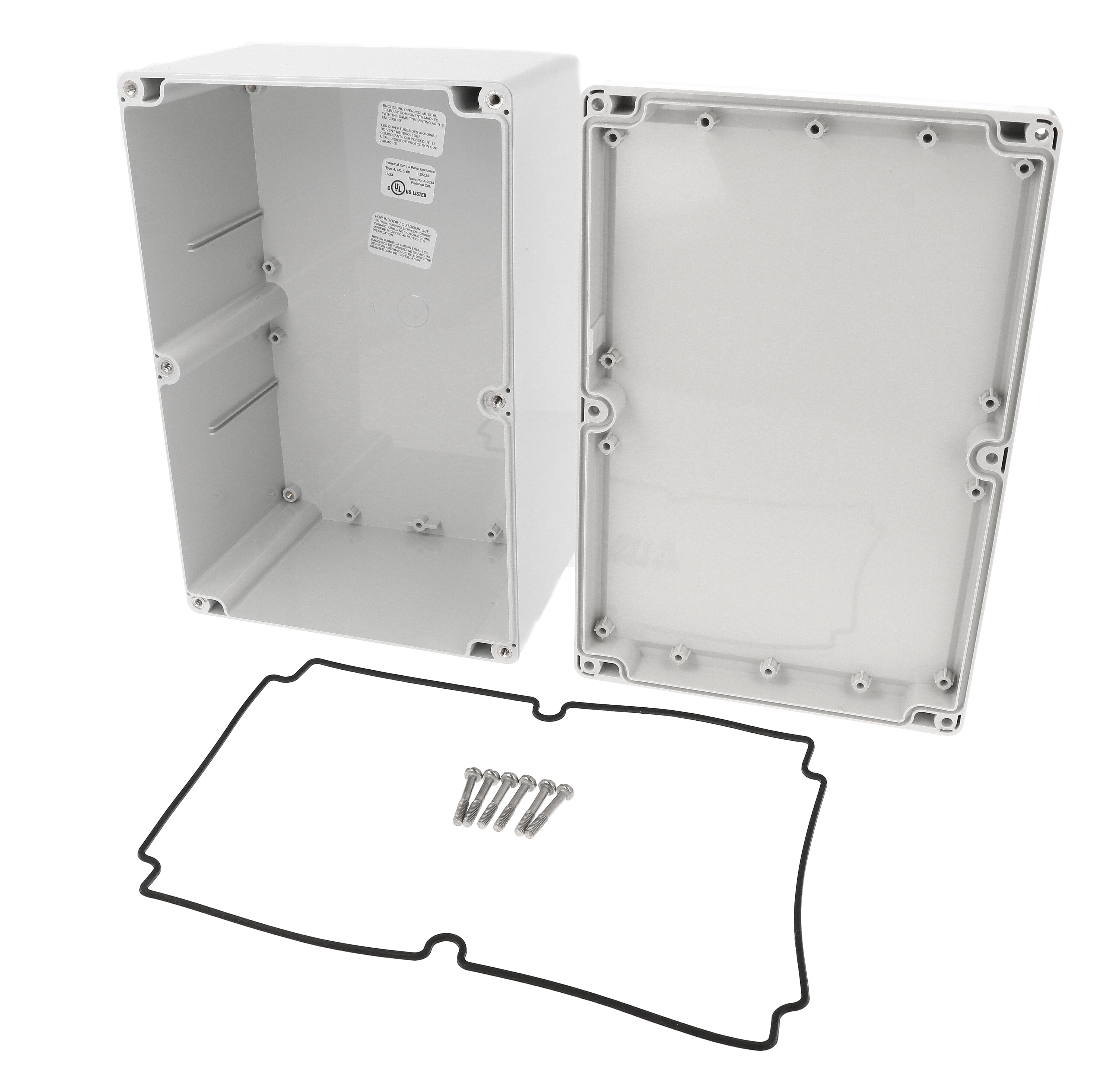

| Included | Box, lid, 6 cover screws and preformed silicone gasket |
| Material | Polycarbonate |
| CAD Models | Solid models available in .stp or .x_t |
| Lid Screws | 6 x M4 stainless steel machine screws, self captivating, threaded into corrosion resistant inserts |
| Internal Inserts | Threaded (M3) integral brass inserts |
| Lid Construction | Gasketed lid, two piece tongue and groove construction |
| Internal Features | Internal DIN rail mounting tabs; lid standoffs; vertical PC card guides for 1.5 mm thick P.C. boards |
| Wall Mounting Holes | 4X 4.50 mm [.18 in], located outside of the gasket channel |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Self-Tapping Screw Mounting | Accepts #6 self-tapping screws |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP68 (tested to IP66, IP67 and IP68) |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Flame Rating | UL94 5VA (UL94 - 5VA @ 3mm) |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Stabilized | Yes, for outdoor use |
| Operating Temperature | -40°C to +110°C (-40°F to +230°F) recommended |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| RoHS Compliant | Yes |
| Drawing Marking | cULus Listed, Type 4, 4X, 6, 6P |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1555VB2GY?▾
The ordering table lists 9.45 in (240 mm) long, 6.30 in (160 mm) wide and 4.72 in (120 mm) total height; the part page lists 9.4 in x 6.3 in x 4.7 in (239 mm x 160 mm x 119 mm). Inside length is 230.24 mm [9.06 in], inside width 146.24 mm [5.76 in] and inside height is 110.80 mm [4.36 in].
What ratings does the 1555VB2GY carry?▾
Polycarbonate 1555 enclosures such as the 1555VB2GY are cUL and UL 508A listed under file E65324, tested to IP66, IP67 and IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13, rated IK08 per IEC 62262:2021, and UV stabilized for outdoor use.
What comes with the enclosure?▾
The assembly includes the box, lid, 6 M4 stainless steel cover screws and a preformed silicone gasket. The gasket is supplied loose inside the enclosure, not pre-installed. The 1554VAPL steel inner panel is ordered separately.
What size circuit board will fit?▾
The maximum P.C. board size is 145.5 x 226.82 mm. Boards can mount on the M3 brass inserts or #6 self-tapping screw positions, and vertical card guides accept 1.5 mm thick P.C. boards.
How tight should the lid screws be?▾
The drawing recommends a cover screw torque of 43-57 ozf-in (30-40 cN-m). The lid screws are self captivating, and the lid holes are threaded the first time the screws are installed.
What temperature range is it rated for?▾
The recommended operating temperature for polycarbonate versions is -40°C to +110°C (-40°F to +230°F). Customers should conduct their own testing to determine suitability for a specific application.
