Hammond 1555J2GY 160x90x61 mm Polycarbonate NEMA 4X Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 160 x 90 x 61 mm; inside 152.91 x 78.91 x 52.00 mm
- Holds P.C. boards up to 77.47 x 147.32 mm
- IP68 and NEMA 4, 4X, 6, 6P, 12 & 13
- cUL and UL 508A listed, file E65324; UL94 5VA
- UV stabilized, IK08 impact, -40°C to +110°C
- Styled lid recess for keypad or label
- Optional 1554JPL inner panel and 1554FT foot kit

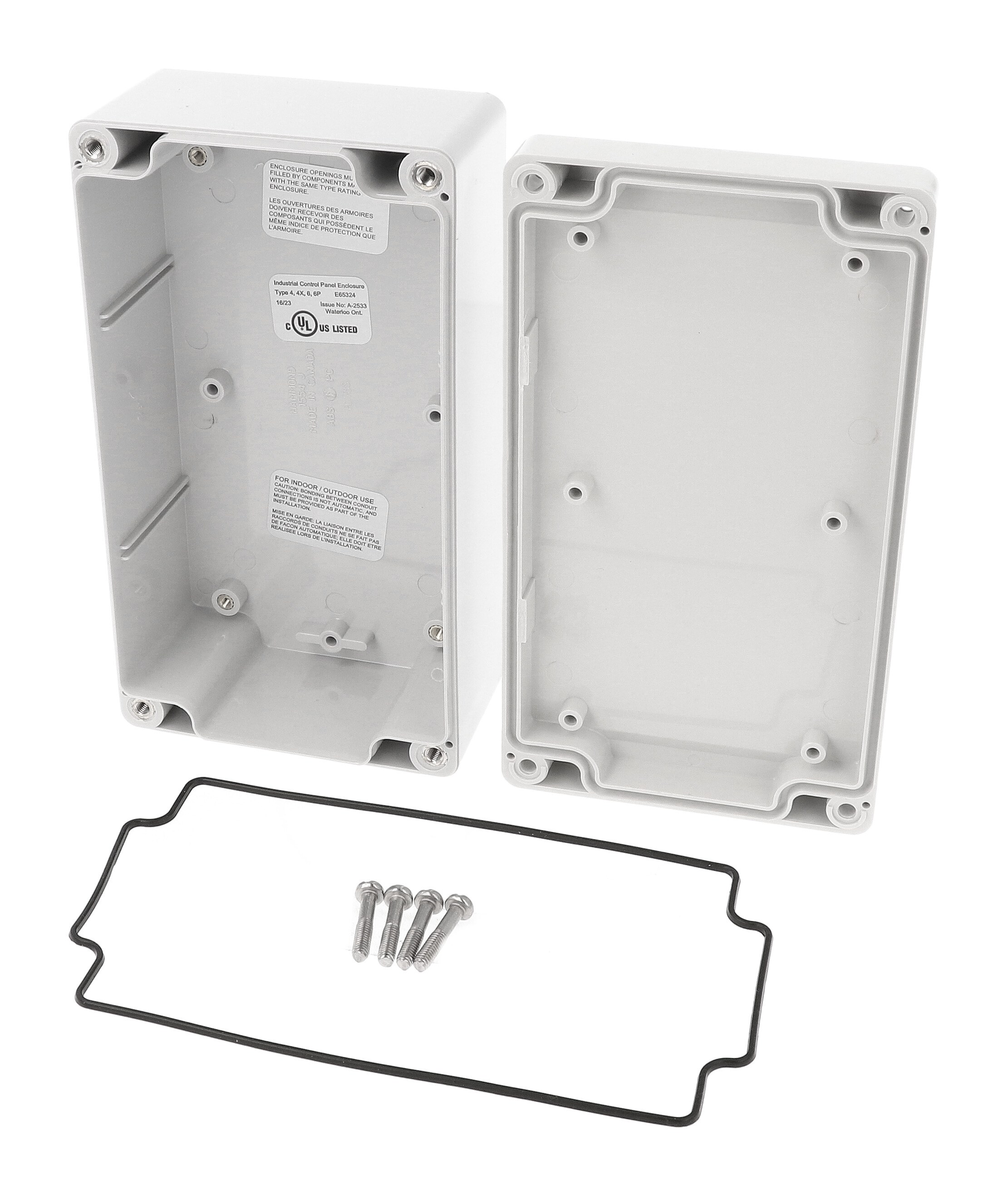

The 1555J2GY is a narrow, elongated polycarbonate enclosure from the 1555 Series, measuring 160 x 90 mm with a 61 mm total height in light gray RAL 7035. Its proportions suit long, narrow circuit boards and short runs of DIN rail components in sealed indoor or outdoor installations.
The polycarbonate is UV stabilized for outdoor use and rated UL94 5VA. The enclosure is cUL and UL 508A listed under file E65324, rated IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13, and carries an IK08 impact rating per IEC 62262:2021. The recommended operating temperature is -40°C to +110°C (-40°F to +230°F).
Inside dimensions are 152.91 x 78.91 mm with 52.00 mm of height, and boards up to 77.47 x 147.32 mm fit. Molded DIN rail tabs, M3 brass inserts, standoffs for #6 self-tapping screws and vertical card guides for 1.5 mm boards cover most mounting needs, and the 1554JPL steel inner panel is available separately.
A styled lid with a smooth recess accepts a membrane keypad or label. Sealing is by two-piece tongue and groove with a replaceable silicone gasket supplied loose, and four captive M4 stainless steel screws thread into corrosion resistant inserts. Four 4.00 mm wall-mounting holes outside the gasket channel also accept the 1554FT foot kit.
Ideal For
- Outdoor sensor and controller housings
- Long, narrow PCB assemblies
- Short DIN rail component runs
- Keypad-faced control stations
Mounting
| Lid Standoffs | Molded in the lid interior, for #6 self-tapping screws |
| PC Card Guides | Vertical, for 1.5 mm thick P.C. boards |
| Internal Mounting | Molded DIN rail mounting tabs; M3 integral brass inserts and standoffs for #6 self-tapping screws |
| Wall Mounting Holes | 4 x 4.00 mm [0.16 in] diameter, located outside the gasket channel |
| Inner Panel (Order Separately) | 1554JPL steel inner panel, fits in box or lid |
| Foot Kit (Uses Wall Mounting Holes) | 1554FT |
Overview
| Type | Water-tight |
| Series | 1555 Series – Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| Size Code | 1555J Regular Enclosure |
| Description | RAL7035 grey watertight plastic enclosure |
| Part Number | 1555J2GY |
| Short Description | 160X90X60MM P/C NEMA ENCL. |
| ABS Equivalent (Gray Lid) | 1555JGY |
Dimensions
| Inside Width | 78.91 mm [3.11 in] |
| Inside Height | 52.00 mm [2.05 in] |
| Inside Length | 152.91 mm [6.02 in] |
| Size (L X W X H) | 6.3 in x 3.5 in x 2.4 in (160 mm x 89 mm x 61 mm) |
| Max. P.C. Board Width | 147.32 mm |
| Max. P.C. Board Length | 77.47 mm |
| Width (Ordering Table) | 3.54 in (90 mm) |
| Length (Ordering Table) | 6.30 in (160 mm) |
| Total Height (Ordering Table) | 2.40 in (61 mm) |
Identifiers
| UPC | 623980842707 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.5 lbs (0.23 kg) |
Construction & Finish
| Lid | Styled lid with smooth recessed surface for a membrane keypad or label |
| Color | Light Gray (RAL 7035) |
| Included | 4 cover screws, and preformed silicone gasket |
| Lid Seal | Two-piece tongue and groove construction with replaceable one-piece silicone gasket (high temperature, UL listed silicone), supplied loose |
| Material | Polycarbonate |
| Lid Screws | M4 stainless steel machine screws, self captivating, threaded into M4 corrosion resistant inserts |
| Qty Of Lid Screws | 4 |
| Replacement Gasket | 1554JGASKET (silicone pre-formed gasket, black, pkg 2) |
| Factory Modification | Milling, drilling, printing etc. available from the factory; solid models available in .stp or .x_t |
| Panel / PC Board Screws | 1591MM100 (M3-0.5 x 8 mm plated, pkg 100); 1598ATS100 (#6 x 1/4 in (6.4 mm) self-tapping, plated, pkg 100) |
| Replacement Cover Screws | SC576-50 (stainless steel M4-0.7 x 20 mm, pkg 50) |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP68 (series tested to IP66, IP67 and IP68) |
| NEMA Rating | 4, 4X, 6, 6P, 12 & 13 |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Resistance | UV stabilized for outdoor use |
| Chemical Resistance | Avoid acetone, ketones, ethers, aromatic and chlorinated hydrocarbons, thread-locking compounds, cutting/tapping fluid, strong solvents; see Chemical Resistance Statement |
| Operating Temperature | -40°C to +110°C (-40°F to +230°F), recommended |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| Flame Rating | UL94 5VA (5VA @ 3 mm) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What size is the 1555J2GY?▾
160 mm long, 90 mm wide and 61 mm total height (6.30 x 3.54 x 2.40 in).
What is the maximum P.C. board size?▾
77.47 mm x 147.32 mm.
Is it UL listed?▾
Yes, it is cUL and UL 508A listed under file E65324.
Can it go outdoors?▾
Yes, the polycarbonate version is UV stabilized for outdoor use.
Which replacement gasket fits?▾
1554JGASKET, a black pre-formed silicone gasket in packs of 2.
