Hammond 1555U2GY 200x120x91mm Polycarbonate NEMA 4X Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 200 x 120 x 91 mm (7.87 x 4.72 x 3.58 in) polycarbonate body
- cUL and UL 508A listed, file E65324
- IP68 listed; NEMA Type 4, 4X, 6, 6P, 12 and 13
- UV stabilized; -40°C to +110°C; UL94 5VA; IK08
- 192.13 x 108.13 x 82.00 mm inside dimensions
- Boards to 106.6 x 190.45 mm on M3 brass inserts
- DIN rail tabs, 1.5 mm card guides, 1554UPL inner panel option

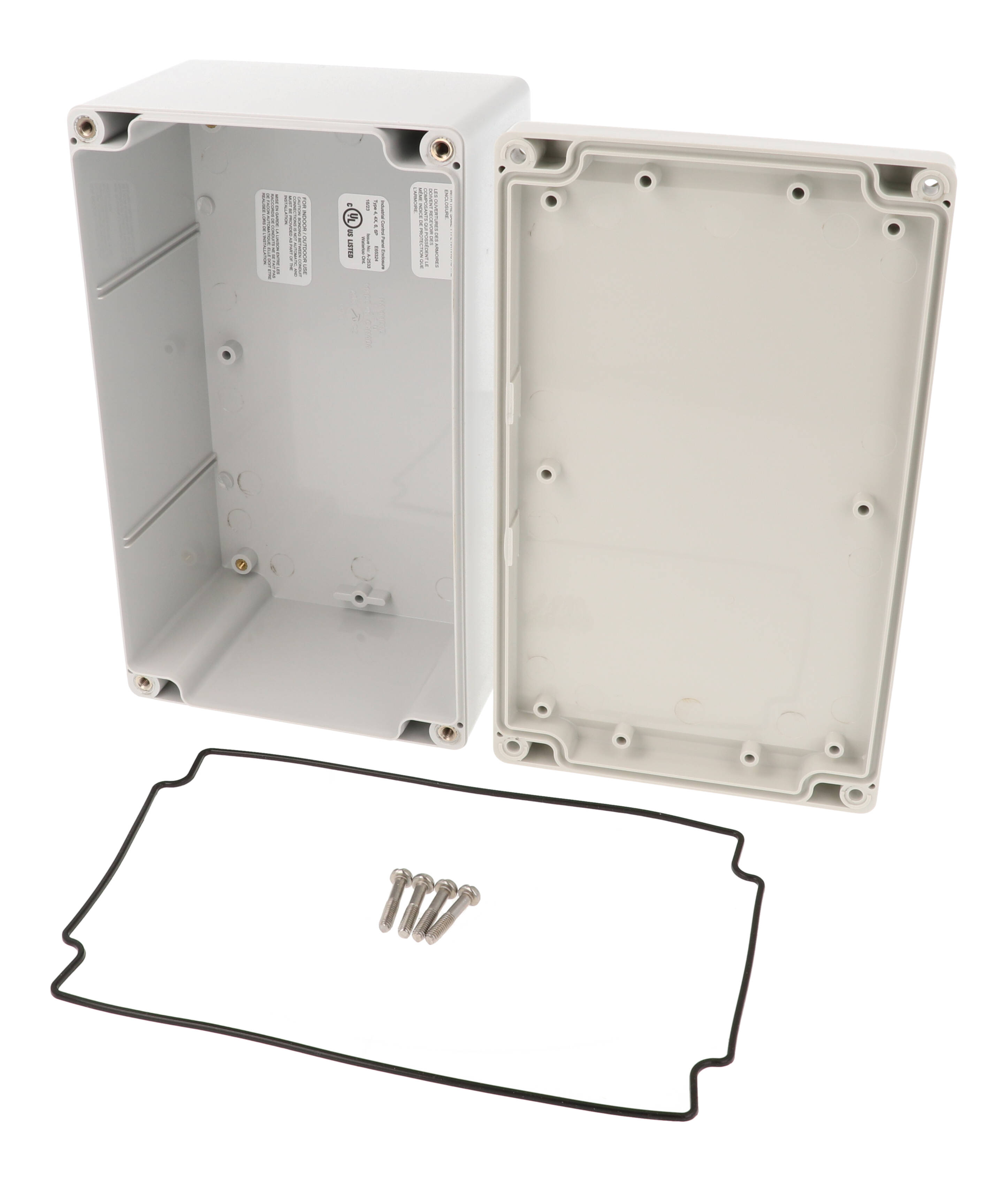

The 1555U2GY is the deep 200 x 120 mm polycarbonate enclosure in the 1555 Series, at 91 mm (3.58 in) of total height and finished in light gray RAL 7035. Its long footprint suits a full-length DIN rail row or an elongated circuit board, making it a useful choice for outdoor controllers, communications gear and instrumentation.
Polycarbonate versions are UV stabilized for outdoor use and are cUL and UL 508A listed under file E65324. The series has been independently tested to IP66, IP67 and IP68 and NEMA Type 4, 4X, 6, 6P, 12 and 13; this part is listed IP68. It is rated UL94 5VA, IK08 per IEC 62262:2021, and -40°C to +110°C (-40°F to +230°F).
The drawing gives inside dimensions of 192.13 x 108.13 mm with 82.00 mm of height, and the maximum board size is 106.6 x 190.45 mm. M3 brass inserts and #6 self tapping screw standoffs support boards or the separately sold 1554UPL steel inner panel, and DIN rail tabs and 1.5 mm vertical card guides are molded in.
Four included M4 stainless steel screws, self captivating and threaded into corrosion resistant inserts, close the tongue and groove lid on a replaceable silicone gasket that ships loose; the recommended torque is 43-57 ozf-in (30-40 cN-m). Four 4.00 mm mounting holes outside the gasket channel also accept the 1554FT foot kit.
Ideal For
- Outdoor controller and communications enclosures
- UL 508A listed control sub-panels
- Long DIN rail component rows
- Instrumentation in wet locations
Overview
| Lid | Gray lid |
| Type | Water-tight |
| Series | 1555 Series - Type 4X, 6P Polycarbonate & General Purpose ABS Enclosures |
| ABS Version | 1555UGY |
| Part Number | 1555U2GY |
| Long Description | RAL7035 grey watertight plastic enclosure |
| Short Description | 200X120X90MM P/C NEMA ENCL |
Dimensions
| Width | 4.72 in (120 mm) |
| Length | 7.87 in (200 mm) |
| Inside Width | 108.13 mm [4.26 in] |
| Total Height | 3.58 in (91 mm) |
| Inside Height | 82.00 mm [3.23 in] |
| Inside Length | 192.13 mm [7.56 in] |
| Wall Mounting Holes | 4 x 4.00 mm [0.16 in] dia., located outside the gasket channel |
| Max. P.C. Board Width | 190.45 mm |
| Max. P.C. Board Length | 106.6 mm |
| Nominal Size (L X W X H) | 7.9 in x 4.7 in x 3.5 in (201 mm x 119 mm x 89 mm) |
Accessories
| Foot Kit | 1554FT |
| Replacement Gasket | 1554UGASKET (Silicone pre-formed, black, Pkg 2) |
| Stainless Steel Cover Screws | SC576-50 (M4-0.7 x 20 mm, Pkg 50) |
| Steel Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8 mm plated, Pkg 100) |
| Compatible Clear Lid (Not Styled) | 1554UCL (200 x 120 x 15 mm) |
| Steel Inner Panel (Order Separately) | 1554UPL |
| Steel Panel / P.C. Board Self Tapping Screw | 1598ATS100 (#6 x 1/4 in (6.4 mm) plated, Pkg 100) |
Identifiers
| UPC | 623980842769 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 0.93 lbs (0.42 kg) |
Construction & Finish
| Color | Light Gray (RAL 7035) |
| Gasket | Replaceable one-piece high temperature UL listed silicone; supplied loose inside the enclosure (not pre-installed) |
| Material | Polycarbonate |
| Lid Screws | Included M4 stainless steel machine screws, self captivating, threaded into corrosion resistant inserts |
| Solid Models | .stp or .x_t |
| Lid Standoffs | Molded in lid interior, designed for #6 self tapping screws |
| PC Card Guides | Vertical card guides for 1.5 mm thick P.C. boards |
| Lid Construction | Gasketed lid, two-piece tongue and groove construction |
| DIN Rail Mounting | Internal DIN rail mounting tabs molded in |
| Qty Of Lid Screws | 4 |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
| PCB / Inner Panel Mounting | Threaded M3 integral brass inserts and/or standoffs for #6 self tapping screws |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP68 (part page); series: IP66, IP67 and IP68 |
| Flame Rating | UL94 5VA (5VA @ 3 mm) |
| Impact Rating | IK08 per IEC 62262:2021 |
| UV Resistance | UV stabilized for outdoor use |
| NEMA Type Rating | 4, 4X, 6, 6P, 12 & 13 |
| UL Type (Drawing) | Type 4, 4X, 6, 6P |
| Operating Temperature | -40°C to +110°C (-40°F to +230°F) |
Compliance & Certifications
| UL File # | E65324 |
| UL Listing | cUL and UL 508A listed |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the inside dimensions of the 1555U2GY?▾
The drawing shows 192.13 mm long, 108.13 mm wide and 82.00 mm high inside.
Is the 1555U2GY UL listed?▾
Yes, cUL and UL 508A listed under file E65324.
What is the largest board it accepts?▾
The listed maximum P.C. board size is 106.6 x 190.45 mm.
Is the gasket pre-installed?▾
No. The one-piece silicone gasket is supplied loose inside the enclosure. The replacement part is 1554UGASKET.
Are shorter heights available on this footprint?▾
Yes. The series lists 1555UA2GY at 60 mm and 1555UL2GY at 45 mm total height on the same 200 x 120 mm footprint.
