Hammond 1555VGY 240x160x91mm ABS Watertight Enclosure, Four Lid Screws
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- General purpose ABS, 240 x 160 x 91 mm (9.45 in x 6.30 in x 3.58 in), light gray RAL 7035
- Tested to IP66; IK07 impact rating per IEC 62262:2021; UL94-HB material for indoor use
- Inside length 232.26 mm, inside height 81.50 mm; max P.C. board 146.74 x 231.47 mm
- 4 self captivating M4 stainless steel lid screws in corrosion resistant inserts; torque 43-57 ozf-in (30-40 cN-m)
- Tongue and groove lid with replaceable one piece silicone gasket, supplied loose inside the enclosure
- Molded DIN rail tabs, M3 brass inserts, #6 self-tapping screw mounting and card guides for 1.5 mm boards
- Wall-mounting holes outside the gasket channel; accepts 1554FT foot kit and 1554VPL steel inner panel
- Recommended operating temperature -20°C to +60°C (-4°F to +140°F)

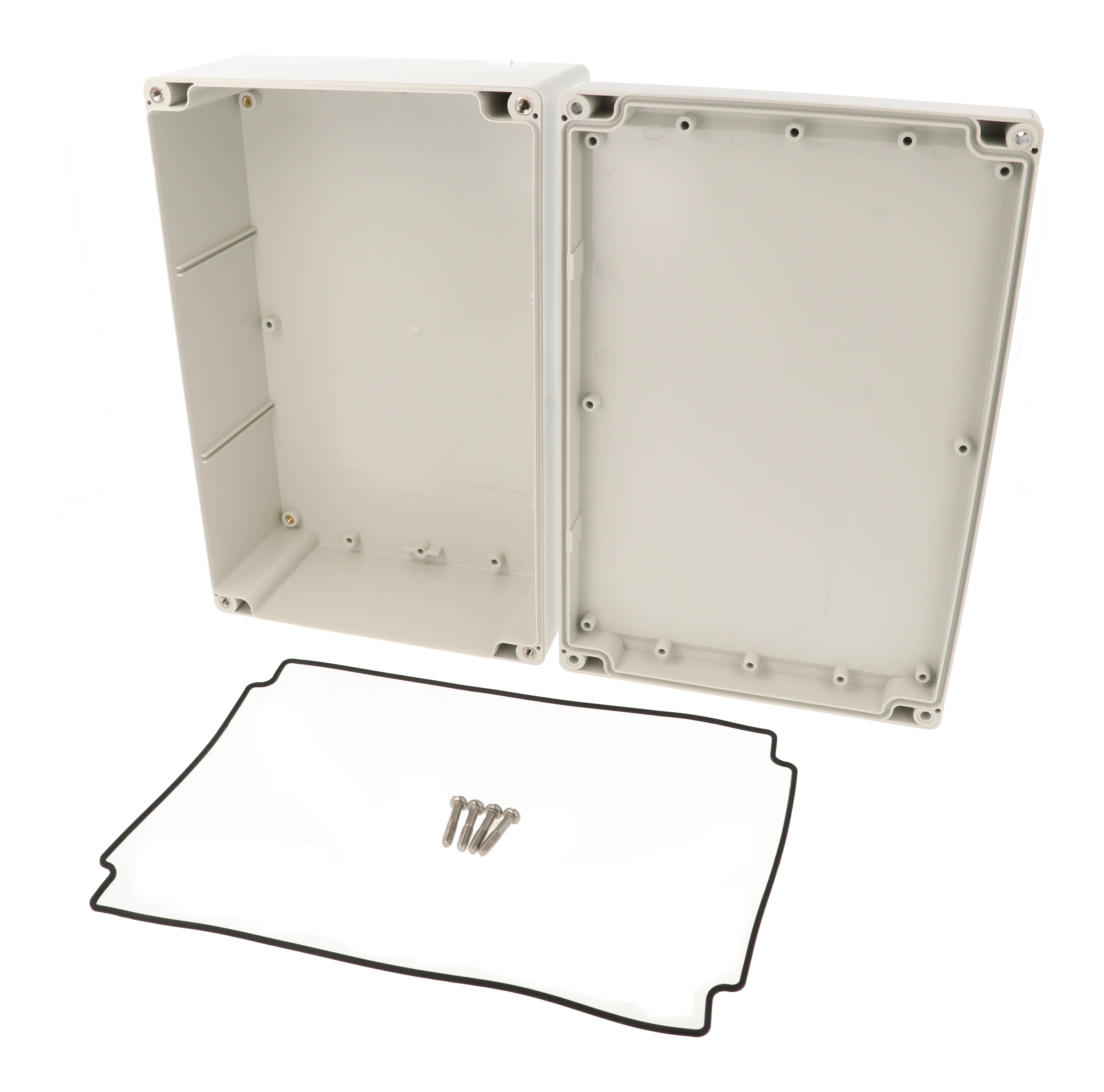

The 1555VGY is a general purpose ABS enclosure on the 240 x 160 mm footprint with a total height of 91 mm (3.58 in), finished in light gray RAL 7035. Unlike the six-screw VA sizes, this regular enclosure closes with four M4 stainless steel cover screws, making it a straightforward indoor housing for PC boards and DIN rail mounted parts.
Its gasketed, tongue and groove lid seals on a replaceable one piece silicone gasket supplied loose inside. The screws are self captivating, thread into corrosion resistant inserts, and should be tightened to 43-57 ozf-in (30-40 cN-m). The drawing shows an overall height of 90.50 mm.
Inside dimensions are 232.26 mm long, 148.26 mm wide and 81.50 mm high, and the part accepts P.C. boards up to 146.74 x 231.47 mm. Mounting options include molded DIN rail tabs, M3 brass inserts, #6 self tapping screw standoffs and card guides for 1.5 mm boards. Accessories specific to this size include the 1554VPL steel inner panel, the 1554VGASKET replacement gasket and the 1554VCL clear lid.
The 1555VGY is IP66 tested, rated IK07 per IEC 62262:2021, molded from UL94-HB ABS and recommended for indoor use from -20°C to +60°C; it is not UL listed. Four 4.57 mm wall-mounting holes sit outside the gasket channel and also fit the 1554FT foot kit. Shipping weight is 1.1 lbs (0.50 kg).
Ideal For
- Indoor PCB housings
- DIN rail component enclosures
- Clear-lid display builds with 1554VCL
- Wall-mounted watertight indoor boxes
Overview
| Type | Water-tight |
| Series | 1555 Series |
| Description | RAL7035 grey watertight plastic enclosure |
| Part Number | 1555VGY |
| Material Version | General Purpose ABS |
| Short Description | 240X160X90MM ABS NEMA ENCL. |
| Enclosure Size Code | 1555V |
| Alternate Material Version | 1555V2GY (Polycarbonate, UL Listed) |
Dimensions
| Inside Width | 148.26 mm [5.84 in] |
| Inside Height | 81.50 mm [3.21 in] |
| Inside Length | 232.26 mm [9.14 in] |
| Size (L X W X H) | 9.4 in x 6.3 in x 3.5 in (239 mm x 160 mm x 89 mm) |
| Max. P.C. Board Width | 231.47 mm |
| Max. P.C. Board Length | 146.74 mm |
| Width (Ordering Table) | 6.30 in (160 mm) |
| Length (Ordering Table) | 9.45 in (240 mm) |
| Overall Height (Drawing) | 90.50 mm [3.56 in] |
| Total Height (Ordering Table) | 3.58 in (91 mm) |
Accessories
| Foot Kit | 1554FT |
| Replacement Gasket | 1554VGASKET (silicone pre-formed gasket, black, Pkg 2) |
| Replacement Cover Screws | SC583-50 (M4-0.7 x 25mm, Pkg 50), stainless steel |
| Steel Panel / P.C. Board Screw | 1591MM100 (M3-0.5 x 8mm Plated, Pkg 100) |
| Compatible Clear Lid (Not Styled) | 1554VCL (240 x 160 x 20 mm) |
| Steel Inner Panel (Order Separately) | 1554VPL (fits in box or lid) |
| Steel Panel / P.C. Board Self Tapping Screw | 1598ATS100 (#6 x 1/4" (6.4mm) Plated, Pkg 100) |
Identifiers
| UPC | 623980842639 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | Shrink wrap |
| Shipping Weight | 1.1 lbs (0.50 kg) |
Construction & Finish
| Color | Light Gray (RAL 7035) |
| Gasket | One piece, high temperature UL listed silicone, replaceable; supplied loose inside the enclosure (not pre-installed) |
| Included | Box, lid, 4 cover screws and preformed silicone gasket |
| Material | ABS Plastic |
| CAD Models | Solid models available in .stp or .x_t |
| Lid Screws | 4 x M4 stainless steel machine screws, self captivating, threaded into corrosion resistant inserts |
| Internal Inserts | Threaded (M3) integral brass inserts |
| Lid Construction | Gasketed lid, two piece tongue and groove construction |
| Internal Features | Internal DIN rail mounting tabs; lid standoffs; vertical PC card guides for 1.5 mm thick P.C. boards |
| Wall Mounting Holes | 4X 4.57 mm [.18 in], located outside of the gasket channel |
| Factory Modification | Can be factory modified (milling, drilling, printing etc.) |
| Self-Tapping Screw Mounting | Accepts #6 self-tapping screws |
| Recommended Cover Screw Torque | 43-57 ozf-in (30-40 cN-m) |
Environmental & Protection
| IP Rating | IP66 |
| Environment | Indoor use |
| Flame Rating | UL94 HB |
| Impact Rating | IK07 per IEC 62262:2021 |
| Operating Temperature | -20°C to +60°C (-4°F to +140°F) recommended |
Compliance & Certifications
| UL Listing | Not UL listed (general purpose ABS version is not UL approved) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the dimensions of the 1555VGY?▾
The ordering table lists 9.45 in (240 mm) long, 6.30 in (160 mm) wide and 3.58 in (91 mm) total height; the part page lists 9.4 in x 6.3 in x 3.5 in (239 mm x 160 mm x 89 mm). Inside length is 232.26 mm [9.14 in], inside width 148.26 mm [5.84 in] and inside height is 81.50 mm [3.21 in].
Is the 1555VGY UL listed or suitable for outdoor use?▾
No. The 1555VGY is the general purpose ABS version, which is not UL listed and is intended for indoor use. It has been tested to IP66 and carries an IK07 impact rating. The UL listed, UV stabilized polycarbonate version is 1555V2GY.
What comes with the enclosure?▾
The assembly includes the box, lid, 4 M4 stainless steel cover screws and a preformed silicone gasket. The gasket is supplied loose inside the enclosure, not pre-installed. The 1554VPL steel inner panel is ordered separately.
What size circuit board will fit?▾
The maximum P.C. board size is 146.74 x 231.47 mm. Boards can mount on the M3 brass inserts or #6 self-tapping screw positions, and vertical card guides accept 1.5 mm thick P.C. boards.
How tight should the lid screws be?▾
The drawing recommends a cover screw torque of 43-57 ozf-in (30-40 cN-m). The lid screws are self captivating, and the lid holes are threaded the first time the screws are installed.
What temperature range is it rated for?▾
The recommended operating temperature for ABS versions is -20°C to +60°C (-4°F to +140°F).
